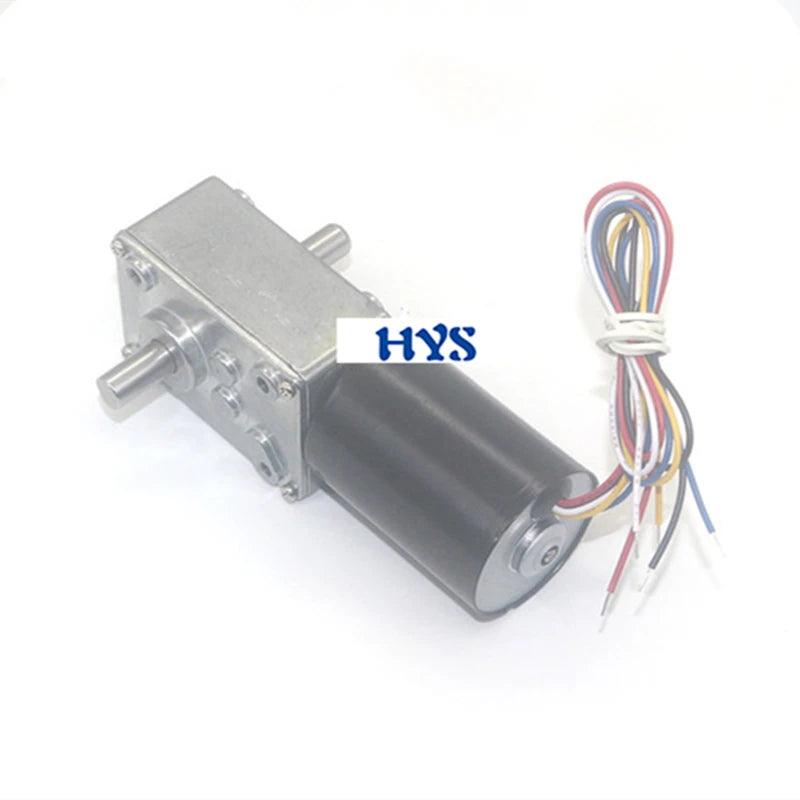

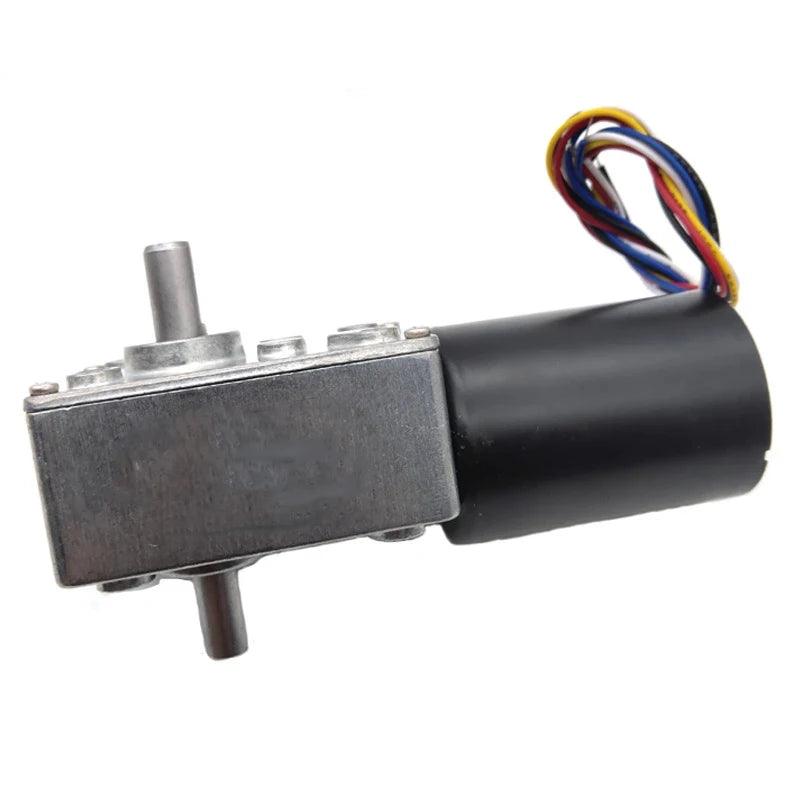

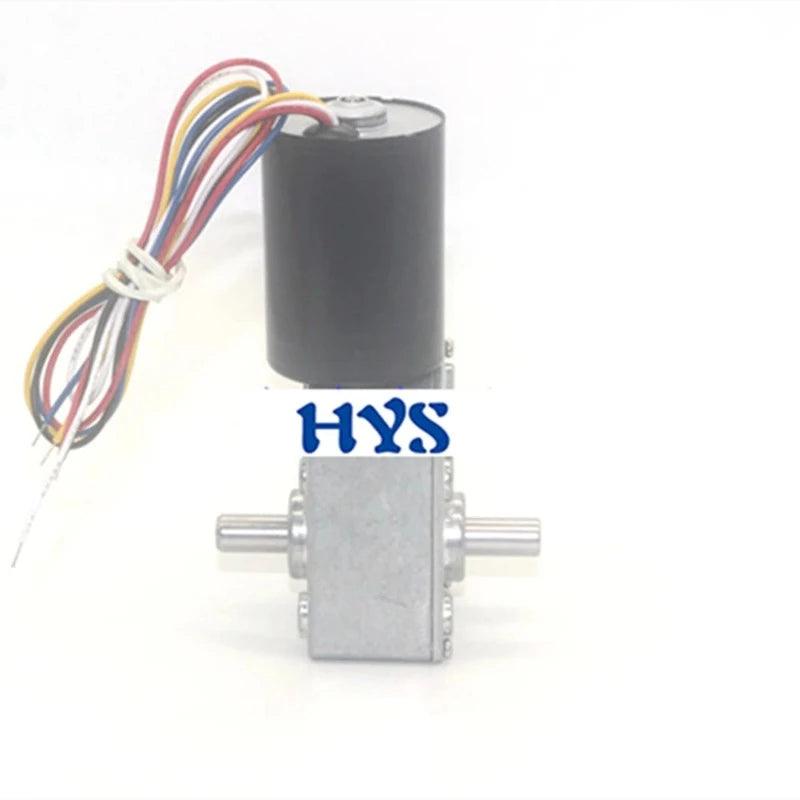

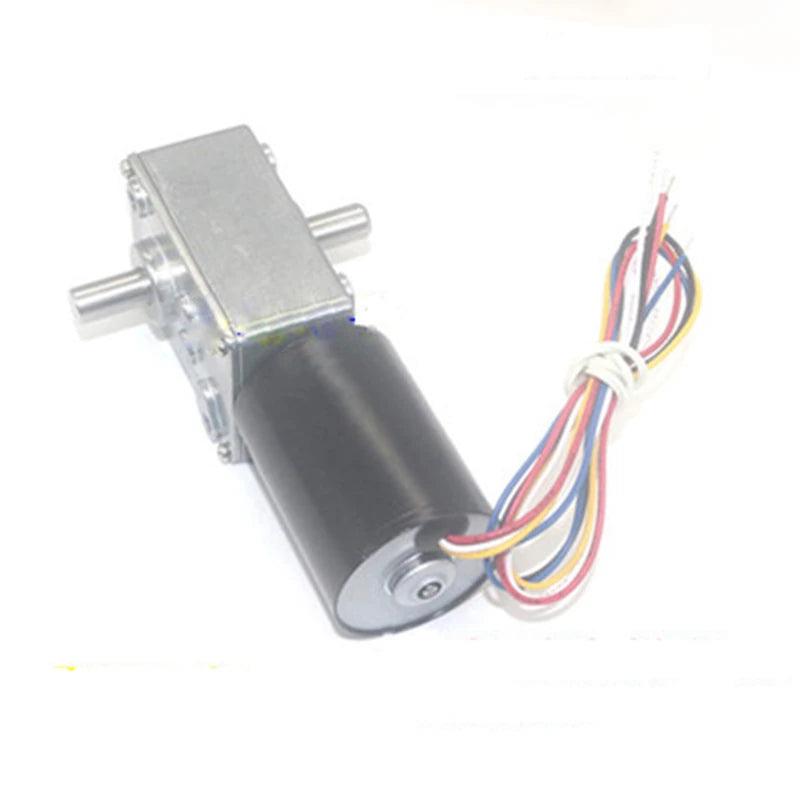

5840-3650 Double Shaft DC Brushless Gear Worm Motor 12V 24V Hiigh Torque 100KG.cm Speed 12rpm-471rpm BLDC Motors

SPECIFICATIONS

5840-3650 Double Shaft DC Brushless Gear Worm Motor 12V 24V Hiigh Torque 100KG.cm Speed 12rpm-471rpm BLDC Motors

Brand Name: HYSMOTOR

Certification: CCC

Certification: ROHS

Origin: Mainland China

Continuous Current(A): 1a

Output Power: 31W

Commutation: Brushless

Type: Gear Motor

Protect Feature: Drip-proof

Construction: Permanent Magnet

Usage: BoAt

Usage: car

Usage: Electric Bicycle

Usage: Fan

Usage: Home Appliance

Efficiency: IE 1

Model Number: 5840-3650 Speed Reducer Motor

Torque: max 70kg.cm

pecification:

• Voltage: DC12V

No-load Speed: 235rpm,130rpm,80rpm,40rpm,20rpm,14rpm,8rpm

• Voltage: DC24V

No-load Speed: 470rpm,260rpm,160rpm,80rpm,40rpm,27rpm,16rpm

• Error: plusmn5%

Wire:

1.Red line:Power supply +
2.Black line:Power supply -
3.Yellow:Pulse signal output,when motor run 1 turn ,it output 6 pulses.
4.Blue line: PWM
5.White line:CW/CCW, when this line put on the black line togehter, then motor Reverse

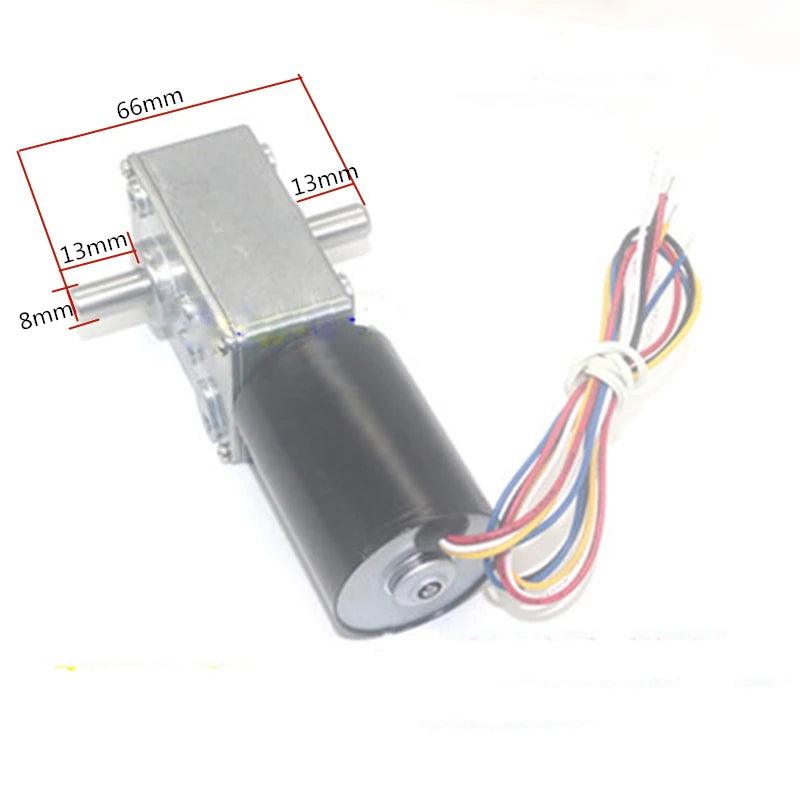

Size:
