57BYG stepper motor 56mm 2 phase 1.8 degree 3A 1.2N.m hybrid driver motor Nema 23 Step Motor

$34.20 USD
$42.10 USD $34.20 USD
Sale Sold out
Shipping calculated at checkout.

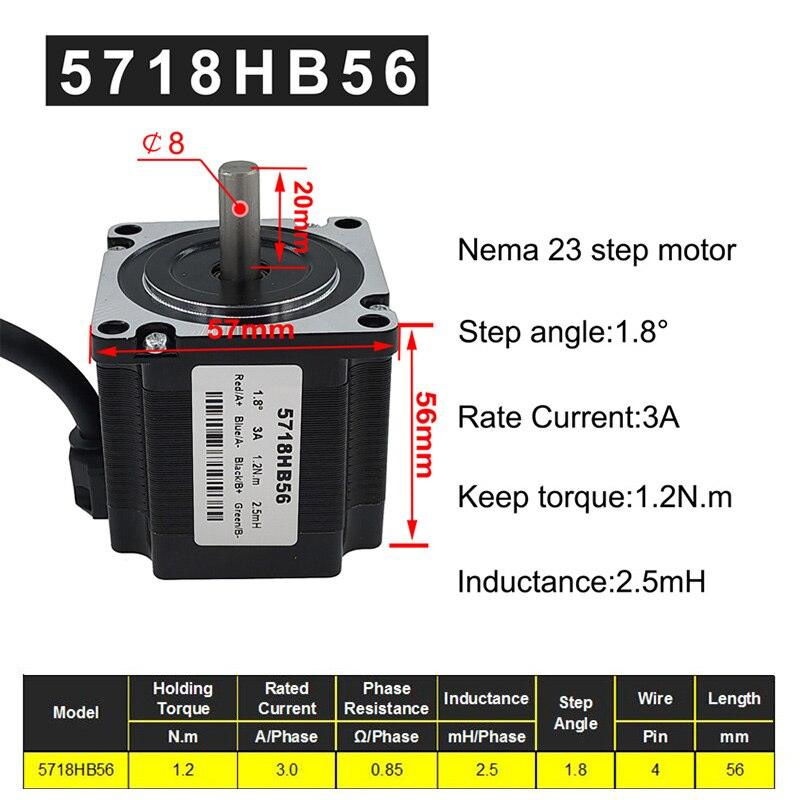

SPECIFICATIONS

57BYG stepper motor 56mm 2 phase 1.8 degree 3A 1.2N.m hybrid driver motor Nema 23 Step Motor

Type: Hybrid

Step Angle(degrees): 1.8Degree

Phase: 2

Origin: CN(Origin)

Model Number: 5718HB56

Holding Torque: 1.2N.m

Current / Phase: 3A

Certification: ce

Quick Details

Model Number:5718HB56
Type:Hybrid
Current / Phase:3.0A
Certification:CCC, ce, ROHS
Product name:Stepping Motor
Motor length:56mm
Diameter:8mm
Keywords:2-phase Stepper Motor
