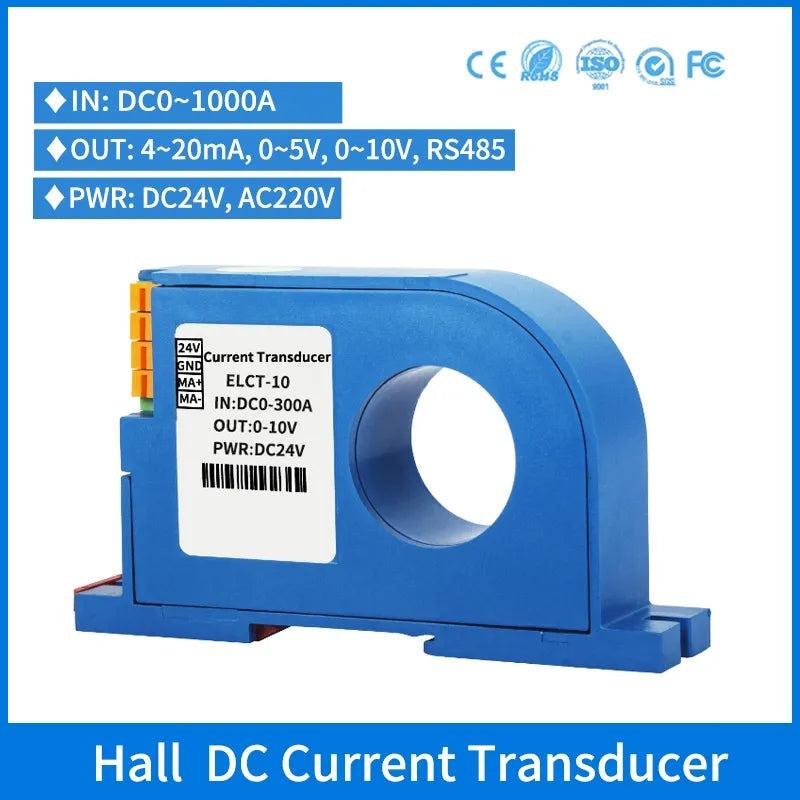

4-20mA 0-10V RS485 Hall Current Transmitter 0-1000DC Current Transducer

SPECIFICATIONS

4-20mA 0-10V RS485 Hall Current Transmitter 0-1000DC Hall Effect Current Sensor Isolation Current Transducer /22mm aperture|AC220V Powered

Supply Voltage: DC12V-24V, AC220V

Response time: <200ms

Product name: Hall current transducer

Output signal: 4-20mA,0-5V,0-10V,RS485

Origin: Mainland China

Operating Temperature: -30℃~+85℃

Model Number: ELCT-10

Installation method: DIN 35mm rail+ plane screw fixation

Input current range: DC 0-2000A

Frequency range: 40-60HZ

Display Type: Analog Only

Dimensions: 22mm

DIY Supplies: ELECTRICAL

Certification: CE

Brand Name: KEJUN

Accuracy Class: 0.5%FS

4-20mA 0-10V RS485 Hall Current Transmitter 0-1000DC Hall Effect Current Sensor Isolation Current Transducer

This link is special for DC current transducer.

AC current transducer link click here: AC current transducer

NOTES:

The aperture diameter is 22mm.

If you need other size (25mm, 31mm), please contact me.

We can make special customization for you.



Product Description

1>>. Working principle: Open loop direct measurement.

2>>. Usage: Used for measuring DC,AC,pulse current and other arbitrary waveform current.

3>>. Advantages: Better cost-performance,low power consumption,small volume,light weight,easy installation,perforation input and no insertion loss.

4>>. Application: Frequency conversion speed control system,electric welding machine,electro-chemistry,power supply monitoring,electric locomotive,low level starting protection.

5>>. The input,output,power and outer shell are isolated,with strong anti-interference ability and high reliability.

6>>. Full channel configuration,parameters customized.

Technical Specifications

Product Features

Product Selection

Product Dimension

Wiring Diagram

Product Application
