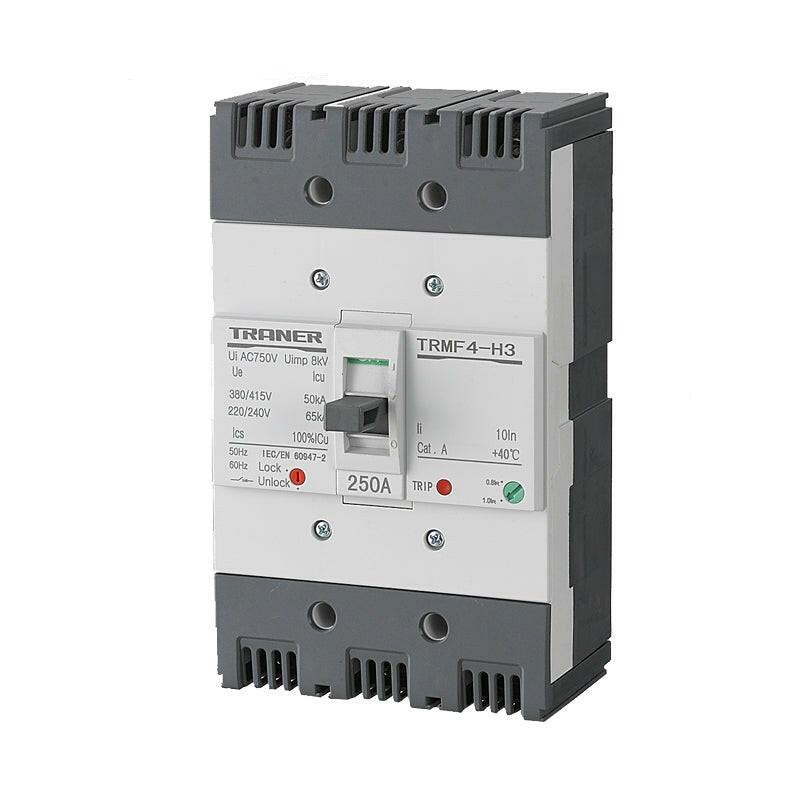

3 Pole MCCB TRMF4-250 415V/37kA 3P 100-250A Mould Case Circuit Breaker

 Specification

3 Pole MCCB TRMF4-250 415V/37kA 3P 100-250A Mould Case Circuit Breaker

About this item

• Distribute Electric Energy - Mainly used to distribute electric energy and protect circuits and power equipment from overload, short circuit, under voltage and other faults
• Good Flame Retardancy - The thermosetting material has good flame retardancy, will only gradually carbonize even if encounters an open flame, and will not burn, so that is safe
• Suitable For Extreme Environments - Rated current for 100A, frequency is 50/60Hz. Environmental operating temperature from 20℃60℃, suitable for more extreme environments
• Short Circuit And Overload Protection - Possess the characteristics of small size, short circuit protection, overload protection, flame retardant shell, high segmentation, short arcing, etc.
• Protection Of Motor - Can also be used for infrequent starting and overload, short circuit and under voltage protection of the motor

Product Description

Item Type: Moulded Case Circuit Breaker
Model: TRMF4-125/3P

Dimension(L*W*H): 165x105x60mm
Material: Thermoplastic PA6+ contact copper
Frame Current(AF): 250A
Frequency: 50/60Hz
Rated Insulation Voltage (Ui): AC 415V
Rated Voltage (Ue): AC 415V
Rated Impulse Withstand Voltage (Uimp): 6KV
Ics=75%Icu Cat A
mccb 250a,150a mccb,160 amp mccb,160 amp mccb price,200 a mccb price,mccb 100a 3p
Package List:

2 x Terminal Cover
1 x Circuit Breaker
2 x Partition Board
1 x Screw Pack
