395 Geared Motor DC 12V 43rpm Robot Gear Reducer Speed Moter Dia 6mm Shaft Electric Motor DIY
Couldn't load pickup availability
SPECIFICATIONS
395 Geared Motor DC 12V 43rpm Robot Gear Reducer Speed Moter Dia 6mm Shaft Electric Motor DIY
Brand Name: HYSMOTOR
Certification: CCC
Certification: ROHS
Origin: Mainland China
Continuous Current(A): 0.15A
Commutation: Brush
Type: Gear Motor
Protect Feature: Drip-proof
Construction: Permanent Magnet
Usage: BoAt
Usage: car
Usage: Electric Bicycle
Usage: Fan
Usage: Home Appliance
Efficiency: IE 1
Model Number: 28A395-75-12-42 DC12V Motor
Voltage: DC12V 12 V Volt
Geared box Moter: Can adjustment speed
Metal gear motor: can reversed and Forward
DC12V: 43rpm

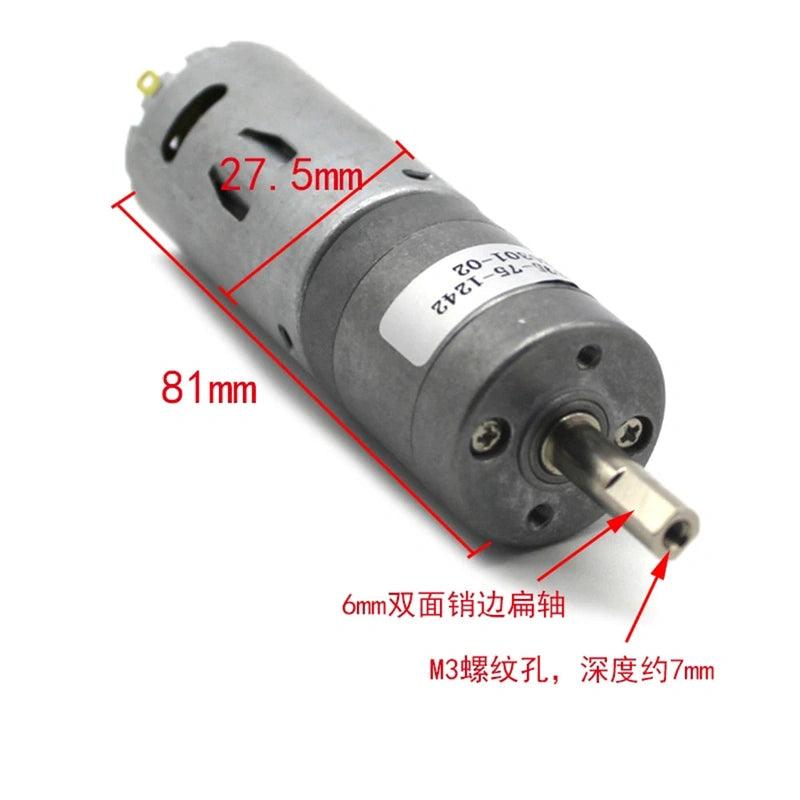

28A-395-75-12-42 geared motor is a motor made by DIY, with metal scaling. The front end of the motor shaft has an M3 threaded hole with a depth of about 7mm, which can be used for fixing accessories
Overall length: 81mm
Motor Diameter: 27.5
Fixed aperture: two M3 screw holes
Fixed hole distance: 19mm
Output shaft diameter: 6mm double-sided chamfered flat shaft at the head, 2.3mm round shaft at the tail
Output shaft length: 19mm
Rated voltage: DC12V
Motor speed: 12V43rpm
No-load current: 12V 0.15a
