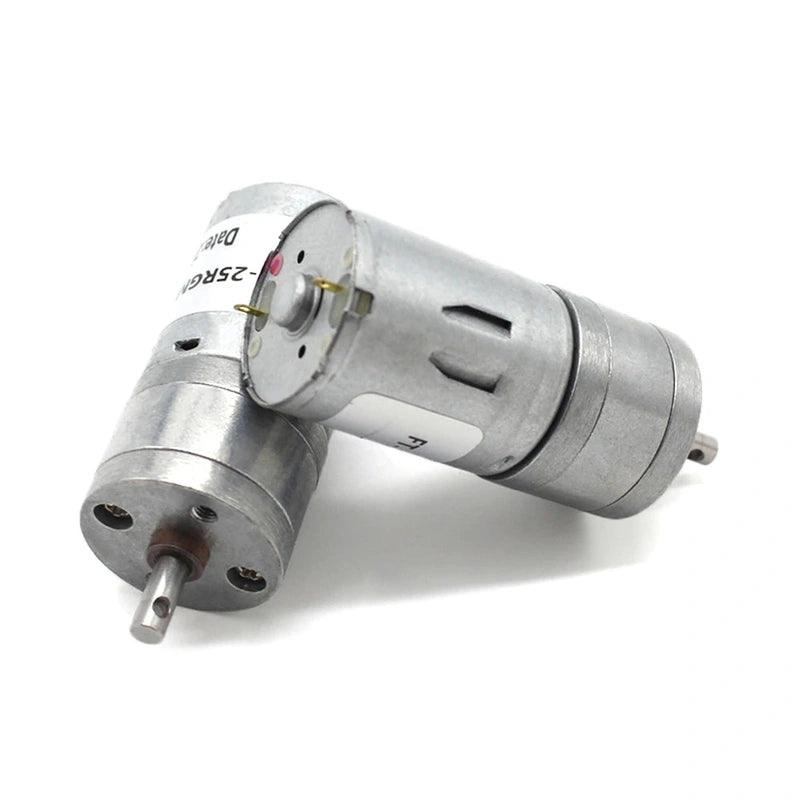

370 Geared Motor DC 12V6V 3V Model Moter High Torque Slow Speed DIY Robot Electric Motor
Couldn't load pickup availability
SPECIFICATIONS
370 Geared Motor DC 12V6V 3V Model Moter High Torque Slow Speed DIY Robot Electric Motor
Brand Name: HYSMOTOR
Certification: CCC
Certification: ROHS
Origin: Mainland China
Continuous Current(A): 0.15A
Commutation: Brush
Type: Gear Motor
Protect Feature: Drip-proof
Construction: Permanent Magnet
Usage: BoAt
Usage: car
Usage: Electric Bicycle
Usage: Fan
Usage: Home Appliance
Efficiency: IE 1
Model Number: FT-25RGM370 Motor DC 3V 6V 12V
Voltage: DC6V 12V
Geared box Moter: Can adjustment speed
Metal gear motor: can reversed and Forward
DC12V: 1000rpm
DC6V: 500rpm
High torque slow motor, can be driven by DC6V-12V, suitable for making robot models, toy cars, etc.
Length: 50mm
Width: 25mm
Shaft diameter: 4mm
Shaft length: 10mm
Step diameter: 7mm
Step height: 2.5mm
Small hole on the shaft Diameter: 2mm
Fixed aperture: 2.5mm
Fixed hole distance: 16.5mm
Weight: 85g
Rotating speed:
DC6V 500rpm
DC12V 1000rpm
