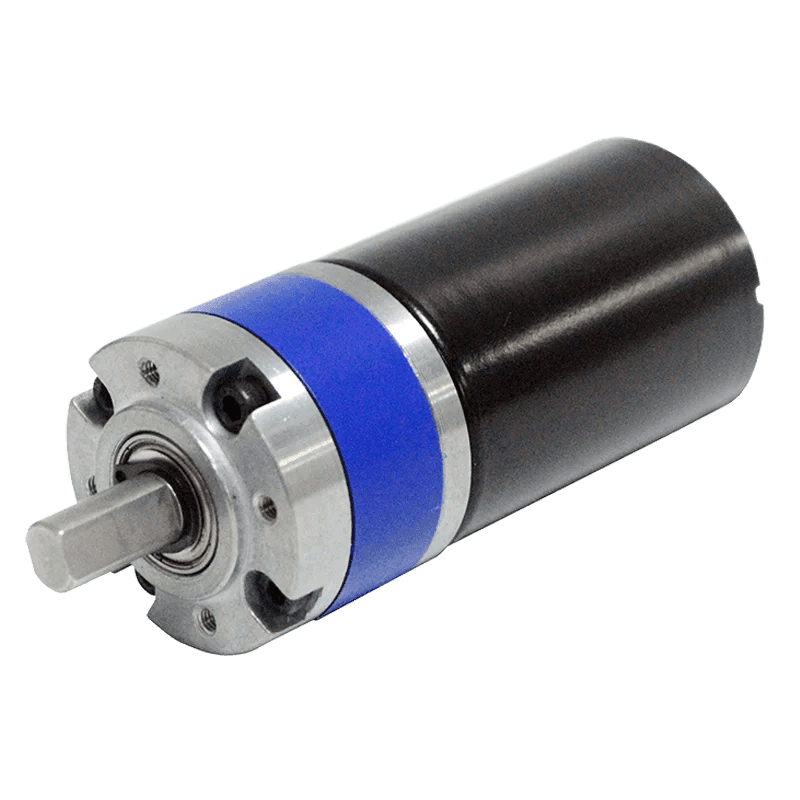

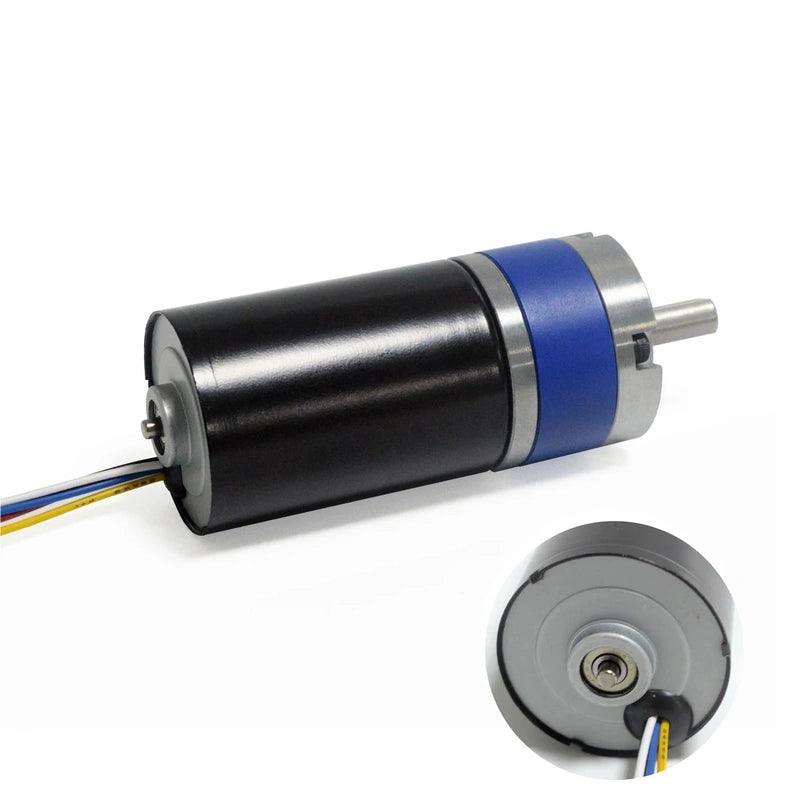

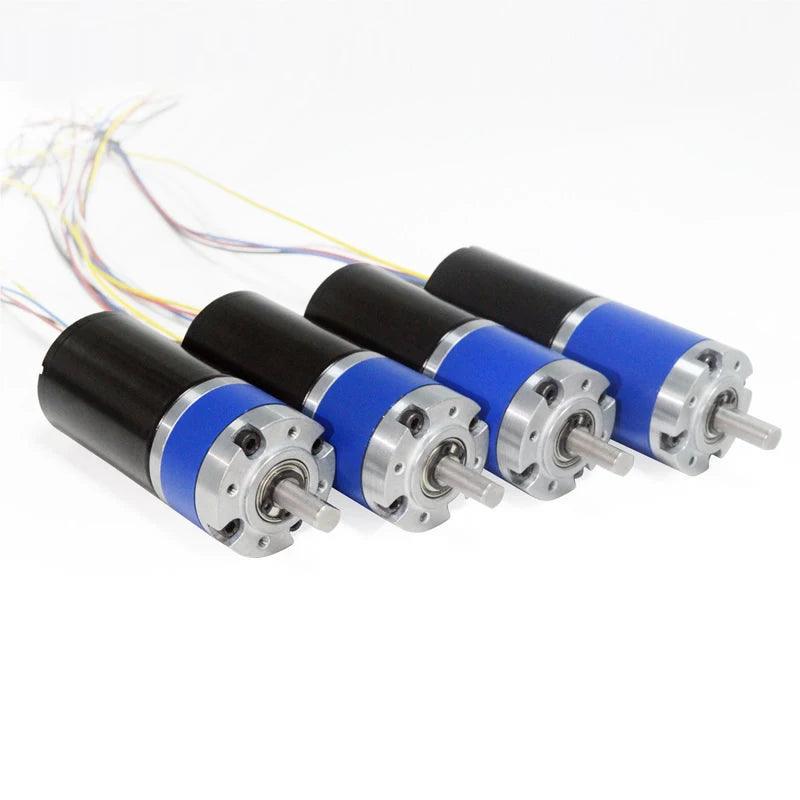

36GP-3650 100KG.CM 12V 24V DC Brushless Motor Planetary Metal Gearbox Reducer with Low Noise Long Life DC Motor 10W Engine

Planerary gear motor:

1.Standard Operating Conditions: Rated Voltage: 12v 24v. 1-1Direction of Rotation:CW when viewed from output shaft side 1-2 Operating Temperature and Humidity:Temperature range of -10C~+50C,Humidity range of 30%~80%. 1-3 Storage Temperature:Temperature range of -20C~+60C

2.Measuring Conditions: 2-1 Motor Position:To be place t horizontally when measuring 2-2 Power Supply: Regulated DC power supply --No load speed:2-160rpm. --Robotics, Small Appliance, Fanner, Electric Curtain; --Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine; Electric Valve, Actuator, medical device --Electric motor,low noise,low current and no spark. Ratio: 1:3.7 /1:5.18/ 1:14/ 1:27/ 1:50/ 1:71/ 1:100/ 1:139/ 1:189/ 1:263/ 1:369/ 1:516 / 1:721 --- RS-3650 Brushless dc Motor information : 12V 6000RPM , 24V 6000RPM 8000RPM

3.if you can't find the speed in the sku , pls contact us , we will check it Remark: Please confirm the voltage and speed before ordering,if you don't reply within 8 hours after ordering, we will random send one for this type, hope your kindly understanding. If you want to need other speed , pls contact us , we will make it for you

Motor infomration:

if you want to adjust speed by pwm , pls contact us . this motor is adjust speed by VSP (blue wire ) warning : the connection method of motor power can't make wrong , if you make worling , that lead to burining the inner driver

Motor character:

Planetary structure reducer ; Long life , ware-resisting Low noise Motor enigne can be customized Gear box with multiple technical data
