35mm Din Rail NO NC 0-60℃ Industrial Temperature Regulator Automatically Adjusts Heating System Temperature Regulator Thermostat
Couldn't load pickup availability
SPECIFICATIONS
35mm Din Rail NO NC 0-60℃ Industrial Temperature Regulator Automatically Adjusts Heating System Temperature Regulator Thermostat
Usage: Industrial
Type: normally closed and open
Theory: Temperature Controller
Temprature Range: 0~60 degree
Origin: Mainland China
Model Number: 7T.81-230/7T.81-240
Max Measuring Temperature: 50°C - 69°C
Is Smart Device: NO

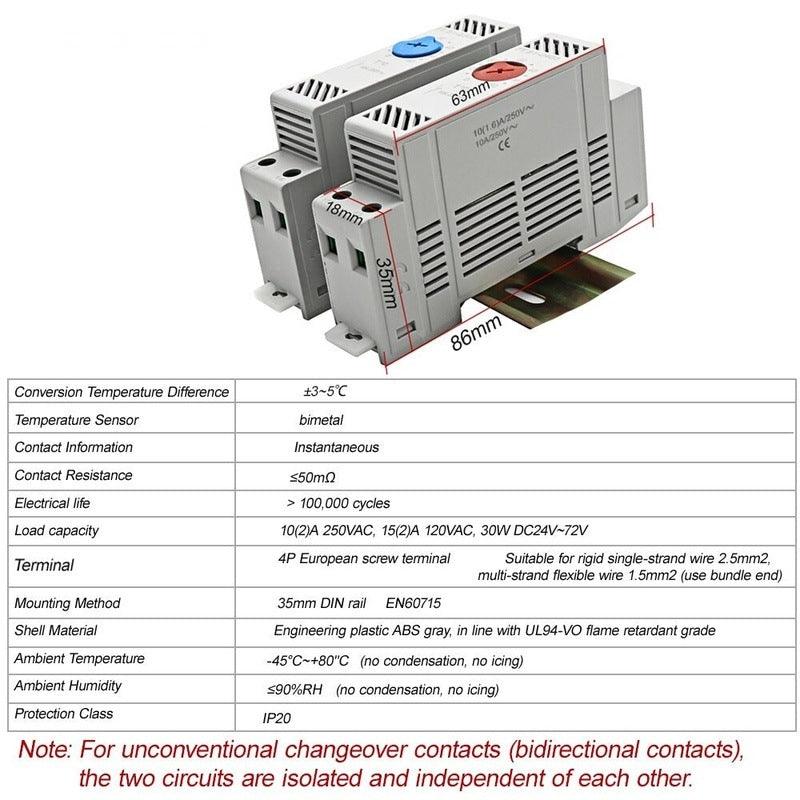

Installation method: 35mm DIN
Electrical life: more than 100,000 times
Display Type: Analog
Conversion temperature difference: ±3~5℃
Contact type: Snap-action contact
Contact resistance: ≤50mΩ
Certification: CE
7T.81-230/7T.81-240 DATA SHEET DOWNLOAD
- Wide setting range
- Flat design saves space
- Rail clamping
- Slim form factor
Application：
Suitable for all kinds: cabinets, electric control cabinets, complete sets of cabinets, electrical boxes, network boxes, monitoring boxes, etc .: internal thermostat.

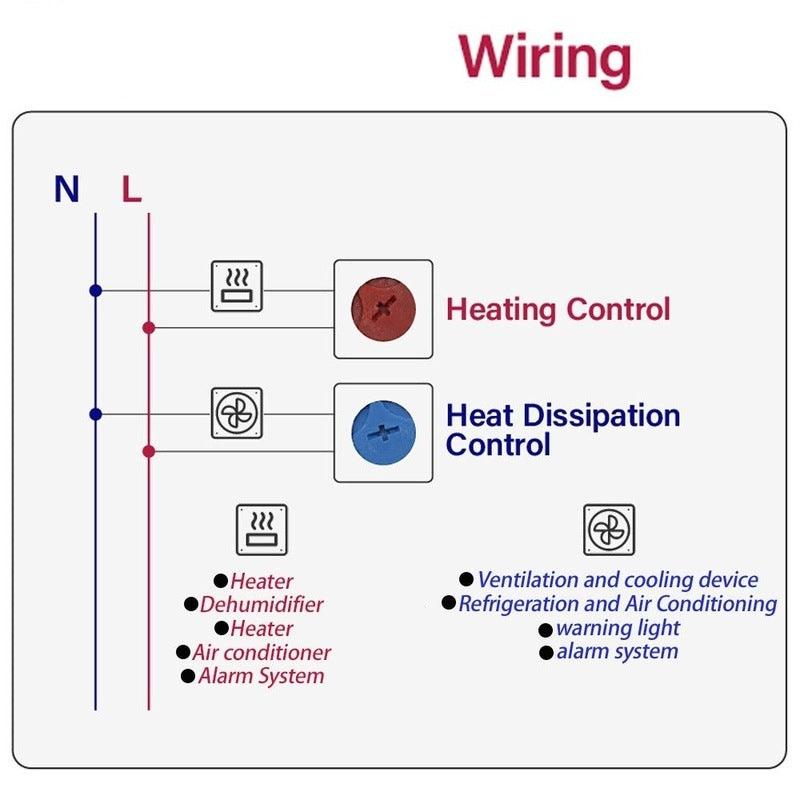

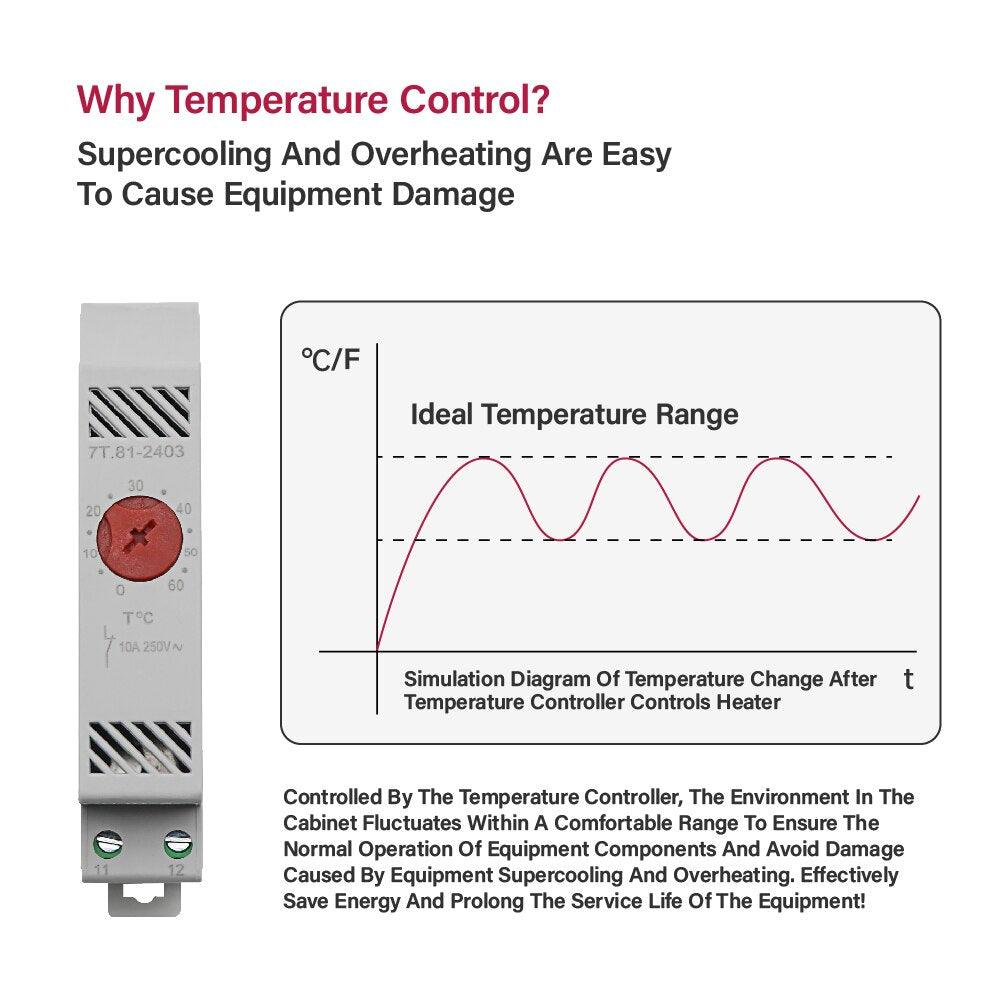

7T.81-240 series heating thermostat regulator. Used with various heaters, automatically shut down when the set temperature is reached Heating equipment to make the internal temperature of the cabinet reach the ideal value, to prevent the formation of water droplets or the temperature is lower than a small value. Protect the equipment and components inside the chassis from rust and corrosion.
7T.81-230 series can be used with various fans / fans: if the temperature is exceeded, the thermostat will automatically. Turn on the cooling fan or other cooling devices to prevent the temperature from being too high to damage the internal equipment of the chassis

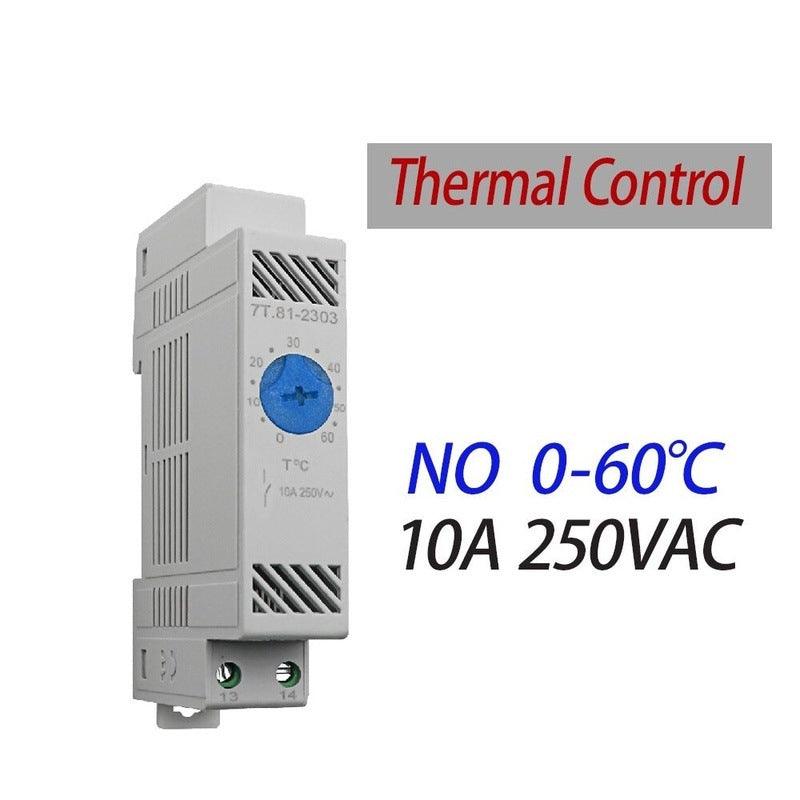

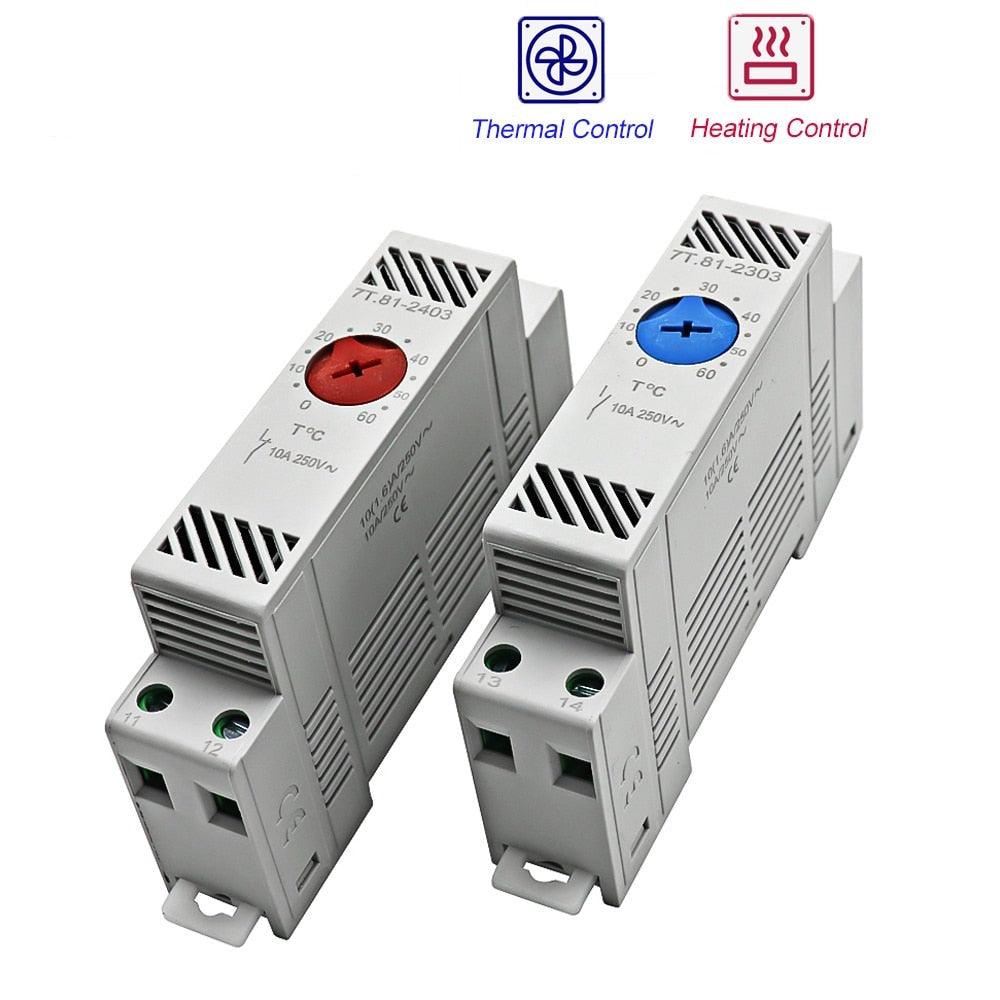

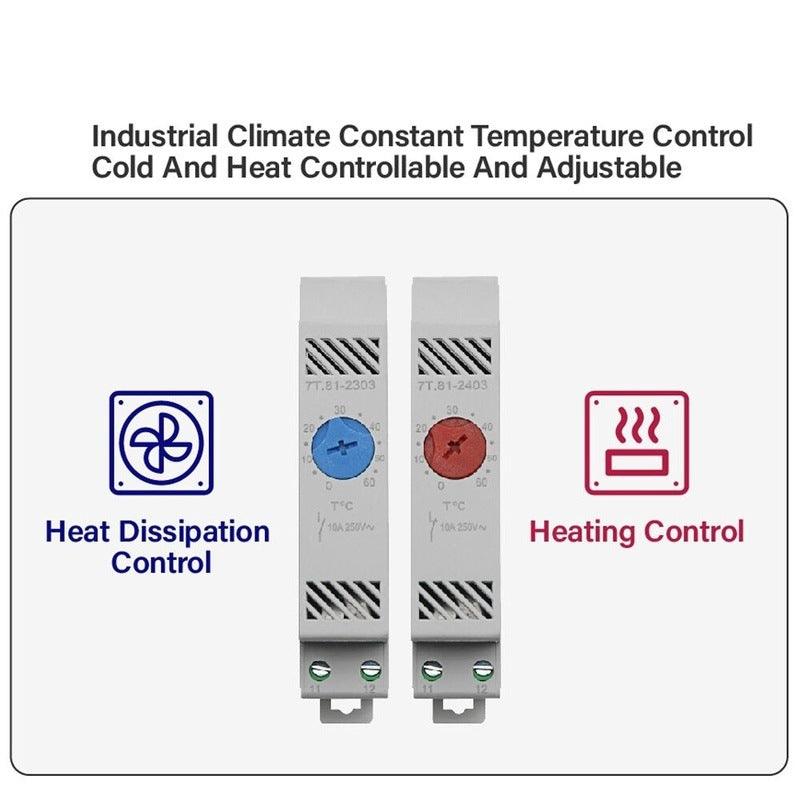

7T.81-240 ( Red Color) and 7T.81-230 (Blue Color)

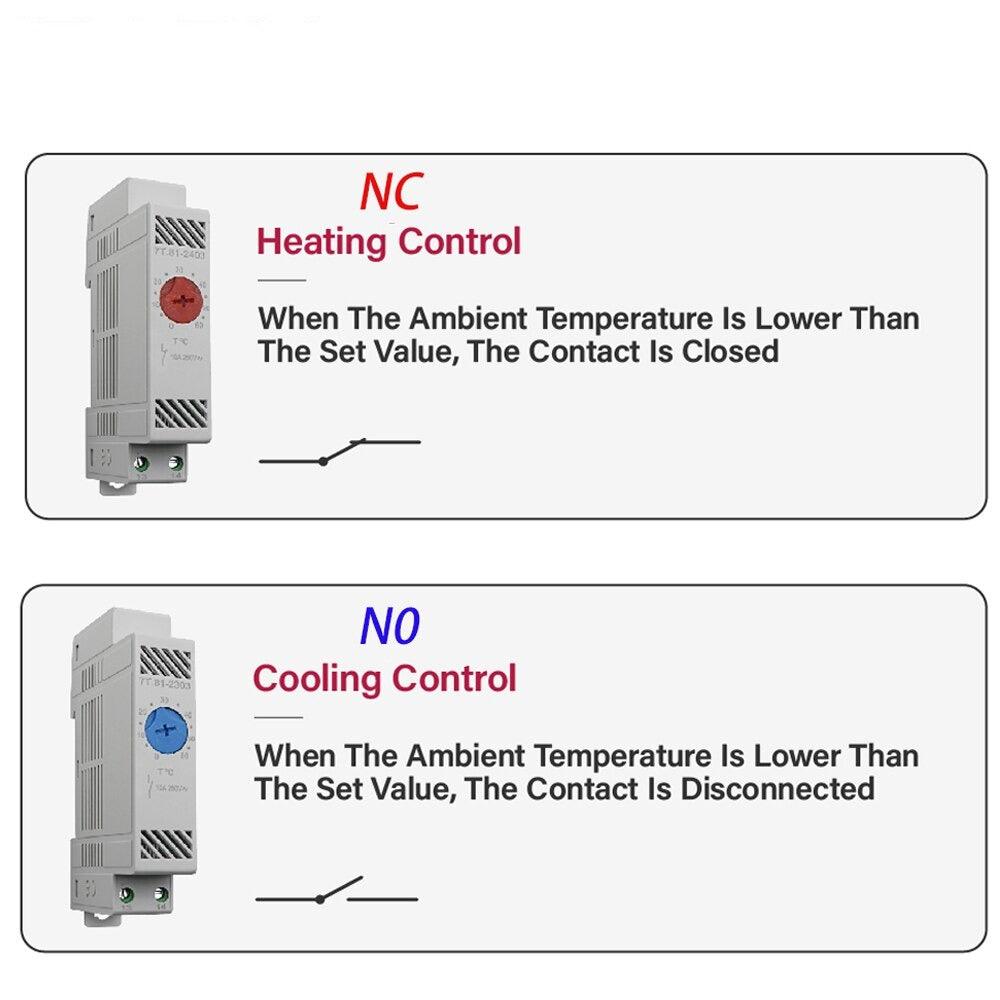

7T.81-240: Thermostat (normally closed); contact breaker for regulating heaters.
(thermostat will stop working when temperature rises to set point)
7T.81-230: Thermostat (normally open); contact maker for regulating of filter fans and heat exchangers or for switching signal devised when temperature limit has been exceeded.
(thermostat will stop working when temperature down to set point)
