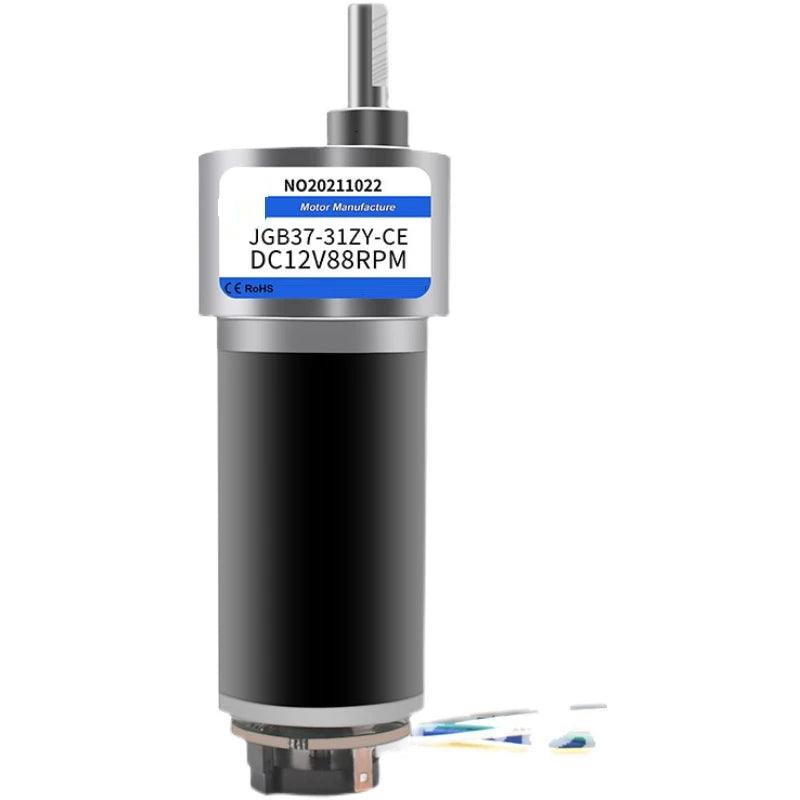

31ZY DC Gear Motor Encoder 12V 24V Max Torque 108KG Speed Reducer 10-1270rpm Metal Gearbox Motor Encode Electric Engine Model

$53.77 USD
$44.18 USD $53.77 USD
Sale Sold out
Shipping calculated at checkout.
Voltage(V)
Speed(RPM)

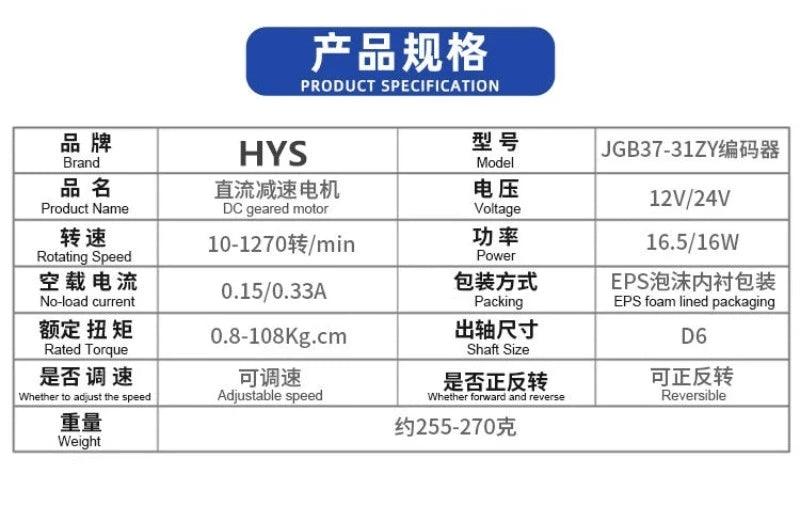

SPECIFICATIONS

31ZY DC Gear Motor Encoder 12V 24V Max Torque 108KG Speed Reducer 10-1270rpm Metal Gearbox Motor Encode Electric Engine Model

Brand Name: HYSMOTOR

Certification: CCC

Certification: ROHS

Origin: Mainland China

Output Power: 16W

Commutation: Brush

Type: Gear Motor

Protect Feature: Totally Enclosed

Construction: Permanent Magnet

Usage: BoAt

Usage: car

Usage: Electric Bicycle

Usage: Fan

Usage: Home Appliance

Efficiency: IE 1

Model Number: JGB37-31ZY encoder Motor

Torque: max 108kg.cm

Line wiring method

1. Red wire: motor power +

2. Black line: motor power supply-

(Note: the positive and negative poles cannot be connected wrongly)

3. Green wire: sensor ground wire

4. Blue line: sensor power supply

5. Yellow line: Signal A output point

6. White line: signal B output point

Care Instructions
