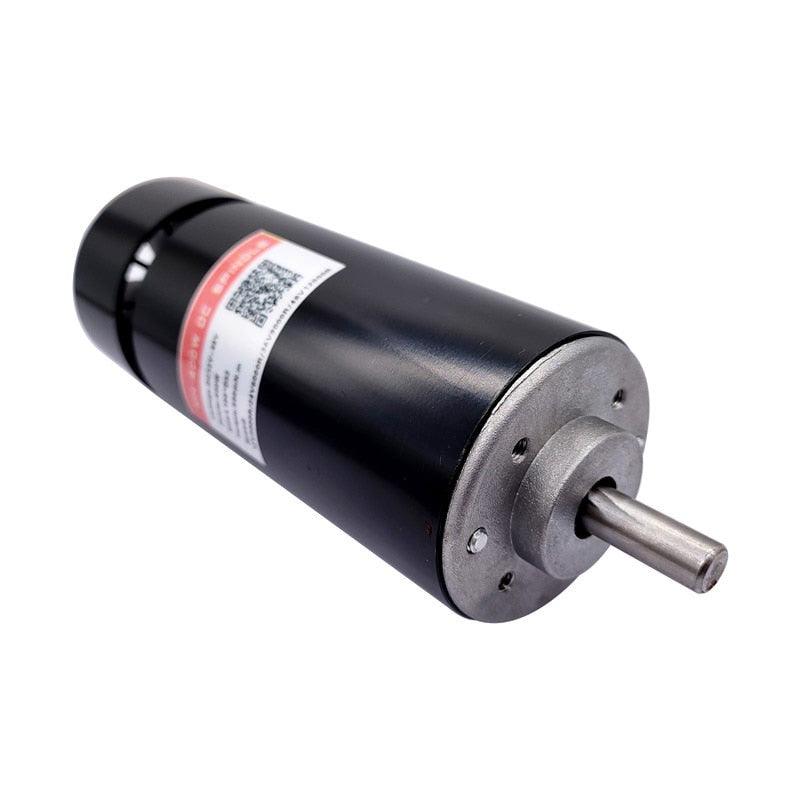

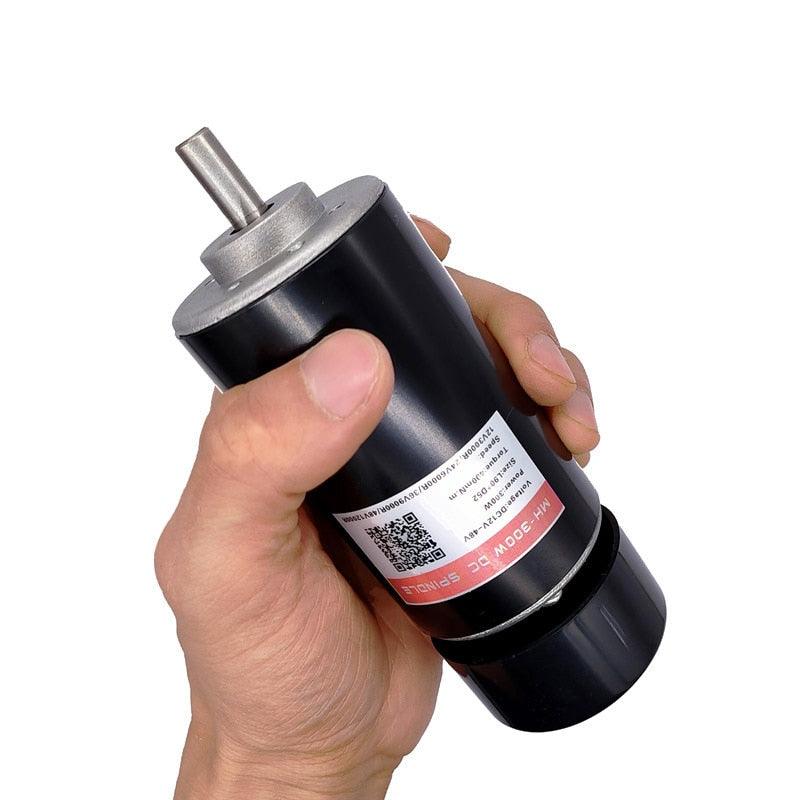

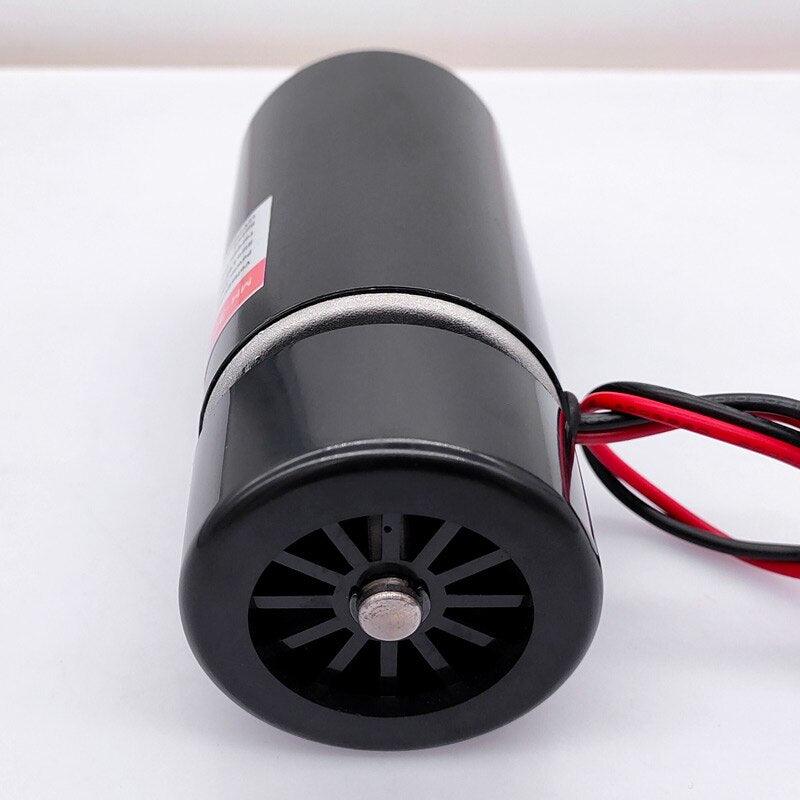

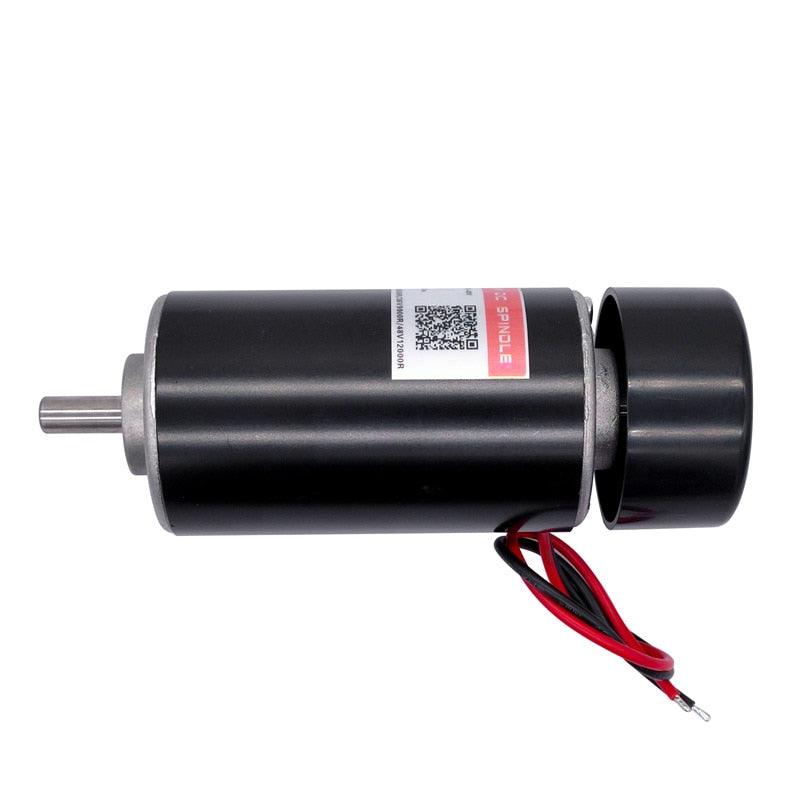

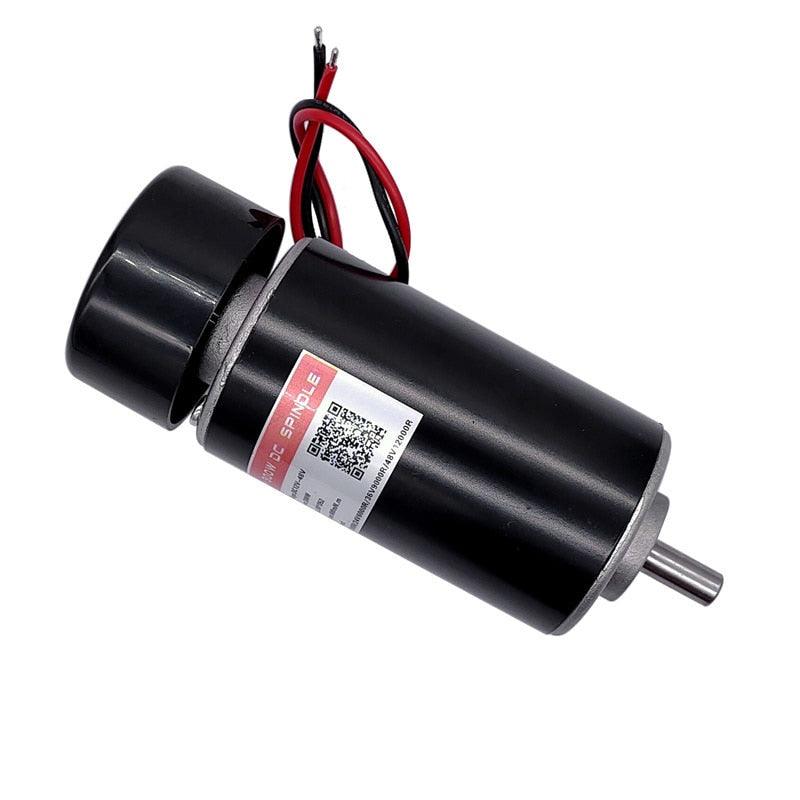

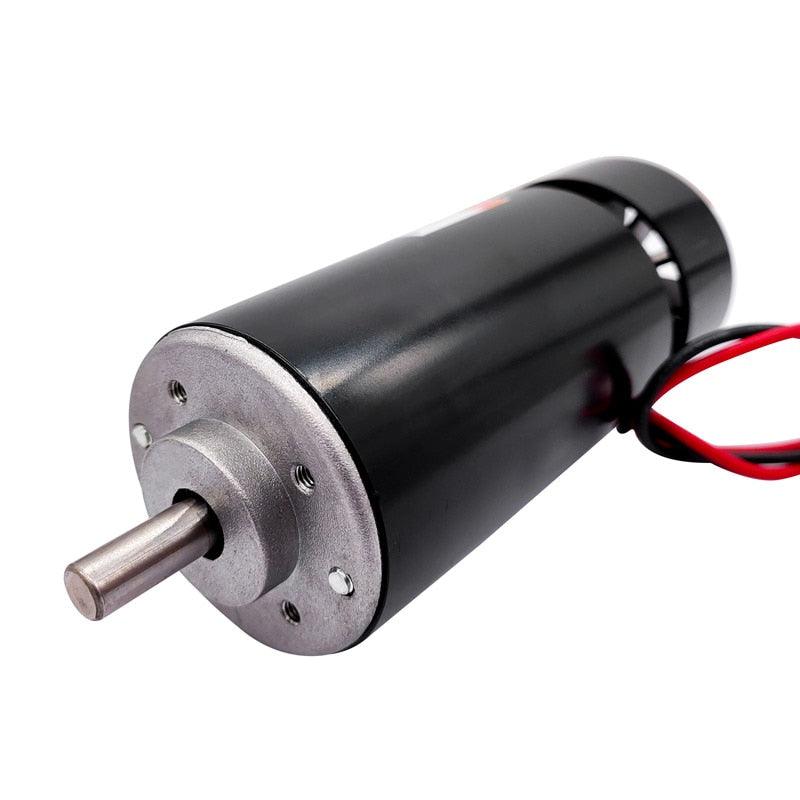

300W Spindle motor DC12-48V 12000rpm spindle cnc router for engraving machine
Regular price
$28.63 USD
Regular price
$37.00 USD
Sale price
$28.63 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SPECIFICATIONS
300W Spindle motor DC12-48V 12000rpm spindle cnc router for engraving machine
Operating Speed: 3000-12000r / min (12v-3000rpm, 24v-6000rpm, 36v-9000rpm, 48v-12000rpm
Model Number: 300W
Maximum Torque: 400MN. M
Drive: MOTOR
Certification: CE
Product parameters
Spindle motor: Electrophoresis black DC brush motor
Working voltage: 12-48vdc
Power: 300W
Starting current: 8A
Locked rotor current: 25A
Speed: 3000-12000r / min (12v-3000rpm, 24v-6000rpm, 36v-9000rpm, 48v-12000rpm)
Torque: 400MN. M
Insulation resistance: > 2 megohm
Dielectric strength of insulation: 400V
Diameter: 52mm
Motor body length: 90mm
