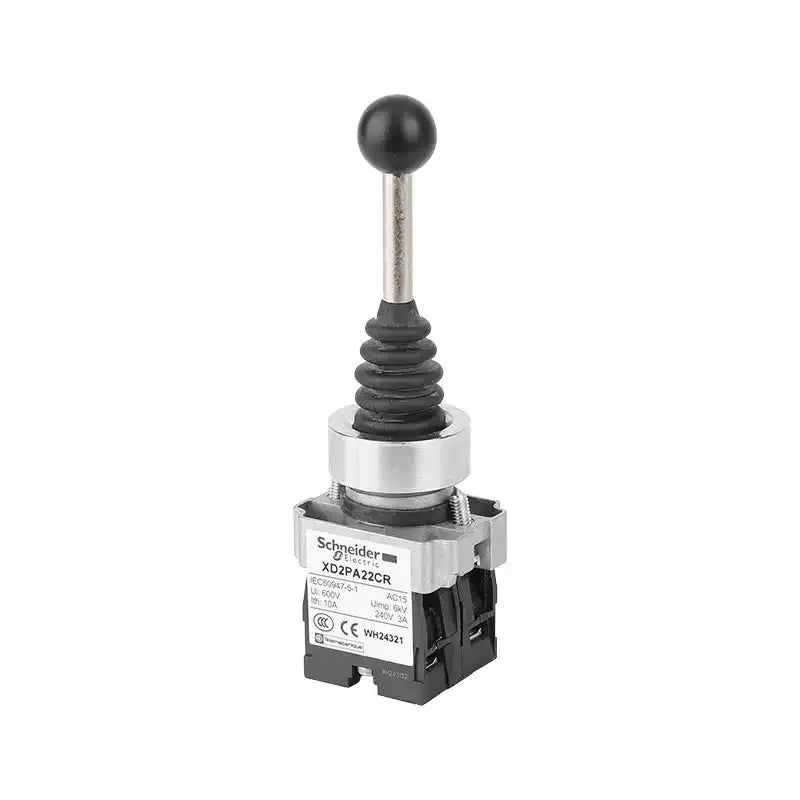

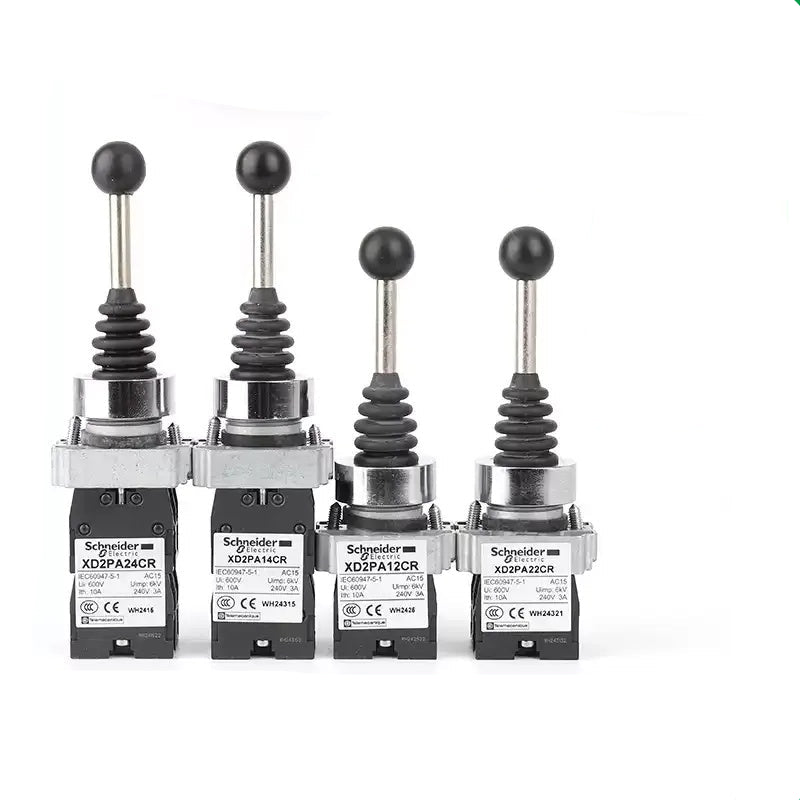

  • Schneider XD2PA Joystick Switch, XD2PA12CR, XD2PA22CR, XD2PA14CR, XD2PA24CR, 2-Position Joystick, 4-Position Joystick, Latching Joystick, Spring Return Joystick, Industrial Control Joystick, Crane Control Switch, Panel Mount Joystick, Schneider Main Control Switch
  • Schneider XD2PA Joystick Switch, XD2PA12CR, XD2PA22CR, XD2PA14CR, XD2PA24CR, 2-Position Joystick, 4-Position Joystick, Latching Joystick, Spring Return Joystick, Industrial Control Joystick, Crane Control Switch, Panel Mount Joystick, Schneider Main Control Switch

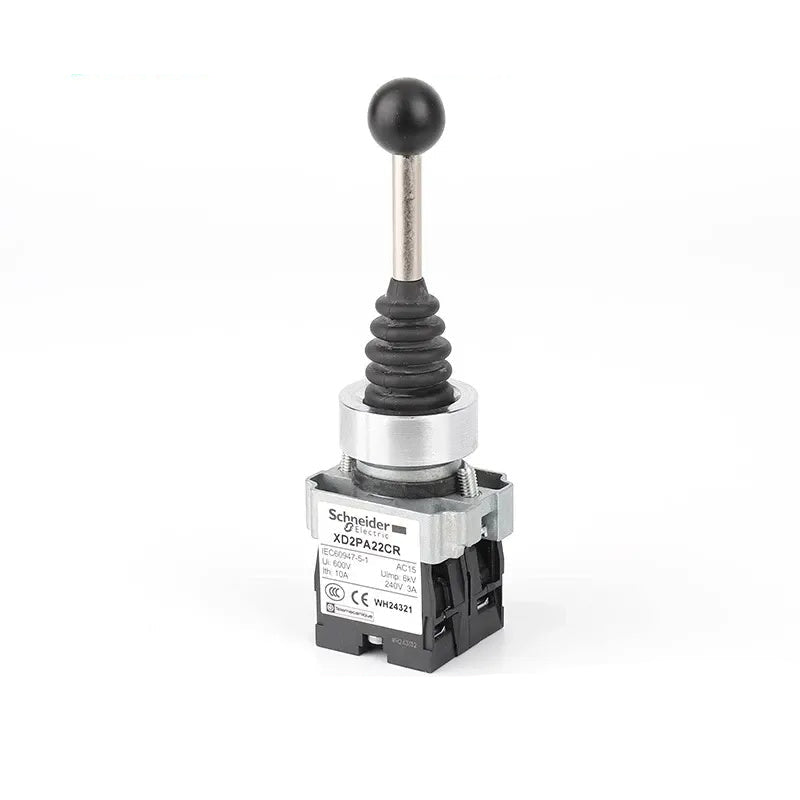

  • Schneider XD2PA Joystick Switch, XD2PA22CR

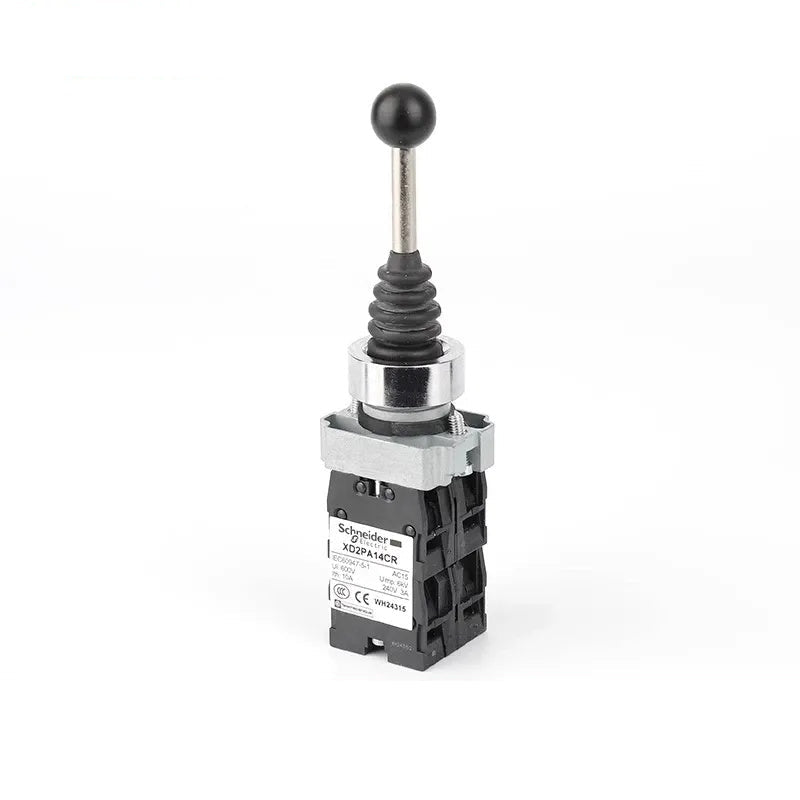

  • Schneider XD2PA Joystick Switch, XD2PA14CR,

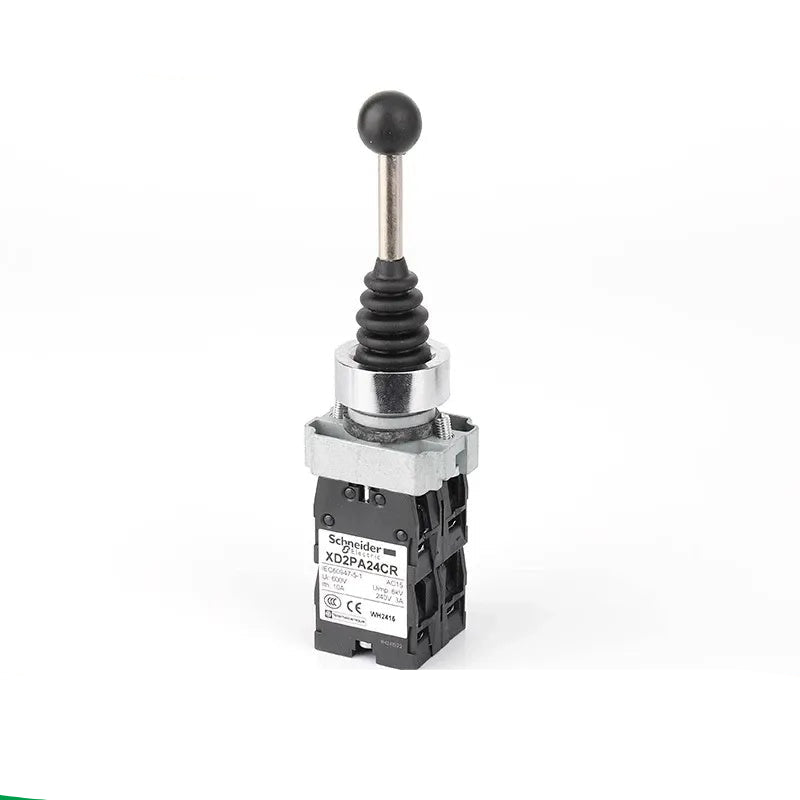

  • Schneider XD2PA Joystick Switch, XD2PA24CR,

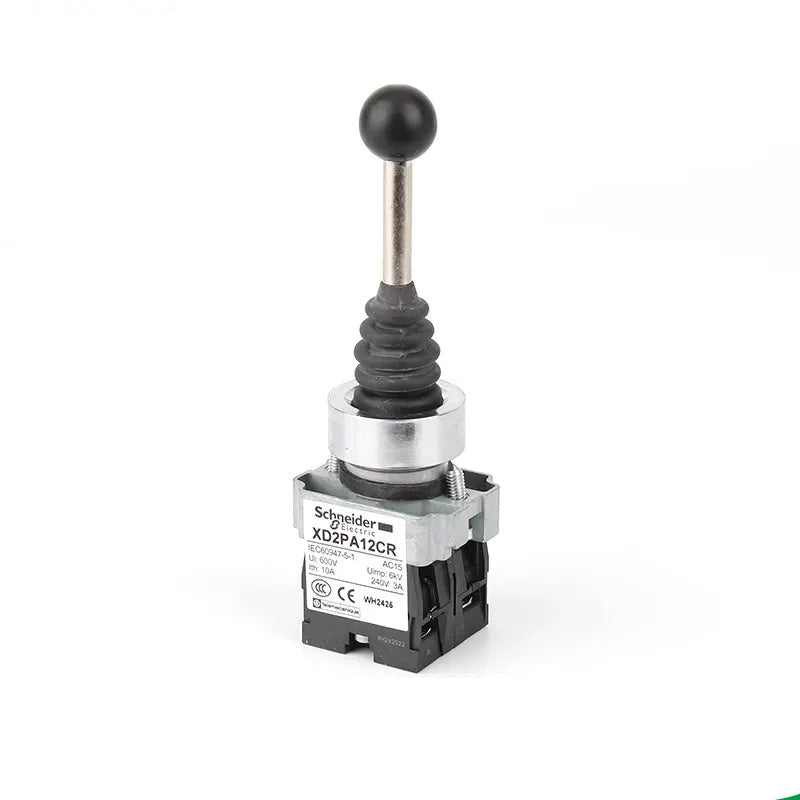

  • Schneider XD2PA Joystick Switch, XD2PA12CR,

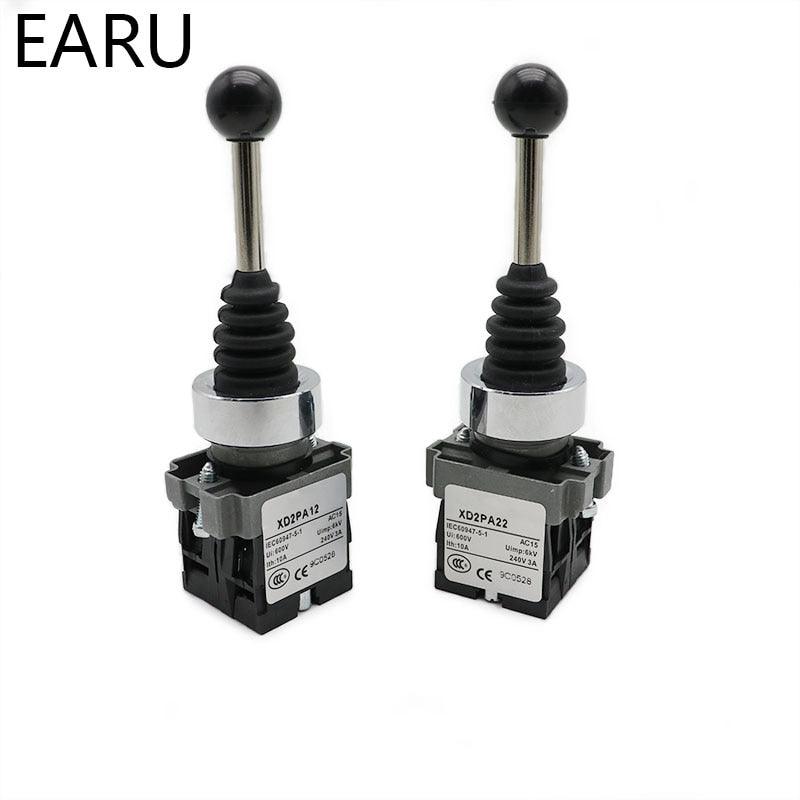

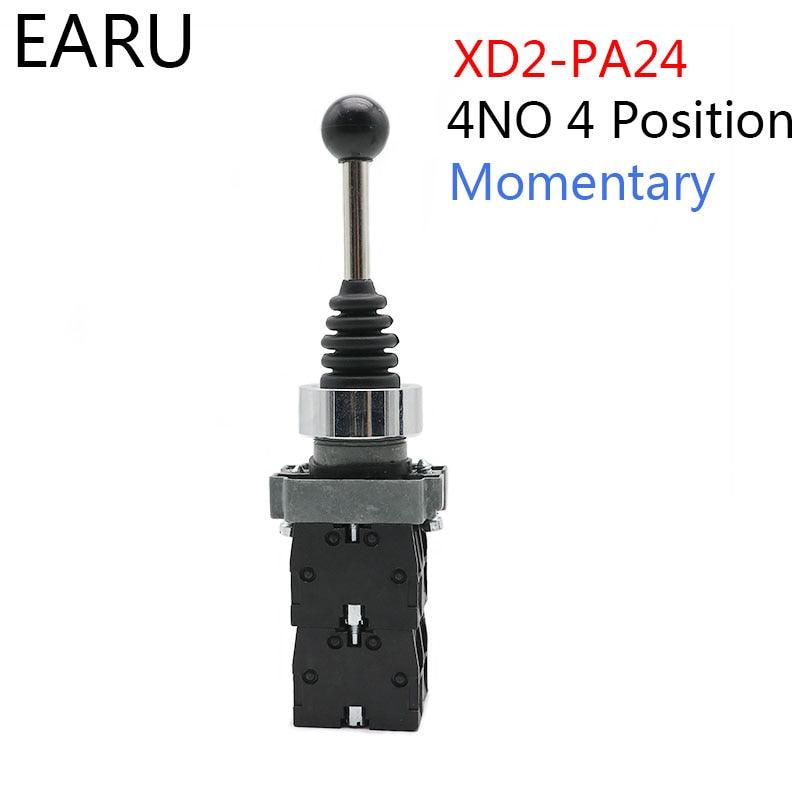

  • 2NO 2 Position Latch XD2 PA12 PA14 Joystick Controller Spring Return Rotary Cross Toggle Switches Reset PA22 PA24 4NO 4 Position.xd2pa24,xd2pa24 xd2pa12 xd2pa22 xd2pa14
  • 2NO 2 Position Latch XD2 PA12 PA14 Joystick Controller Spring Return Rotary Cross Toggle Switches Reset PA22 PA24 4NO 4 Position.xd2pa24
  • 2NO 2 Position Latch XD2 PA12 PA14 Joystick Controller Spring Return Rotary Cross Toggle Switches Reset PA22 PA24 4NO 4 Position.xd2pa24
  • 2NO 2 Position Latch XD2 PA12 PA14 Joystick Controller Spring Return Rotary Cross Toggle Switches Reset PA22 PA24 4NO 4 Position.xd2pa24
  • 2NO 2 Position Latch XD2 PA12 PA14 Joystick Controller Spring Return Rotary Cross Toggle Switches Reset PA22 PA24 4NO 4 Position.xd2pa24
  • 2NO 2 Position Latch XD2 PA12 PA14 Joystick Controller Spring Return Rotary Cross Toggle Switches Reset PA22 PA24 4NO 4 Position.xd2pa24
  • 2NO 2 Position Latch XD2 PA12 PA14 Joystick Controller Spring Return Rotary Cross Toggle Switches Reset PA22 PA24 4NO 4 Position.
  • 2NO 2 Position Latch XD2 PA12 PA14 Joystick Controller Spring Return Rotary Cross Toggle Switches Reset PA22 PA24 4NO 4 Position.
  • 2NO 2 Position Latch XD2 PA12 PA14 Joystick Controller Spring Return Rotary Cross Toggle Switches Reset PA22 PA24 4NO 4 Position.
  • 2NO 2 Position Latch XD2 PA12 PA14 Joystick Controller Spring Return Rotary Cross Toggle Switches Reset PA22 PA24 4NO 4 Position.
1 14

electrical center b2c

Schneider XD2PA Series Joystick Main Control Switch

$45.50 USD
$3.21 USD $45.50 USD
Sale Sold out
Shipping calculated at checkout.
Model NO.

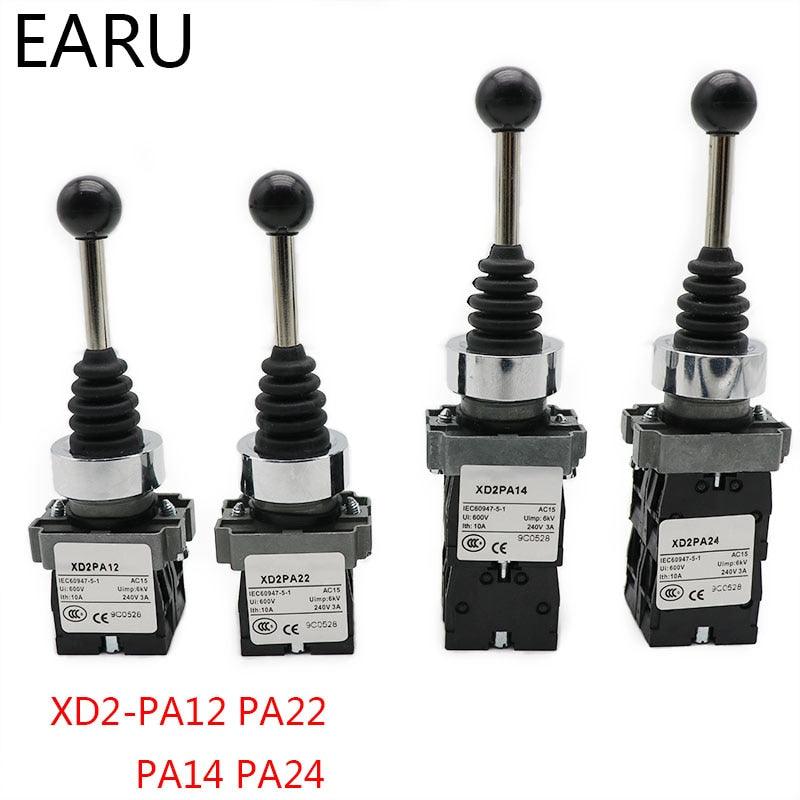

Schneider XD2PA12CR 2-Position Latching Joystick Switch, XD2PA22CR 2-Position Spring Return, XD2PA14CR 4-Position Latching, XD2PA24CR 4-Position Spring Return

Product Description


The Schneider XD2PA Series Joystick Main Control Switch is a rugged, industrial-grade control joystick designed for machinery and equipment operation. With 2-position or 4-position configurations, and both latching and spring-return options, it provides reliable directional control for cranes, conveyors, and other industrial applications.

✅ Core Features by Model

Model Configuration Operation Type Contacts Weight

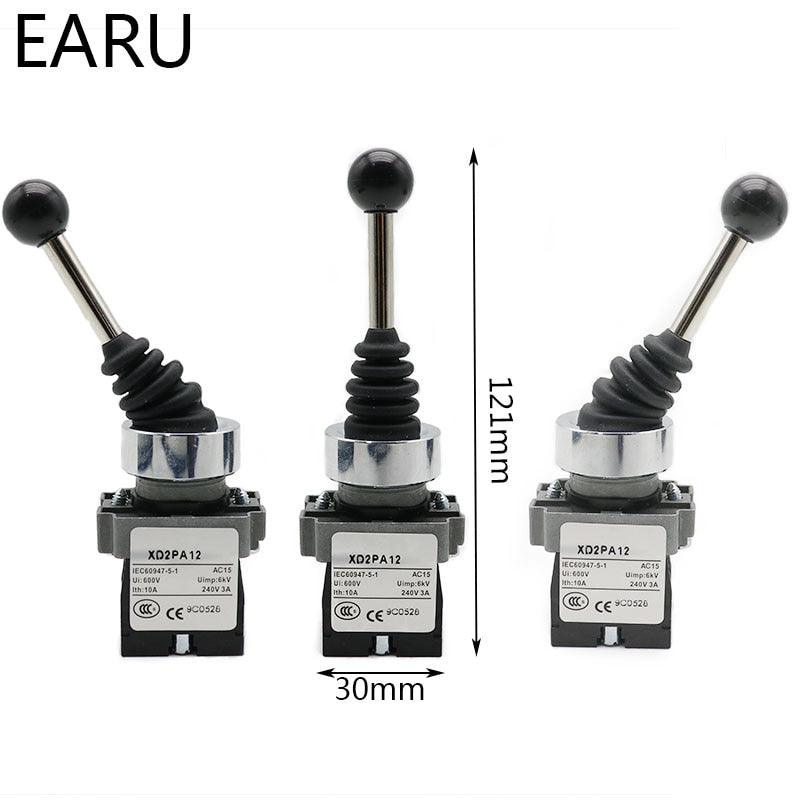

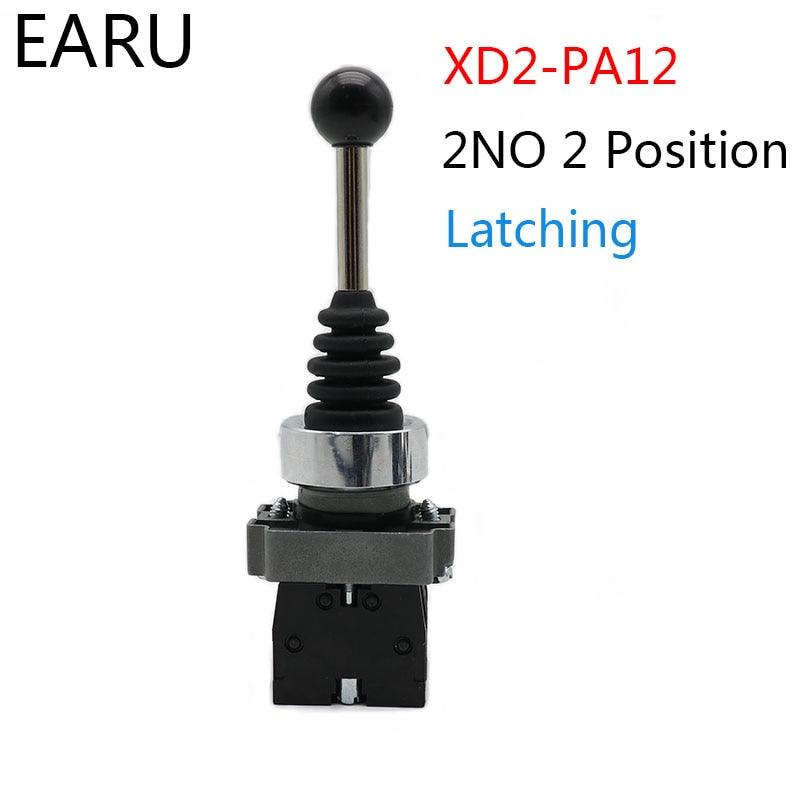

XD2PA12CR 2-Position Latching (Self-Locking) 2 Normally Open (2NO) 0.115 kg

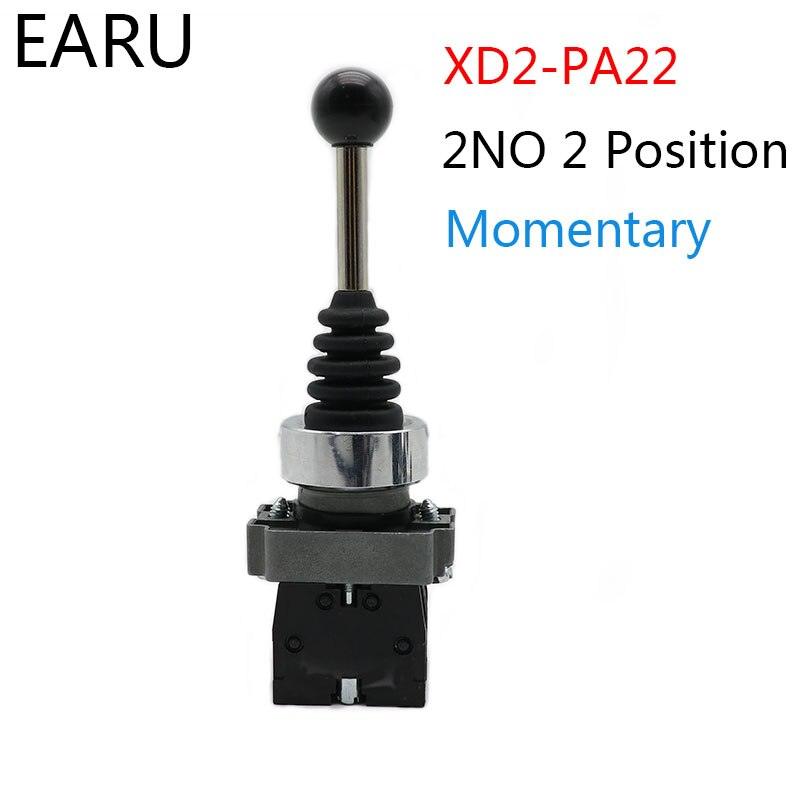

XD2PA22CR 2-Position Spring Return (Momentary) 2 Normally Open (2NO) 0.115 kg

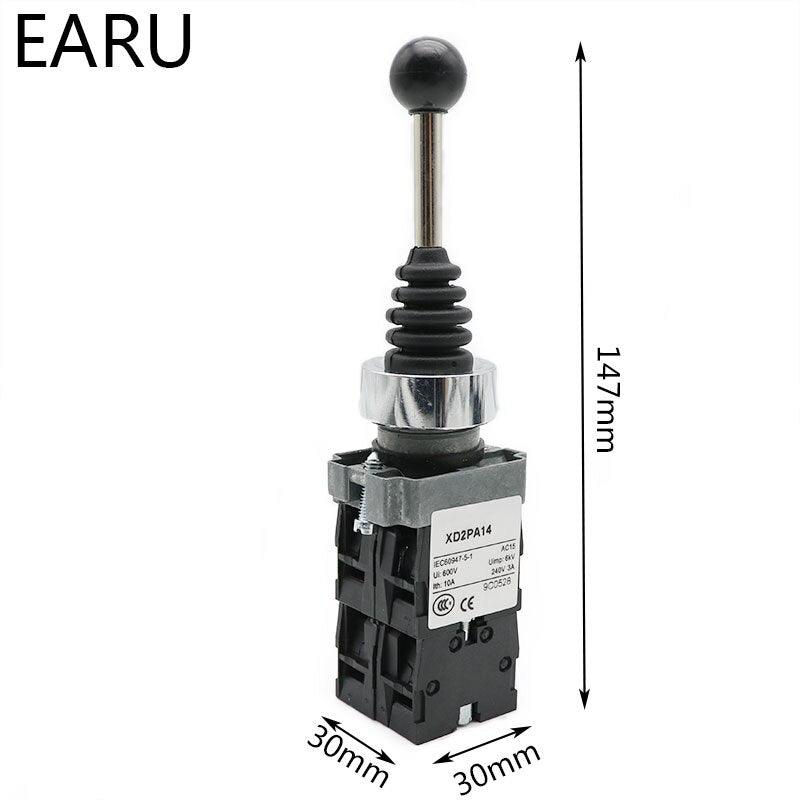

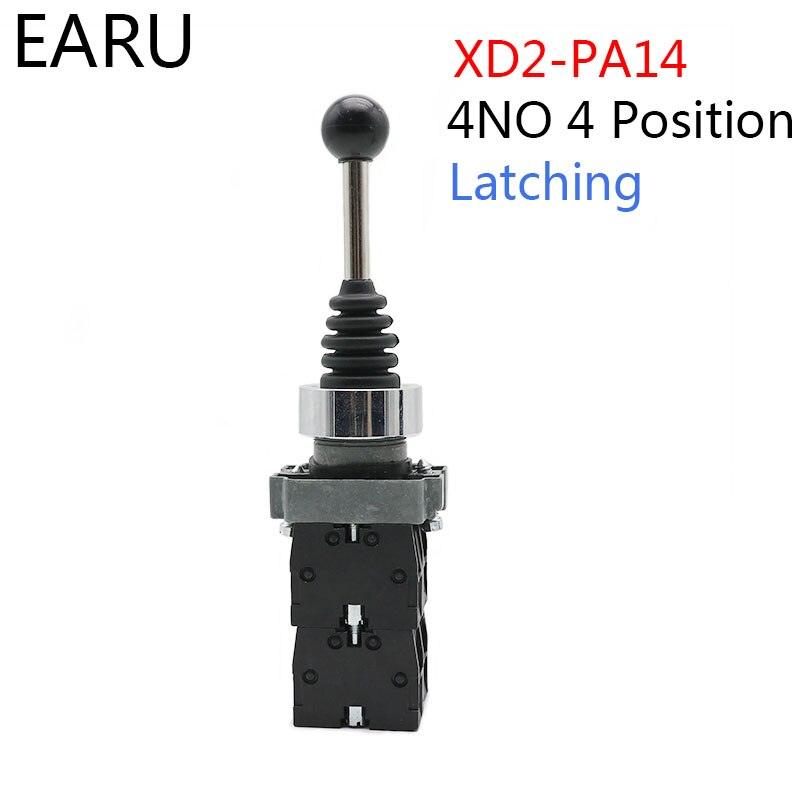

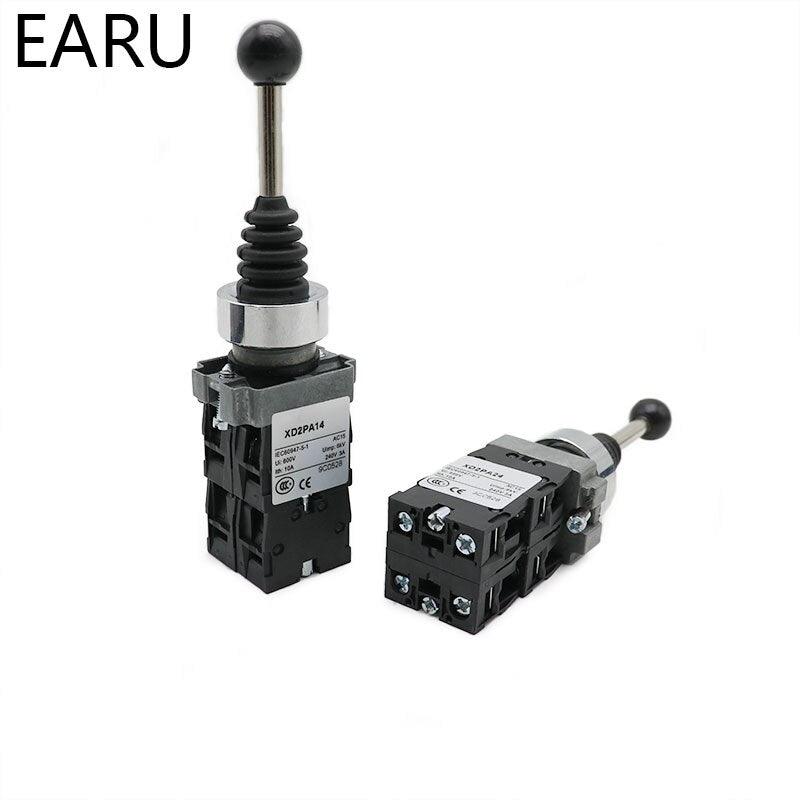

XD2PA14CR 4-Position Latching (Self-Locking) 4 Normally Open (4NO) 0.145 kg

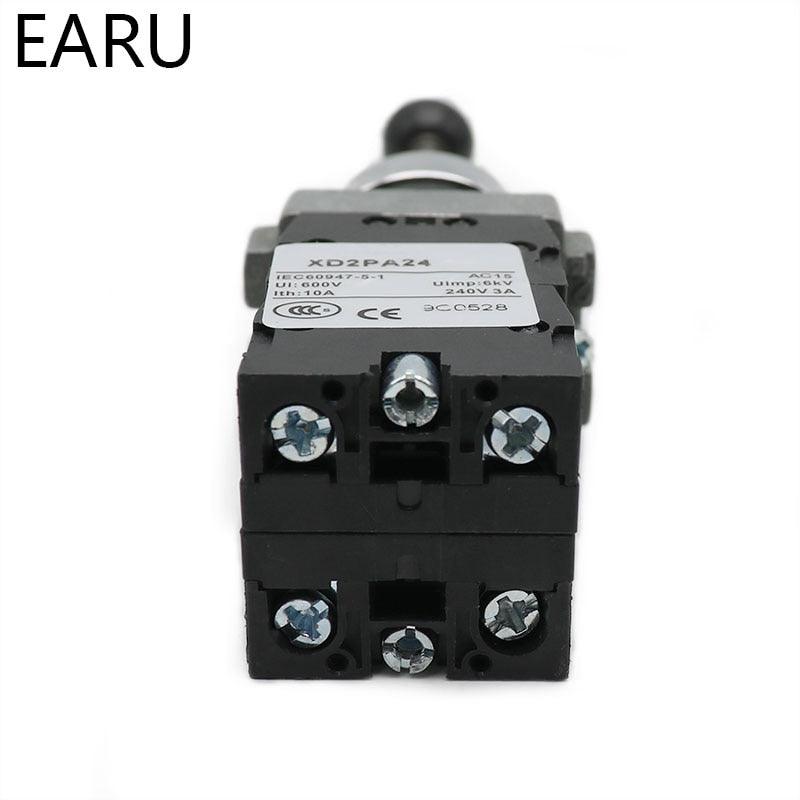

XD2PA24CR 4-Position Spring Return (Momentary) 4 Normally Open (4NO) 0.145 kg



✅ Common Features

  • Robust Construction: Designed for heavy-duty industrial use, with a durable metal base and rubber boot for dust and water resistance.
  • Multiple Configurations: Available in 2-position (left/right) or 4-position (up/down/left/right) to suit different control needs.
  • Operation Options: Choose between latching (stays in position) or spring return (returns to center when released) for different control modes.
  • Standard Mounting: Panel-mount design with standard dimensions for easy installation in control panels.
  • Reliable Contacts: Gold-plated contacts ensure long life and low contact resistance, even in harsh environments.

✅ Applications

  • Crane and hoist control
  • Conveyor system operation
  • Industrial machinery directional control
  • Material handling equipment
  • Control panel operator stations

DATA SHEET

字段 英文属性值
Product Type Joystick Main Control Switch / Industrial Control Joystick / Panel Mount Joystick
Brand Schneider Electric
Series XD2PA Series
Models XD2PA12CR, XD2PA22CR, XD2PA14CR, XD2PA24CR
Positions 2-Position, 4-Position
Operation Type Latching (Self-Locking), Spring Return (Momentary
Contacts 2 Normally Open (2NO), 4 Normally Open (4NO)
Mounting Type Panel Mount
Features Rugged Construction, Dust/Water Resistant, Gold-Plated Contacts, Standard Panel Mount
Application Scenarios Crane Control, Conveyor Operation, Industrial Machinery, Material Handling, Control Panels



Full Model & Parameter Table (Schneider XD2PA Series Joystick Main Control Switch)

Full Model (MPN/MODEL NO.) Direction Quantity Operation Mode Contact Configuration Mounting Hole
XD2PA12CR 2 Directions Latching / Self-locking 2NO (1NO per direction) 22mm
XD2PA22CR 2 Directions Spring Return (Momentary) 2NO (1NO per direction) 22mm
XD2PA14CR 4 Directions Latching / Self-locking 4NO (1NO per direction) 22mm
XD2PA24CR 4 Directions Spring Return (Momentary) 4NO (1NO per direction) 22mm



Full Model & Parameter Table (Schneider XD2PA Series Joystick Main Control Switch)

Full Model (MPN/MODEL NO.) Direction Quantity Operation Mode Contact Configuration Mounting Hole
XD2PA12CR 2 Directions Latching / Self-locking 2NO (1NO per direction) 22mm
XD2PA22CR 2 Directions Spring Return (Momentary) 2NO (1NO per direction) 22mm
XD2PA14CR 4 Directions Latching / Self-locking 4NO (1NO per direction) 22mm
XD2PA24CR 4 Directions Spring Return (Momentary) 4NO (1NO per direction) 22mm

Care Instructions
