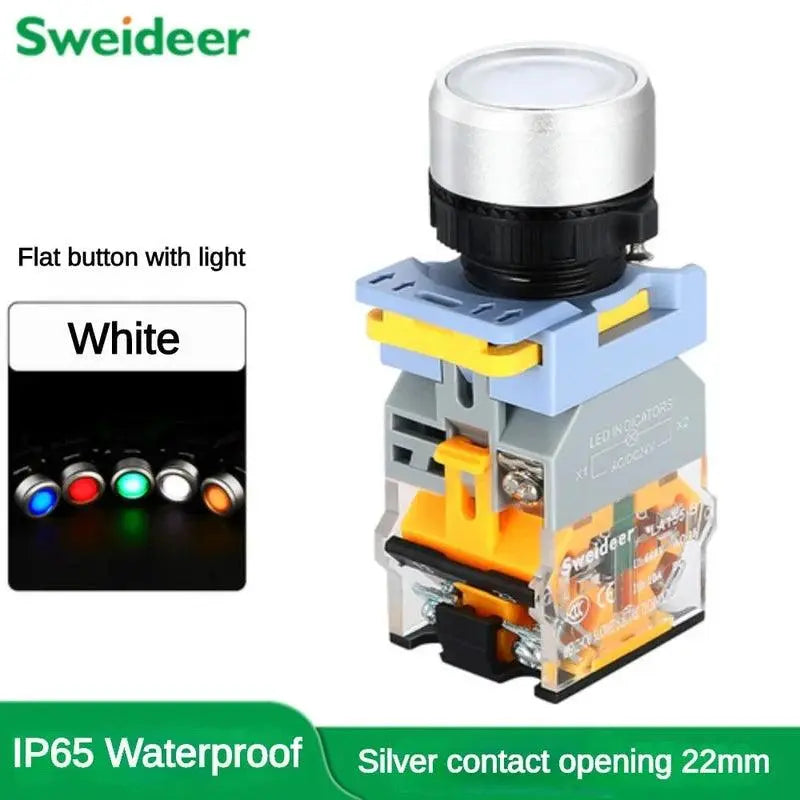

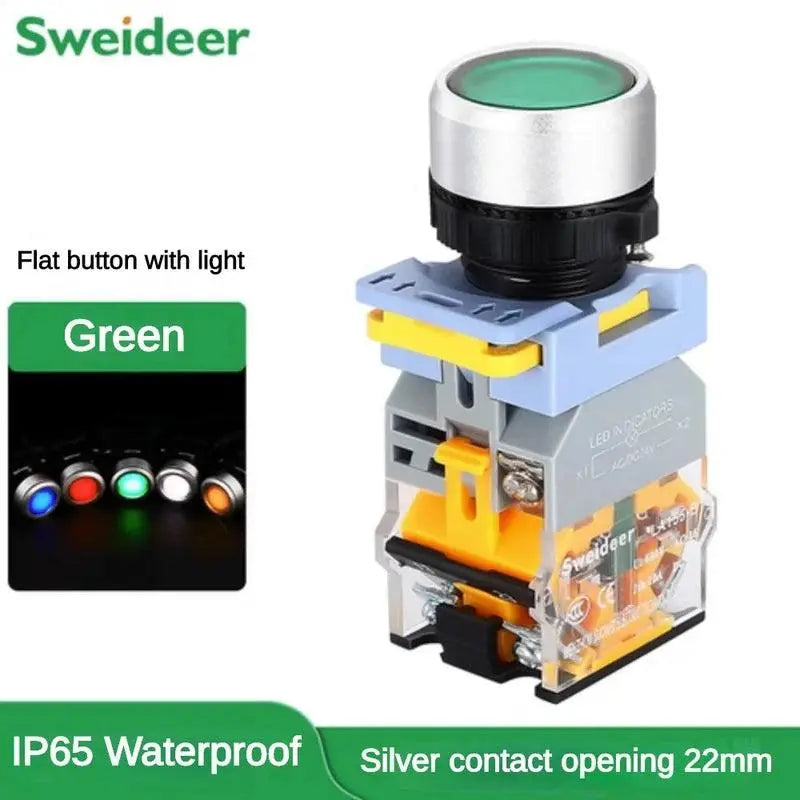

22mm Waterproof Push Button Switch with LED Momentary Reset Self Locking Power Button Switch with Light 6V 24V 380V 10A 2NO 2NC

A Detailed Overview of the 22mm Push Button Switch

SPECIFICATIONS

Brand Name: sweideer

Origin: Mainland China

Current: 10A

Features: Waterproof

Material: ALLOY

Item Type: SWITCHES

Warranty: 1 Year

Switch Type: Push Button Switch

Certification: CE

Certification: CCC

Certification: CCC

Certification: ce

Model Number: Push Button Switch with Light

Is Smart Device: no

Opening diameter: 22MM

Contact material: Silver contact

Button contact: 1NO1NC,2NO,2NC,2NO2NC

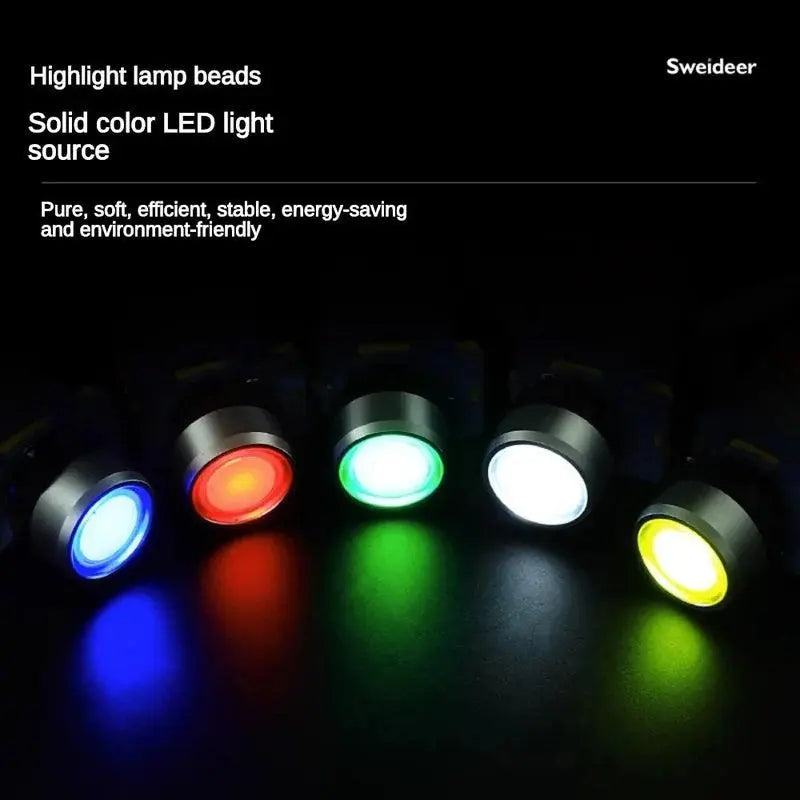

Illuminated Color: red/green/blue/white/yellow

Voltage Available: 6V,12V,24V,36V,48V,110V,220V,380V

Due to the limitation of the specification page.
If you need to choose the other voltages,please contact us, thank you!

Product Specification
Product name: Push Button Switch with Light
Contact material: Silver contact
Rated current: 10A
Opening diameter: 22MM
Button contact: 1NO1NC,2NO,2NC,2NO2NC
Operation mode: Momentary self-reset / fixed self-locking
Button color: Red Yellow Blue Green White
Product model: LA155-B1
Voltage Available: 6V,12V,24V,36V,48V,110V,220V,380V

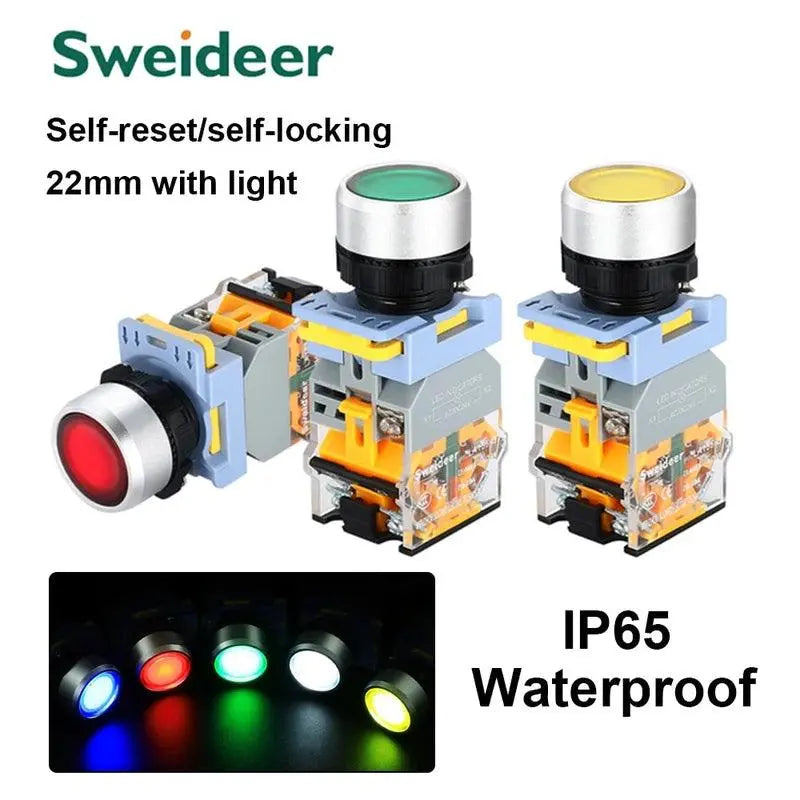

Waterproof grade: IP65

Package Content
1pc Push Button Switch with Light

Contact modular combination
NO(normally open) and NC(normally closed ) contact can replace and add at any time .
It can hold 1-6 pcs Contact modules at most.

NO(Normally open contact ): Normally in off state, press to power on.
NC(Normally closed contact): Normally in on state, press power off.

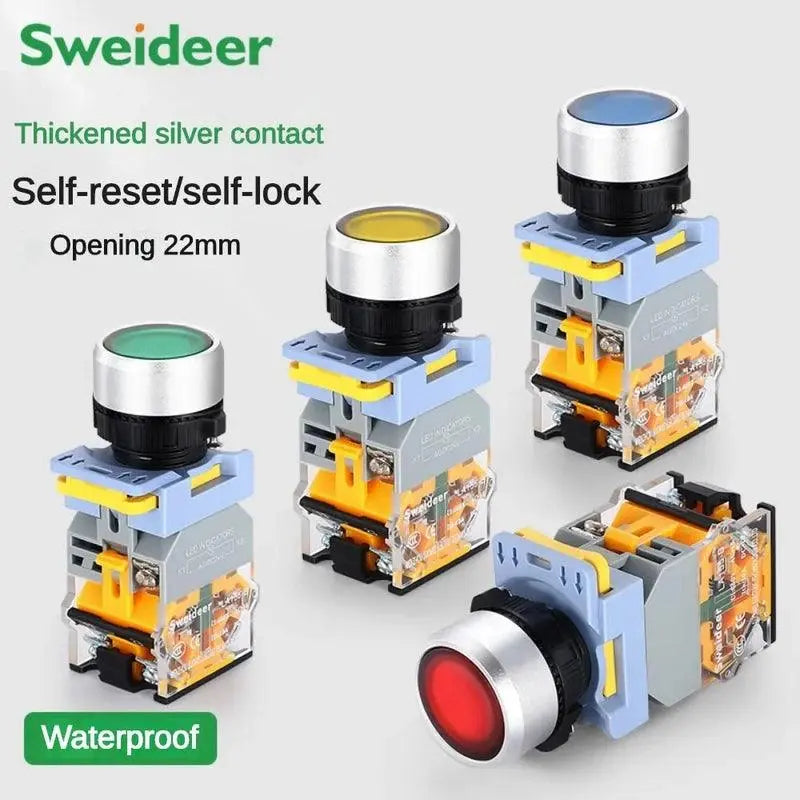

Self reset: Once pressed, the button will reset and spring back as soon as the hand is released.
Self locking: When pressed, the button locks;when pressed again, the button bounces back.

The 22mm Push Button Switch is an incredibly reliable option for those who require a high-quality and durable switch for their various needs. Not only does this button switch come in a compact 22mm size, making it versatile and convenient for many applications, but it also boasts of a multitude of impressive features.

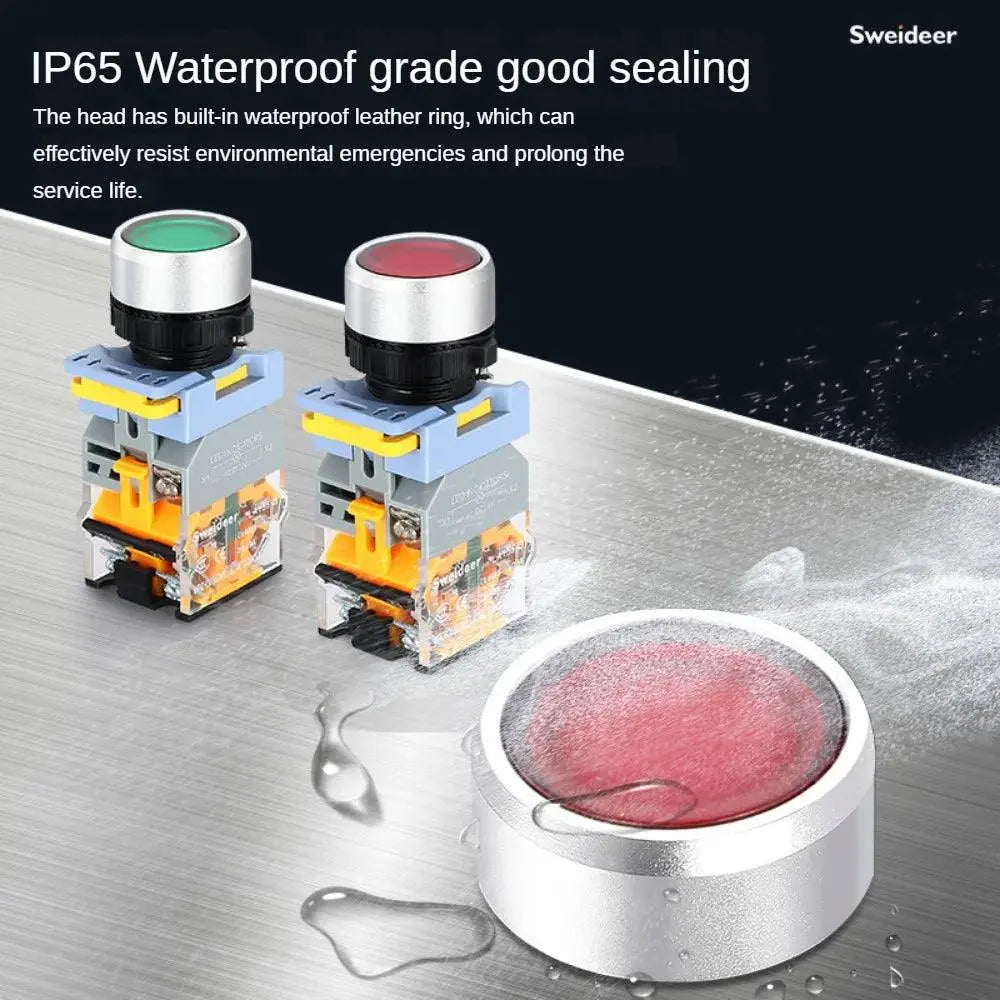

One of the key features of the 22mm Push Button Switch is its waterproof quality. This waterproof aspect makes it suitable for both outdoor and indoor uses as it can withstand different weather conditions and accidental spills. Moreover, it has an LED momentary reset feature which ensures that the switch powers off immediately after use, a feature that conserves energy and extends its lifespan.

Also, the 22mm Push Button Switch has a self-locking power feature which further contributes to its durability and longevity. This switch also manages to handle a significant amount of power, up to 10A. Remarkably, the switch has two normally open (2NO) and two normally closed (2NC) circuits for control and safety purposes. This undoubtedly sets the 22mm Push Button Switch apart from many others available on the market today.

In conclusion, the 22mm Push Button Switch is definitely a product worth considering, given its multitude of superior features that certainly enhance its operation. This high-performing and reliable switch is ideally suited for anyone seeking a durable, energy-efficient and highly functional switch.
