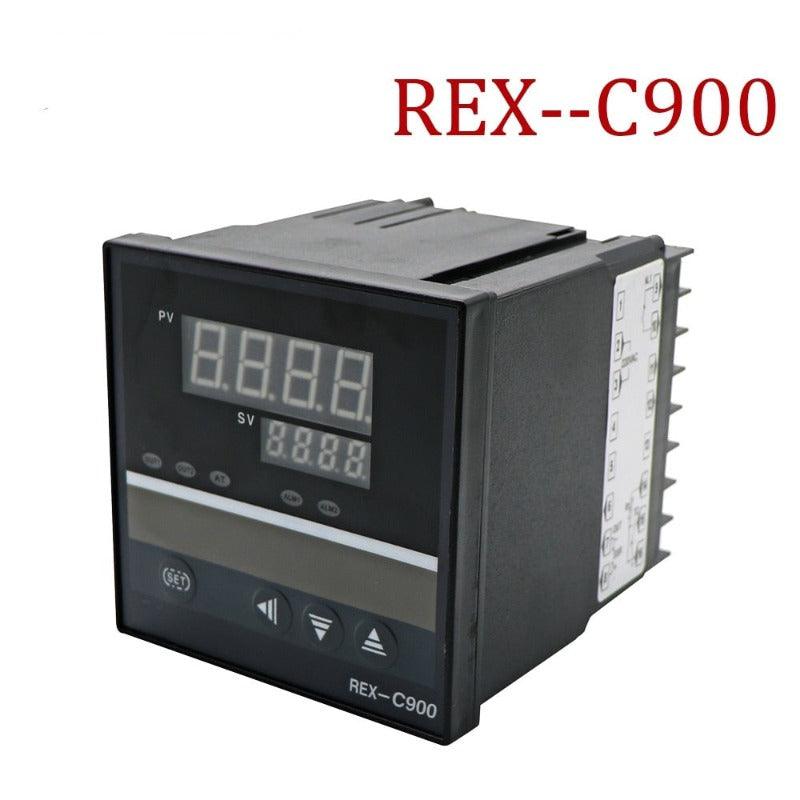

220V PID Temperature Controller REX-C900 Thermocouple PT100 K Universa Input Multi-input SSR Relay Output Thermostat Regular

Regular price $24.09 USD
Regular price $15.27 USD Sale price $24.09 USD
Sale Sold out
Shipping calculated at checkout.
Color

SPECIFICATIONS

220V  PID Temperature Controller REX-C900 Thermocouple PT100 K Universa Input Multi-input SSR Relay Output Thermostat Regular

Usage: Industrial

Unit Type: piece

Theory: Temperature Controller

Style: Standing Station

Size: 96*96mm

Power Type: Charger

Package Weight: 0.55kg (1.21lb.)

Package Size: 12cm x 10cm x 10cm (4.72in x 3.94in x 3.94in)

Model Number: REX-C900

Max Measuring Temperature: 120°C & Above

Input: Universal

Display Type: DIGITAL

Display Size: 2.0 - 3.9 Inches

Display: Celsius °C

Control output: Relay

Alarm output: ALM1

REX-C900 DATA SHEET DOWNLOAD

Product Main Specifications:


Input type

TC: K, E, S, R, J, T, B, WRe3-WRe25.

RTD: Pt100, Cu50

DC voltage: 0~5V, 1~5V,0~10V.

DC current:  4~20mA

Input range

K (-200~+1300ºC), S (-50~+1600ºC), WRe3-WRe25 (0~2300ºC ), R (-50~+1600ºC), T (-200~400ºC), E (-200~900ºC), J (-200~1200ºC), B (350~1800ºC), Pt100 (-99.9~600.0ºC) or (-200~+600ºC), Cu50 (-50~150ºC)

Display

Two lines, Four digits. °C.

Display Resolution

1°C, 1°F, or 0.1°C, 0. 1°F, with Pt100

Accuracy

±0.5% or ±1 unit of full input range

Control mode

PID, On-Off

Output mode

Relay contact: 3A at 240 VAC.

SSR: 12VDC,

Current: 4~20 mA

Voltage: 0~10V

Alarm

Upper-limit bias alarm

Power consumption

<2 Watt

Power supply voltage rating

85~265VAC/50~60Hz

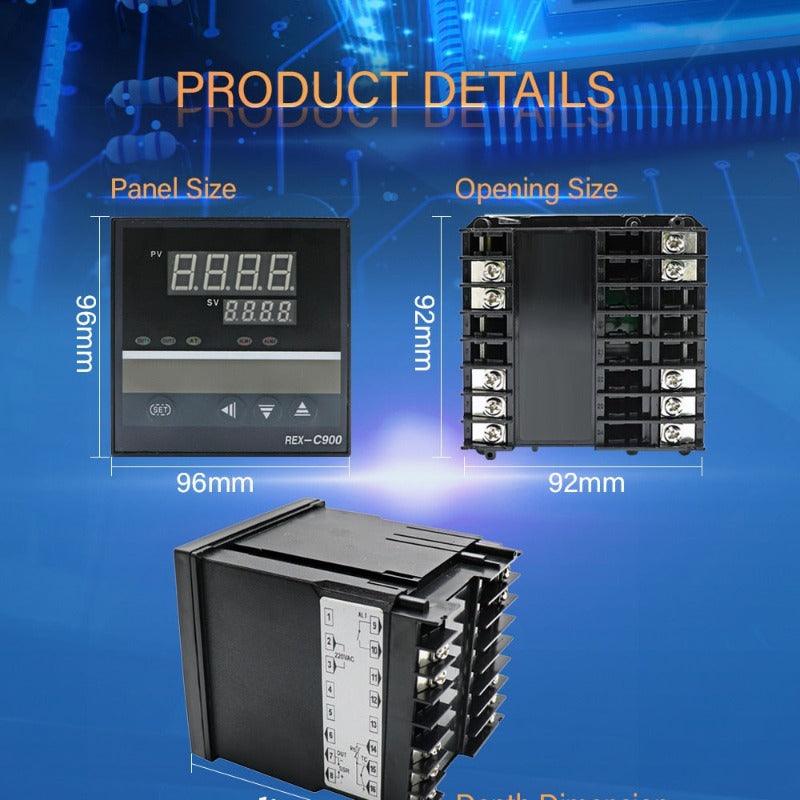

Dimensions

Rex-C900  96*96*110mm



Cautions:

  • Only clean the instrument when power off.

  • Please use a soft cloth or cotton paper to clean up the stain on the display.

  • Do not clean up or touch the display by hard matters in case of  any scrath.

  • Never use sharp & hard matters such ass screwdrivers or ball pan to touch the buttons on the panel,in case of any scrath or damage.


Packages:

  • 1×PID Digital Temperature Controller (NOT include thermocouple)

  • 1 x English User Manual
