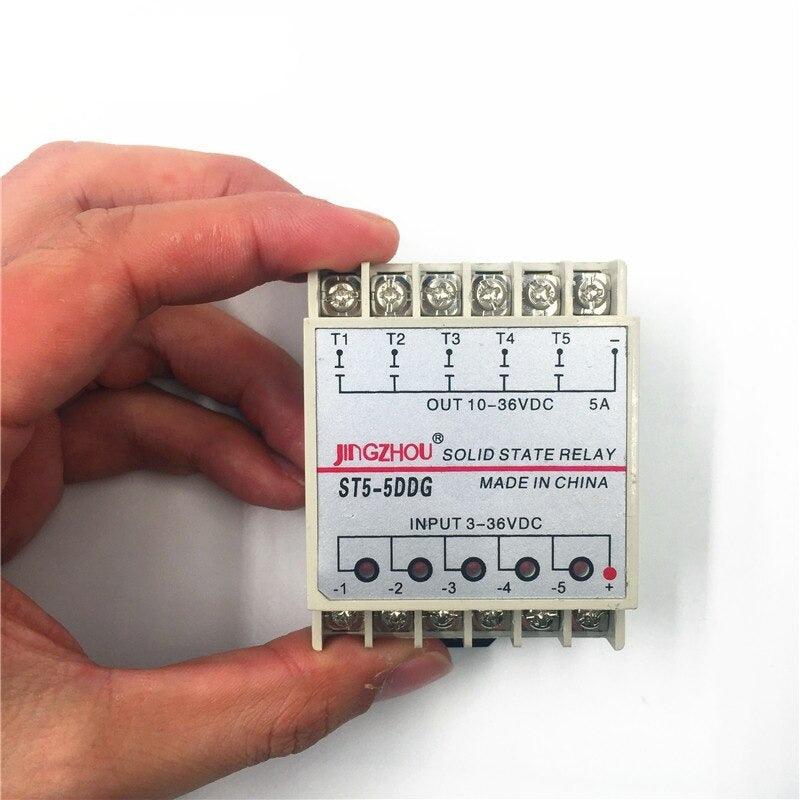

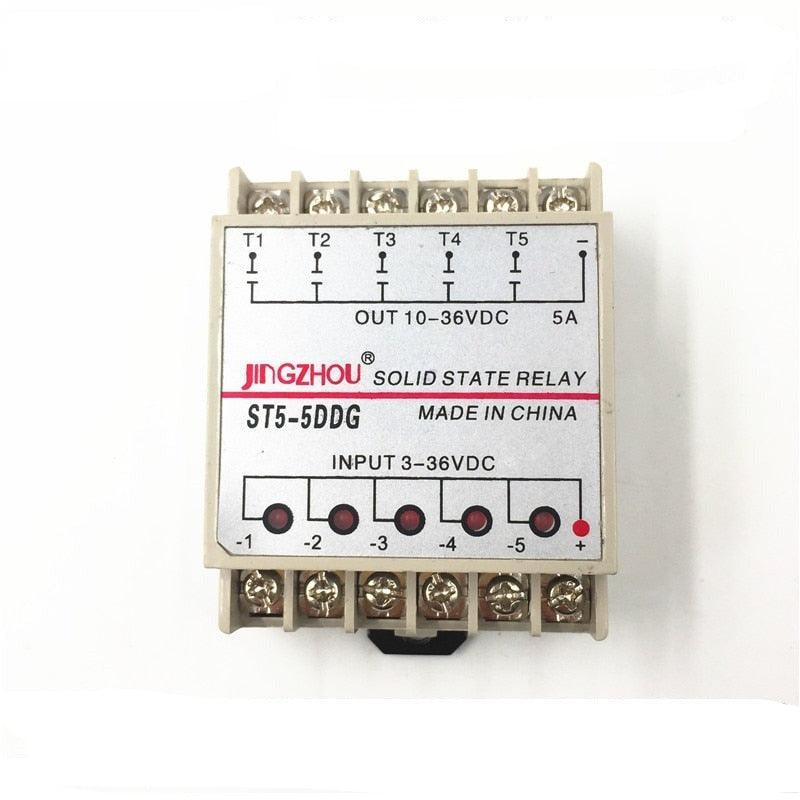

1pc 5DDG 5 Channel Din rail SSR Quintuplicate Five Input 3~32VDC Output 5~36VDC Single Phase DC Solid State Relay PLC Module

SPECIFICATIONS

1pc 5DDG 5 Channel Din rail SSR Quintuplicate Five Input 3~32VDC Output 5~36VDC Single Phase DC Solid State Relay PLC Module

Usage: General Purpose

Unit Type: piece

Type: DC Solid state

Theory: Solid State Relay

Size: Subminiature

Protect Feature: Sealed

Package Weight: 0.102kg (0.22lb.)

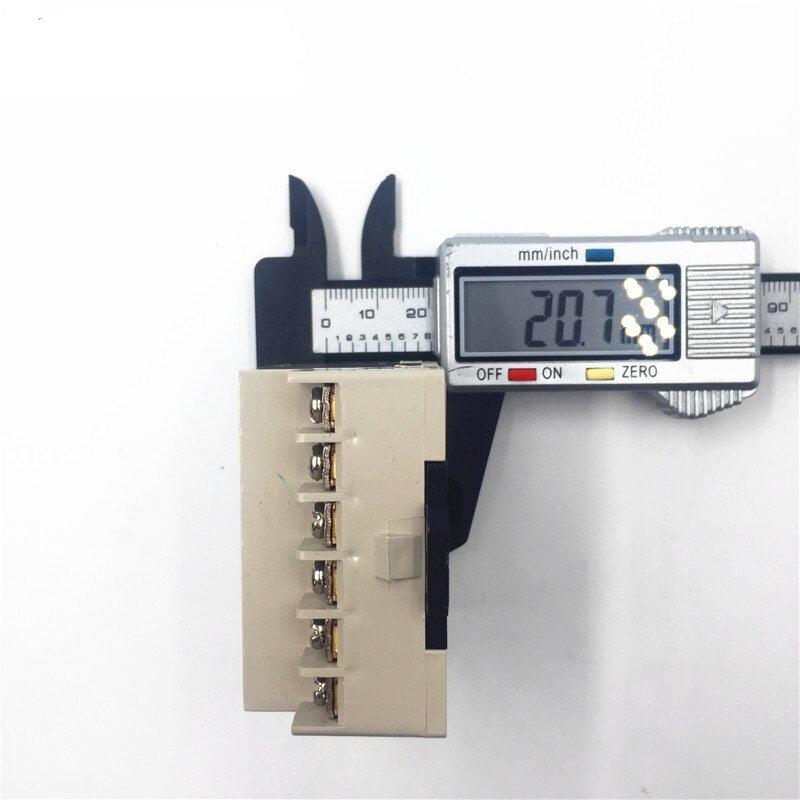

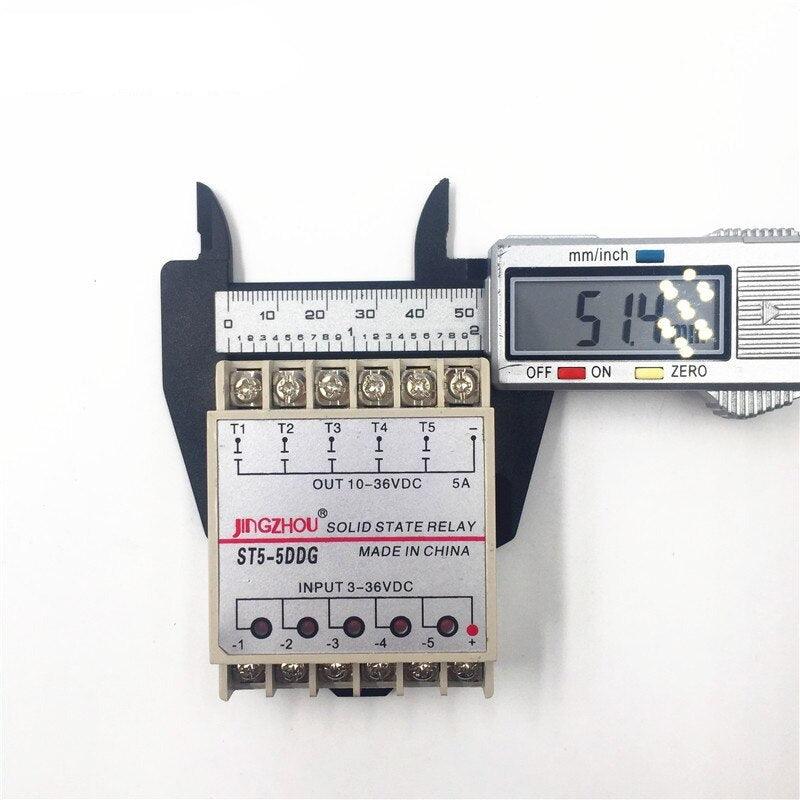

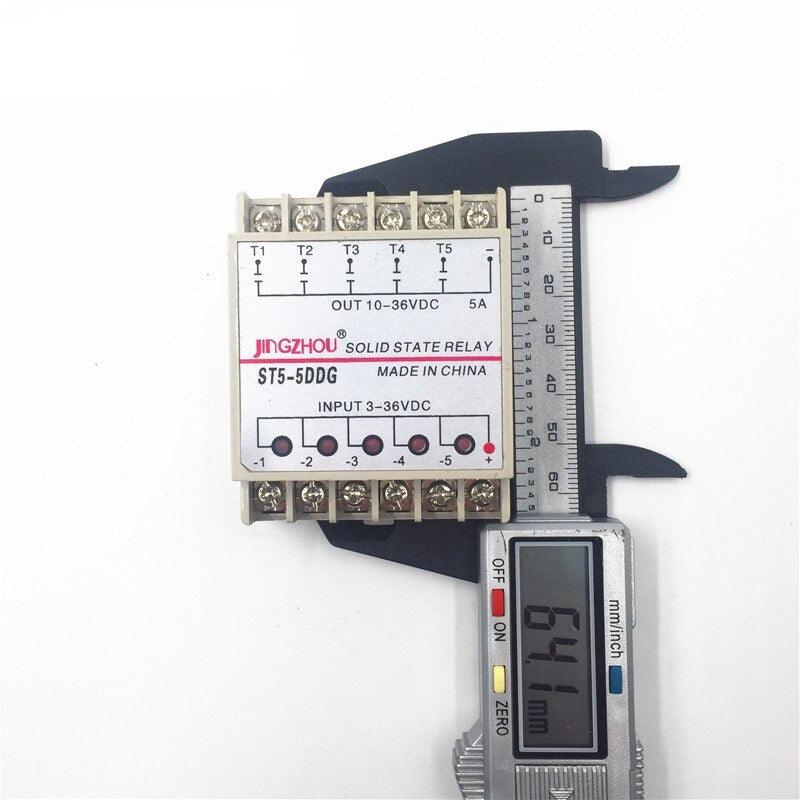

Package Size: 5cm x 5cm x 2cm (1.97in x 1.97in x 0.79in)

Model Number: ST5-5DDG

Load current: 5A

Load Voltage: 5~36VDC

Input Voltage: 2~32VDC

Contact Load: Low Power

Din Rail Solide state relay

Input  3~32V DC

Output 5~36VDC

quintuplicate output

Rate current 5A

Type	Standard type	Isolation type
Model	ST5-5DD	ST5-5DDG	PN5-10DA
Rated load current	5A	5A	10A
Input Data
Input voltage	24VDC	3~32VDC
Min. ON/OFF Voltage	ON>4V.  OFF<1.0V	ON>2.4V.  OFF<1.0V
Trigger current	7.5mA/12V	4mA/12V
Output Data
Operating Voltage	24VDC	5~36VDC	24~380VAC
Voltage Drop	1.6V/25°c
Leakage Current	0.8mA	0.7mA
Response Time	< 1ms		ON<10ms, OFF<10ms
Dielectric Strength	Over 2.5KVAC/1min.
Isolation Strength	Over 50M/500VDC
Operation Temperature	_20°c    ~     +80°c
Housing Material	Intensive ABS
Weight	65g	85g

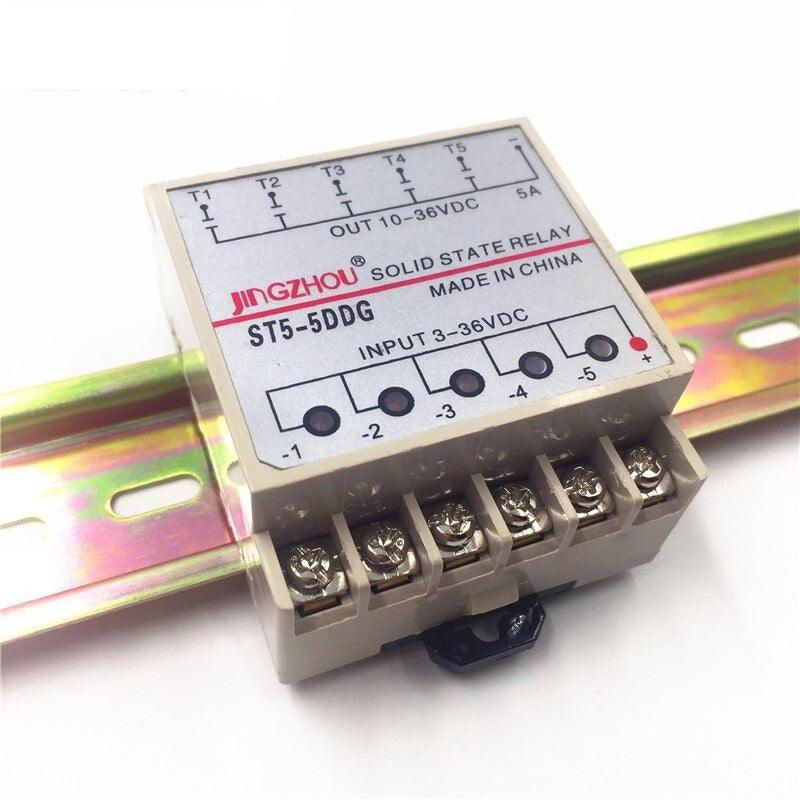

Installation	Din rail installation

This product is fully isolation design, the input and output control completely isolated matter, isolation of 3500V. Simply means that when the output  load  failures do not appear channeling channel controller (PLC) , without damaging the control circuit, a controller (PLC) can work properly.
