EARU -16mm Alumina Black Body Momentary Metal Push Button Switch

$2.91 USD
$2.91 USD
Sale Sold out
Shipping calculated at checkout.
Color
Voltage

SPECIFICATIONS

16mm Alumina Black Body Waterproof Press Metal Push Button Switch

LED Light 3V 5V 12V 24V 36V 220V Momentary Car Engine PC Power

Warranty: 2 years

Using: Car PC machine Device buttons

Switch type: NO (Normally Open) ; NC ((Normally Closed )

Switch Type: Push Button Switch

Switch Type: Push Button Switch

Switch Rating: 36VDC

Rating switch: 3A / 250VAC

Protection Degree: IP65, IK08

Package Weight: 0.03kg (0.07lb.)

Package Size: 5cm x 5cm x 10cm (1.97in x 1.97in x 3.94in)

Opening diameter: 16mm

Model Number: 16mm push button

Model Number: Metal button switch

Material: aluminium alloy

Level: IP65

LED Voltage: Please choose the right Voltage in option

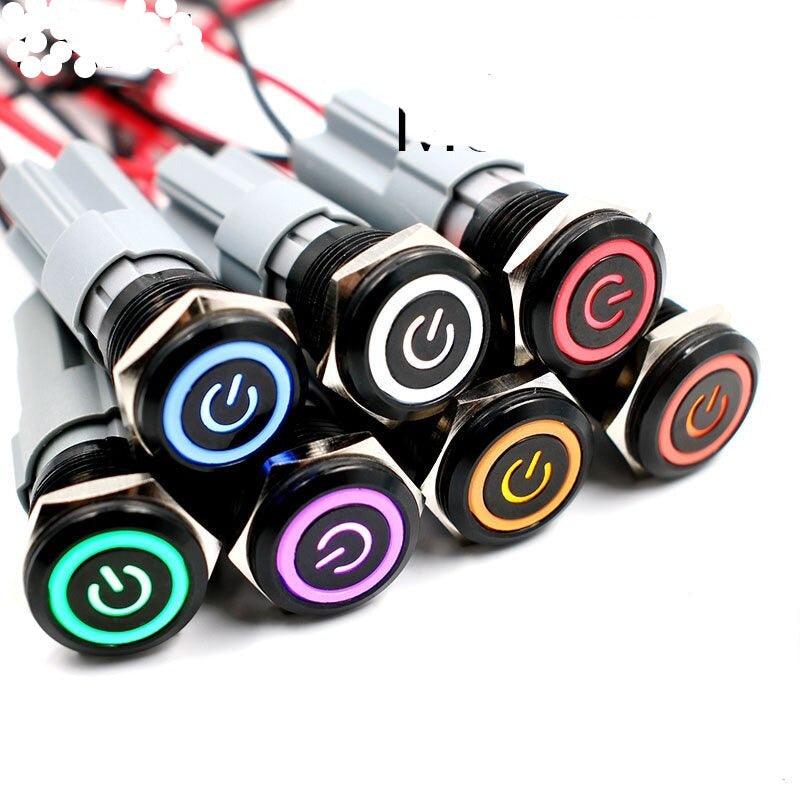

LED Colors: Red Yellow Blue White Green

Item Type: Switches

Features: Self-reset Momentary

Features: Latching

Customization: Yes , please leave a message to us

Customizable LED Colors: Purple Orange

Current: 2W

Certification: CCC

Metal LED Illuminated Momentary 16mm Push Button Switch Car Dash Red Blue Green White YStainlessLess Steel Waterproof 1NO 1NC
​

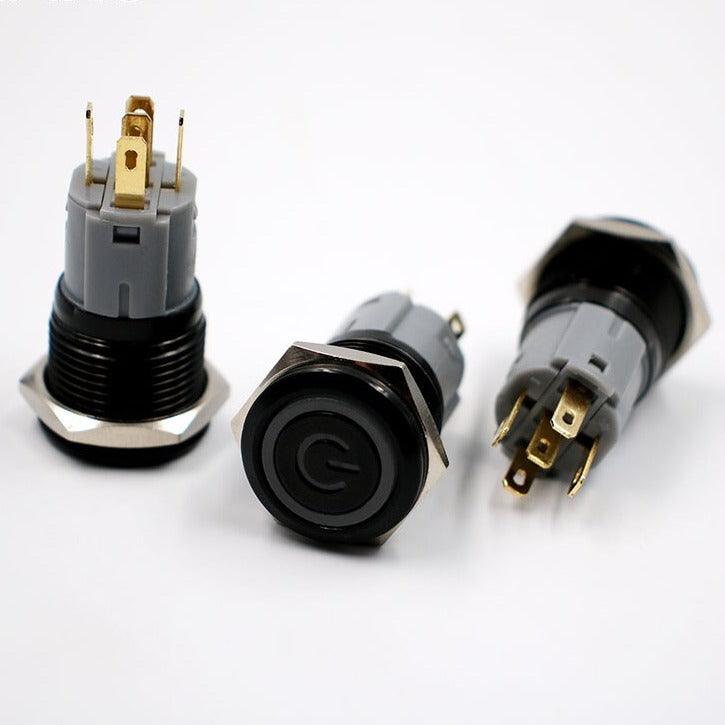

switch is with NO (normally open) + NC (normally closed)

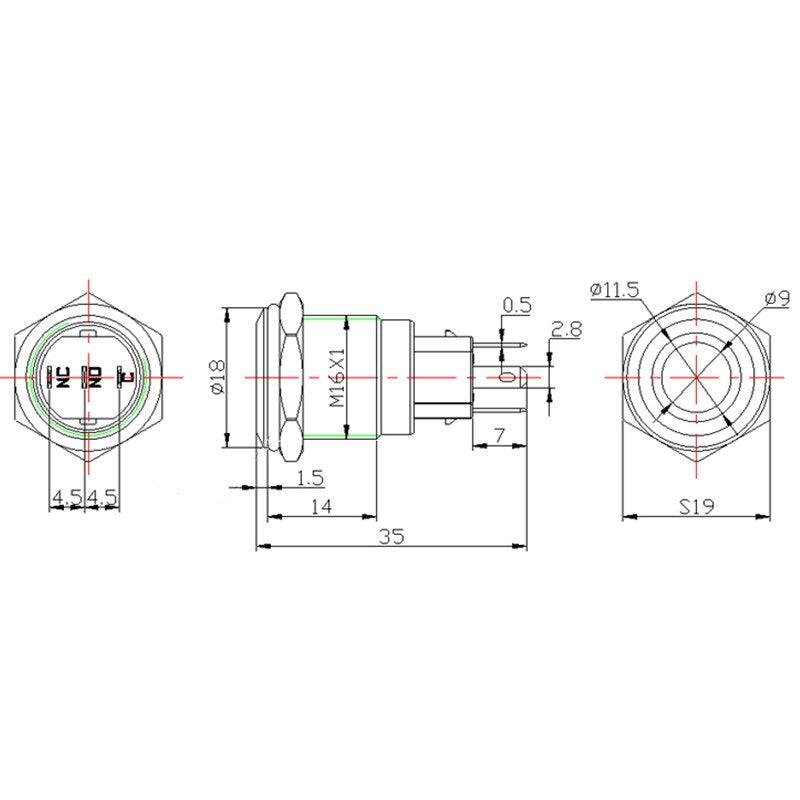

​there are 5 terminals :  \' + \' and \' - \' are for lamp ... C , NO , NC is for switch


Note : it is Momentary push button switch : the button will spring return after you release your hand
Description:

type :Momentary; 1 NO + 1 NC

Material : Nick-plated Brass

The Front Shape :Domed

illuminated : Dot

Lamp Color : R/G/Y/O/B/W

Protection Degree : IP65 , IK08Dot
