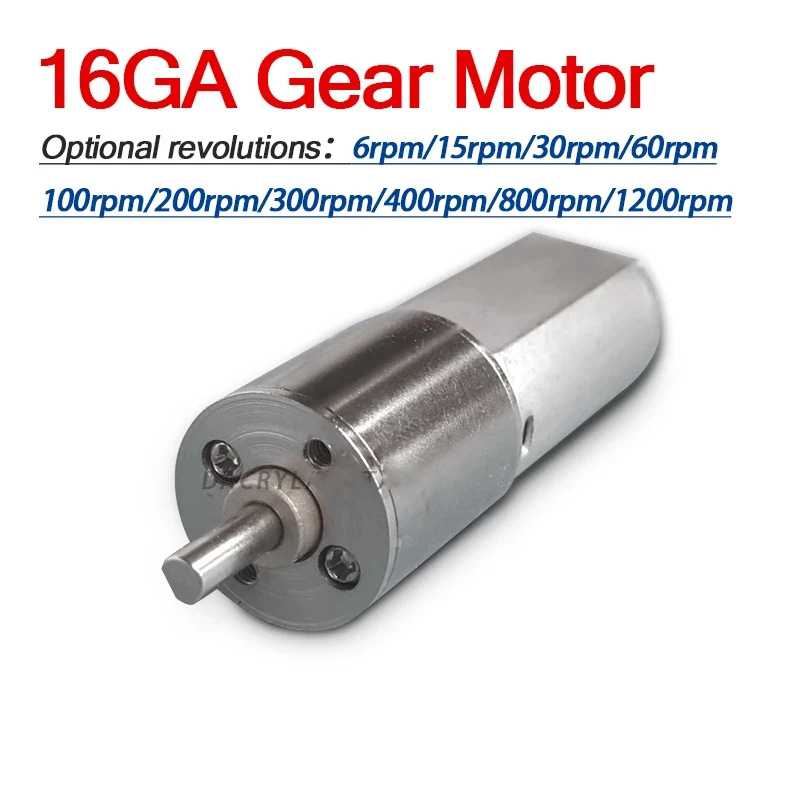

16GA-050 Micro Gear Motor DC12V 6RPM/-1200RPM Reducer Speed Metal GearBox Motor High Torque Electric 12 V Volt Engine
Couldn't load pickup availability
SPECIFICATIONS
16GA-050 Micro Gear Motor DC12V 6RPM/-1200RPM Reducer Speed Metal GearBox Motor High Torque Electric 12 V Volt Engine
Brand Name: HYSMOTOR
Certification: CCC
Certification: ce
Origin: Mainland China
Commutation: Brush
Type: Gear Motor
Protect Feature: Explosion-proof
Construction: Permanent Magnet
Usage: BoAt
Usage: car
Usage: Electric Bicycle
Usage: Fan
Usage: Home Appliance
Efficiency: IE 1
Specifications:
•Voltage: 12V DC
•Motor Optional revolutions: 6RPM/10RPM/15RPM/30RPM/60RPM/100RPM/200RPM/300RPM/400RPM/600RPM/800RPM/1200RPM
•Current: 25mA
•Diameter: 16mm
•Shaft length: 9.5mm
•Height (excl. shaft): 41.5mm
•Shaft diameter: 3mm
Application: Coffee machine Motor, curling stick Motor, cash register Motor, ticket machine Motor, Remote control curtain motor, Stage lightening motor
