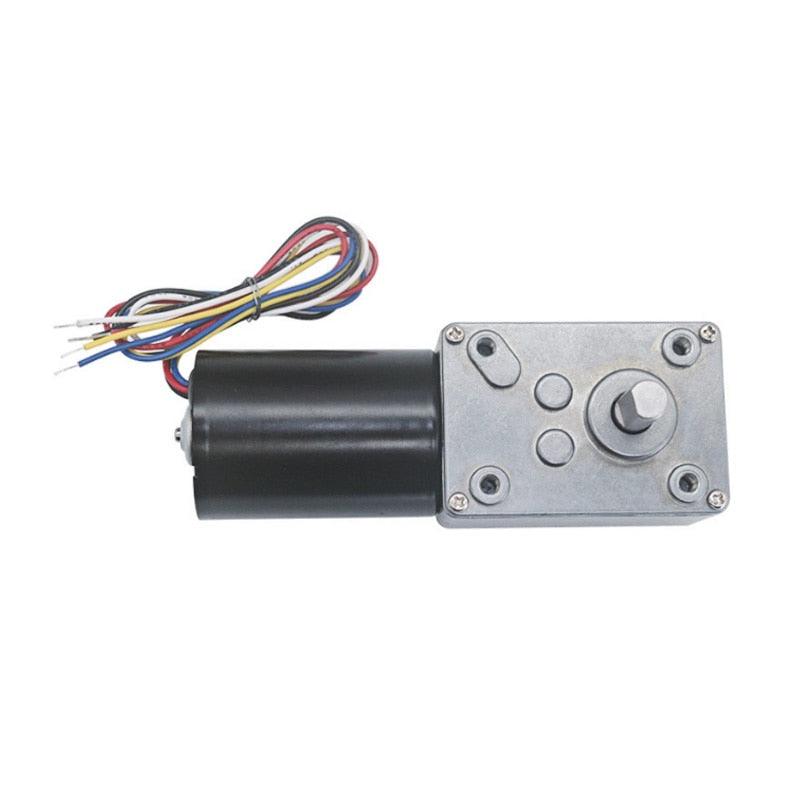

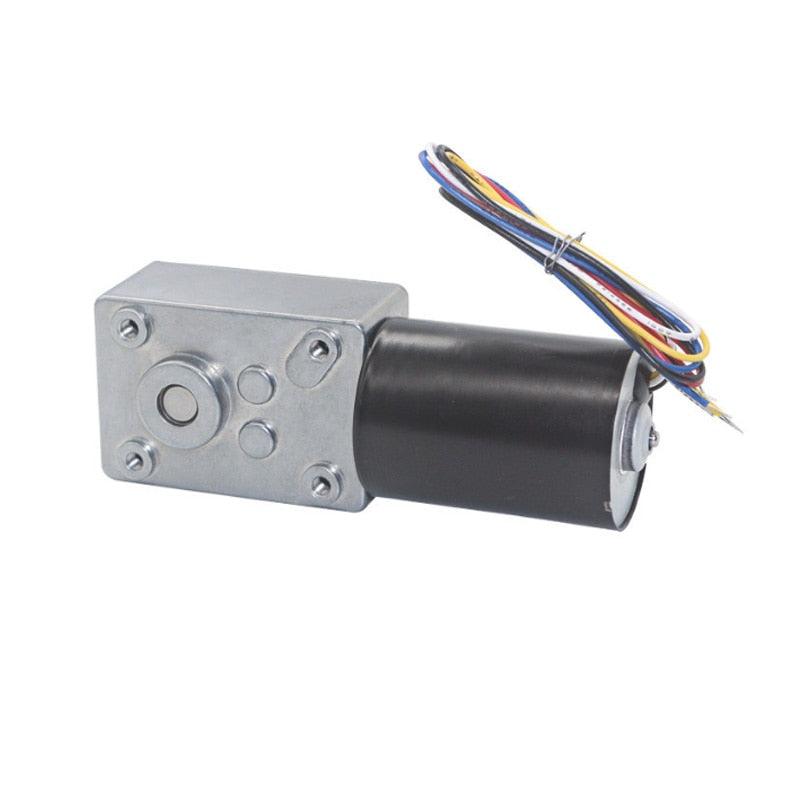

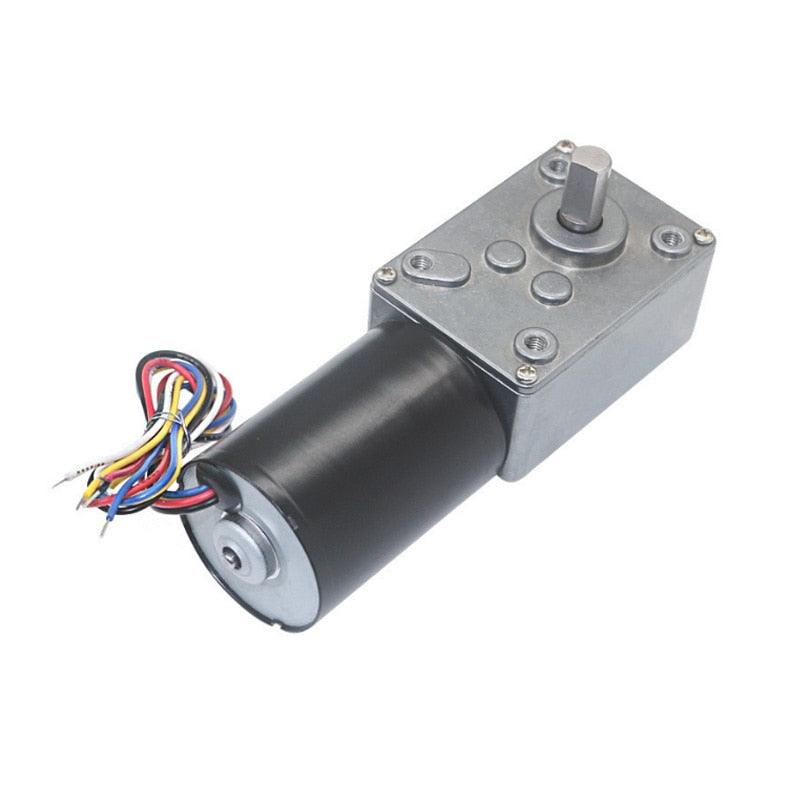

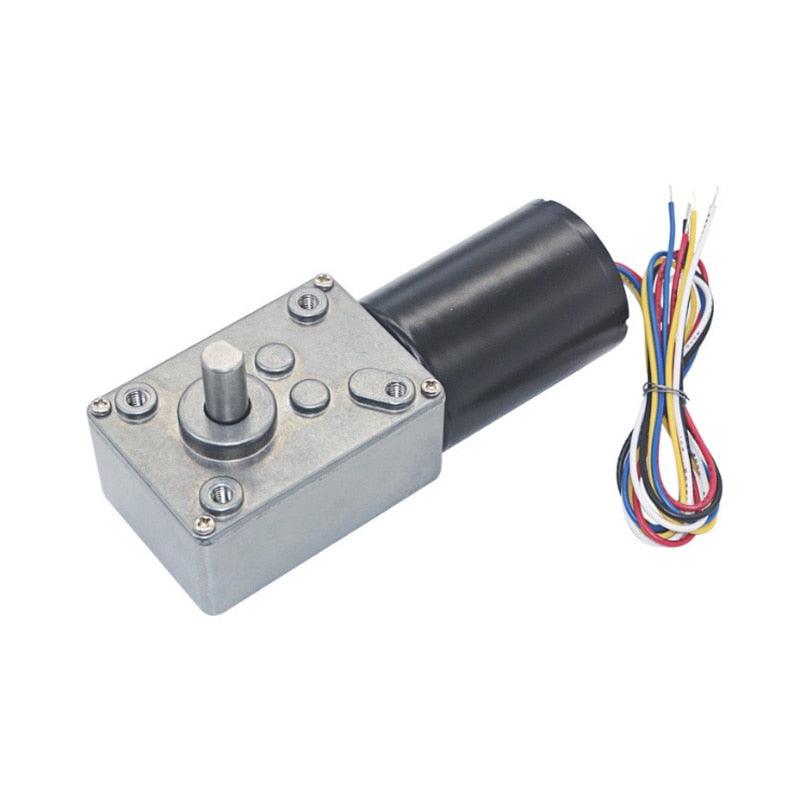

12V DC Motor Brushless Electric Worm Geared Motor High Torque
Couldn't load pickup availability
SPECIFICATIONS
12V DC Motor Brushless Electric Worm Geared Motor High Torque
Turbine Reduction Motor With Self Locking 5840-3650 Reversible
Voltage: 12VDC
Usage: BoAt,car,Electric Bicycle
Type: Servo Motor
Torque: 60kg.cm
Protect Feature: Drip-proof
Output Power: 30W
Origin: CN(Origin)
Model Number: 5840-3650
Efficiency: IE 1
Continuous Current(A): 0.8A
Construction: Permanent Magnet
Commutation: Brushless
Certification: ce
Brand Name: CNMAWAY
Description
Warning: it is forbidden to connect the positive and negative poles of the power supply wrongly, and the signal line is forbidden to be connected, otherwise the motor will be damaged!
★Red wire:
motor power supply + do not connect wrongly
★Black wire:
motor power supply - do not connect wrongly
★Yellow wire:
the signal motor has 6 pulse signals per turn
★Blue wire:
0-5V voltage speed regulation
★White wire:
positive and negative rotation line (connected with black wire connected negative rotation)
default overcurrent protection 4A, locked rotor protection, with automatic start function
Main performance:

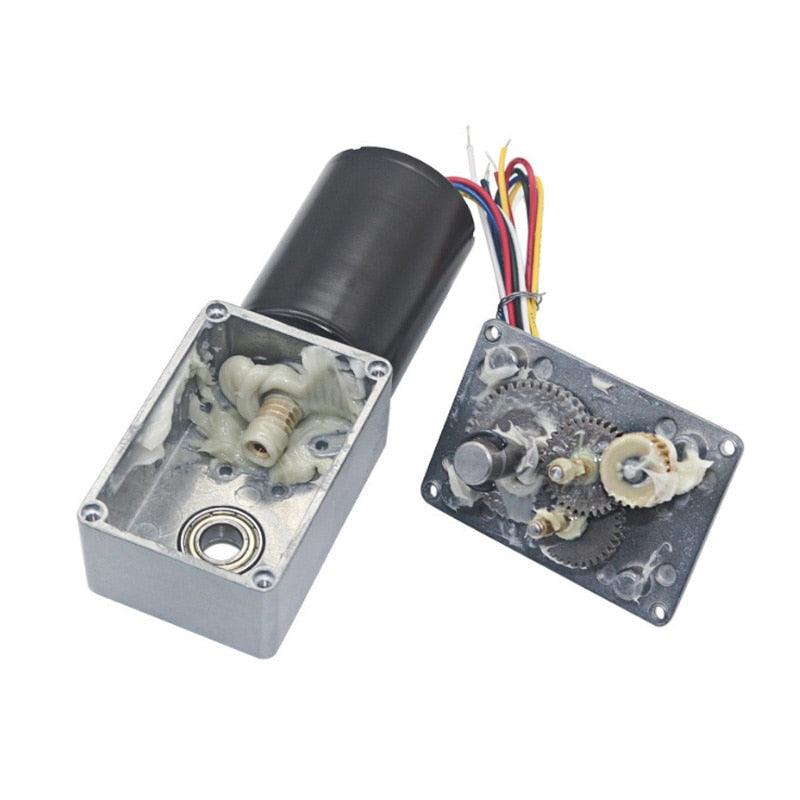

☆ Double ball bearing structure
☆ Forward and reverse free switching function
☆ Brake by wire function
☆ Speed regulation PWM function
☆ FG signal speed measurement function
Overcurrent protection function 3A
☆ Overvoltage protection function 30V
☆ Over temperature protection function 80 ℃
Rated voltage: 12V
No load current: ≤230mA
Rated current: ≤0.8A
Protection voltage: 30V
Drive protection current: 30A
Note: the maximum bearing capacity of the gear is 70kg. Locked rotor is prohibited. Locked rotor for a long time is easy to burn the motor.
