12V 24V DC Brushless Motor Controller 3A 90W PWM Speed Brake Reversed CW CCW BLDC 6V-30V Electric Motors Mini Regulator Engine
Regular price
$22.19 USD
Regular price
$23.71 USD
Sale price
$22.19 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SPECIFICATIONS
12V 24V DC Brushless Motor Controller 3A 90W PWM Speed Brake Reversed CW CCW BLDC 6V-30V Electric Motors Mini Regulator Engine
Motor Type: DC Motor
Origin: Mainland China
Model Number: DC BLDC Controller 12V 24V
Certification: RoHS
Brushless motor controller introduction
1. Voltage: 6V To 30V
2. Power : 90W
3. Maximum current : 3A
4. Ways to adjust the speed: stepless speed regulation
5. Frequency switching: The default position is 20khz (that is, 2 needles near the terminal block), 2 needles near the adjustment speed knob are 2khz, we will send you 20khz by default.
6. Function: Rotate clockwise or counterclockwise; stepless adjustment speed; brake function, but the motor itself must have brake function
7. This controller is suitable for 3-phase brushless motor PWM speed regulation of some built-in drives, brushless fan speed regulation, etc.
8. Because the brushless motor itself has FG signal output, but this controller does not have FG signal speed measurement function, so please do not connect the motor signal output line to this controller. Thanks
9. Do not connect the positive and negative terminals of the DC power supply incorrectly, otherwise the controller will burn out.

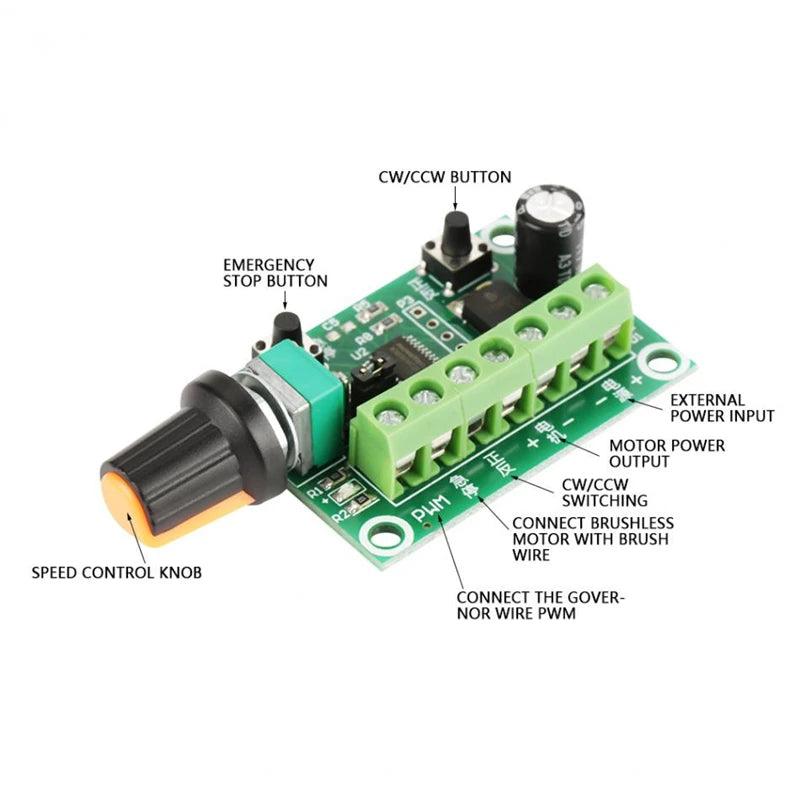

10.Features:
the DC motor speed controller can control the direction of DC motor, CW/CCW rotation
-
This motor controller board can adjust the speed of the motor by the speed control knob
-
With emergency stop button, safe to use
-
This speed controller support 6-30V voltage,and suitable for 37GB3525 brushless motor
-
The motor speed controller has speed control knob, easy to operate

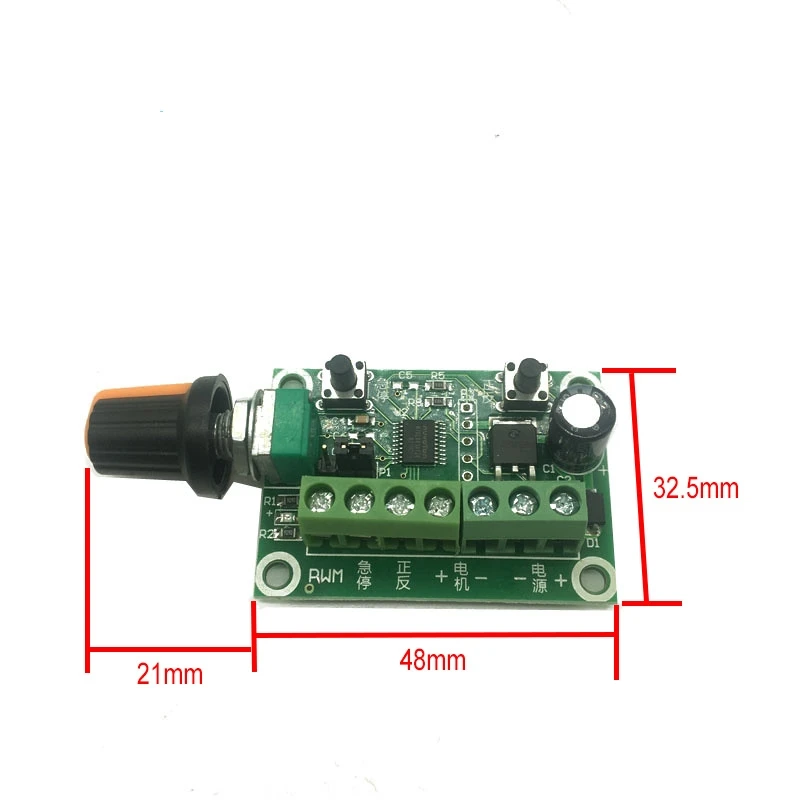

The size is for reference only,the measurement will be slightly different,please pay attention before buying
