12~28V 15A 240W DC Brush Motor PWM Governor 12V 21V 24V 200W LED Dimming Speed Adjustment Controller Regulator Fan (BG1228-1015)

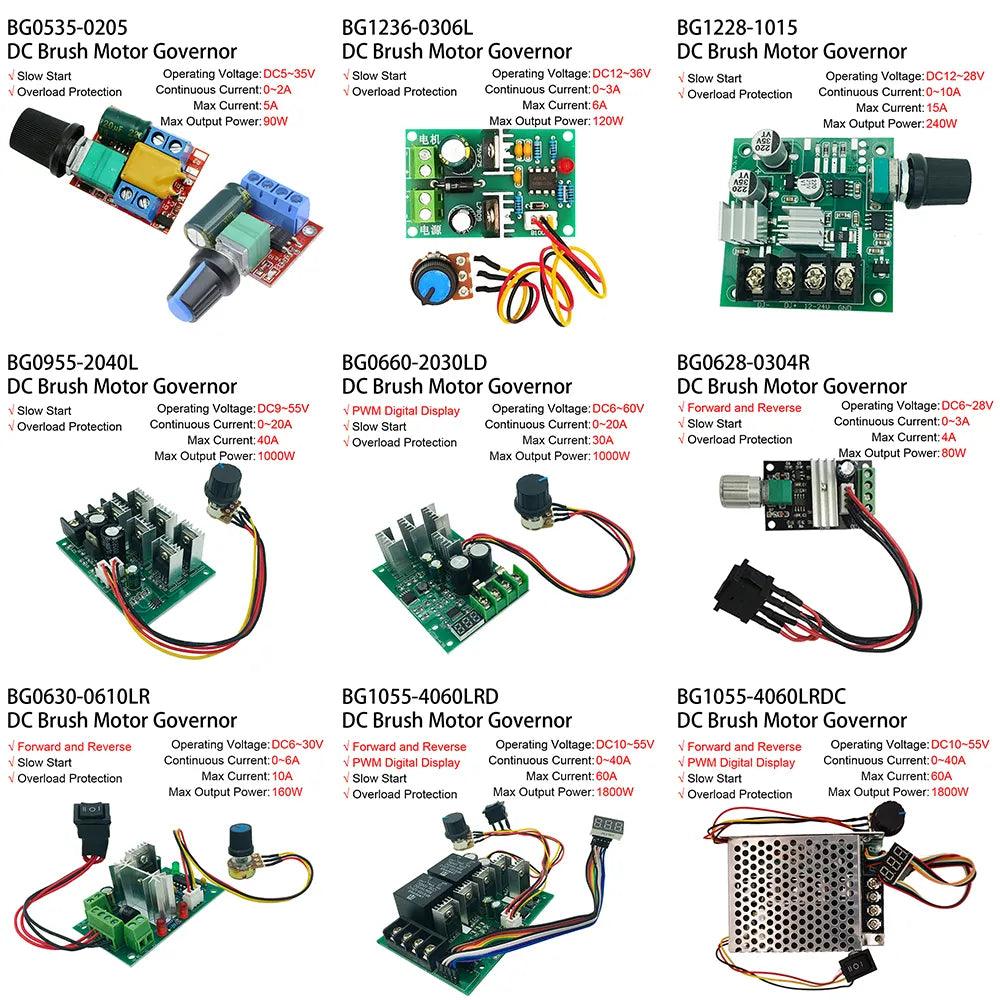

The DC Brush Motor PWM Governor (Speed Controller) with slow start, overload protection, high stability and high reliability. Some of which support forward and reverse (CW and CCW), PWM pulse width digital display, etc. Click for details.

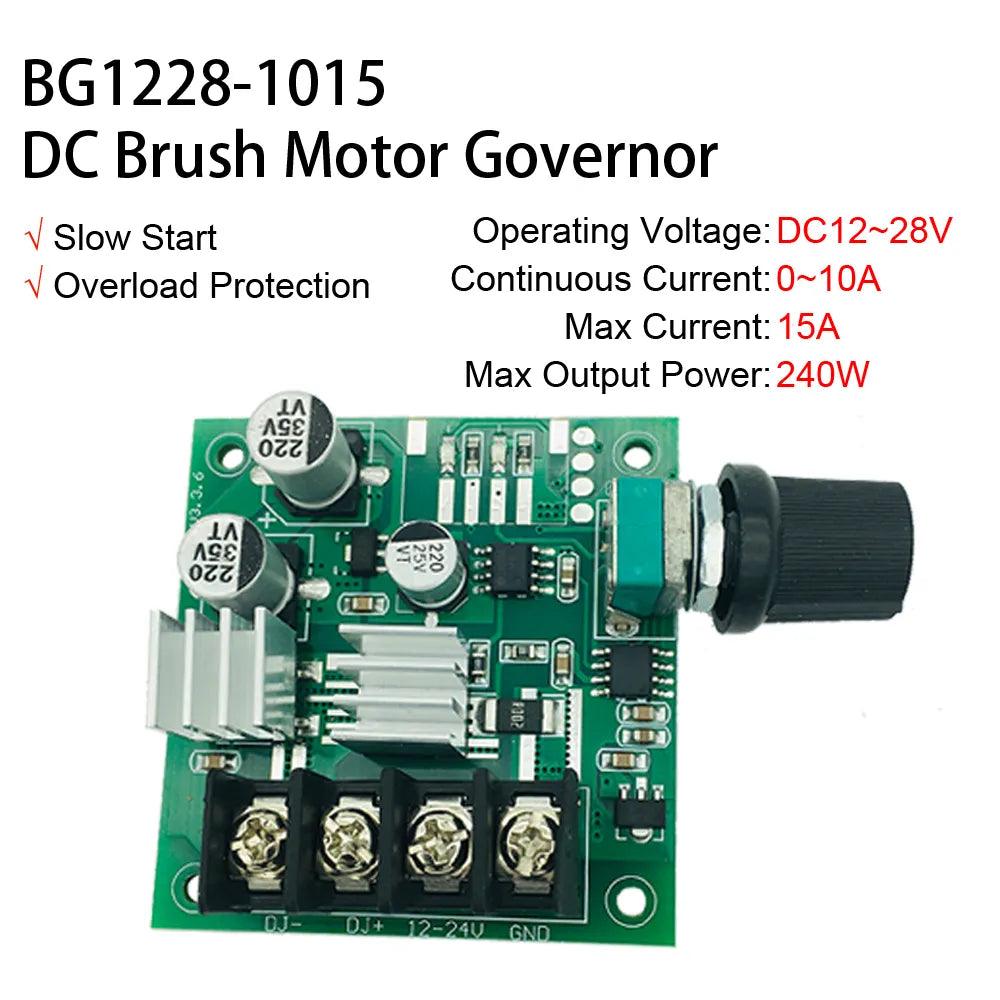

Model: BG1228-1015
Applicable Motor: DC brush motor
Applicable Models: 7 series motors (775, 795, 799), etc. and LED light
Speed Control Mode: PWM
Slow Start: Yes
Overload Protection: Yes
Operating Voltage: DC12~28V
Continuous Current: 0~10A
Max Current: 15A
Max Output Power: 240W
Max Efficiency: 98%
PWM Frequency: 16KHz
PWM Duty Cycle: 0~100%

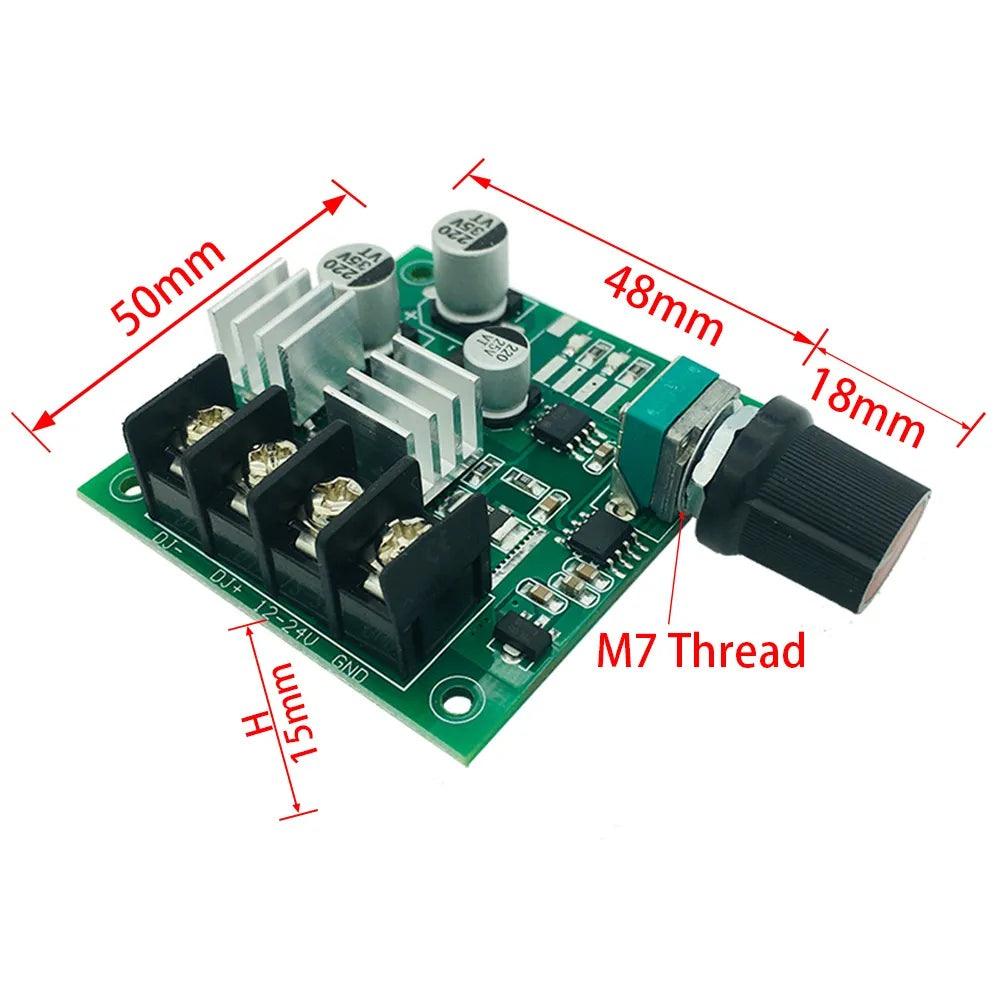

Size: 50x48x15mm
Weight: 30g

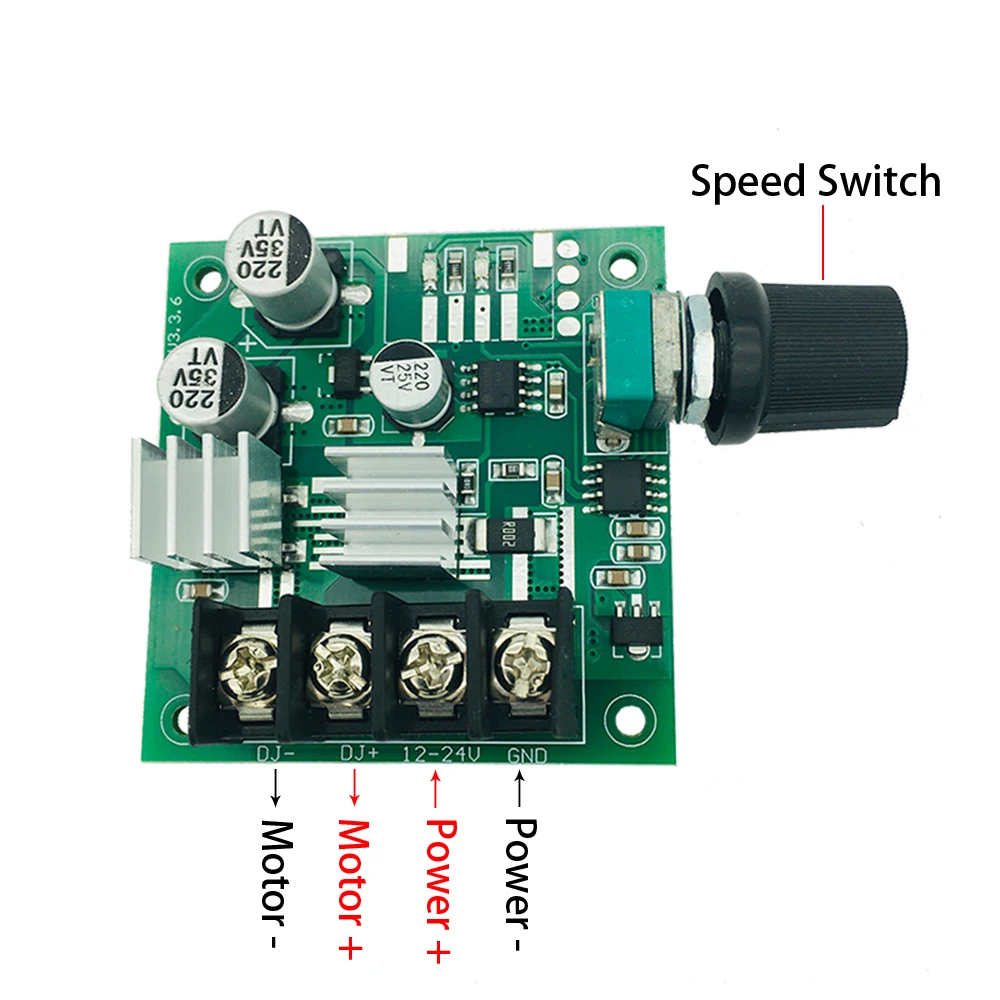

Speed Switch: On-board Potentiometer
Reversible Switch: No
Digital Display: No
Product Case: No

Notes:
1. The governor can be used not only for motor speed control, but also for LED light/lamp dimming.
2. When used for LED light dimming, you need to ensure that the LED light is directly DC power supply, then the governor will be connected in series between the DC power supply and the LED lamp, by turning the speed potentiometer knob to achieve dimming.

For corporate customers:
If you are using our speed governors to develop your products, we can provide technical support and customization services to customize the circuits boards according to your requirements.

Package Included:
1 x DC Motor PWM Governor (with Speed Switch potentiometer knob cap and matching nut)
Notes:
As all sizes are measured manually, so there may be 1~2mm error, please pay attention before purchasing.

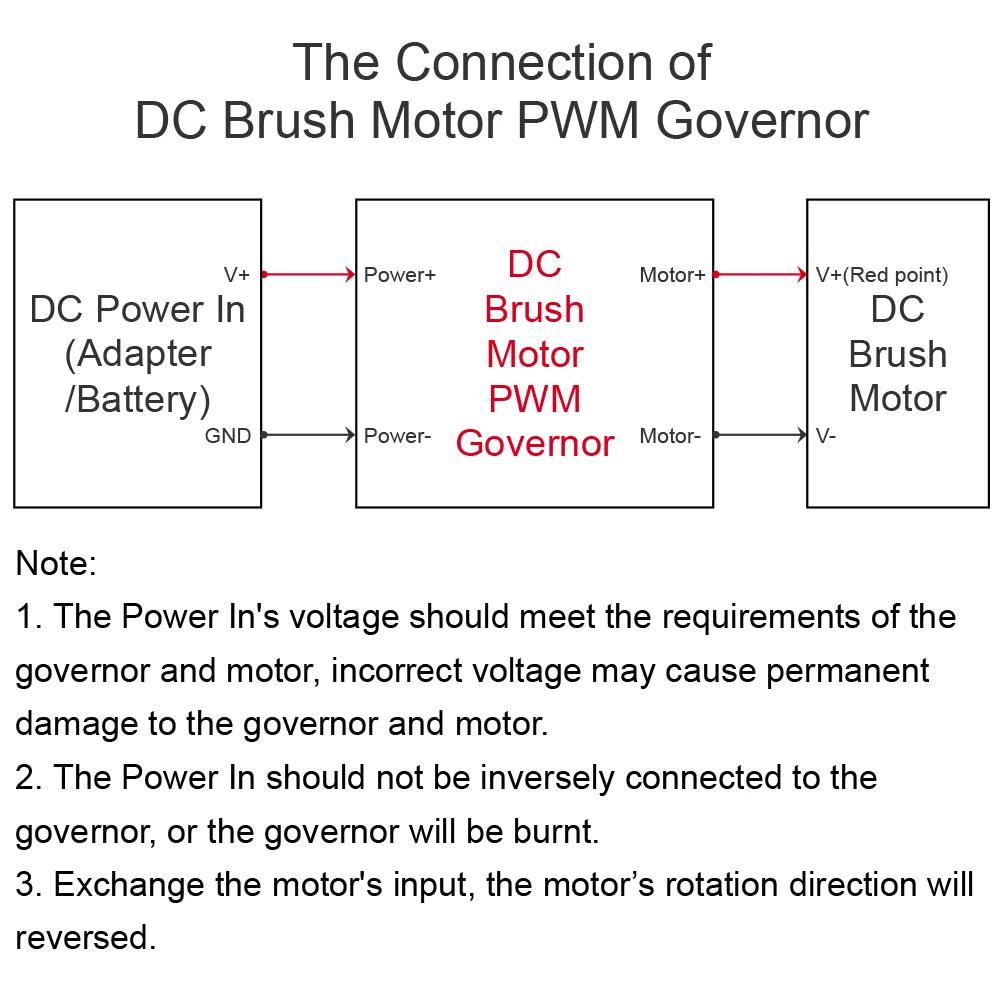

Notes:
1. The Power In's voltage is DC, and should meet the requirements of the governor and motor, incorrect voltage may cause permanent damage to the governor and motor. Special attention that the governor should not be directly connected to the AC power (such as AC110/220V), otherwise it will burn!
2. The Power In's positive and negative should not be inversely connected to the governor, or the governor will be burnt.
3. The Motor's positive and negative can be inversed, then the motor's rotation direction will be reversed.
