110V/220V AC Gear Motor Set 6W With Speed Controller 7.5/15/23/34/54/75/108/150/180/270/450/540/675Rpm AC Motor Metal Gearbox
Couldn't load pickup availability
SPECIFICATIONS
110V/220V AC Gear Motor Set 6W With Speed Controller 7.5/15/23/34/54/75/108/150/180/270/450/540/675Rpm AC Motor Metal Gearbox
Brand Name: HYSMOTOR
Certification: ce
Origin: Mainland China
Output Power: 15W
Commutation: Brush
Type: Gear Motor
Protect Feature: Explosion-proof
Construction: Permanent Magnet
Usage: BoAt
Usage: car
Usage: Electric Bicycle
Usage: Fan
Usage: Home Appliance
Efficiency: IE 1
Model Number: 15W Geared motor AC220V 110V
Voltage: AC 110V AC220V
Metal Gear AC motor: Can adjustment speed
AC110V 220V Reducer motor: Can reversed and Forward
✔This controller has ability to infinitely vary speed in range of 6.7%~100% (stepless speed regulation),can't used for Non-adjustable motor, When reduce speed will proportionally decrease torque and power;
✔Widely used in packaging, printing, textile, dyeing, chemical, food, medical, pharmaceutical construction machineries. And advertising, office, petrochemical, instrumentation, stage lighting, transmission, automatic warehouse, parking access control system and other equipments.
Product Application:
Package:
1*AC 2GN Gear Motor
1*Motor Controller
Product Information:
Voltage: AC 110V/AC 220V;
Power:6W;
Gear Reduction Ratio:2GN90K;
Frequency: 50HZ/60HZ;

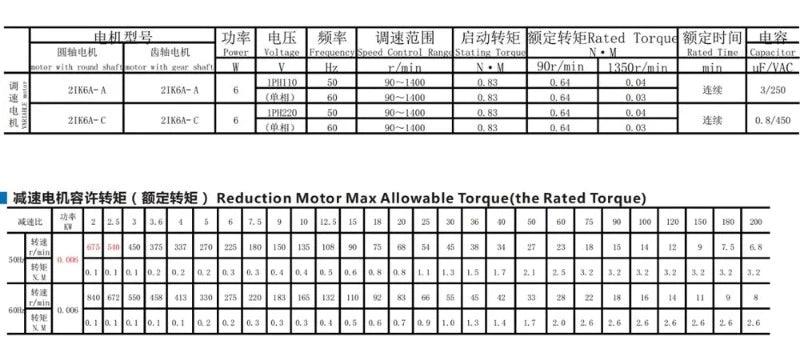

Rated Torque: As The Picture ;

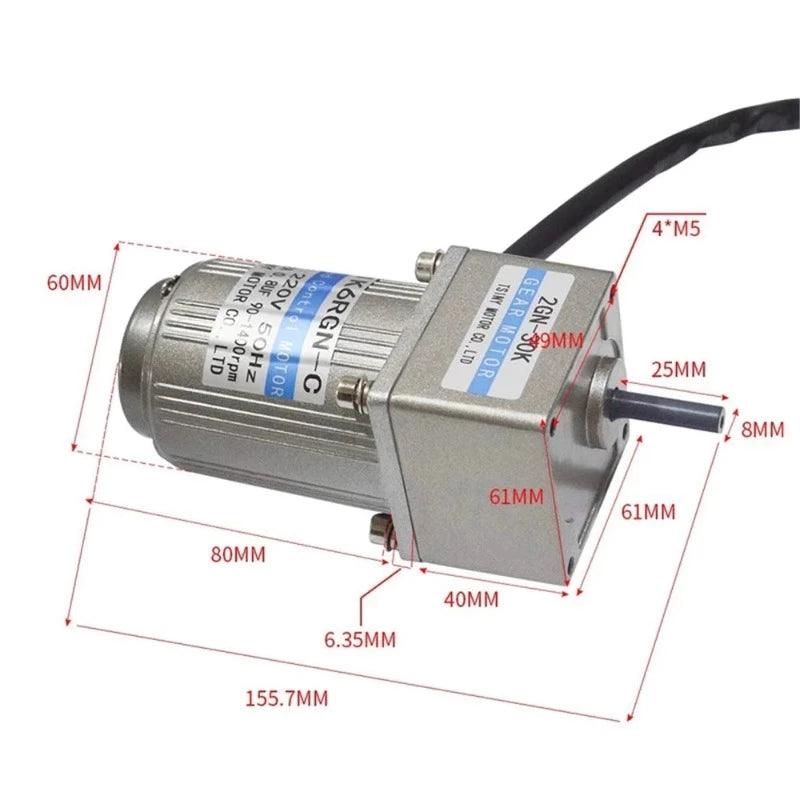

Pls confirm the dimenssions in the pictures;
Product Feature:
1. All metal gears and pure copper coils are used inside the gear box, which is resistant to high temperature
2. Smooth transmission and wear resistance
3. Large transmission torque
4. There are two fan-shaped magnets in the fuselage to increase the balance and enhance the motor performance.
