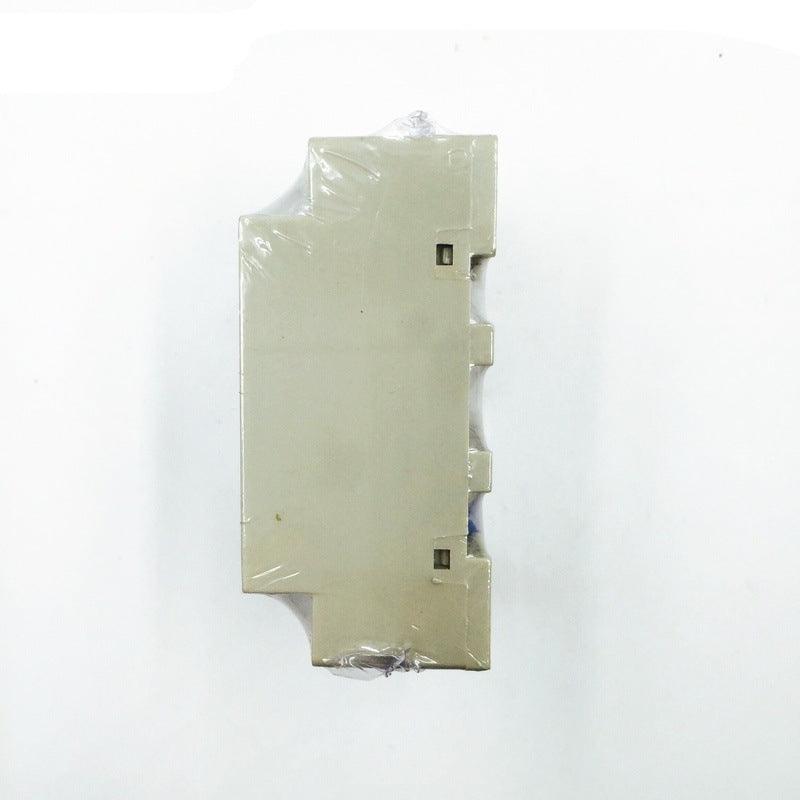

10DD 5 Channel Din rail SSR quintuplicate five input 3~36VDC output 10~36VDC single phase DC solid state relay

$23.15 USD
$27.01 USD $23.15 USD
Sale Sold out
Shipping calculated at checkout.

SPECIFICATIONS

10DD 5 Channel Din rail SSR quintuplicate five input 3~36VDC output 10~36VDC single phase DC solid state relay

Usage: General Purpose

Unit Type: piece

Type: DC Solid state

Theory: Solid State Relay

Size: Subminiature

Protect Feature: Sealed

Package Weight: 0.101kg (0.22lb.)

Package Size: 5cm x 5cm x 2cm (1.97in x 1.97in x 0.79in)

Model Number: ST5-10DD

Load current: 10A

Load Voltage: 10~36VDC

Input Voltage: 3~36VDC

Contact Load: Low Power

Type

Standard type

Isolation type

Model

ST5-10DD

ST5-5DDG

PN5-10DA

Rated load current

10A

5A

10A

Input Data


Input voltage

3~36VDC

3~32VDC

Min. ON/OFF Voltage

ON>4V.  OFF<1.0V

ON>2.4V.  OFF<1.0V

Trigger current

7.5mA/12V

4mA/12V

Output Data


Operating Voltage

10~36VDC

5~36VDC

24~380VAC

Voltage Drop

1.6V/25°c

Leakage Current

0.8mA

0.7mA

Response Time

< 1ms

ON<10ms, OFF<10ms

Dielectric Strength

Over 2.5KVAC/1min.

Isolation Strength

Over 50M/500VDC

Operation Temperature

_20°c    ~     +80°c

Housing Material

Intensive ABS

Weight

65g

85g

Installation

Din rail installation
