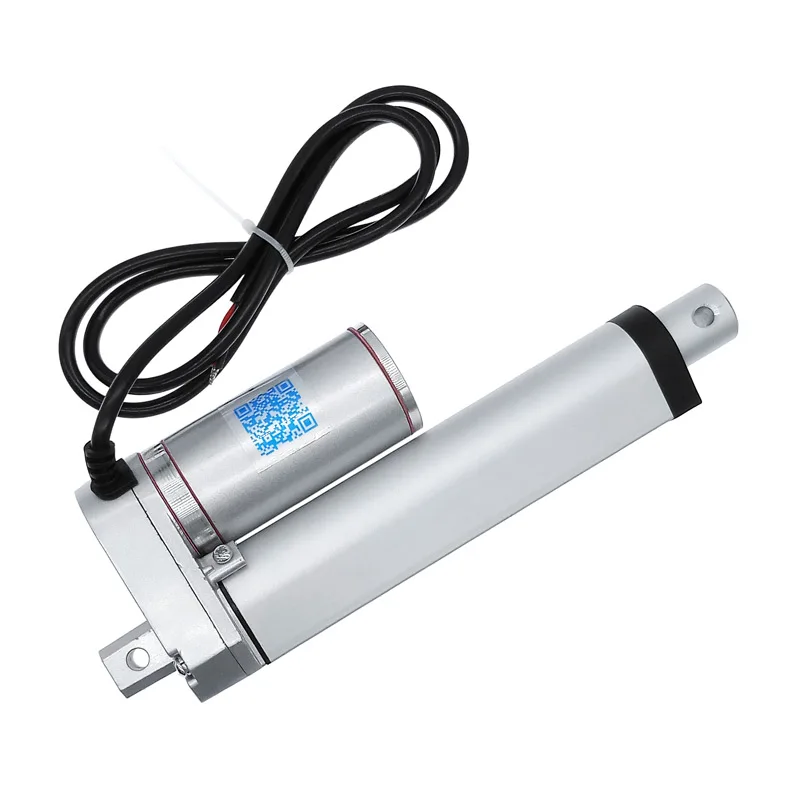

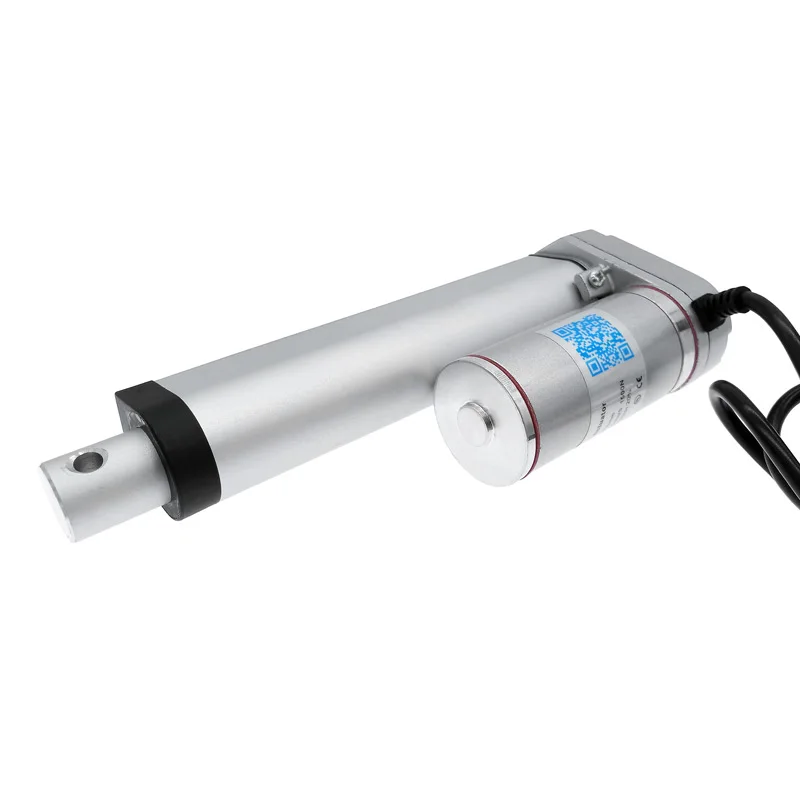

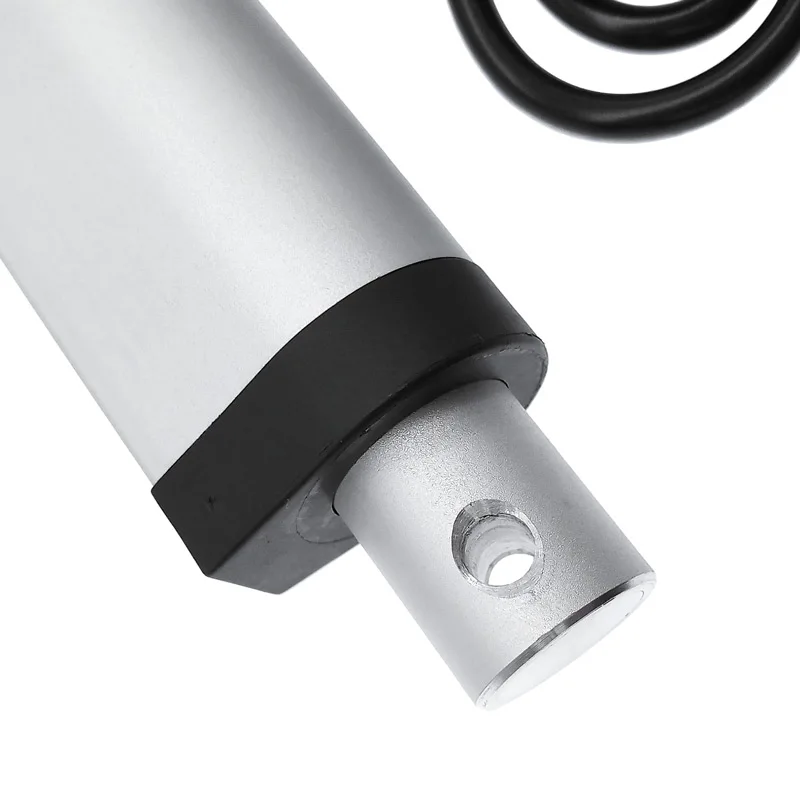

1000N Electric Linear Actuator DC 12V 24V Telescopic Stroke 20mm 30mm 50mm 100mm 250mm 400mm Gear Motor Automatic Lift

Rated power:20W Maximum 30W

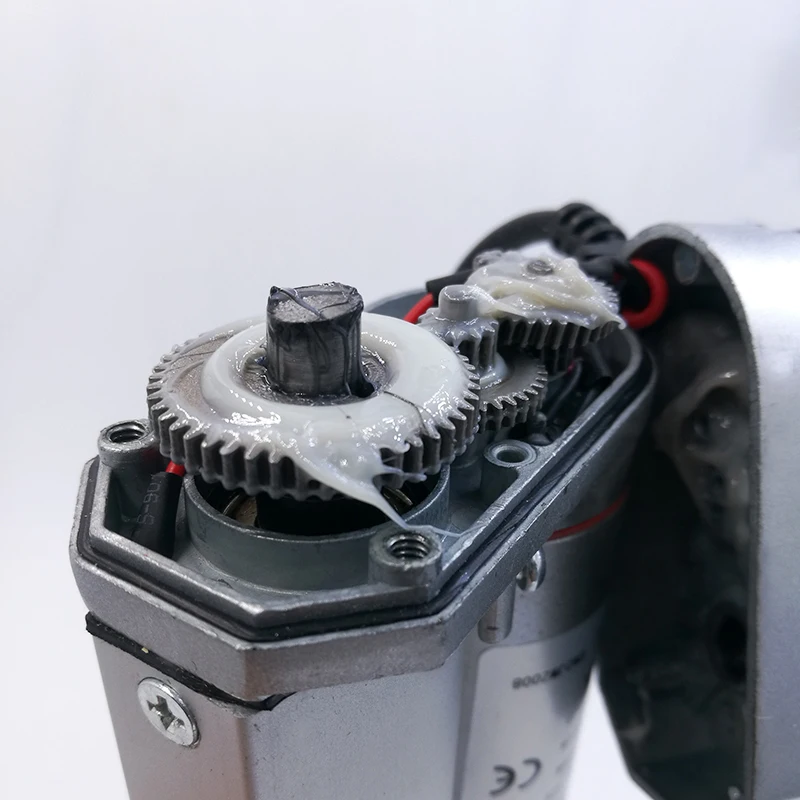

Permanent magnet DC motor drive;Voltage:12V 24v

Standard protection grade:IP54

Material: aluminum alloy

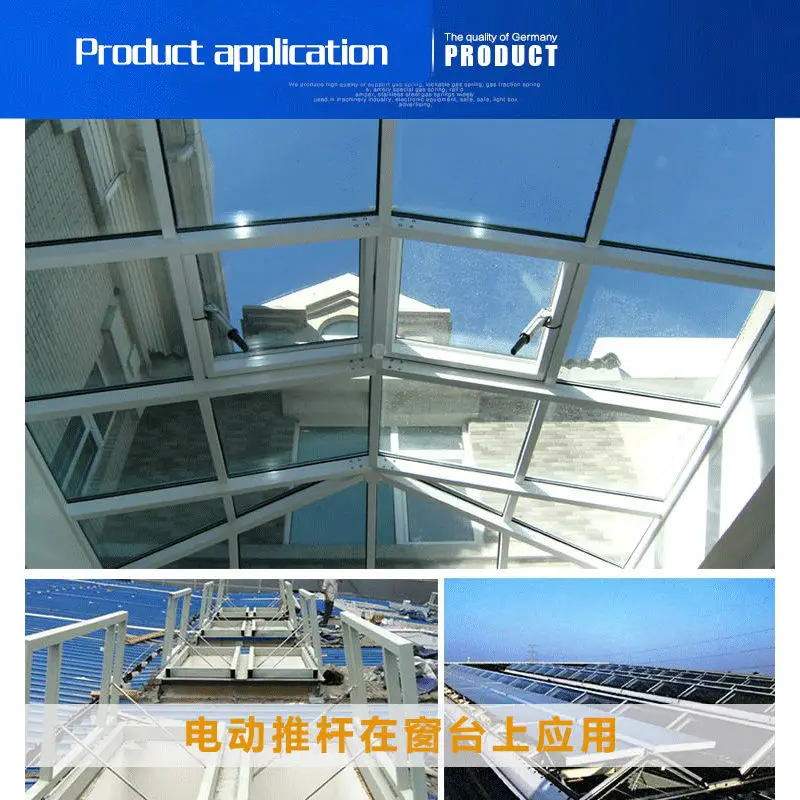

Application:Television console.couch for massage.Electric bed.Medical chair.Electric equipment ....

Note：If you need other voltage (DC24V 36V 48V ...) or if you need other strokes (550/600/650/700/750/800/850/900/950/1000mm)

The self-locking force of the linear actuator is about 80%

Pls click the picture below if you need a remote wireless controller

Note：Pls contact me if you do not know the wiring method

1) This product is a wireless transmission signal, non-directional, can pass through the wall

2)Working voltage ： DC 12V/24V

3) Working frequency: 433MHz-315MHZ

4) Remote control distance: open space without interference load test 100 meters (radio products practical application vary depending on the environment from the remote control, the gap is very large, which have strict requirements careful to buy!)

5) Load types: for electric burglar alarm, remote control electric windows, signal control, industrial control, motor reversing, lifting equipment and other control circuitry. Remote control switch module relay contact Independent output, Very suitable for direct control of various types of load

6) Receiving sensitivity:> - 105dB

7)The relay contact capacity: 10A 250VAC | 10A 30VDC

8) Control mode: Work mode: M4 (Jog: Press grimdeath outputs, let go to stop output), L4 (interlock: Road at the same time there can be only one output), T4 (self-locking: Road mutual independent output, independently of each other, click the output and click stops output)8) Control mode: Work mode: M4 (Jog: Press grimdeath outputs, let go to stop output), L4 (interlock: Road at the same time there can be only one output), T4 (self-locking: Road mutual independent output, independently of each other, click the output and click stops output)

Tips: Remote control buttons Press only one button can not hold down two or more keys simultaneously, otherwise it will affect the normal work interfere with each other.

9) Output: relay common / normally open / normally closed (flexible application can control a variety of load voltage)

10) Encoding: fixed code (welding yards) motherboard and pin remote control codes need to correspond to the state are: high, low, left floating.

11) Configure Explanation: Remote Control +  Receiver  + shell (1set)
