What is the ELCB Symbol on a Water Heater?

When you look at the control panel of your water heater, you may notice a symbol that looks like a circuit breaker with the letters ELCB next to it. This symbol stands for Earth Leakage Circuit Breaker, and it is an important safety feature that helps protect you and your home from electrical hazards.

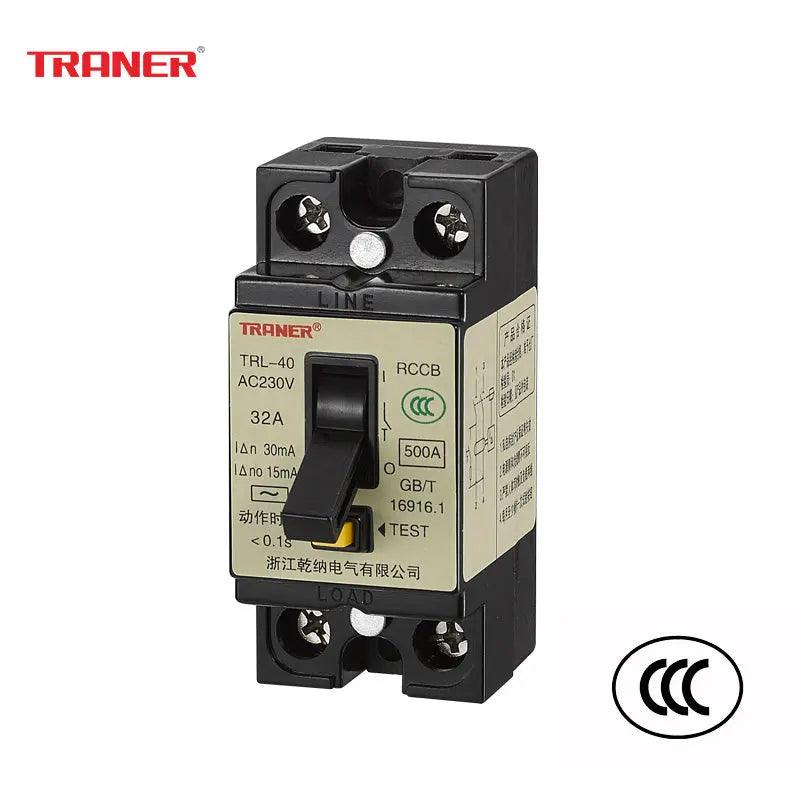

An ELCB is a type of circuit breaker that detects any leakage of current to the earth wire and automatically cuts off the power supply to prevent electric shocks or fires. It is commonly used in electrical appliances that are in close contact with water, such as water heaters, to provide an extra layer of protection.

When the ELCB detects a leakage of current, it interrupts the circuit and disconnects the power supply within milliseconds, thus preventing any potential harm. This is especially important in water heaters, as they are often installed in wet environments and have the potential to cause serious electrical accidents if not properly protected.

It is important to ensure that the ELCB on your water heater is functioning properly at all times. Regular maintenance and inspection by a qualified electrician can help ensure that your ELCB is in good working order and providing the protection it is designed to offer.

In conclusion, the ELCB symbol on a water heater signifies the presence of an Earth Leakage Circuit Breaker, which is a crucial safety feature that helps prevent electric shocks and fires. It is important to understand the purpose of the ELCB and to ensure that it is functioning properly to keep you and your home safe.
