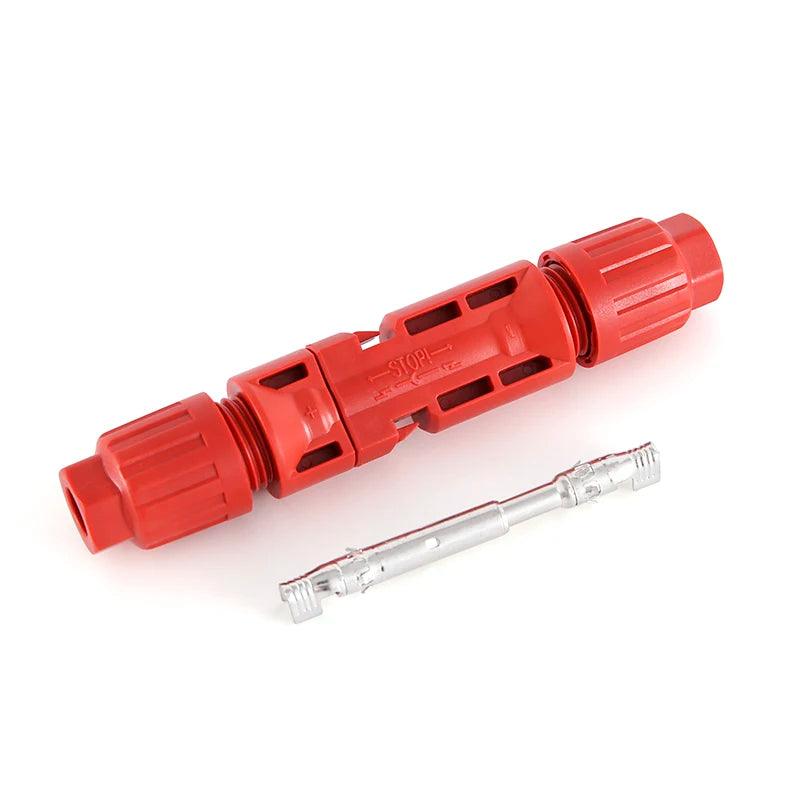

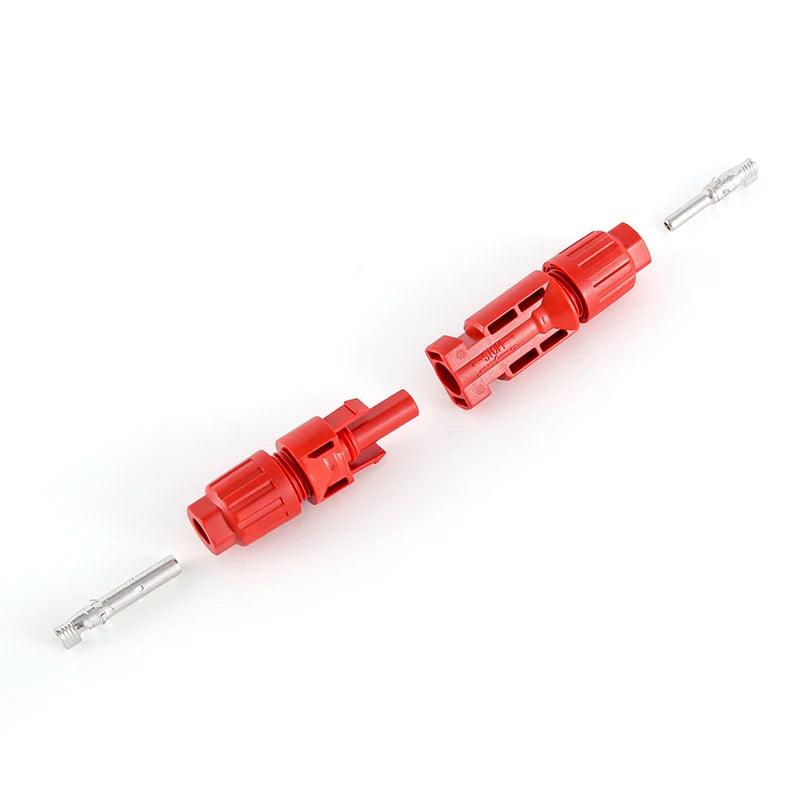

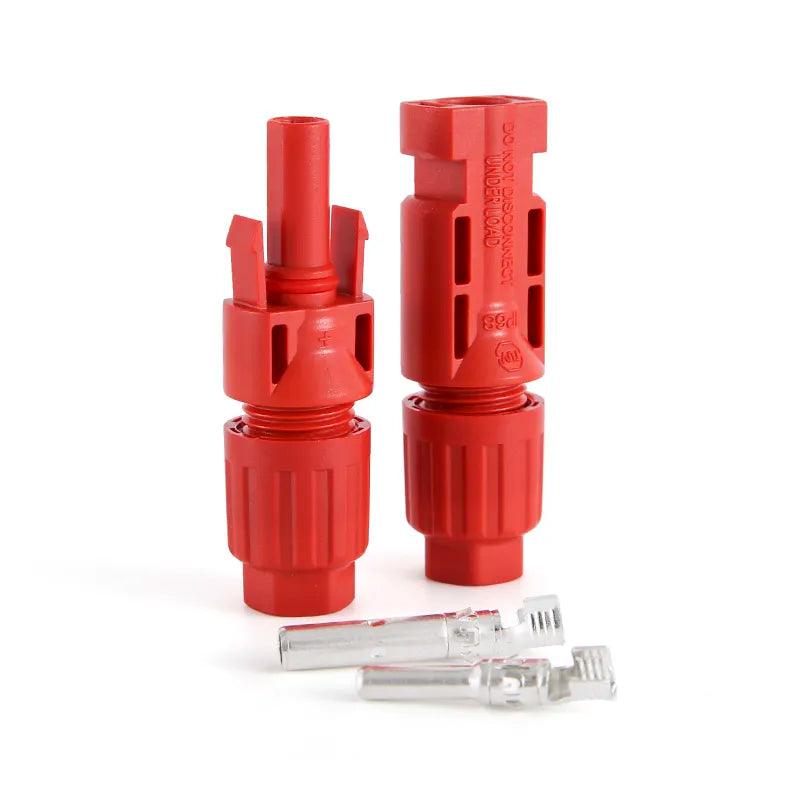

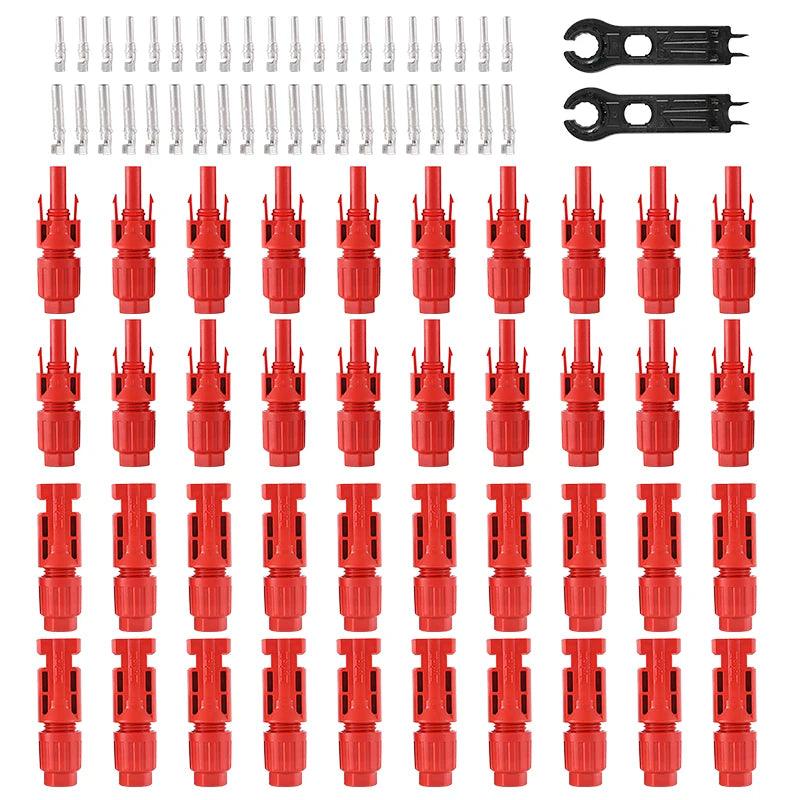

TÜV IP68 DC Solar Red Connector 1000V30A PV Panel Stecker Connectors Kit
Couldn't load pickup availability
SPECIFICATIONS

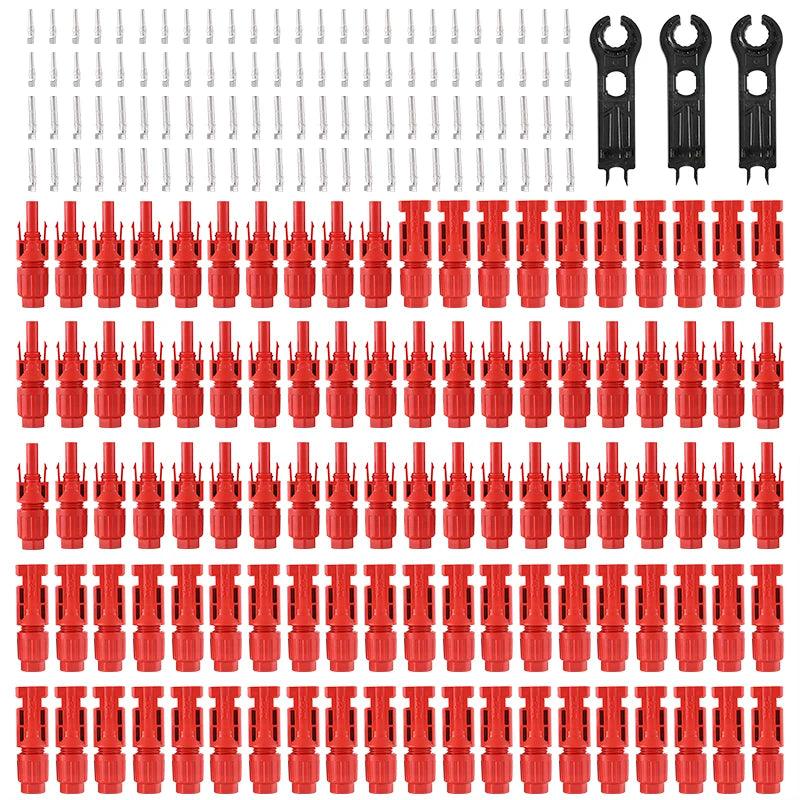

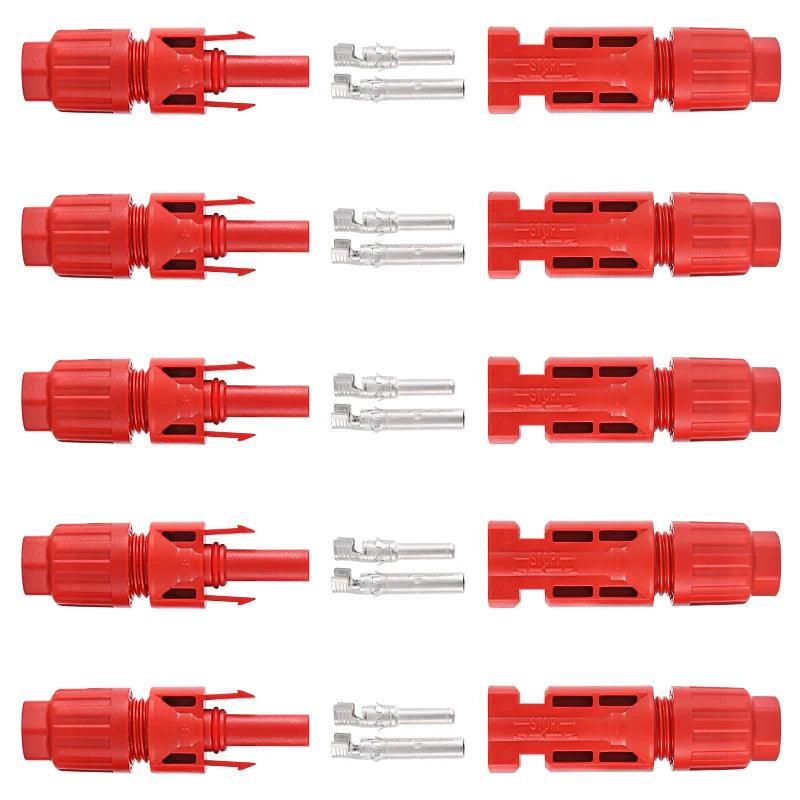

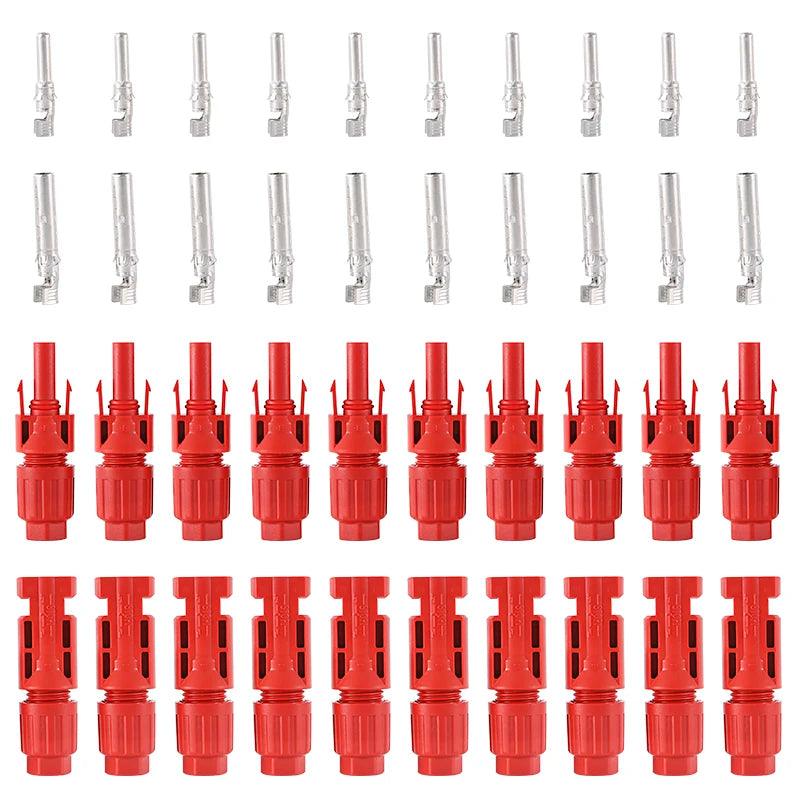

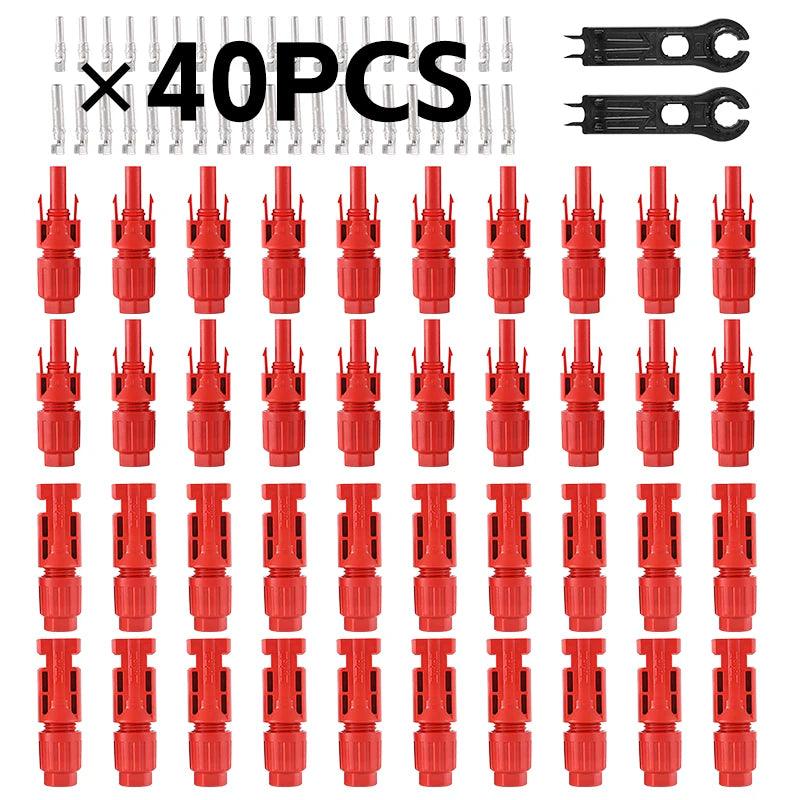

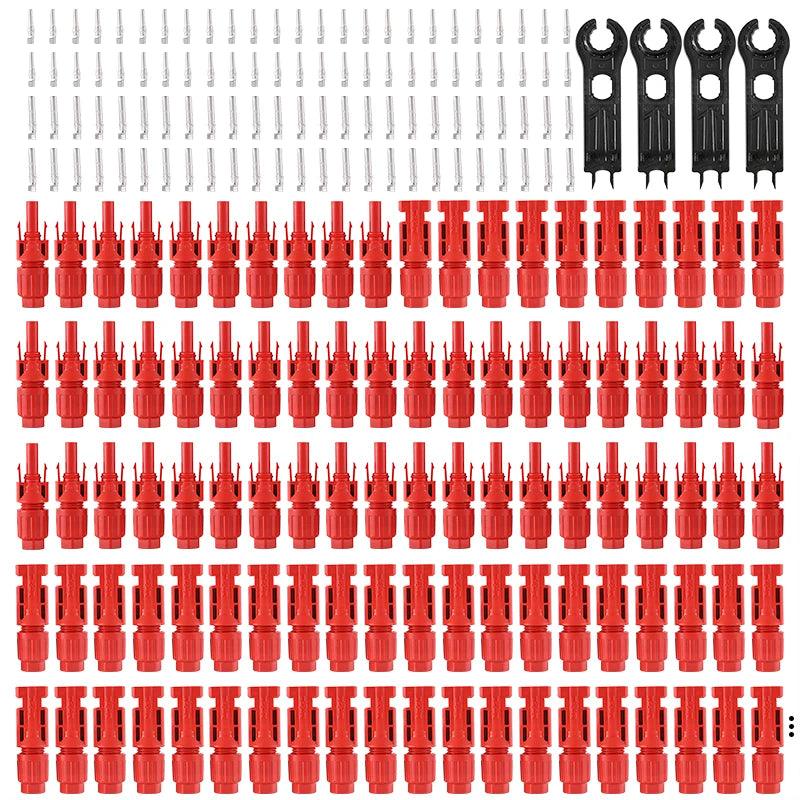

TÜV IP68 DC Solar Red Connector 200/100/40/20/10 Pcs 1000V30A PV Panel Stecker Connectors Kit for Cable 2.5/4/6mm2 Wholesale
Brand Name: PVMC
Origin: Mainland China
Model Number: 1000v
Certification: CE
Rated voltage: 1000V(Solar Connectors Rated voltage)
Rated current: 30A( Connector Rated current)
Degree of waterproof: IP68
Adapter Wire: OD 5mm-7mm
Connector Insulation material: PPO/PPE
Flammability rating: UL94-V0
Connector contact resistance: ≤0.5mΩ
Certificate: TUV
TÜV IP68 DC Solar Red Connector 200/100/40/20/10 Pcs 1000V30A PV Panel Stecker Connectors Kit for Cable 2.5/4/6mm2 Wholesale
* Rated current: 30A (2.5m㎡--6m㎡)
* Rated voltage: 1000V DC
* Connector contact resistance:≤0.5mΩ
* Degree of waterproof: IP68
* Flammability rating: UL94-V0
* Safety: Class II
* Suitable cable: 2.5m㎡--6m㎡( include AWG13,AWG12, AWG11,AWG10 )
* Adapter Wire: OD 5mm-7mm
* Connector conductor material: copper, Tin
* Connector Insulation material: PPO/PPE
* Insertion force: less or equal to 50N
* Withdrawal force: over or equal to 50N
* Operating temperature range: -40℃～ +85℃
* Connection: Clamp
