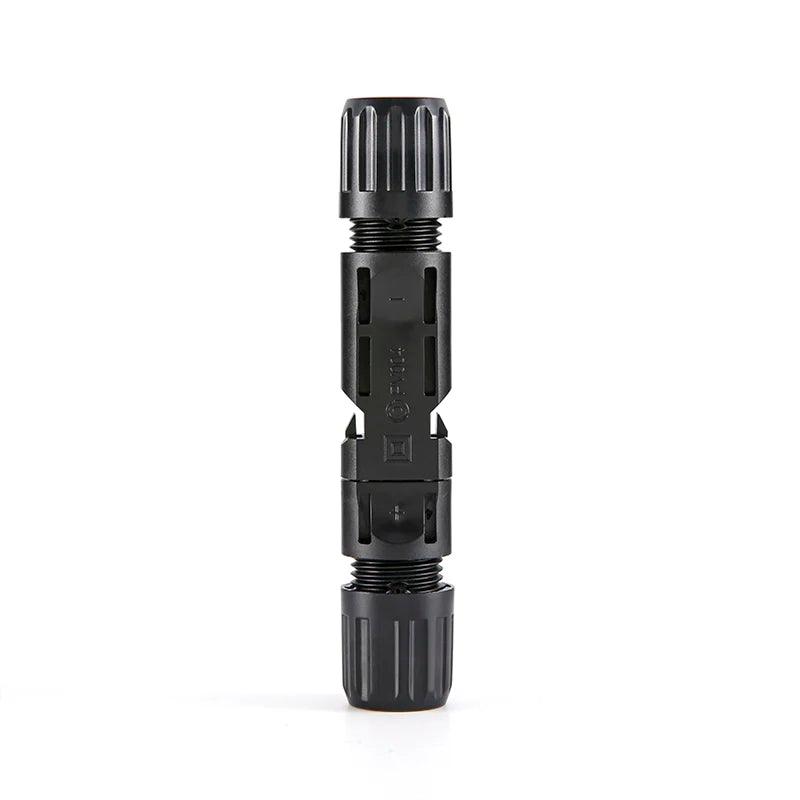

PV004 TÜV Genehmigt Free shipping IP68 DC Solar Connector 1000V30A
Couldn't load pickup availability
SPECIFICATIONS
PV004 TÜV Genehmigt Free shipping IP68 DC Solar Connector 1000V30A Panel Stecker Connectors Kit for Cable 2.5/4/6mm2
Origin: Mainland China
Model Number: 1000v
Certification: CE
Rated voltage: 1000V(Solar Connectors Rated voltage)
Rated current: 30A( Connector Rated current)
Degree of waterproof: IP68
Adapter Wire: OD 5mm-7mm
Connector Insulation material: PPO/PPE
Flammability rating: UL94-V0
Connector contact resistance: ≤0.5mΩ
Certificate: TUV
* Connection: Clamp
* Operating temperature range: -40℃～ +85℃
* Withdrawal force: over or equal to 50N
* Insertion force: less or equal to 50N
* Connector Insulation material: PPO/PPE
* Connector conductor material: copper, Tin
* Adapter Wire: OD 5mm-7mm
* Suitable cable: 2.5m㎡--6m㎡( include AWG13,AWG12, AWG11,AWG10 )
* Safety: Class II
* Flammability rating: UL94-V0
* Degree of waterproof: IP68
* Connector contact resistance:≤0.5mΩ
* Rated voltage: 1000V DC
* Rated current: 30A (2.5m㎡--6m㎡)
PV004 TÜV Genehmigt Free shipping 200/100/40 Pcs DC Solar Connector 1000V30A Panel Stecker Connectors Kit for PV/MC Cable 2.5/4/6mm2
