M5 1mm Cylinder Inductive Proximity Sensor Switch LJ5A3-1 3/2-wire PNP/NPN NO NC DC6~36V
Couldn't load pickup availability
SPECIFICATIONS
M5 1mm Cylinder Inductive Proximity Sensor Switch
LJ5A3-1-Z/BX/AX/BY/AY/EX
3/2-wire
PNP/NPN
NO NC DC6~36V
Wire:: 3/2-Wire type
Warranty: 1Y
Voltage:: DC6~36V
The diameter: 5mm
Switch Type:: PNP/NPN NO/NC
Switch Type: Proximity Switch
Product Name:: Proximity Sensor switch
Origin: CN(Origin)
Model Number: LJ5A3-1-Z/BX/AX/BY/AY/EX
Material: Copper
Item Type: Switches
Features: Proximity Sensor switch
Detecting distance:: 1mm
Current: 200mA
LJ5A3-1-Z/BX: NPN Normally Open 3-Line type 5mm diameter ; 1mm detection distance
LJ5A3-1-Z/AX: NPN Normally Close 3-Line type 5mm diameter ; 1mm detection distance
LJ5A3-1-Z/BY: PNP Normally Open 3-Line type 5mm diameter ; 1mm detection distance
LJ5A3-1-Z/AY: PNP Normally Close 3-Line type 5mm diameter ; 1mm detection distance
LJ5A3-1-Z/EX: Two-wire Normally Open 5mm diameter ; 1mm detection distance
Care Instructions
Care Instructions

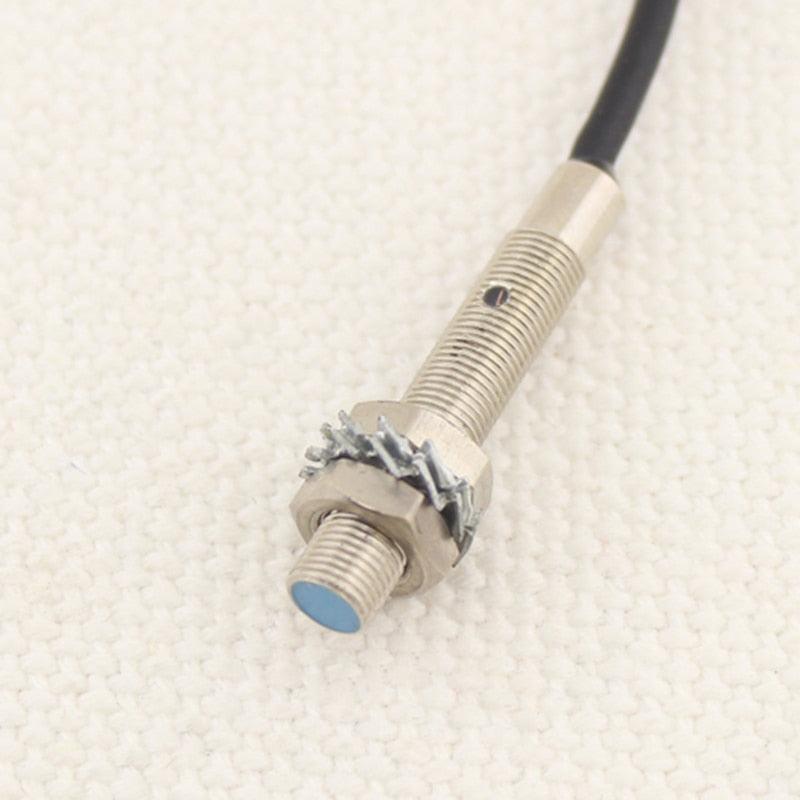

![M5 1mm Cylinder Inductive Proximity Sensor Switch LJ5A3-1 3/2-wire PNP/NPN NO NC DC6~36V.](http://www.electric-b2c.com/cdn/shop/products/m5-1mm-cylinder-inductive-proximity-sensor-switch-lj5a3-1-32-wire-pnpnpn-no-nc-dc6-36v-electrical-center-b2c-1.jpg?v=1718873136&width=1445)

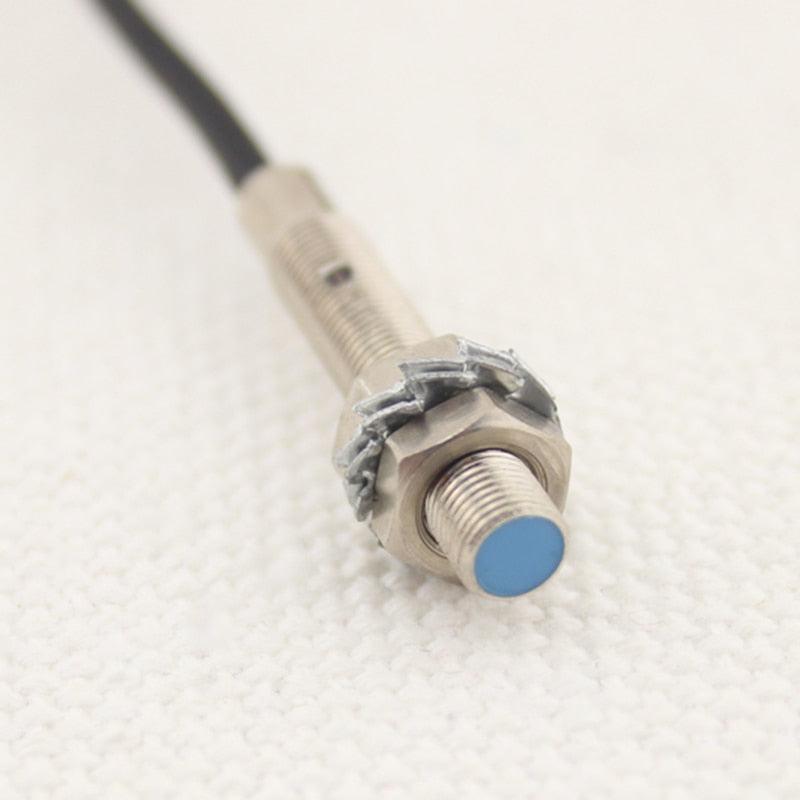

![M5 1mm Cylinder Inductive Proximity Sensor Switch LJ5A3-1 3/2-wire PNP/NPN NO NC DC6~36V.](http://www.electric-b2c.com/cdn/shop/products/m5-1mm-cylinder-inductive-proximity-sensor-switch-lj5a3-1-32-wire-pnpnpn-no-nc-dc6-36v-electrical-center-b2c-2.jpg?v=1718873138&width=1445)

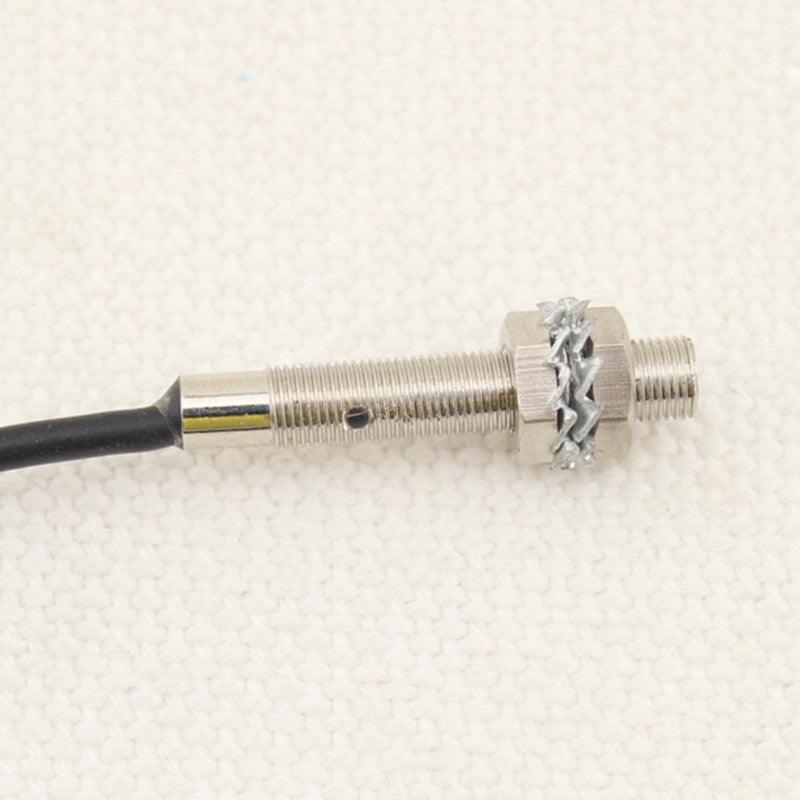

![M5 1mm Cylinder Inductive Proximity Sensor Switch LJ5A3-1 3/2-wire PNP/NPN NO NC DC6~36V.](http://www.electric-b2c.com/cdn/shop/products/m5-1mm-cylinder-inductive-proximity-sensor-switch-lj5a3-1-32-wire-pnpnpn-no-nc-dc6-36v-electrical-center-b2c-3.jpg?v=1718873139&width=1445)

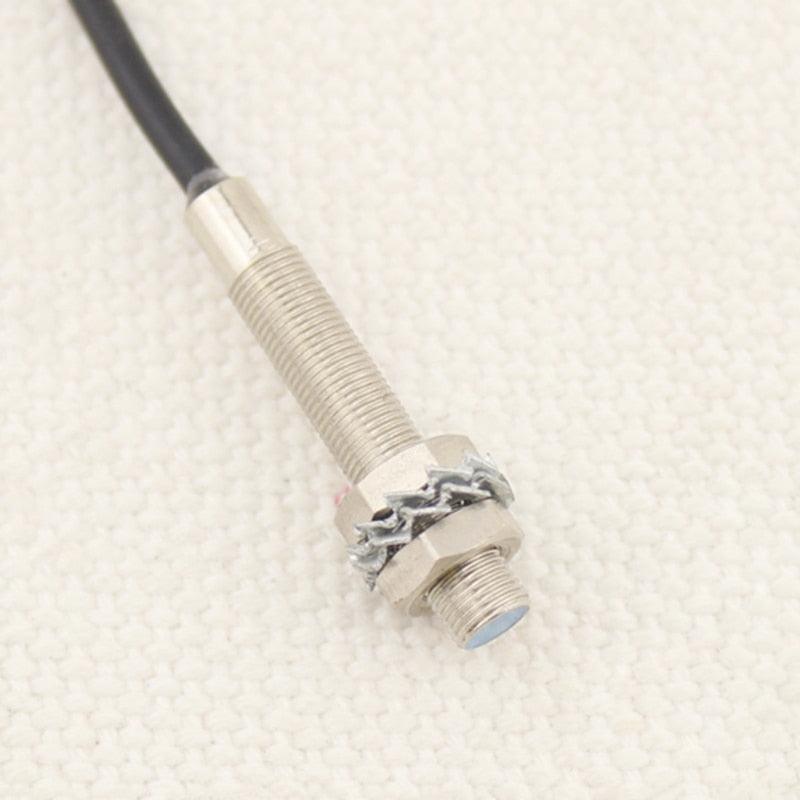

![M5 1mm Cylinder Inductive Proximity Sensor Switch LJ5A3-1 3/2-wire PNP/NPN NO NC DC6~36V.](http://www.electric-b2c.com/cdn/shop/products/m5-1mm-cylinder-inductive-proximity-sensor-switch-lj5a3-1-32-wire-pnpnpn-no-nc-dc6-36v-electrical-center-b2c-4.jpg?v=1718873140&width=1445)

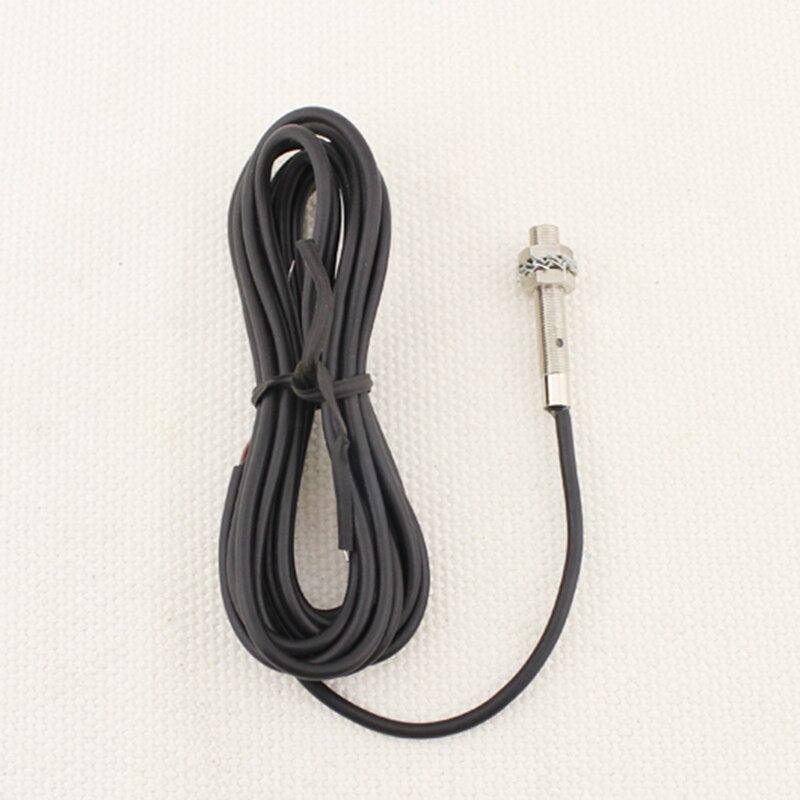

![M5 1mm Cylinder Inductive Proximity Sensor Switch LJ5A3-1 3/2-wire PNP/NPN NO NC DC6~36V.](http://www.electric-b2c.com/cdn/shop/products/m5-1mm-cylinder-inductive-proximity-sensor-switch-lj5a3-1-32-wire-pnpnpn-no-nc-dc6-36v-electrical-center-b2c-5.jpg?v=1718873142&width=1445)

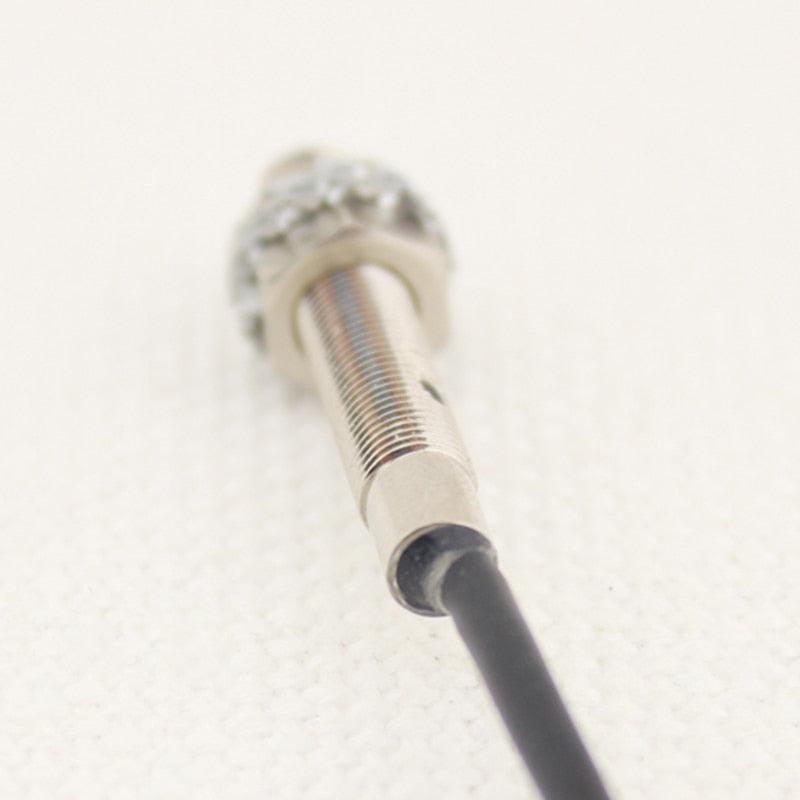

![M5 1mm Cylinder Inductive Proximity Sensor Switch LJ5A3-1 3/2-wire PNP/NPN NO NC DC6~36V.](http://www.electric-b2c.com/cdn/shop/products/m5-1mm-cylinder-inductive-proximity-sensor-switch-lj5a3-1-32-wire-pnpnpn-no-nc-dc6-36v-electrical-center-b2c-6.jpg?v=1718873143&width=1445)
