Linear Actuator 20N DC 12V Lifter Telescopic Rod 25mm 50mm 75mm 100mm 150mm Switch

SPECIFICATIONS

Linear Actuator 20N DC 12V Lifter Telescopic Rod 25mm 50mm 75mm 100mm 150mm Switch Pause Remote Controller Micro Lineal Actuador

Brand Name: HYSMOTOR

Certification: CCC

Origin: Mainland China

Commutation: Brush

Type: Gear Motor

Protect Feature: Totally Enclosed

Construction: Permanent Magnet

Usage: BoAt

Usage: car

Usage: Electric Bicycle

Usage: Fan

Usage: Home Appliance

The actuators emit a low noise volume so it won’t distract from the overall effect of your design. Rated IP65 so you can install it in a wide variety of environments without worry about damage from water or dust. Built-in limit switches with stall protection makes it easy to install and set up instantly.

Small electric linear actuators are convenient for creating customized automation in homes, offices, vehicles, yachts, RV’s, aircraft, robotics, VR experience simulators, RC/radio control vehicles, multi-copter drones, as well as artistic installations, medical applications and more.

Whatever your design needs are, the micro linear actuator is streamlined for the perfect fit.

Parameters

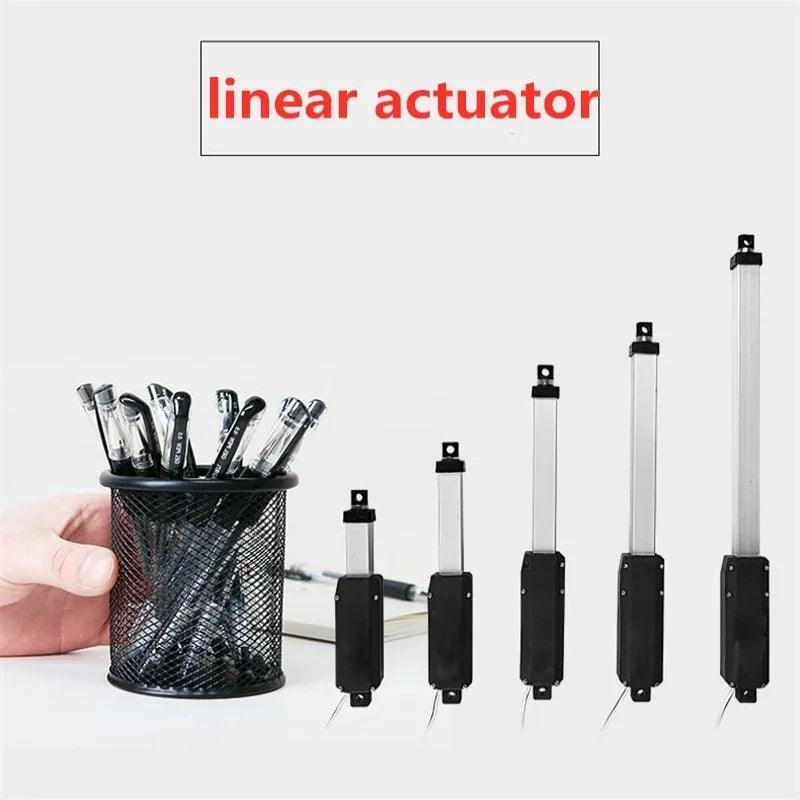

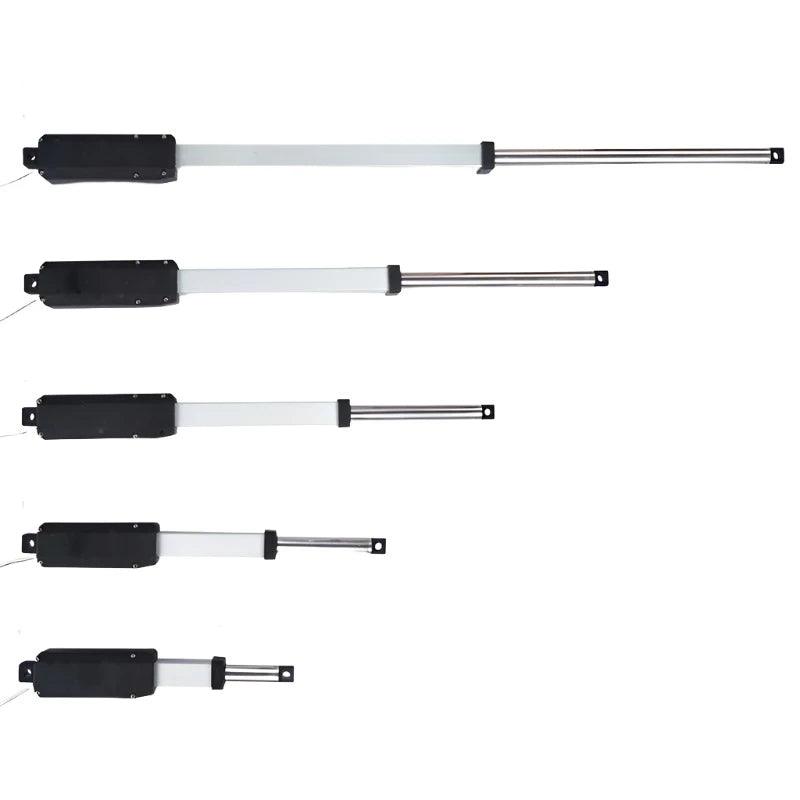

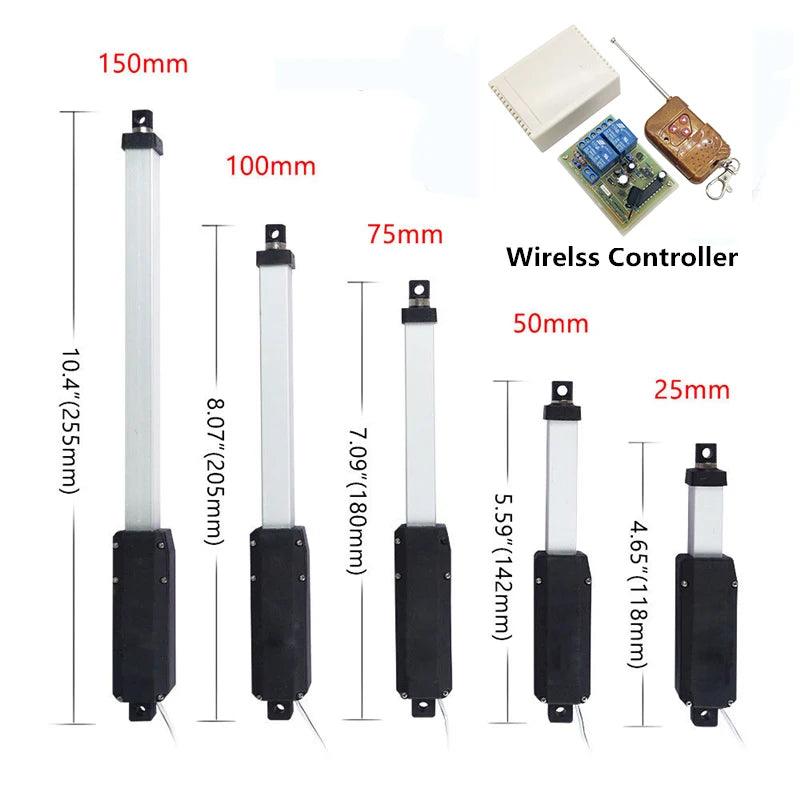

Stroke: 1-6" (25mm-150mm)

Force: 4.4 lbs

Speed: 0.51”/sec

Input Voltage: 12V DC

Duty Cycle: 10%

Noise: db<65

Protection class: IP65

Operational Temperature: +5ºC ~ +40ºC

Limit switches: Built-in; Non-adjustable

Housing Material: ABS and Aluminum

Inner Tube: Stainless Steel

Gear Box: All Metal

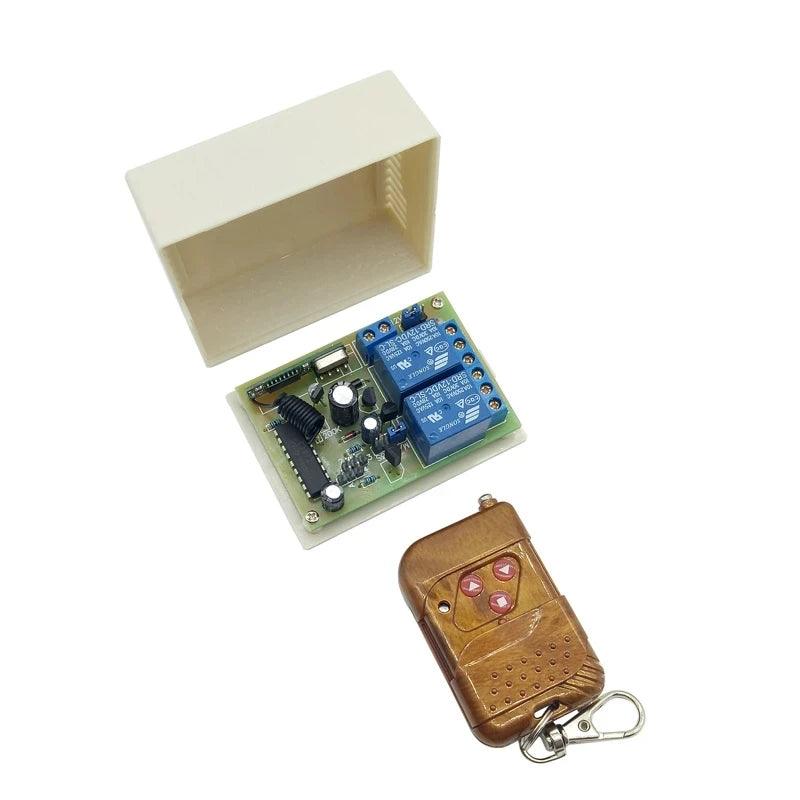

Pls click the picture below if you need a remote wireless control

ler

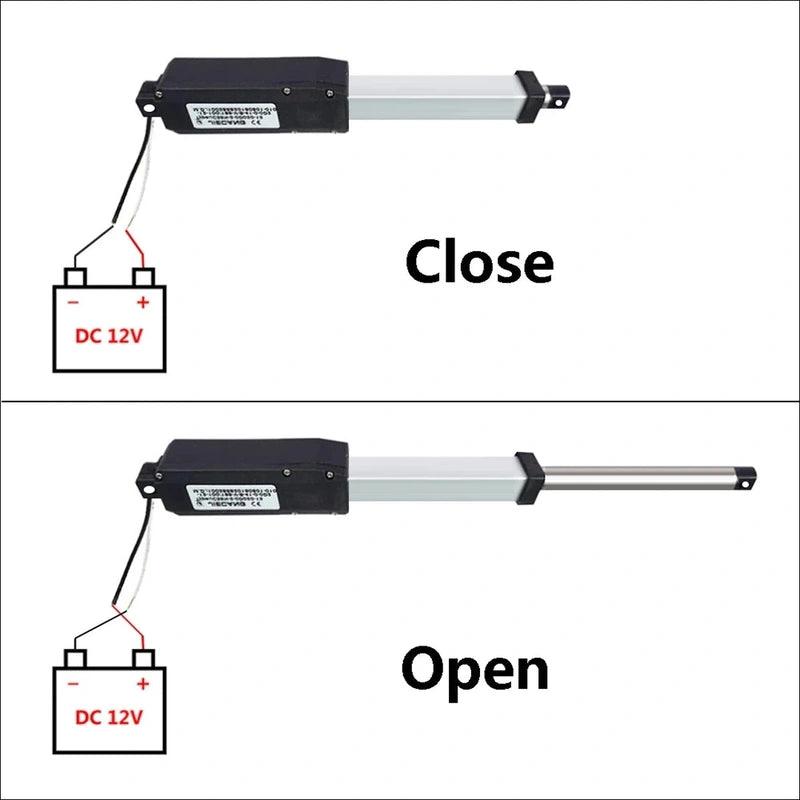

Note：Pls contact me if you do not know the wiring method

1) This product is a wireless transmission signal, non-directional, can pass through the wall

2)Working voltage ： DC 12V/24V

3) Working frequency: 433MHz-315MHZ

4) Remote control distance: open space without interference load test 100 meters (radio products practical application vary depending on the environment from the remote control, the gap is very large, which have strict requirements careful to buy!)

5) Load types: for electric burglar alarm, remote control electric windows, signal control, industrial control, motor reversing, lifting equipment and other control circuitry. Remote control switch module relay contact Independent output, Very suitable for direct control of various types of load

6) Receiving sensitivity:> - 105dB

7)The relay contact capacity: 10A 250VAC | 10A 30VDC

8) Control mode: Work mode: M4 (Jog: Press grimdeath outputs, let go to stop output), L4 (interlock: Road at the same time there can be only one output), T4 (self-locking: Road mutual independent output, independently of each other, click the output and click stops output)

Tips: Remote control buttons Press only one button can not hold down two or more keys simultaneously, otherwise it will affect the normal work interfere with each other.

9) Output: relay common / normally open / normally closed (flexible application can control a variety of load voltage)

10) Encoding: fixed code (welding yards) motherboard and pin remote control codes need to correspond to the state are: high, low, left floating.

11) Configure Explanation: Remote Control +  Receiver  + shell (1set)
