Heavy Duty Connectors HDC-HE-006-1/2/3/4-L F/M 6pin 16A
Couldn't load pickup availability
SPECIFICATIONS

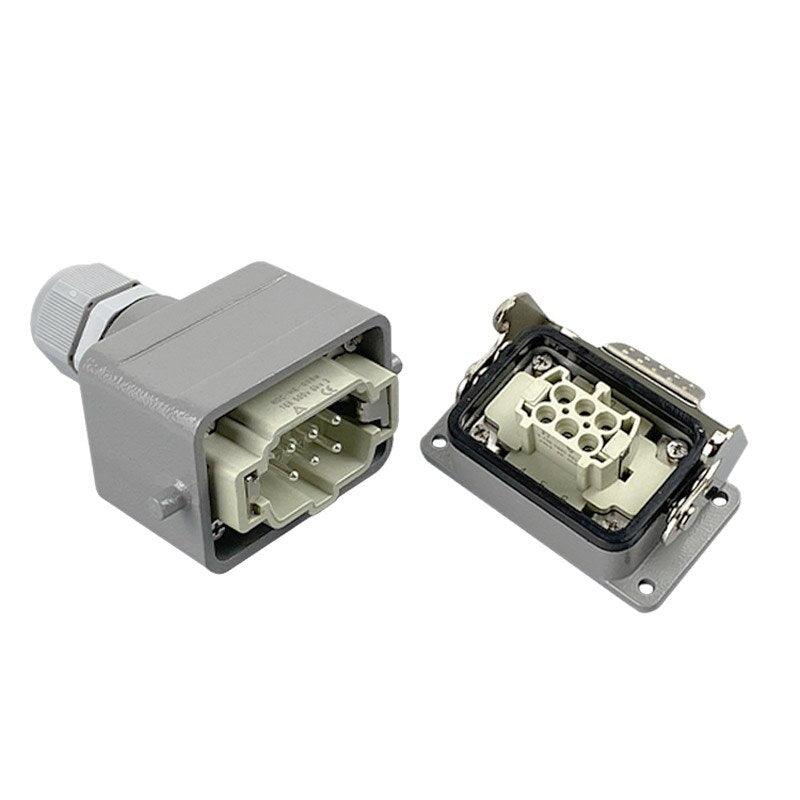

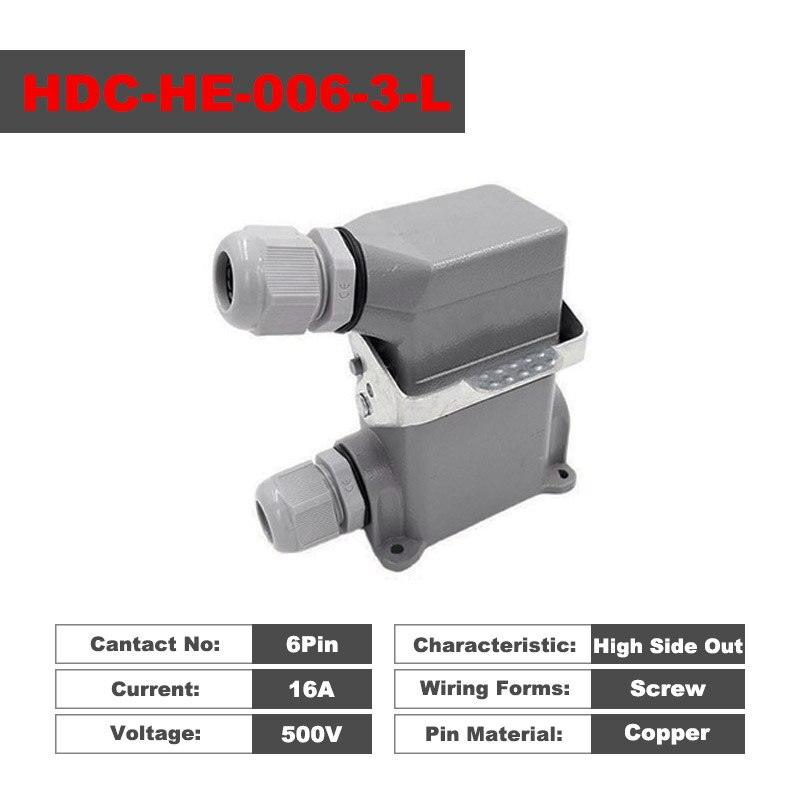

Heavy Duty Connectors HDC-HE-006-1/2/3/4-L F/M 6pin 16A Screw connection Industrial rectangular Aviation connector plug
Voltage: 24V
Origin: Mainland China
Model Number: HDC-HE-006-1/2/3/4-L
Certification: CE
Brand Name: CNMAWAY
Parameter
Plug body
Working current: 16A
Working voltage: 500V
Rated pulse voltage: 6KV
Pollution level: 3
Isolation resistance: ≥10
Material: Polycarbonate
Operating temperature range: -40℃~+125℃
Flame retardant grade (according to UL94): V0
Conductor section: 0.37- 2.55mm²
Installation method: hole installation
Connectors
Material: Copper
Surface treatment: silver plated
Contact resistance:=<1m ohm
Wiring form: screw connection
Screw tightening torque/test torque: 0.25Nm+
Wiring forms: screw fixing
Metal upper case/base
Material: Cast aluminum alloy
Surface treatment: high temperature powder coating
Locking device: stainless steel or iron galvanized
Operating temperature range: -40℃~+125℃
Protection class: IP65
