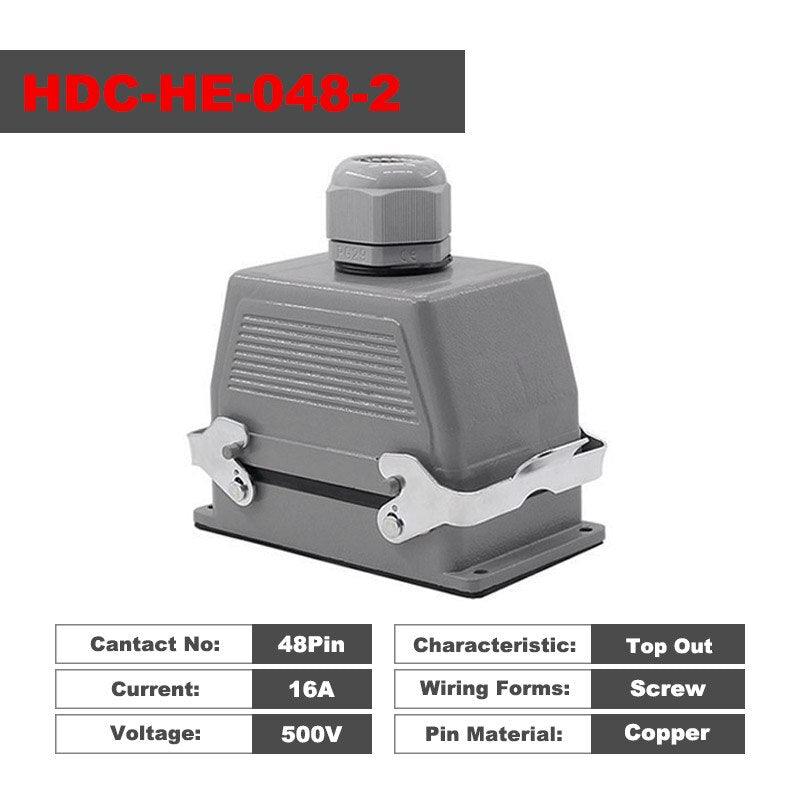

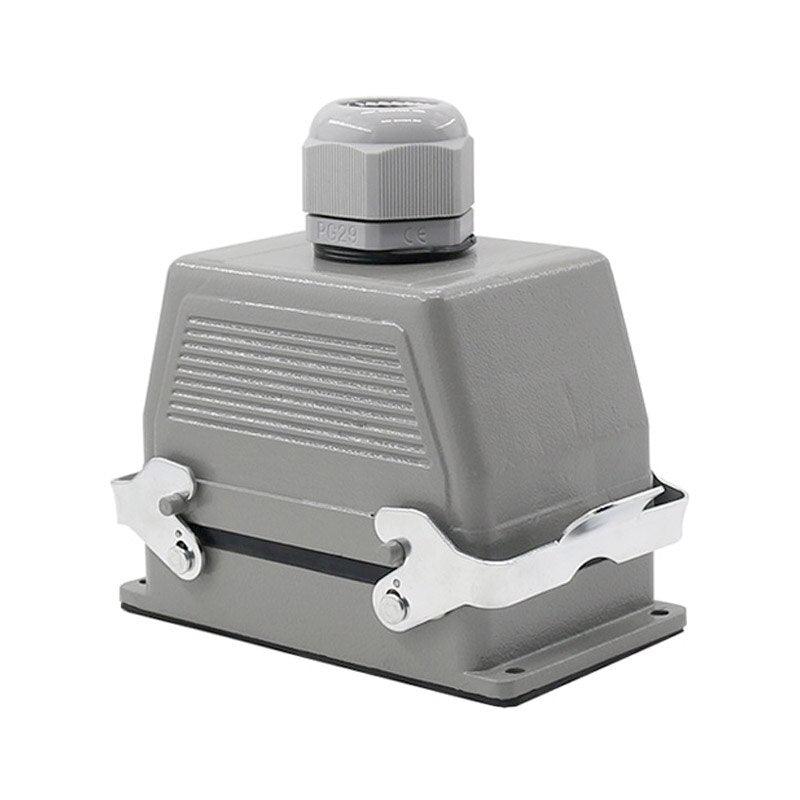

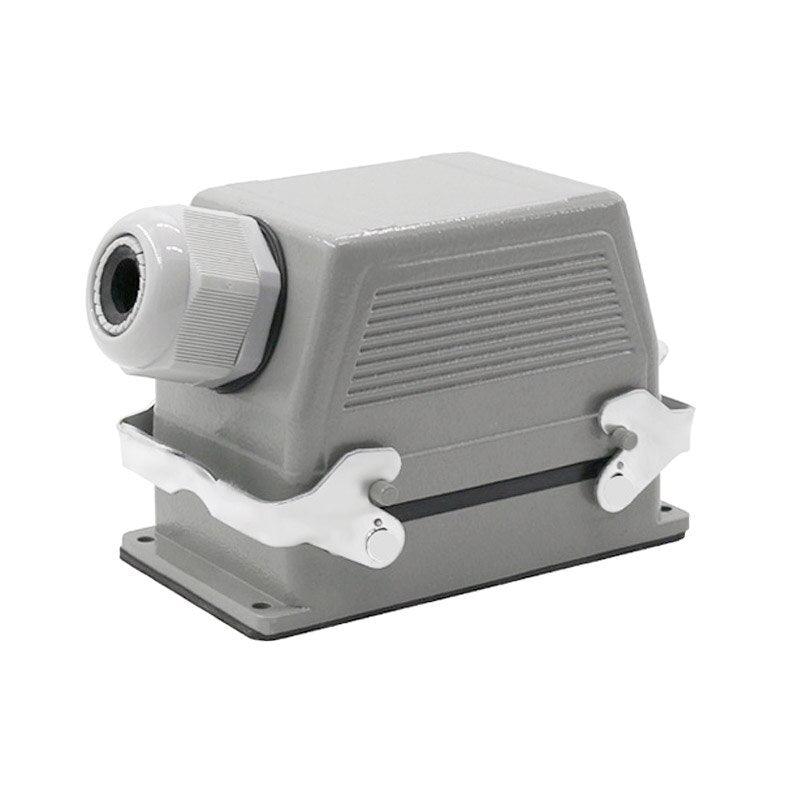

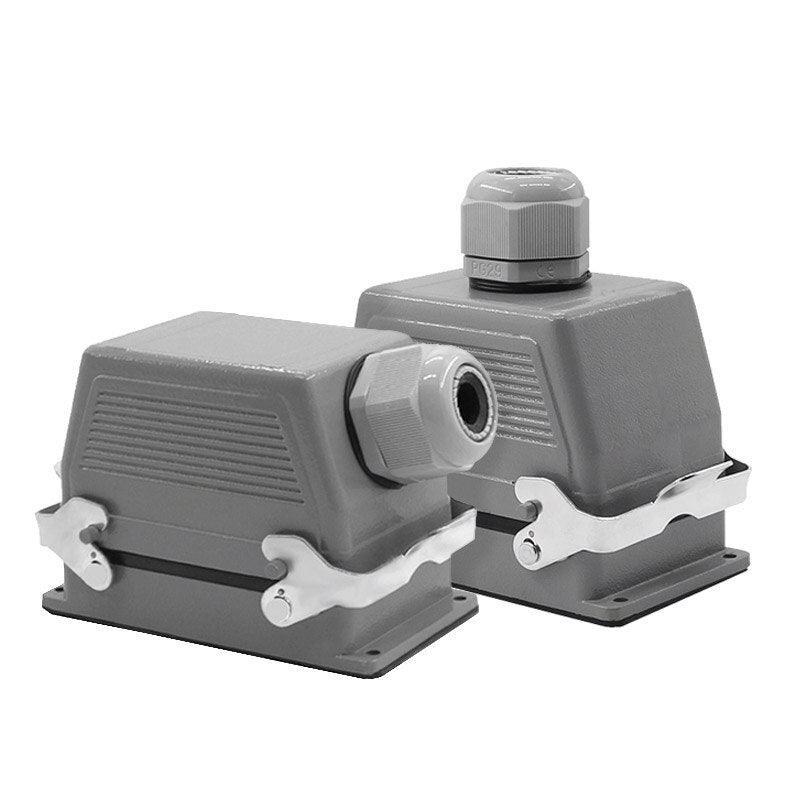

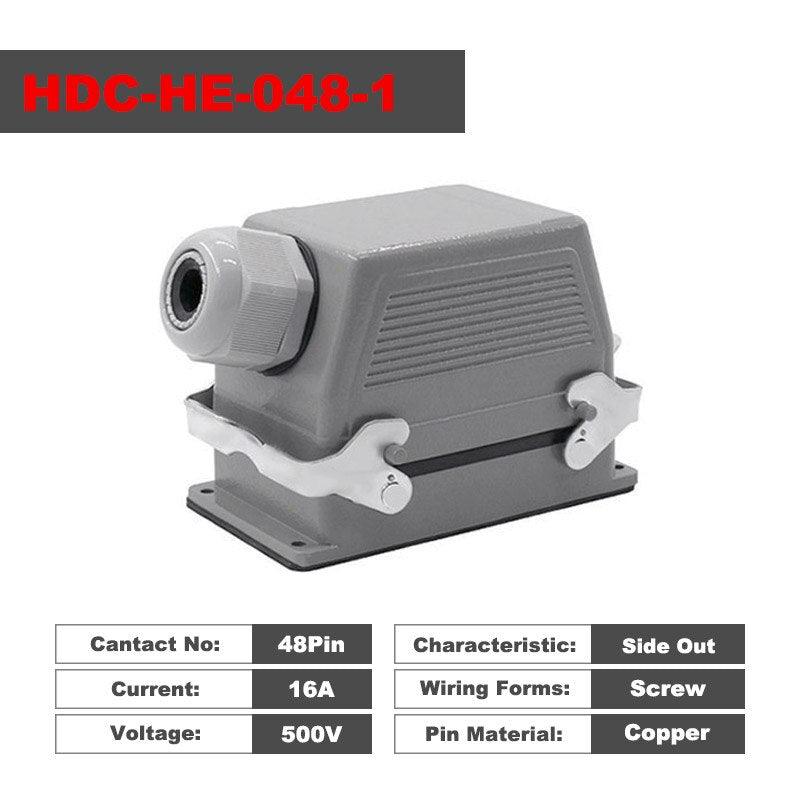

Heavy Duty Connectors HDC-HE-048-1/2 F/M 48pin 500V 16A

$119.00 NZD
$74.00 NZD $119.00 NZD
Sale Sold out
Shipping calculated at checkout.
Color

SPECIFICATIONS

Heavy Duty Connectors HDC-HE-048-1/2 F/M 48pin 500V 16A Industrial rectangular Aviation connector plug Screw connection

Voltage: 24V

Origin: Mainland China

Model Number: HDC-HE-048-1/2

Certification: CE

Brand Name: CNMAWAY

Parameter

Plug body

Working current: 16A

Working voltage: 500V

Rated pulse voltage: 6KV

Pollution level: 3

Isolation resistance: ≥10

Material: Polycarbonate

Operating temperature range: -40℃~+125℃

Flame retardant grade (according to UL94): V0

Installation method: hole installation


Connectors

Material: Copper

Surface treatment: silver plated

Contact resistance:=<1m ohm

Wiring form: screw connection

Screw tightening torque/test torque: 0.25Nm+

Wiring forms: screw fixing


Metal upper case/base

Material: Cast aluminum alloy

Surface treatment: high temperature powder coating

Locking device: stainless steel or iron galvanized

Operating temperature range: -40℃~+125℃

Protection class: IP65
