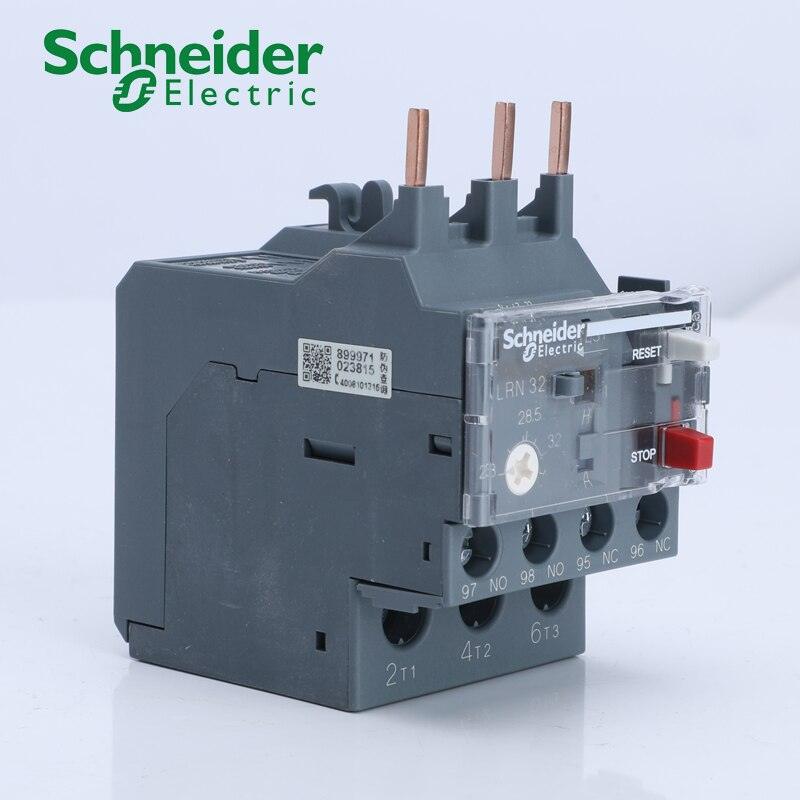

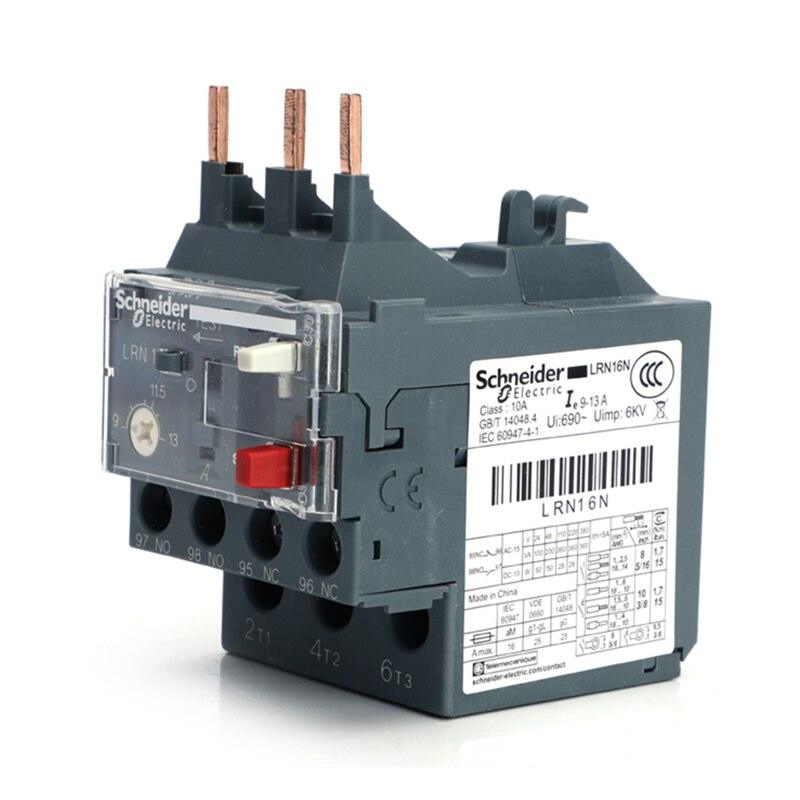

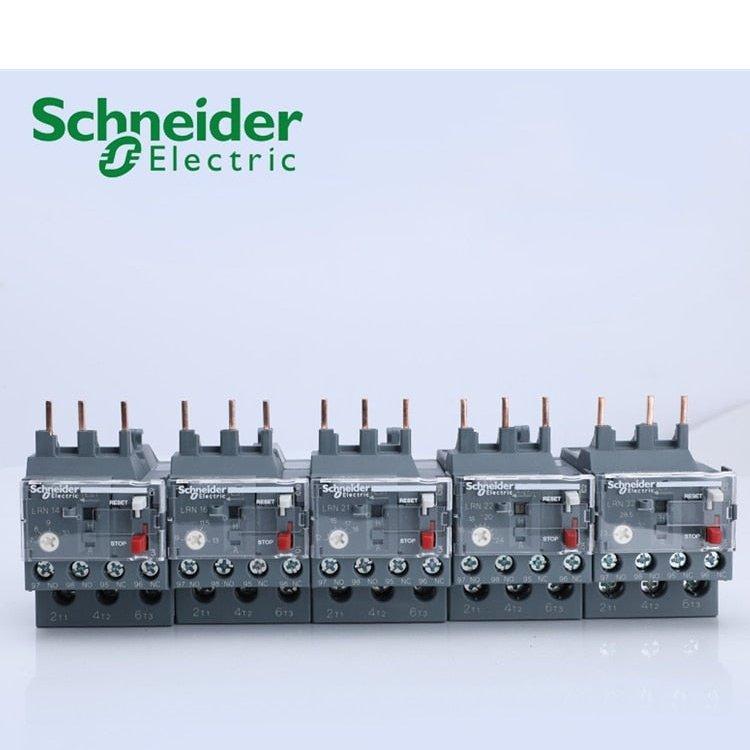

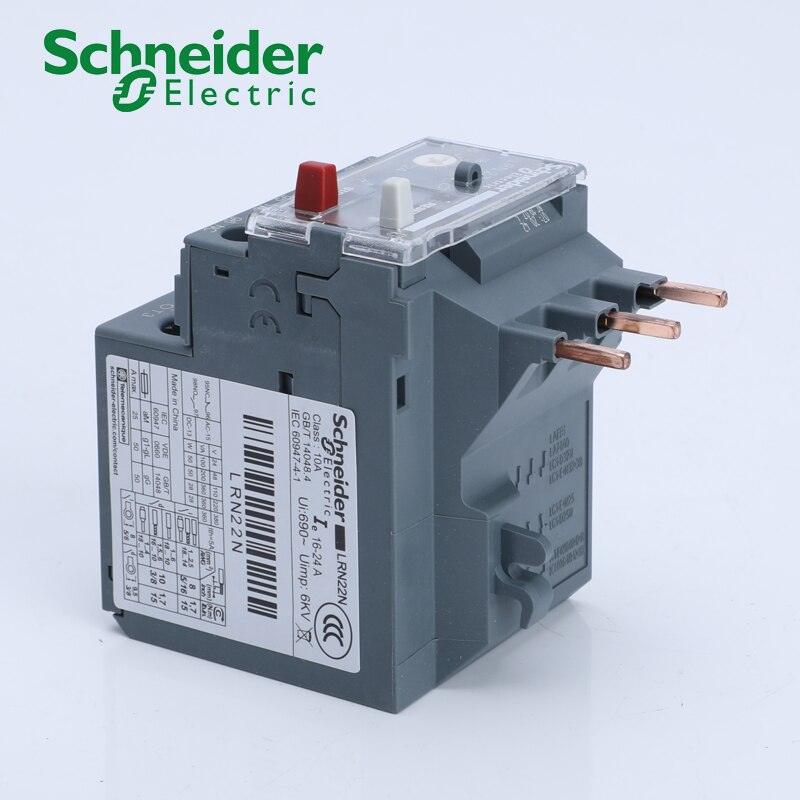

Schneider LRN Thermal Overload Relay 0.1-80A

$47.00 NZD
$47.00 NZD
Sale Sold out
Shipping calculated at checkout.
Model NO.

Genuine Schneider LRN Thermal Overload Relay, 0.1A-80A, for LC1D Contactor, Motor Overload & Phase Loss Protection Relay



Product Description


Product Name: Schneider LRN Thermal Overload Relay

Series: EasyPact D3N

Brand: Schneider Electric

Adjustable Current Range: 0.1A–80A (Multiple models: LRN01N ~ LRN363N)

Trip Class: 10A

Rated Voltage: 690V

Compatible Contactors: LC1D / LC1N Series (N06~N38)

Mounting: Direct mount on contactor or standalone with LAEB1N base

Reset Mode: Manual / Automatic reset selectable

Key Features:

  • Genuine Schneider Electric quality, provides reliable protection against motor overload, phase loss, and stalling.
  • Wide current adjustment range (0.1A–80A) to match various motor power ratings.
  • Temperature-compensated design ensures accurate tripping across varying ambient conditions.
  • Built-in trip indicator for clear status monitoring.
  • Compact size, easy to install directly on Schneider contactors for streamlined control panel design.
  • Suitable for both AC and DC control circuits, compliant with international safety standards.

Applications:

Motor overload protection, pump control, conveyor systems, HVAC equipment, industrial machinery, and automation control panels.

DATA SHEET

Attribute English
Brand Schneider Electric
Product Type Thermal Overload Relay
Series LRN / EasyPact D3N
Current Range 0.1A–80A (LRN01N, LRN02N, ..., LRN363N)
Trip Class 10A
Poles 3-Pole
Rated Voltage 690V
Compatible Contactor LC1D / LC1N Series (N06~N38)
Mounting Type Contactor-mounted / Standalone (with LAEB1N base)
Reset Mode Manual / Automatic
Features Overload & Phase Loss Protection, Temperature Compensated, Trip Indicator
Application Motor Control, Industrial Automation, HVAC, Pumps, Conveyors



Full Model & Current Range Table (Schneider LRN Thermal Overload Relay 0.1~80A)

Full Model (MPN / MODEL NO.) Adjustable Thermal Current Range Matching Contactor Series Item No.
LRN01N 0.10 ~ 0.16 A LC1N06 ~ LC1N38 LRN01N
LRN02N 0.16 ~ 0.25 A LC1N06 ~ LC1N38 LRN02N
LRN03N 0.25 ~ 0.40 A LC1N06 ~ LC1N38 LRN03N
LRN04N 0.40 ~ 0.63 A LC1N06 ~ LC1N38 LRN04N
LRN05N 0.63 ~ 1.00 A LC1N06 ~ LC1N38 LRN05N
LRN06N 1.00 ~ 1.60 A LC1N06 ~ LC1N38 LRN06N
LRN07N 1.60 ~ 2.50 A LC1N06 ~ LC1N38 LRN07N
LRN08N 2.50 ~ 4.00 A LC1N06 ~ LC1N38 LRN08N
LRN10N 4.00 ~ 6.00 A LC1N06 ~ LC1N38 LRN10N
LRN12N 5.50 ~ 8.00 A LC1N09 ~ LC1N38 LRN12N
LRN14N 7.00 ~ 10.0 A LC1N09 ~ LC1N38 LRN14N
LRN16N 9.00 ~ 13.0 A LC1N12 ~ LC1N38 LRN16N
LRN21N 12.0 ~ 18.0 A LC1N18 ~ LC1N38 LRN21N
LRN22N 16.0 ~ 24.0 A LC1N25 ~ LC1N38 LRN22N
LRN32N 23.0 ~ 32.0 A LC1N25 ~ LC1N38 LRN32N
LRN35N 30.0 ~ 38.0 A LC1N38 LRN35N
LRN355N 37.0 ~ 50.0 A LC1N40 ~ LC1N65 LRN355N
LRN357N 48.0 ~ 65.0 A LC1N40 ~ LC1N65 LRN357N
LRN363N 63.0 ~ 80.0 A LC1N80 ~ LC1N95 LRN363N
