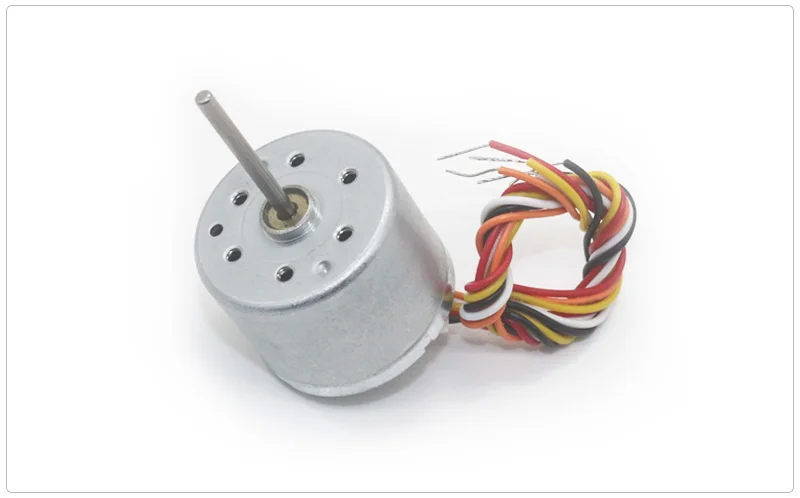

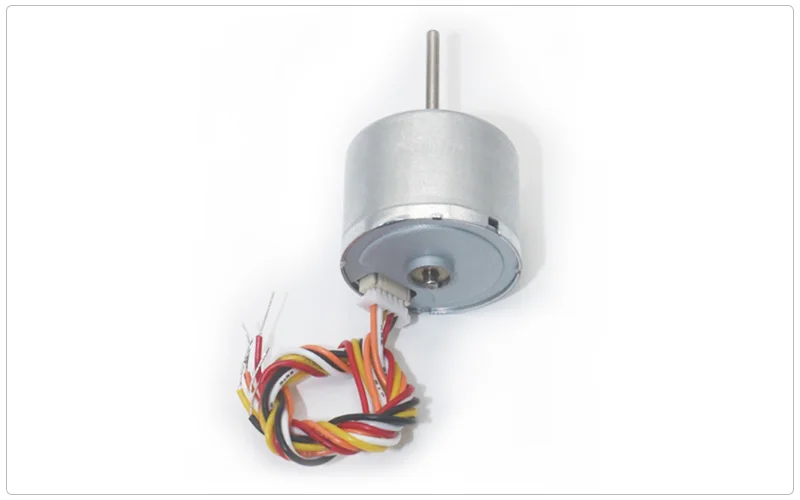

DC 12V 24V 8700RPM Adjustable Speed Silent Long Life Micro High Speed Mini Brushless Motor with Hall Encoder Speed Measurement
Couldn't load pickup availability
SPECIFICATIONS
DC 12V 24V 8700RPM Adjustable Speed Silent Long Life Micro High Speed Mini Brushless Motor with Hall Encoder Speed Measurement
Brand Name: HYSMOTOR
Certification: CCC
Certification: ROHS
Origin: Mainland China
Commutation: Brush
Type: Micro Motor
Protect Feature: Drip-proof
Construction: Permanent Magnet
Usage: BoAt
Usage: car
Usage: Electric Bicycle
Usage: Fan
Usage: Home Appliance
Efficiency: IE 1
Model Number: 2418 Brushless High Speed Motor
-
Red line:Power+
-
Black line:Power-
-
Yellow line:FG output,18singals/R
-
Orange line:CCW/CW control ,orange line Vacant motor is ccw,when orange line connect power-,motor is cw.
-
White line:pwm speed adjust
Wire Connection Method:
-
Motor Features: low noise,long life,adjustable speed,with brake, with speed feedback signal
-
Motor Diameter: about 24mm
-
Motor Body Length: 18mm
-
Output Shaft Diameter: 4mm(D-Type)
-
Output Shaft Length: 9.5mm
No-load Speed:8700RPM
-
Voltage:DC24V
Specification:
