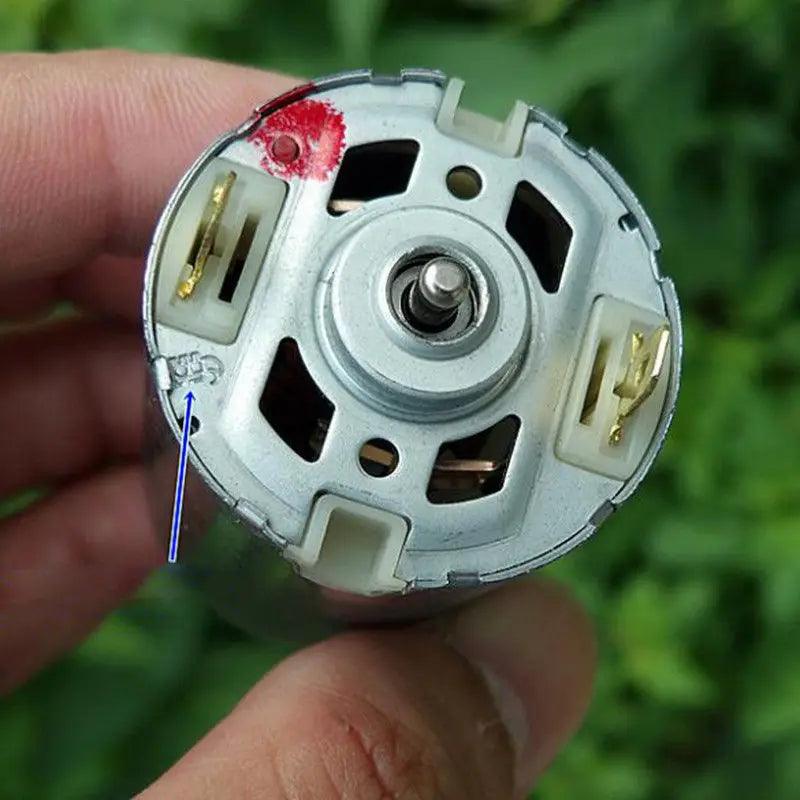

DC 12V 18V 25000RPM High Speed RS 545 Motor With Cooling Fan Ball Bearing Large Power for Electric Drill Tools Cutting

SPECIFICATIONS

DC 12V 18V 25000RPM High Speed RS 545 Motor With Cooling Fan Ball Bearing Large Power for Electric Drill Tools Cutting

Brand Name: HYSMOTOR

Certification: CCC

Certification: ROHS

Origin: Mainland China

Commutation: Brush

Type: Micro Motor

Protect Feature: Drip-proof

Construction: Permanent Magnet

Usage: BoAt

Usage: car

Usage: Electric Bicycle

Usage: Fan

Usage: Home Appliance

Efficiency: IE 1

Model Number: 545

internal: !!

10.Tips: These motors are high-speed, high-power 540 motors, torque is strong, need large current support, is generally using high-power batteries, if you want to use DC regulated power supply, then the power supply at least 8 A more current, if the current is too small, then the power and torque of the motor can not play out.

Voltage:18V     No-load current:1.28A  Speed:25000RPM

Voltage:12V     No-load current:0.88A  Speed:16800RPM

9.Test data:

8.Rated voltage: DC 12V-18V

7.Voltage range: DC 6V-18V

6.Output shaft length: 14.5mm

5.Output shaft diameter: 3.15mm

4.Motor height: 50.2mm

3.Motor diameter: 35.8mm

2.Model: RS-545 Motor
