CHNT JCUK Series DIN Rail Terminal Block 2.5N-35N Earth/Fuse Terminal
Regular price
$13.00 NZD
Regular price
Sale price
$13.00 NZD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
CHNT JCUK Series DIN Rail Terminal Block 2.5N/3N/5N/6N/10N/16N/35N, Ground/ Fuse/Double Layer Terminal Connector for 2.5~35mm² Wire, IEC60947-7-1 Certified
Product Description

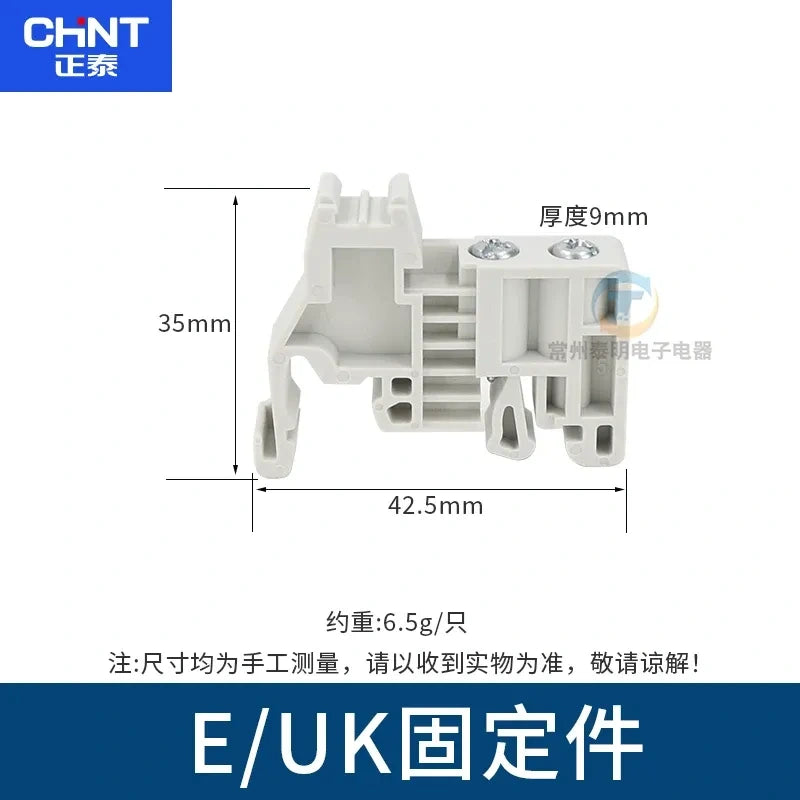

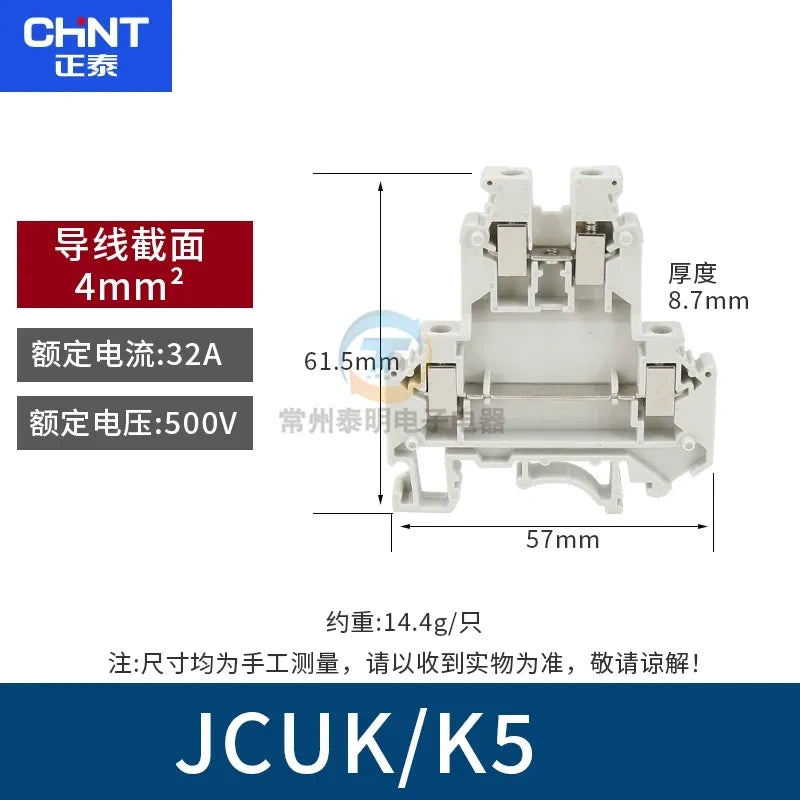

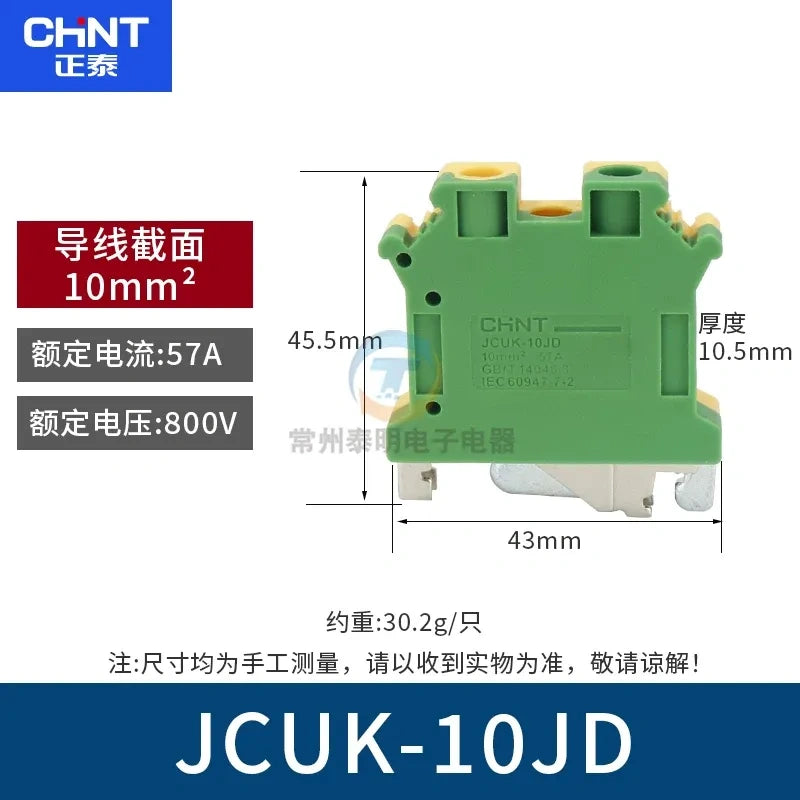

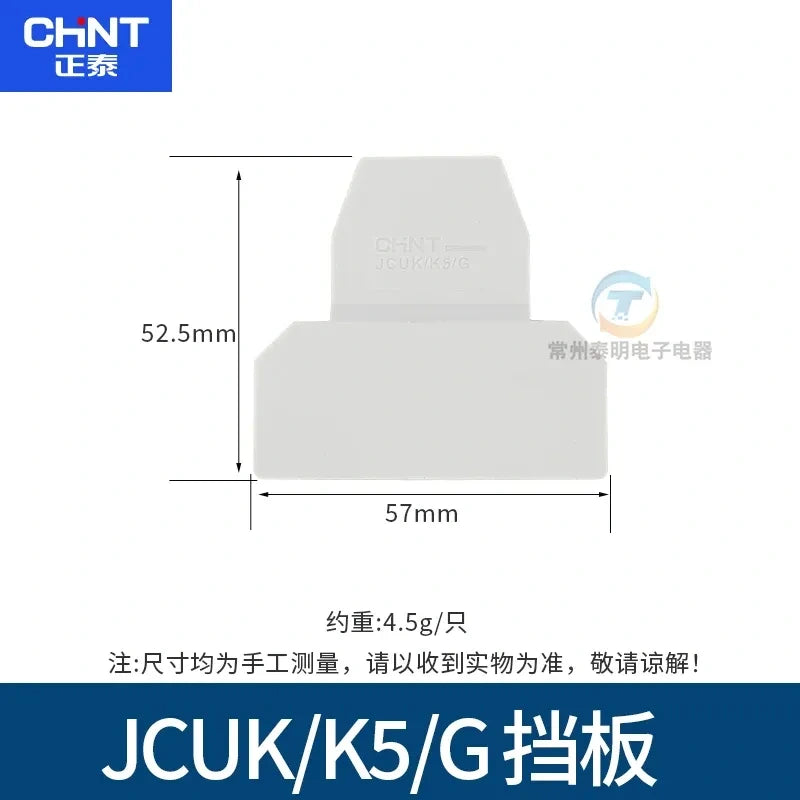

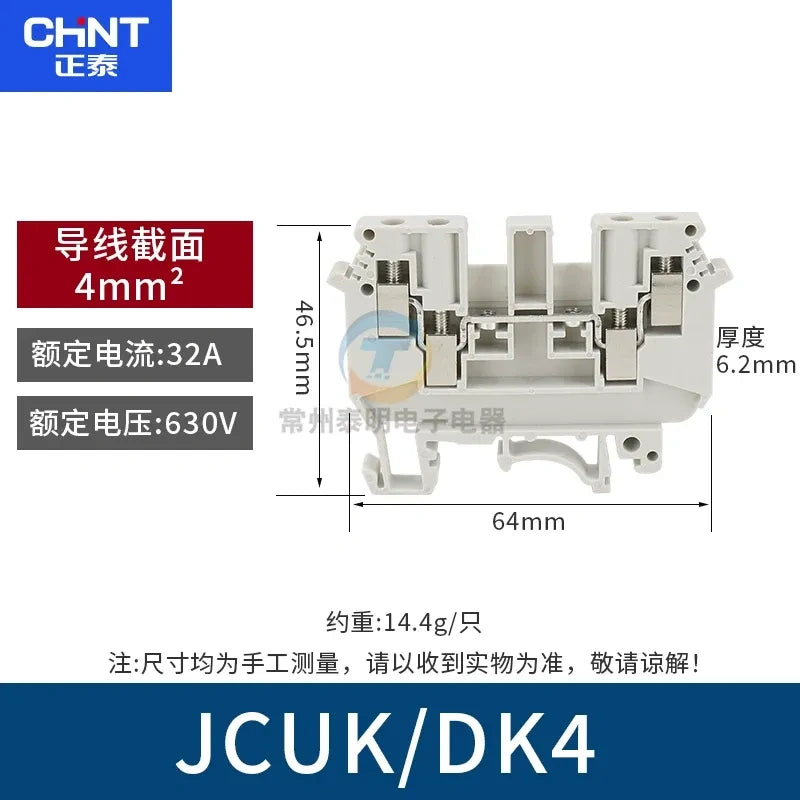

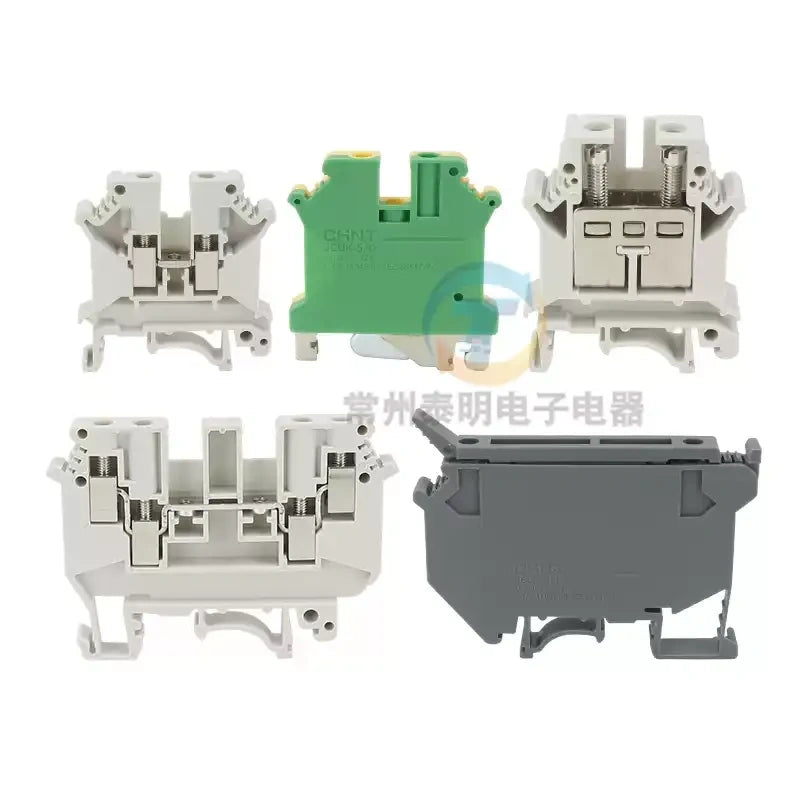

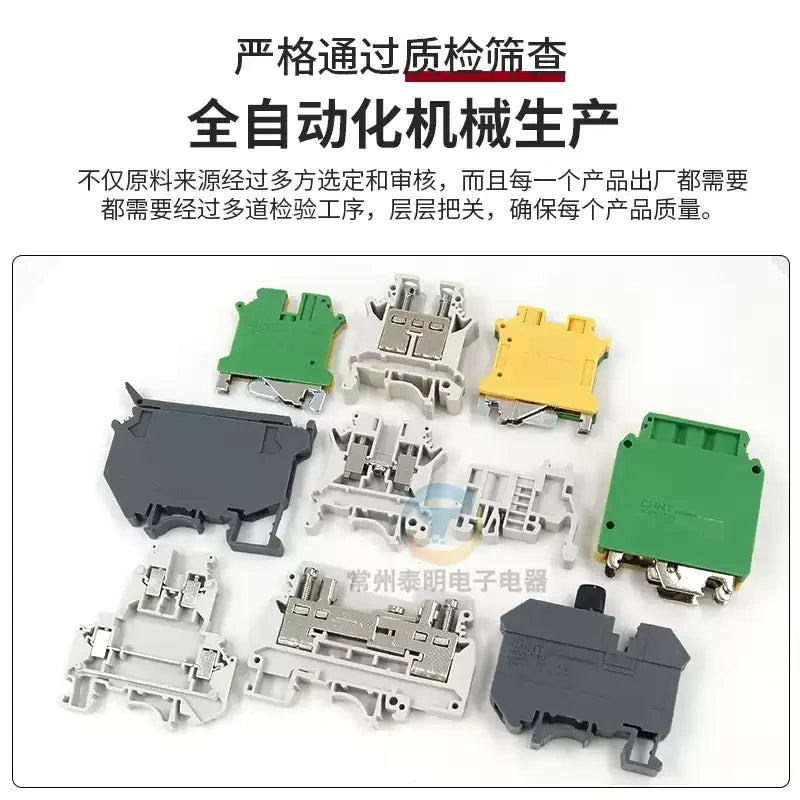

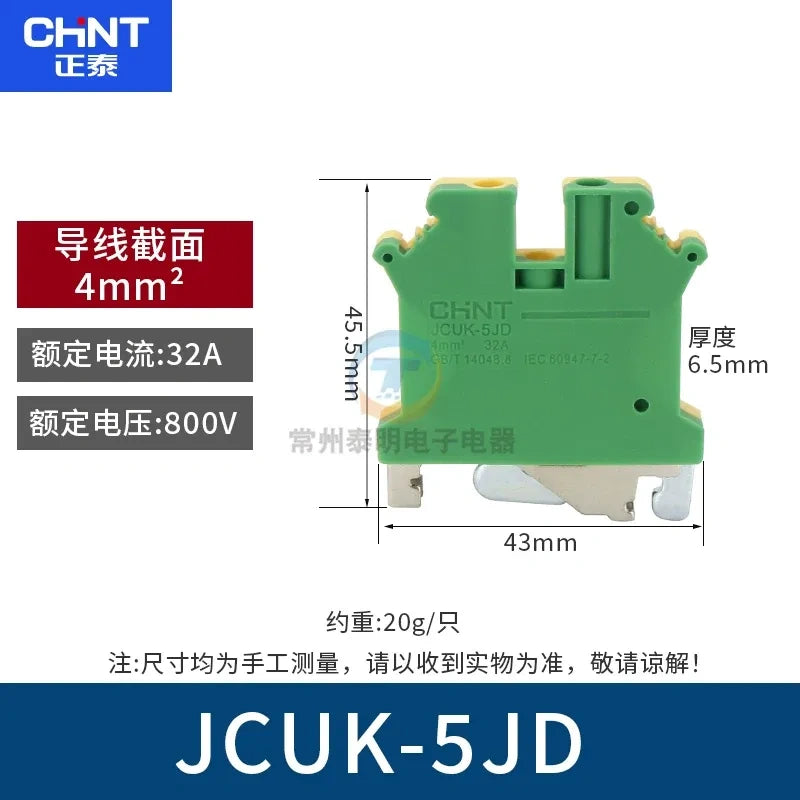

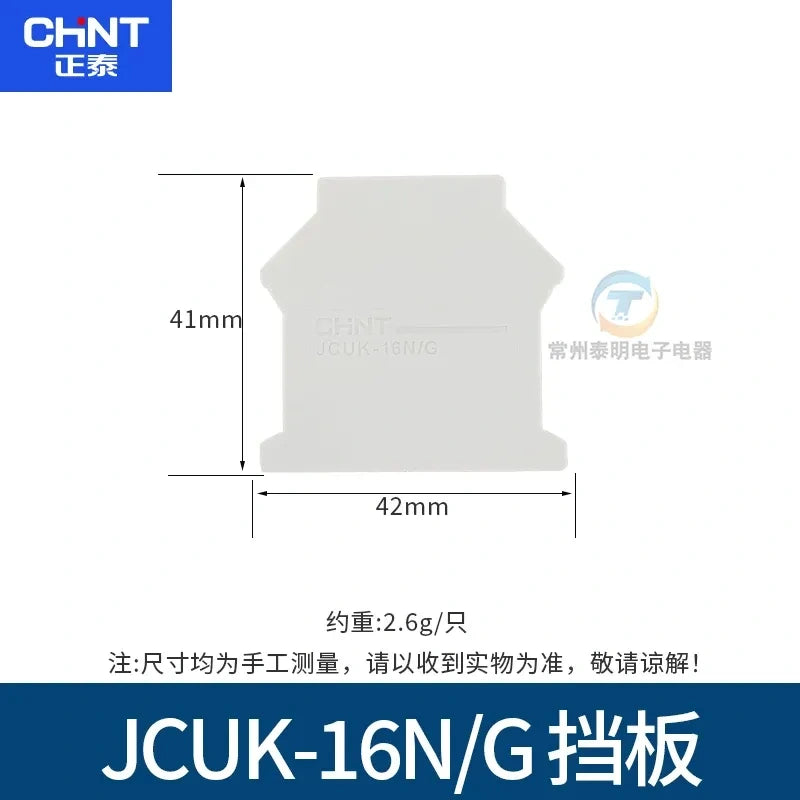

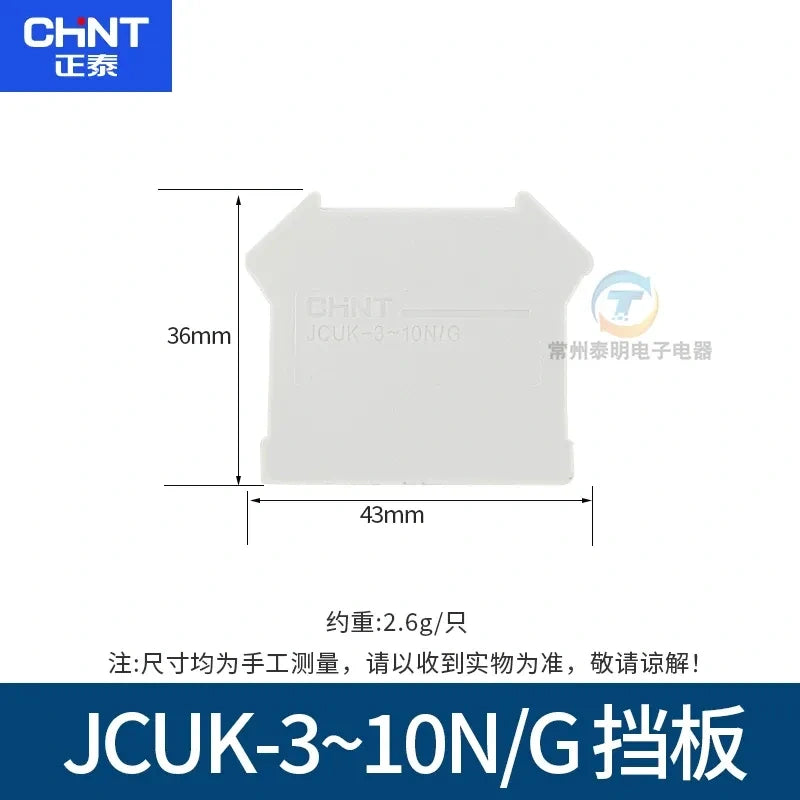

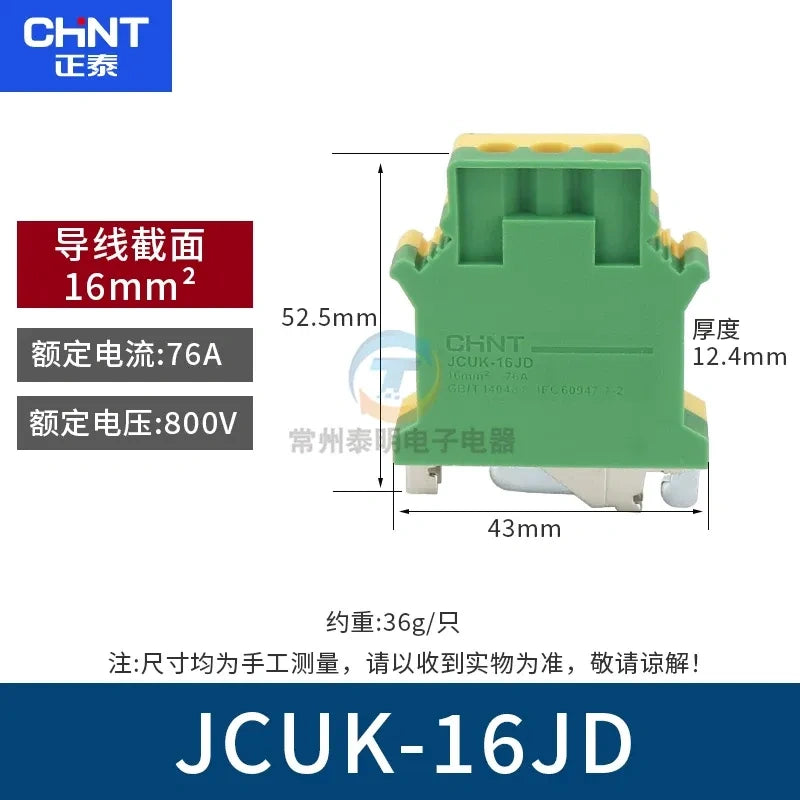

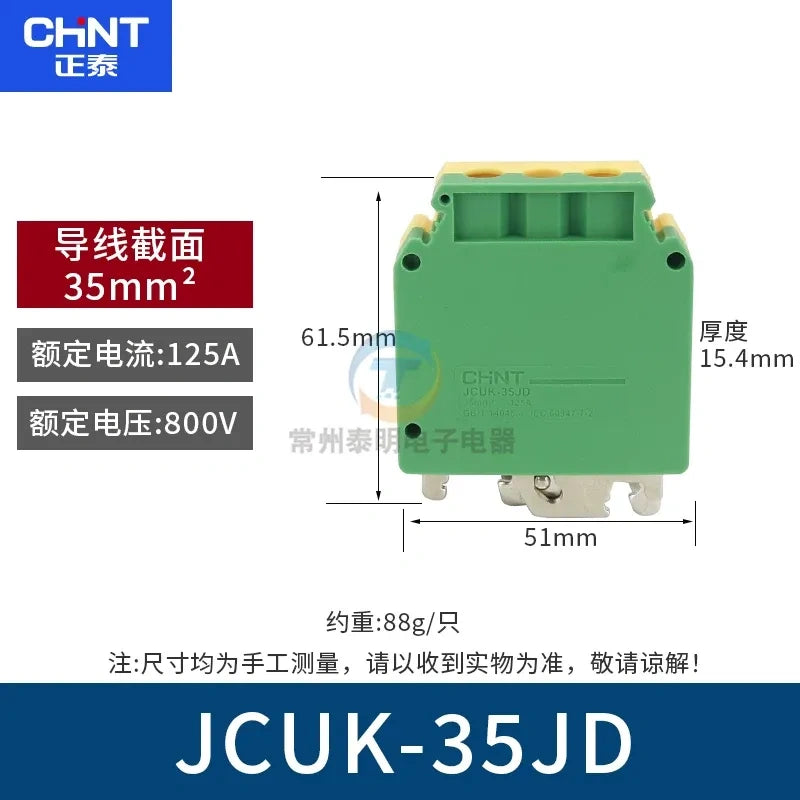

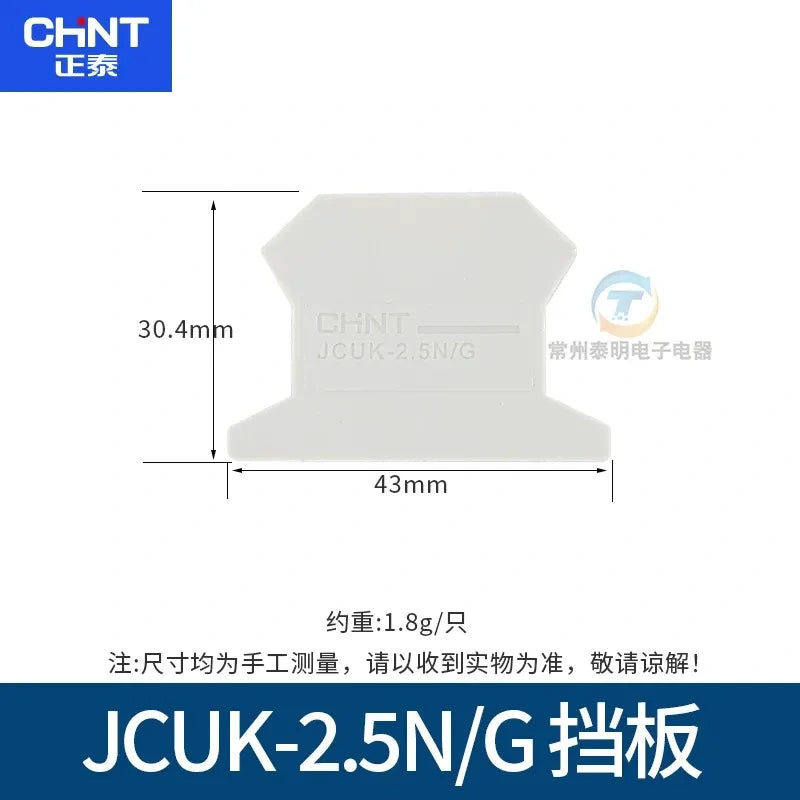

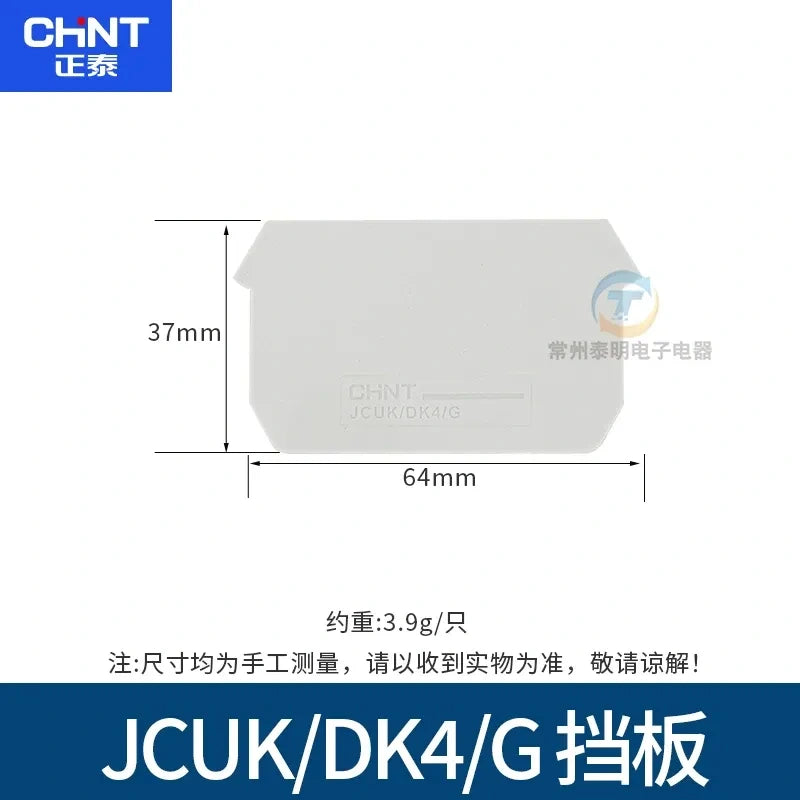

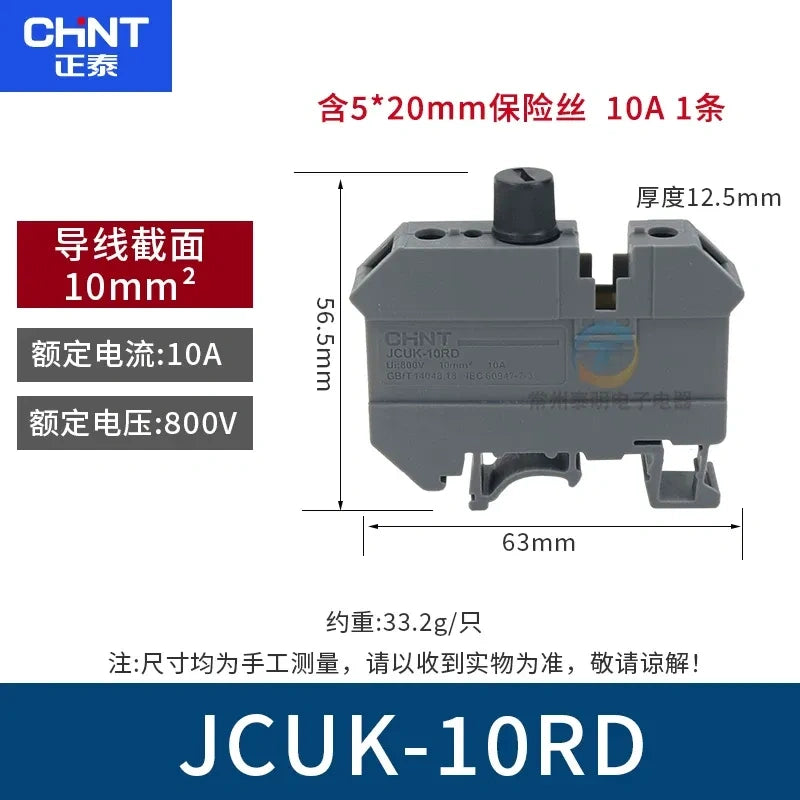

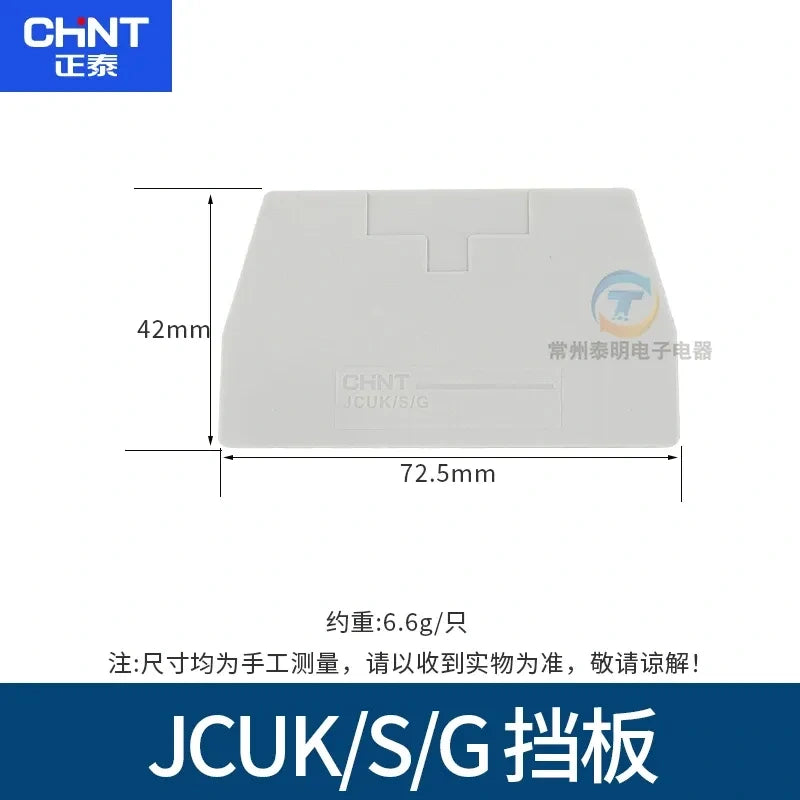

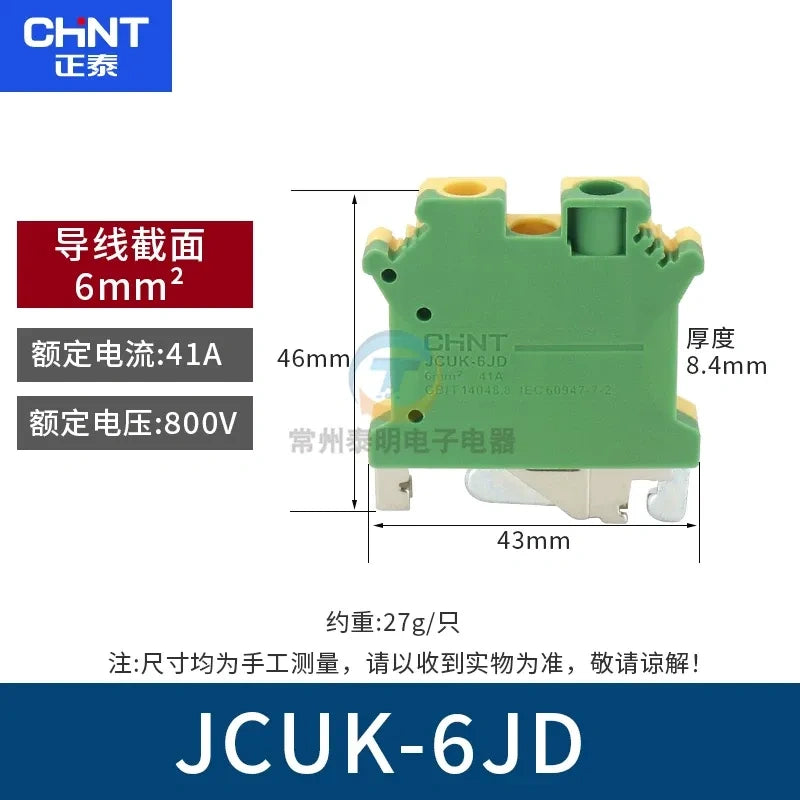

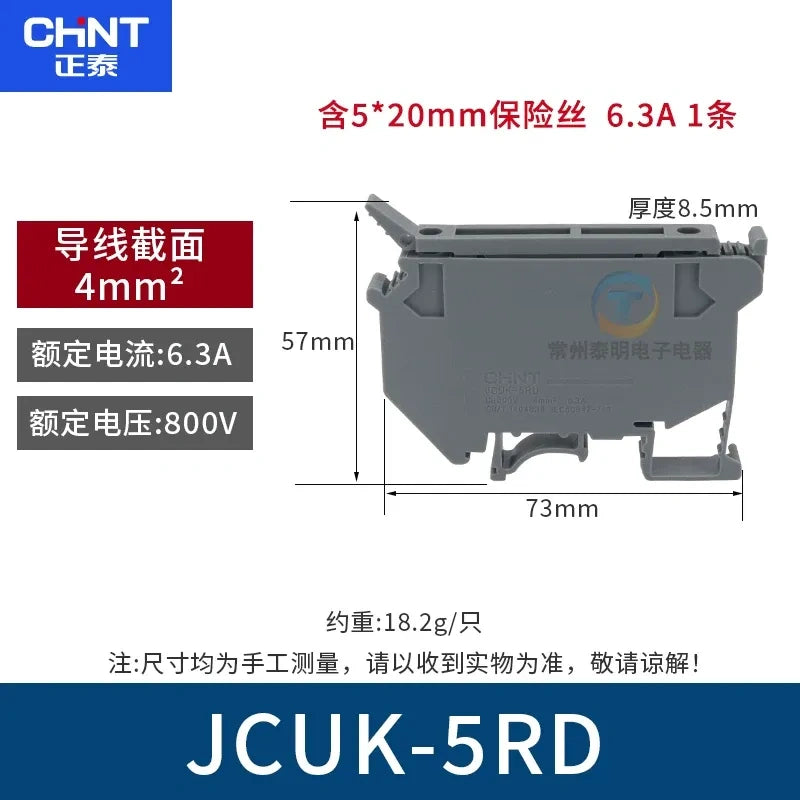

Original CHNT JCUK modular DIN rail terminal block series, full specifications: standard N-type(2.5N/3N/5N/6N/10N/16N/35N), JD earth ground type, RD fuse holder type, DK/K5 double-layer type & accessory end partition baffles. Suitable for 2.5/4/6/10/16/35mm² copper wire, rated current from 24A~125A, max rated voltage 1000V, 50/60Hz AC.

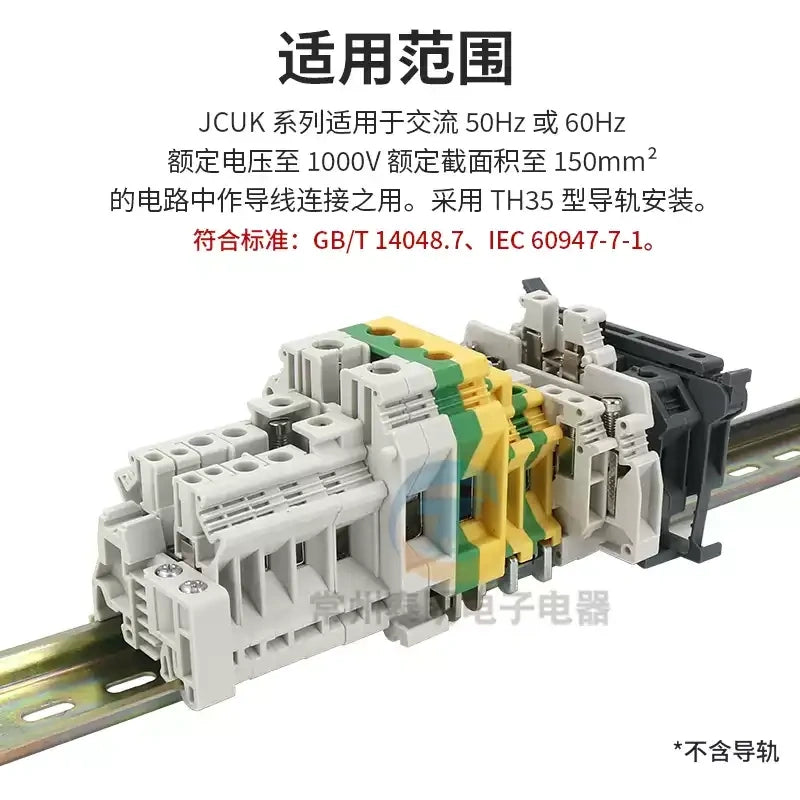

Shell made of high flame retardant PA66 nylon with high tensile toughness, anti-break clamping foot structure; install on standard TH35 DIN rail, compliant with IEC60947-7-1 & GB/T14048.7 standard. Widely used in distribution cabinet, PLC control box, industrial equipment wiring, household electrical project wire connection & branch split.
- Complete Product Range:Full lineup including standard, earth ground, fuse, double-layer terminal & matching end baffles, cover wire size 2.5~35mm² to satisfy diversified wiring design.
- Premium PA66 Flame-retardant Shell:New raw material PA66 nylon housing, fireproof high-temperature resistant, excellent bending toughness without terminal foot fracture.
- Standard DIN Rail Installation:Universal TH35 rail snap-on design, quick assemble and disassemble inside electrical cabinet, neat wiring layout.
- Strict International Standard:Certified per IEC60947-7-1 & national GB standard, stable electrical performance up to 1000V rated voltage.
- Multi-scenario Application:Ideal for industrial PLC cabinet, household distribution box, pump/motor control equipment, new energy equipment wire splitting and connection.
Specification
| 属性类目 | 参数详情 |
|---|---|
| Brand | CHNT 正泰 |
| Model Series | JCUK DIN Rail Terminal Block |
| Core Types | 1.Standard N:2.5N(2.5mm²/24A)、3N、5N(4mm²/32A)、6N(6mm²/41A)、10N(10mm²/57A)、16N(16mm²/76A)、35N(35mm²/125A)
|
| Wire Cross-section | 2.5mm²/4mm²/6mm²/10mm²/16mm²/35mm² |
| Rated Current | 24A~125A by different size |
| Rated Voltage | Up to AC1000V,50/60Hz |
| Housing Material | Flame Retardant PA66 Nylon, high toughness anti-crack |
| Mounting | Standard TH35 35mm DIN Rail |
| Compliance Standard | IEC60947-7-1、GB/T14048.7 |
| Application | Control cabinet, distribution box, automation equipment, wiring harness junction |
CHNT JCUK Series DIN Rail Terminal Block 2.5N/3N/5N/6N/10N/16N/35N
1. Model Electrical Parameter Table
| MPN / MODEL NO. | Item No. | Rated Wire Cross-section | Rated Current | Rated Voltage | Mounting Rail | Terminal Width |
|---|---|---|---|---|---|---|

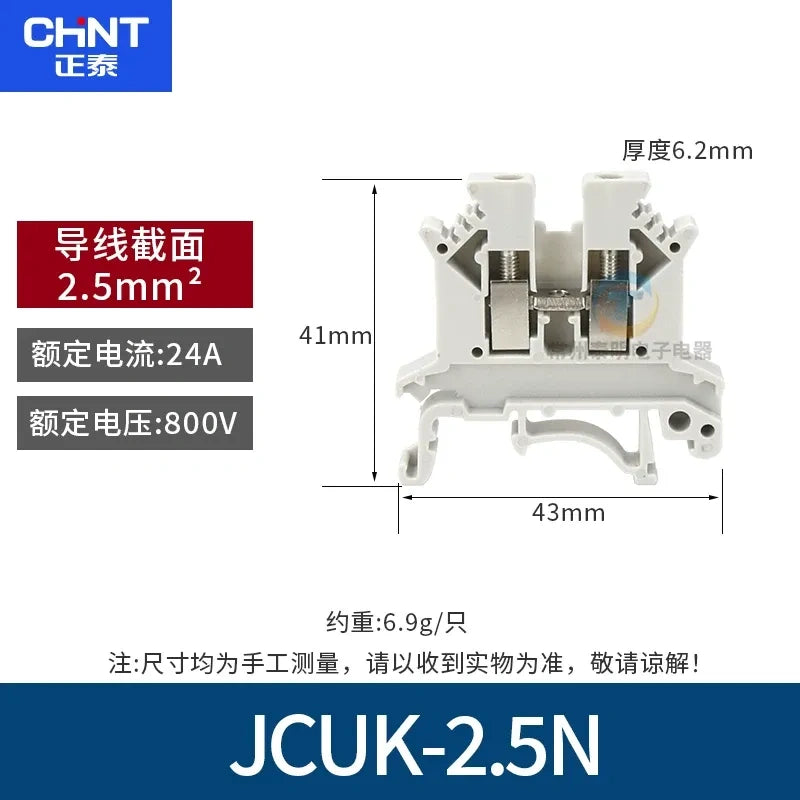

| JCUK-2.5N | JCUK-2.5N | 0.5–2.5 mm² | 24A | 1000V AC | TH35/G32 | 6.2mm |

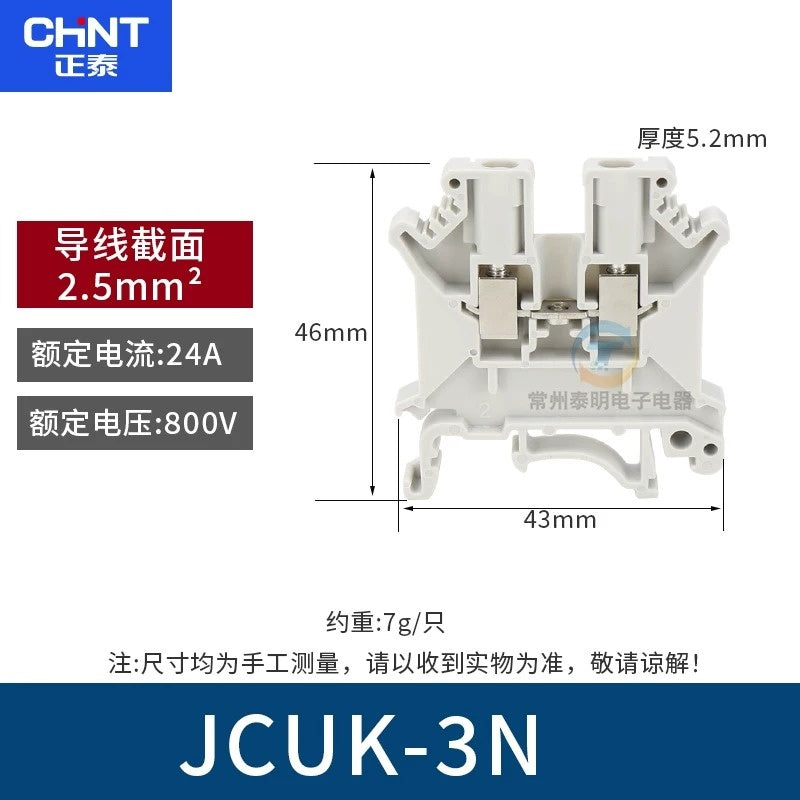

| JCUK-3N | JCUK-3N | 0.5–2.5 mm² | 24A | 1000V AC | TH35/G32 | 5.2mm |
| JCUK-5N | JCUK-5N | 1.0–4.0 mm² | 32A | 1000V AC | TH35/G32 | 6.3mm |

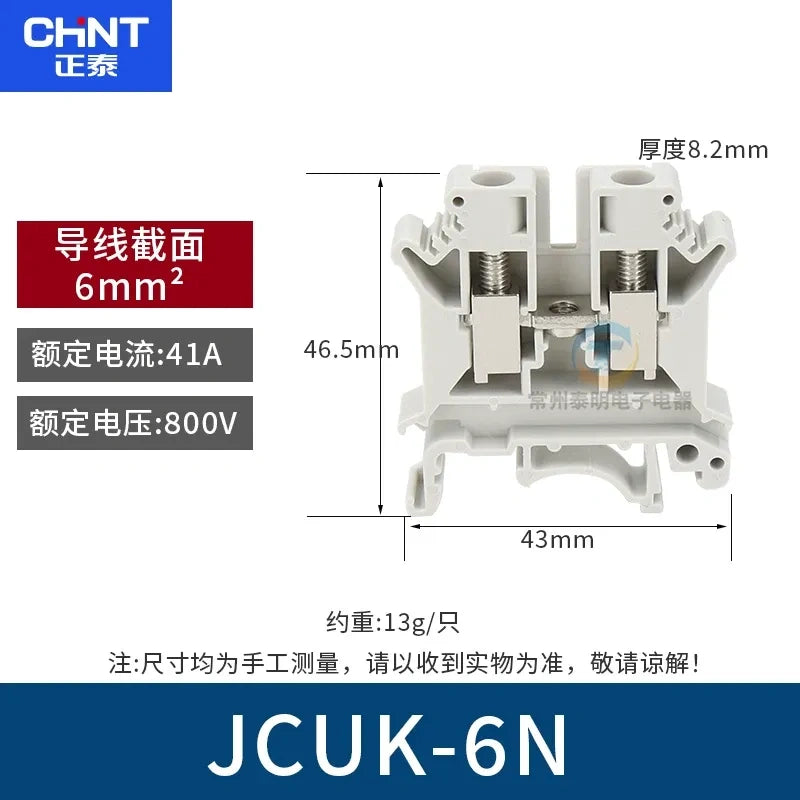

| JCUK-6N | JCUK-6N | 1.0–6.0 mm² | 41A | 1000V AC | TH35/G32 | 8.2mm |

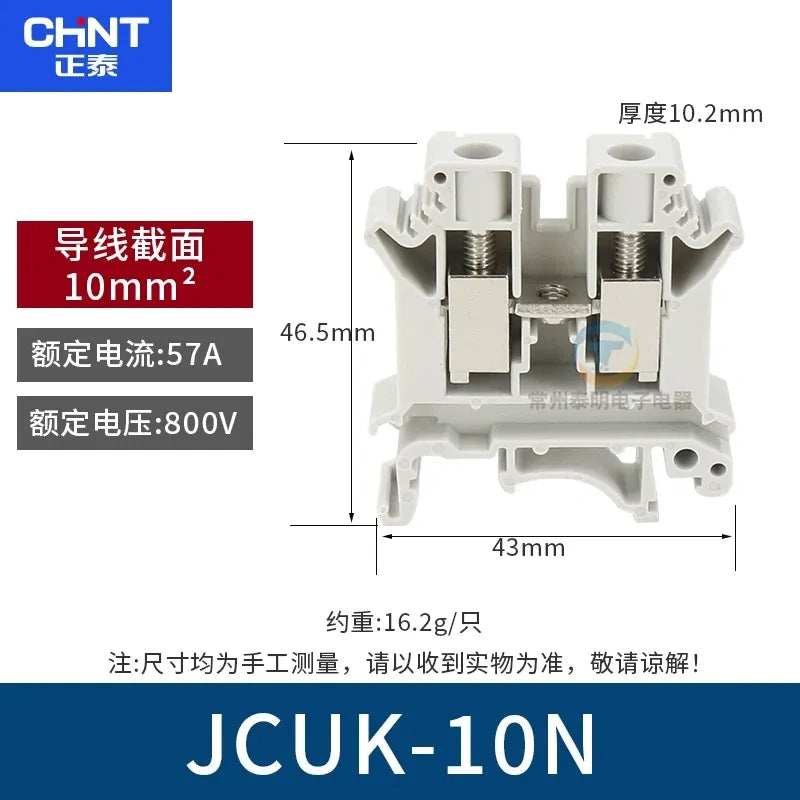

| JCUK-10N | JCUK-10N | 2.5–10 mm² | 57A | 1000V AC | TH35/G32 | 10.2mm |

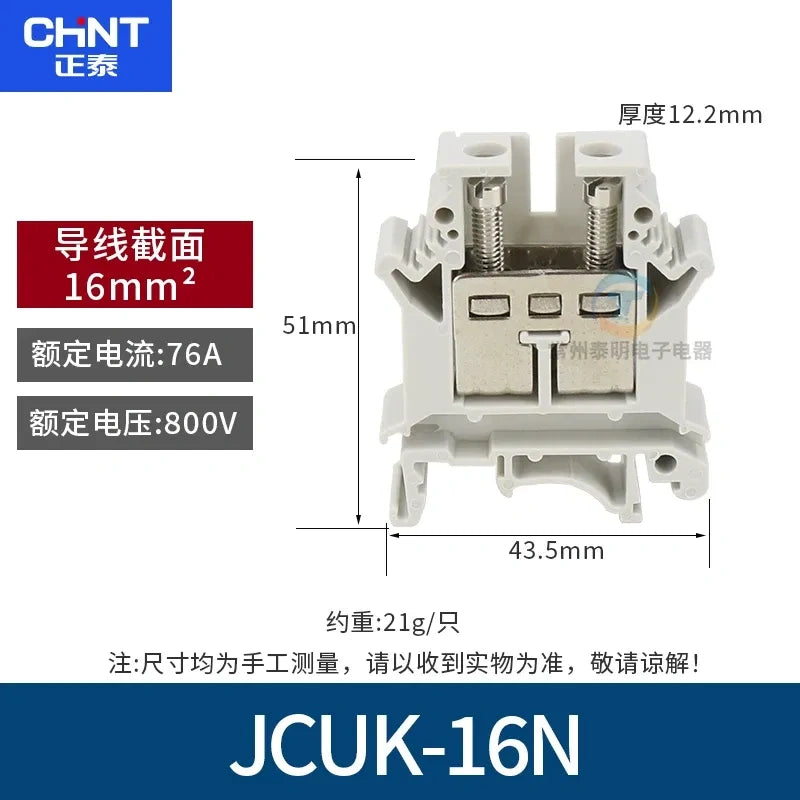

| JCUK-16N | JCUK-16N | 4.0–16 mm² | 76A | 1000V AC | TH35/G32 | 12.2mm |

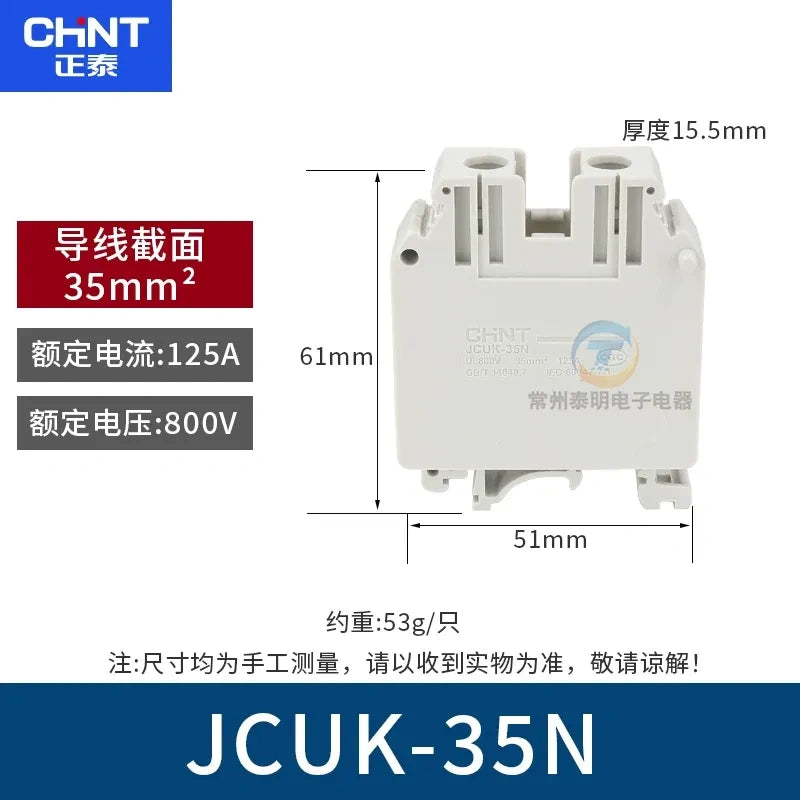

| JCUK-35N | JCUK-35N | 10–35 mm² | 125A | 1000V AC | TH35/G32 | 18.0mm |
