CHINT NC1 AC Magnetic Contactor 09A~95A
Regular price
$29.00 NZD
Regular price
$34.00 NZD
Sale price
$29.00 NZD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

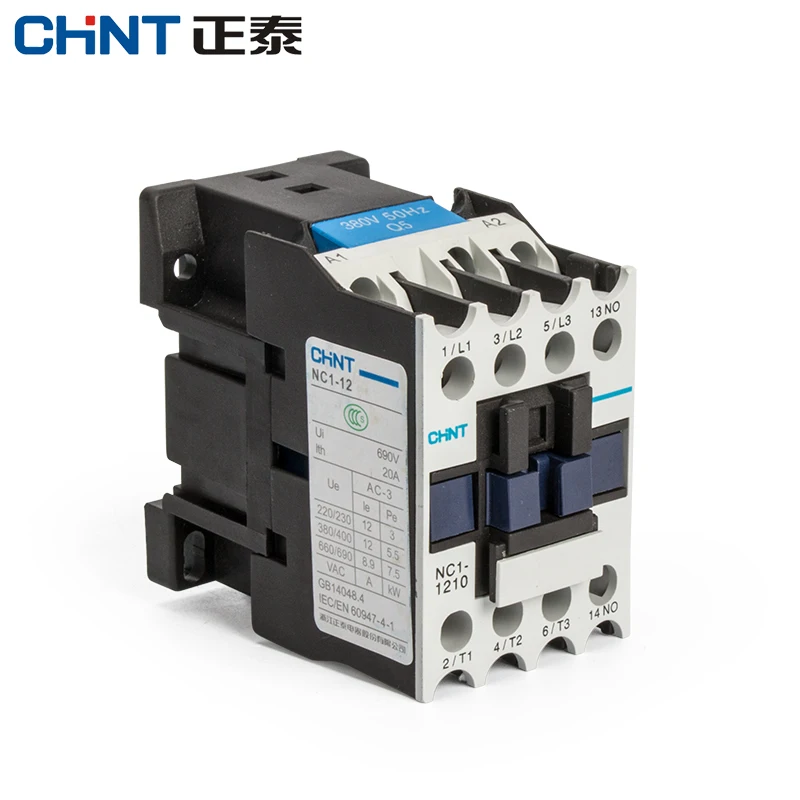

Original CHINT NC1 AC Magnetic Contactor 09A~95A AC220V/380V 1NO/1NC/1NO+1NC Auxiliary DIN Rail Motor Control Contactor
Product Description
Genuine CHINT NC1 series AC coil magnetic contactor, equivalent to CJX2 type, current range 09A/12A/18A/25A/32A/40A/50A/65A/80A/95A, coil voltage AC220V & AC380V optional. Auxiliary contact options:1NO(10),1NC(01),1NO+1NC(11). Silver alloy anti-welding main contacts, UL94-V0 flame retardant housing, standard 35mm DIN rail installation. Widely used for AC motor, solenoid valve, heater load switching in automation control cabinet, conforms to IEC60947-4-1 & CCC certification, stable performance for long-term continuous operation.
Key:Value
brand:CHINT
brand_origin:China
product_category:AC Magnetic Contactor
sub_category:CJX2 Equivalent NC1 Contactor
model_series:NC1
available_models:NC1-0910,NC1-0901,NC1-1201,NC1-1210,NC1-1810,NC1-1801,NC1-2510,NC1-3210,NC1-4011,NC1-5011,NC1-6511,NC1-8011,NC1-9511
coil_voltage:AC220V,AC380V
rated_current:9A,12A,18A,25A,32A,40A,50A,65A,80A,95A
auxiliary_contact_type:1NO / 1NC / 1NO+1NC
main_circuit_rating:AC-3 400V
installation:35mm DIN Rail Mount
housing_material:UL94-V0 Flame Retardant Plastic
contact_material:Silver Alloy Anti-Arc Contact
core_feature1:Low noise AC coil,stable against voltage fluctuation
core_feature2:Arc resistant contact to avoid welding failure
core_feature3:Compact modular design for cabinet wiring
application:AC Motor,Solenoid Valve,Heating Device,Industrial Automation Control Cabinet
certification:CCC,IEC60947-4-1,GB14048.4
condition:Original New Genuine
Full Model Parameter Table (AC 220V Standard Coil, Item No. = MPN)
| MPN / MODEL NO. | Item No. | AC-3 Rated Current | Main Pole | Built-in Aux Contact | Matching Thermal Relay |
|---|---|---|---|---|---|
| NC1-0910 | NC1-0910 | 9A | 3NO | 1NO | NR2-09 Series |
| NC1-0901 | NC1-0901 | 9A | 3NO | 1NC | NR2-09 Series |
| NC1-1210 | NC1-1210 | 12A | 3NO | 1NO | NR2-12 Series |
| NC1-1201 | NC1-1201 | 12A | 3NO | 1NC | NR2-12 Series |
| NC1-1810 | NC1-1810 | 18A | 3NO | 1NO | NR2-18 Series |
| NC1-1801 | NC1-1801 | 18A | 3NO | 1NC | NR2-18 Series |
| NC1-2510 | NC1-2510 | 25A | 3NO | 1NO | NR2-25 Series |
| NC1-2501 | NC1-2501 | 25A | 3NO | 1NC | NR2-25 Series |
| NC1-3210 | NC1-3210 | 32A | 3NO | 1NO | NR2-32 Series |
| NC1-3201 | NC1-3201 | 32A | 3NO | 1NC | NR2-32 Series |
| NC1-4011 | NC1-4011 | 40A | 3NO | 1NO+1NC | NR2-36 Series |
| NC1-5011 | NC1-5011 | 50A | 3NO | 1NO+1NC | NR2-36 Series |
| NC1-6511 | NC1-6511 | 65A | 3NO | 1NO+1NC | NR2-36 Series |
| NC1-8011 | NC1-8011 | 80A | 3NO | 1NO+1NC | NR2-93 Series |
| NC1-9511 | NC1-9511 | 95A | 3NO | 1NO+1NC | NR2-93 Series |
Common AC Coil Voltage Suffix Options
- AC24V, AC36V, AC48V, AC110V, AC220V, AC380V (50/60Hz universal)
- DC coil version add suffix Z: e.g. NC1-0910Z
