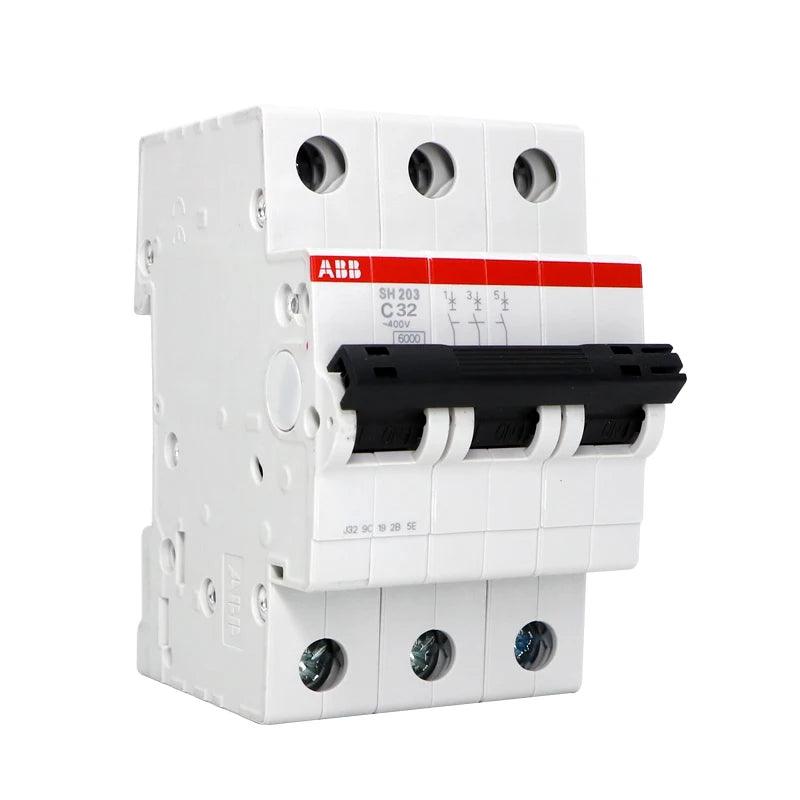

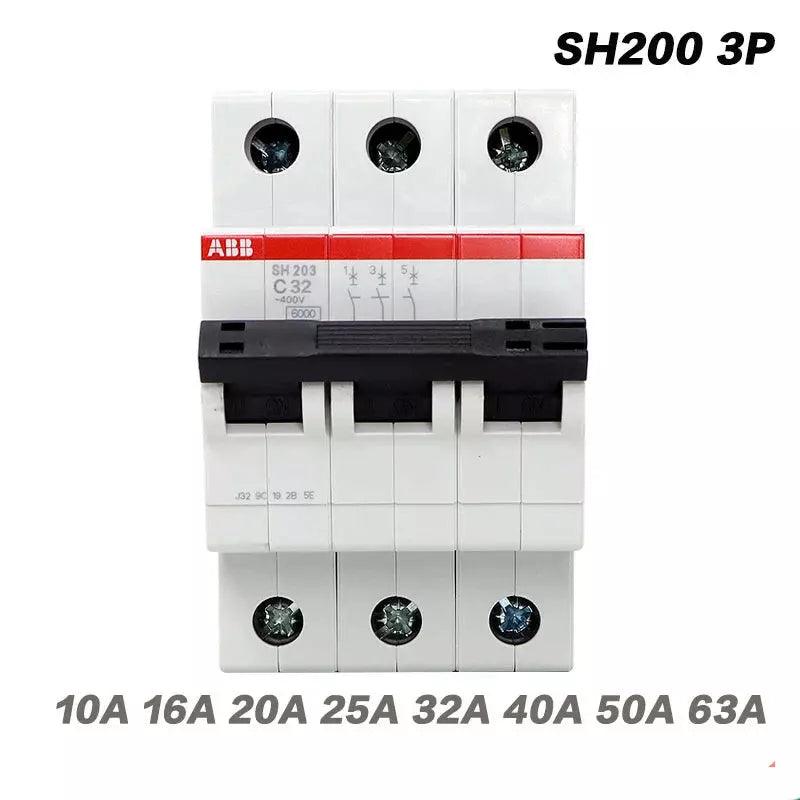

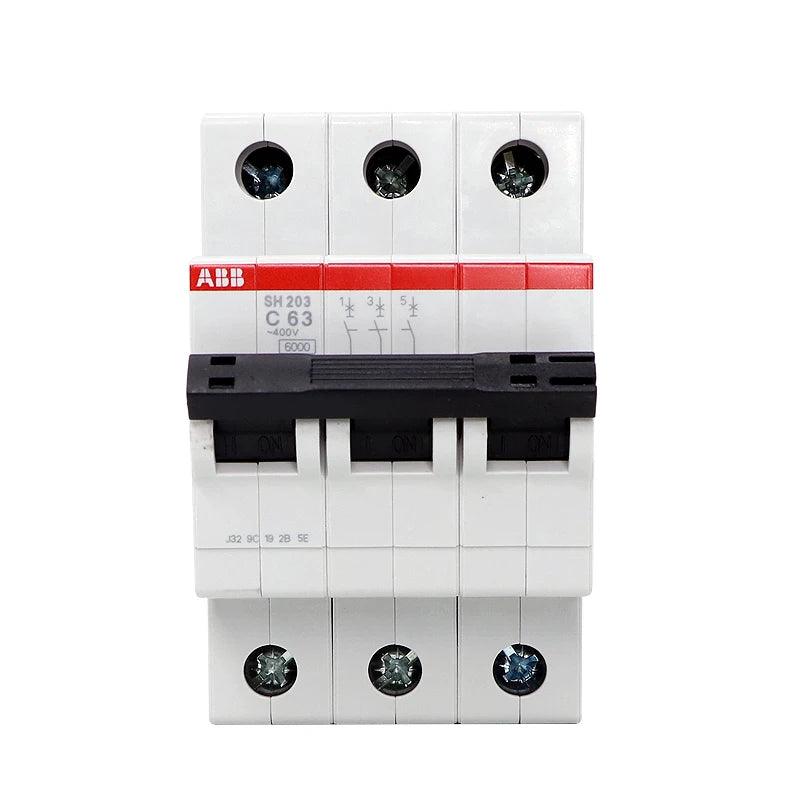

ABB Electric SH200 All Series MCB Miniature Circuit Breaker Air Switch SH203 3P
Couldn't load pickup availability
SPECIFICATIONS
ABB Electric SH200 All Series MCB Miniature Circuit Breaker Air Switch SH203 3P C10A 16A 20A 25A 32A 40A 50A 63A
Type: Air
Origin: Mainland China
Model Number: SH203
Is Smart Device: no
Certification: CE
ABB Electric SH200 All Series MCB miniature circuit breaker Circuit breaker Air switch SH203 3P C10A 16A 20A 25A 32A 40A 50A 63A
Technical Parameter
|
Standard |
|
IEC60898 |
|
Number of poles |
|
1P,2P,3P,4P |
|
Rated current(In) |
|
10,16,20,25,32,40,50,63 |
|
Rated voltage(Un) |
|
AC240/415V |
|
Rated frequency |
|
50/60Hz |
|
Tripping curve |
|
B,C,D |
|
Release action characteristics |
Time delay |
1.13In>1h Non-trip |
|
1.45In<1h trip |
||
|
2.55In 1s~60S trip |
||
|
Instantaneous(Curve C) |
5In >0.1s Non-trip |
|
|
10In<0.1s trip |
||
|
Magnetic releases operate |
|
B curve:between 3 and 5In |
|
C curve :between 5 and 10In |
||
|
D curve: between 10 and 15In |
||
|
Ratedbreaking capacit(Lcn) |
|
3000A |
|
Endurance |
|
>2500 |
|
Circumstance temperature |
|
-5~+40 |
|
Electrical life |
|
>6000times |
|
Mechanical life |
|
20000 times |
|
Tropical ration |
|
Treatmen 2(RH95%,at 55°C) |
|
Protection degree |
|
IP20 |

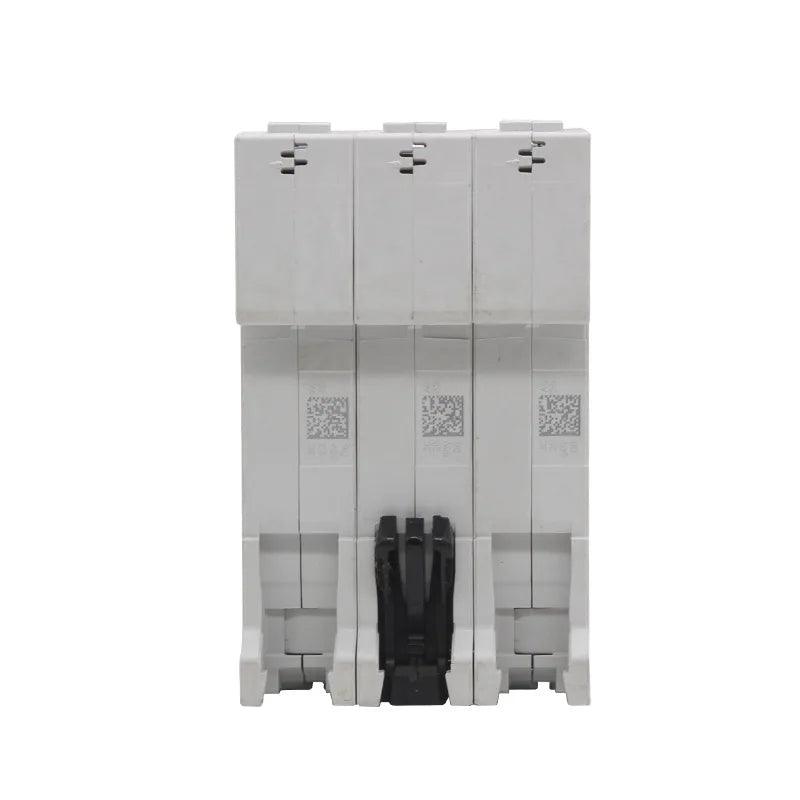

Product Showing
