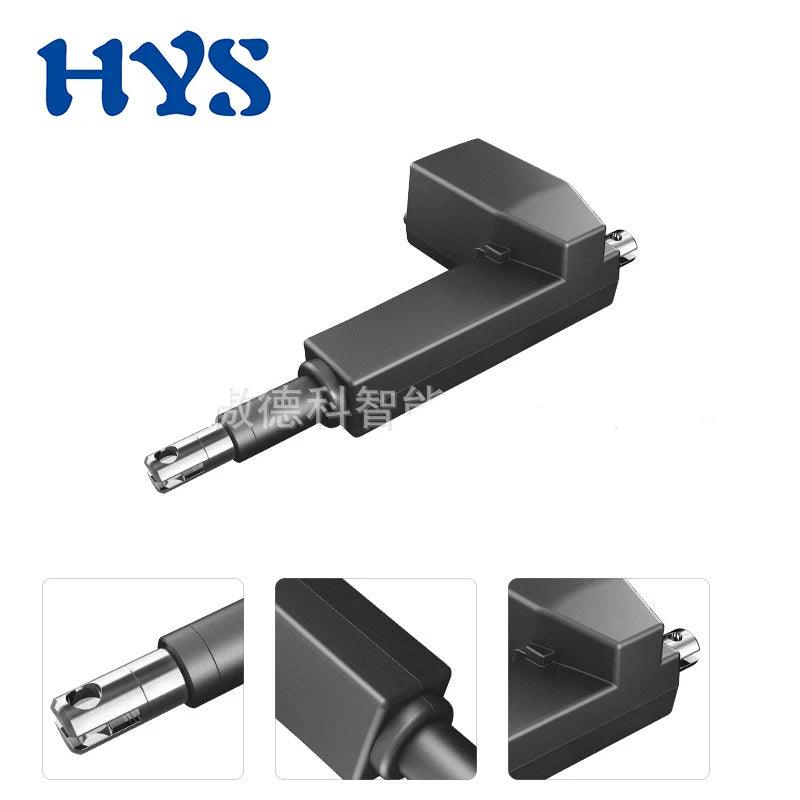

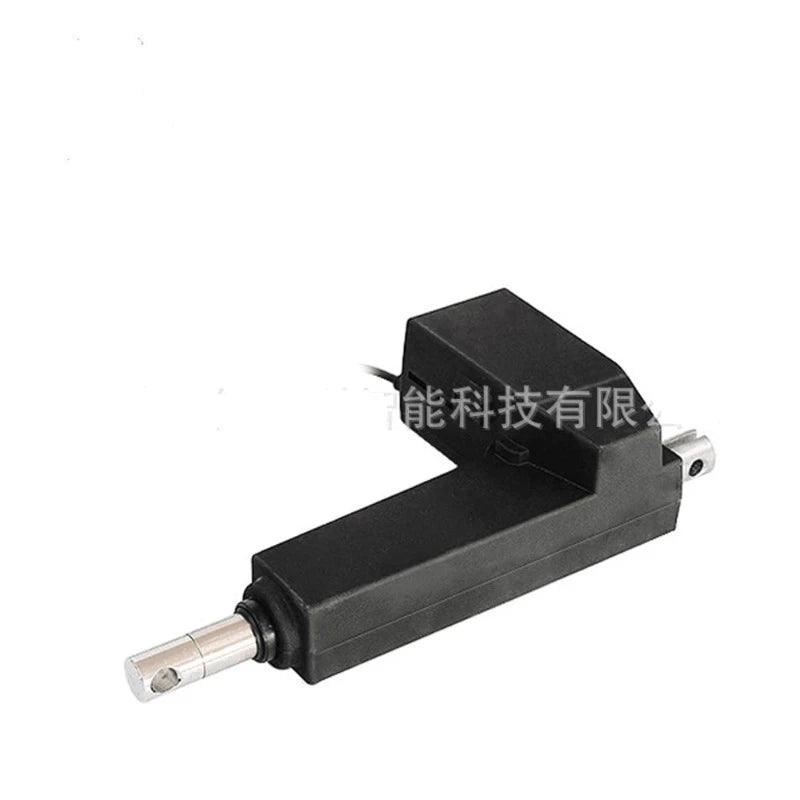

8000N Linear Actuator DC 12V 24V Telescopic Rod 50mm 100mm 150mm200mm 250mm Mini Lineal Actuador Hospital Bed ICU Electric Chair

SPECIFICATIONS

8000N Linear Actuator DC 12V 24V Telescopic Rod 50mm 100mm 150mm200mm 250mm Mini Lineal Actuador Hospital Bed ICU Electric Chair

Brand Name: HYSMOTOR

Certification: CCC

Certification: ROHS

Origin: Mainland China

Output Power: 100W

Commutation: Brush

Type: Gear Motor

Protect Feature: Drip-proof

Construction: Permanent Magnet

Usage: BoAt

Usage: car

Usage: Electric Bicycle

Usage: Fan

Usage: Home Appliance

Efficiency: IE 1

Model Number: Linear Actuator

Torque: 8000N 800kG

Thrust vs. velocity

Note：

1.Pls contact usIf you need other strokes, .Customizable stroke length: 50-1000 mm

2. Linear actuator is a rotary push

Thrust n8000      6000        4000      2000

No load speed mm / S     5             5                5          20

Load speed mm / S         4             4                 4          10

1.Model: hyswk20

Stroke ≤ 110mm (thrust 4000N and below)

Minimum installation distance (circle center distance between two mounting holes after fully retracted): 283mm

Maximum length (maximum length after fully pushed out): stroke + minimum mounting distance

Stroke > 110mm (thrust 4000N and below)

Minimum mounting distance (center distance between two mounting holes after fully retraction): stroke + 175mm

Maximum length (maximum length after fully pushed out): stroke * 2 + minimum mounting distance

2.Model: hyswk20

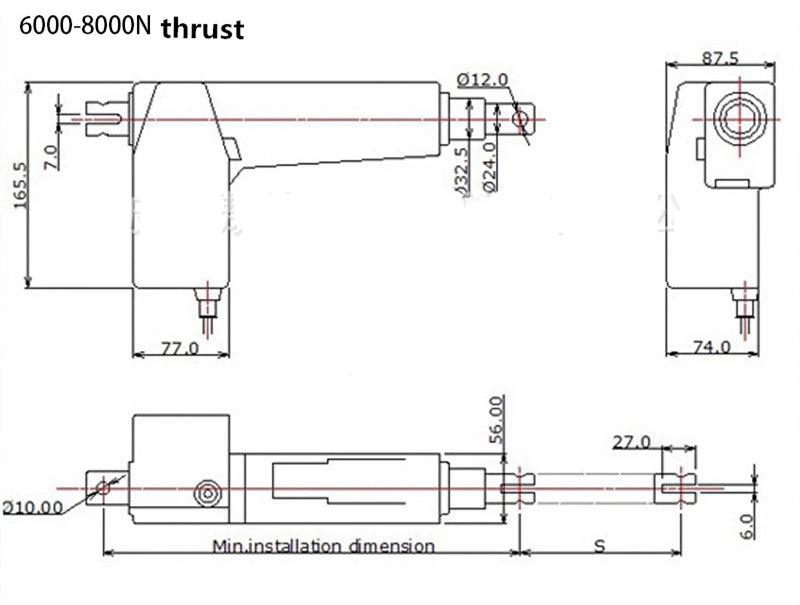

Stroke ≤ 110mm (thrust 6000-8000n)

Minimum mounting distance (circle center distance between two mounting holes after fully retracted): 325mm

Maximum length (maximum length after fully pushed out): stroke + minimum mounting distance

Stroke > 110mm (thrust 6000-8000n)

Minimum mounting distance (center distance between two mounting holes after fully retraction): stroke + 175mm

Maximum length (maximum length after fully pushed out): stroke * 2 + minimum mounting distance

Protection grade: IP54

Working environment temperature - 26 ~ + 65 degrees

Color black

Stroke length: 50-1000 mm

Inner tube material aluminum

Frequency 25%

Limit switch built in

Maximum speed: 6 mm / S

Bearing capacity: 8000n

Voltage: 12V / 24V DC

Model hyswk-20
