6000N DC Linear Actuator 12V 24V Stroke 100 200 300 400 450 mm Reciprocating Electric Lineal Actuador Thrust Lift Window Opener

Regular price $485.00 NZD
Regular price $130.00 NZD Sale price $485.00 NZD
Sale Sold out
Shipping calculated at checkout.
Size
Number of Pcs

SPECIFICATIONS

6000N DC Linear Actuator 12V 24V Stroke 100 200 300 400 450 mm Reciprocating Electric Lineal Actuador Thrust Lift Window Opener

Brand Name: HYSMOTOR

Origin: Mainland China

Certification: RoHS

Permanent magnet DC motor drive;Voltage:12V 24V

Standard protection grade:IP54

Material: aluminum alloy

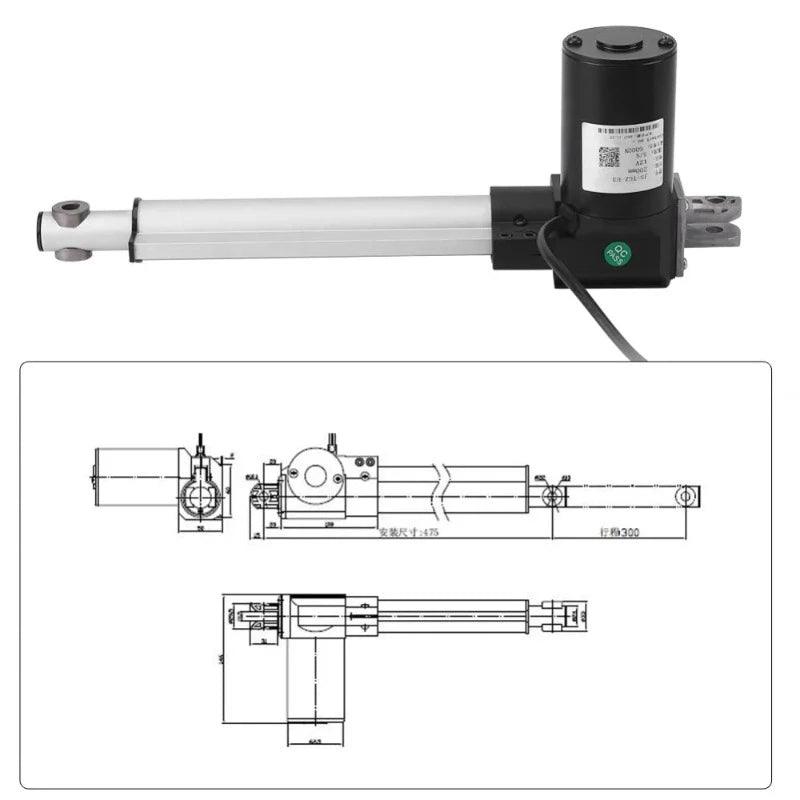

  1. Minimum installation dimensions (fully retracted around in the middle of the distance between the two holes): L1= Stroke+175 mm

  2. Maximuminstallation dimensions(fully extended around the middle of the distance of the two holes):                  L = 2xS(stroke)+175mm

  3. Ambient temperature :-26  to +65 degree

  4. Built-in limit switches(Whencompletedstroke,linear actuatorautomatically stops!)

  5. Low noise design, noise levels below 42 db

  6. Work rule: 10%. Loading rated thrust need 10% work rule. In 20 minutes, 2minutes work 18minutes rest.            If lower load can extend work time.

Application:Television console.couch for massage.Electric bed.Medical chair.Electric equipment ....

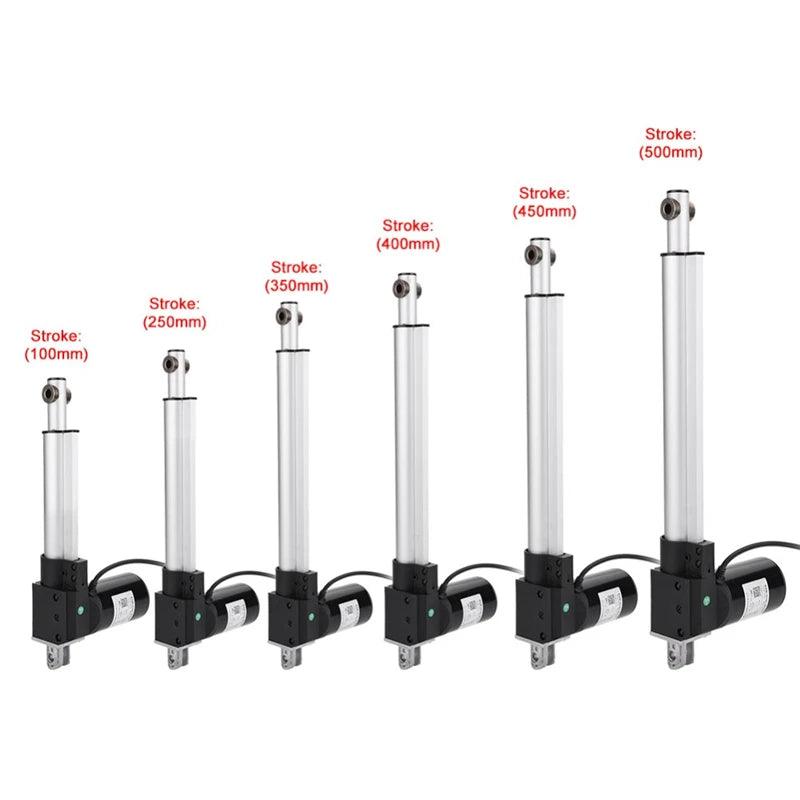

Note:If you need other voltage (DC24V 36V 48V ...) or if you need other strokes (100mm 150mm 200mm 250mm 300mm 350mm 400m 500mm550/600/650/700/750/800/850/900/950/1000mm)

we will definitely give you the best price if you need more quantity
Anyhow, pls contact me if you have any question

The self-locking force of the linear actuator is about 80%
