5pcs Alligator Clip Line Solar Motor 310 High Speed DC 3V 6V 4000rpm 7000rpm Electric DC1.5V-6V DIY Engine Toys Fan Boat Car

SPECIFICATIONS

5pcs Alligator Clip Line Solar Motor 310 High Speed DC 3V 6V 4000rpm 7000rpm Electric DC1.5V-6V DIY Engine Toys Fan Boat Car

Brand Name: HYSMOTOR

Certification: CCC

Certification: ROHS

Origin: Mainland China

Commutation: Brush

Type: Micro Motor

Protect Feature: Drip-proof

Construction: Permanent Magnet

Model Number: 310

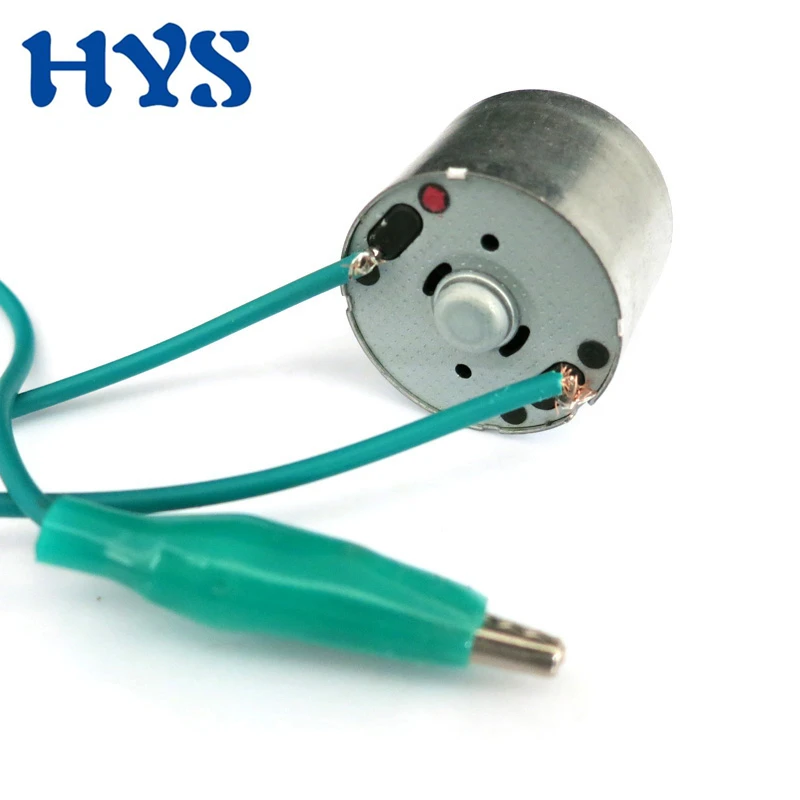

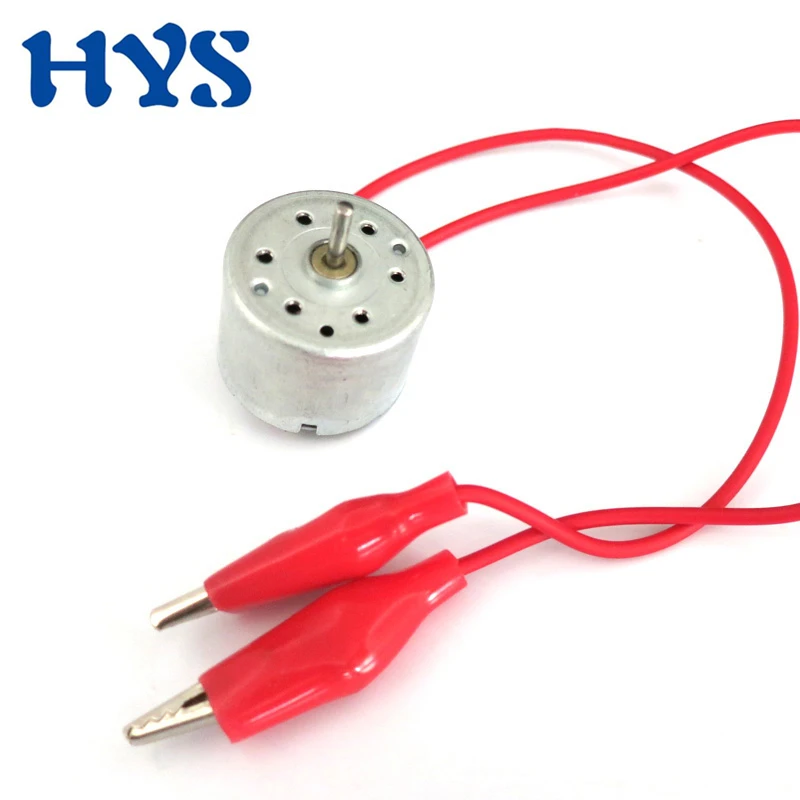

The crocodile clip wire 310 motor, this motor has been welded to the crocodile clip wire, you can directly clamp the crocodile clip to the solar panel solder to connect the solar panel, put the solar panel in the sun, the motor can rotate Too.

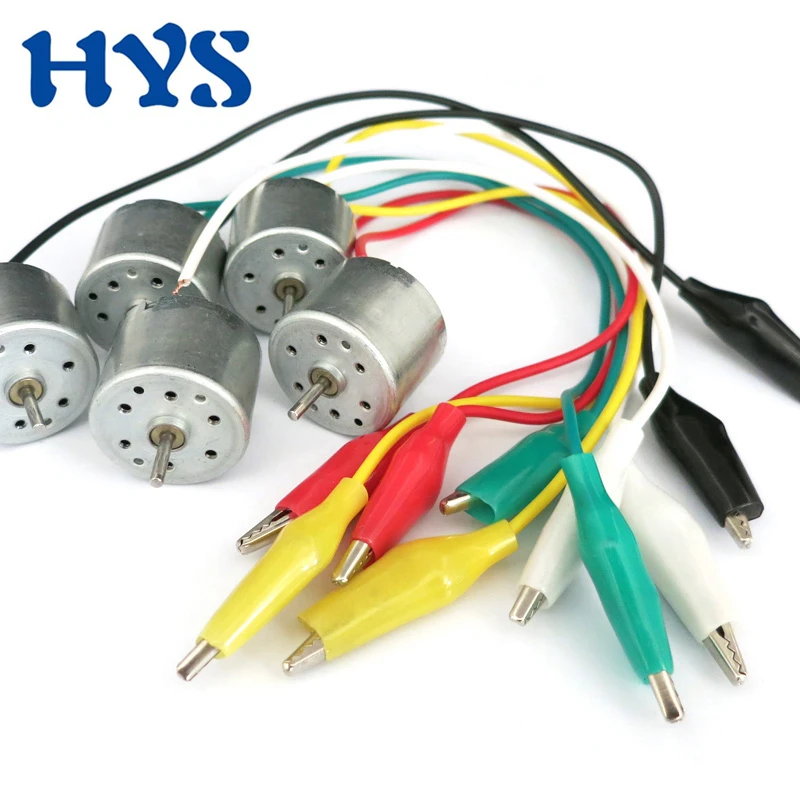

Note that the color of this wire is random, not necessarily black, and may be other colors, shipped randomly.

Motor height: 18mm

Motor diameter: 24mm

Motor shaft diameter: 2mm

Motor shaft length: 6.3mm

Motor voltage: DC 1.5v-6v

Motor speed:

DC 3v, no-load speed is about 4000 rpm,

DC6v, no-load speed is about 7000 rpm

Motor current:

DC 3v, current is 20ma, locked rotor current is 260ma,

DC6v, the current is 30ma, and the stall current is 480ma

Chuck length: about 25mm

Wire length: about 22 cm

Wire thickness: about 2mm
