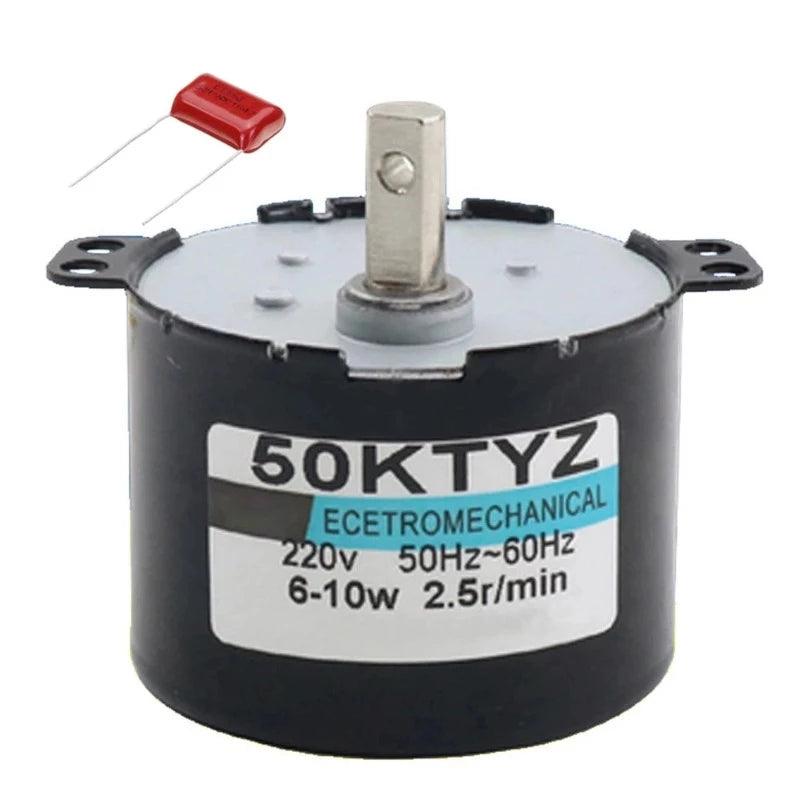

50KTYZ Permanent Magnet Synchronous Motor 6W AC 12V 24V 110V 220V Geared Slow Speed 1rpm to 60rpm Motors Forward Reversed CW CCW
Couldn't load pickup availability
SPECIFICATIONS
50KTYZ Permanent Magnet Synchronous Motor 6W AC 12V 24V 110V 220V Geared Slow Speed 1rpm to 60rpm Motors Forward Reversed CW CCW
Brand Name: HYSMOTOR
Certification: ROHS
Origin: Mainland China
Output Power: 6W
Commutation: Brush
Type: Gear Motor
Protect Feature: Explosion-proof
Construction: Permanent Magnet
Usage: BoAt
Usage: car
Usage: Electric Bicycle
Usage: Fan
Usage: Home Appliance
Efficiency: IE 1
Model Number: 50ktyz AC motor
Color: black
Torque: max 30KG
Introduction of the motor
1. ：50KTYZ Mini Permanent Magnet AC Synchronous Motor
2. The motor has the following voltage options: AC 220V and AC 24V
3. AC 220V ; You can choose the no load speed have : 1rpm ; 2.5rpm ; 5rpm ; 10rpm ; 15rpm ; 20rpm ; 30rpm ; 50rpm
Rated torque between 1.5 To 30 KG.CM; Select a no load speed in AC 220V, there will be corresponding rated torque, please refer to the parameter table below.
4. AC 24V ; You can choose the no load speed have : 2.5rpm ; 30rpm ; 50rpm
Rated torque between 1.5 To 25 KG.CM; Select a no load speed in AC 24V, there will be corresponding rated torque, please refer to the parameter table below.
5. The direction of rotation of the motor : CW and CCW; Support Reversed
6. Power : 6-10W
7. Outstanding features of the motor: The motor is a permanent magnet synchronous motor ; Internal is metal gears ; Low speed and low noise 30dB ; Support continuous operation for 24 hours ; Speed adjustment is not supported ; 5,000 hours of life under normal use ; Use high quality materials ; Small size ; High torque ; Low power consumption ; Light weight and easy to use
8. Motor application range : Automatic barbecue shelf; Automatic dining table; Curtain machine; Crib; Stage Lighting; Dishwasher; Automation control, etc.
9. For the torque, size, product picture or other informations of the motor, please see the following information.Thanks
The following is the motor parameter table
The following is a description of the quality materials and structures of this motor.
1. All metal gears
2. The wire in the rotor is made of pure copper. It is more conductive,resistant to temperature and prolongs the life of the motor.
3. Using imported lubricating oil, it effectively controls the speed of motor temperature rise, which makes the motor rotate more smoothly.
The size is for reference only,the measurement will be slightly different,please pay attention before buying
Wiring method
The following is the picture of the motor
