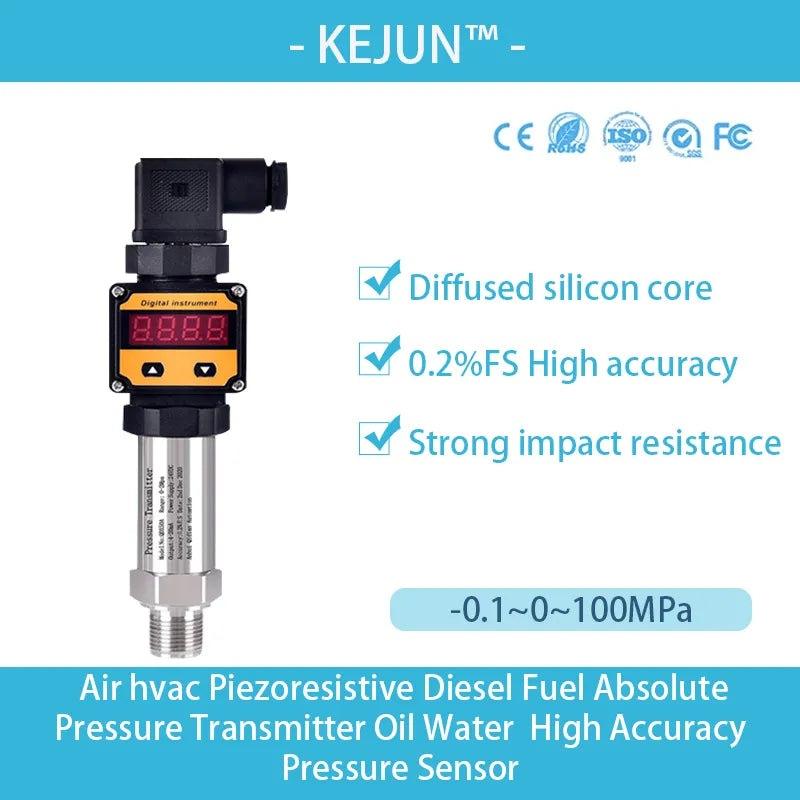

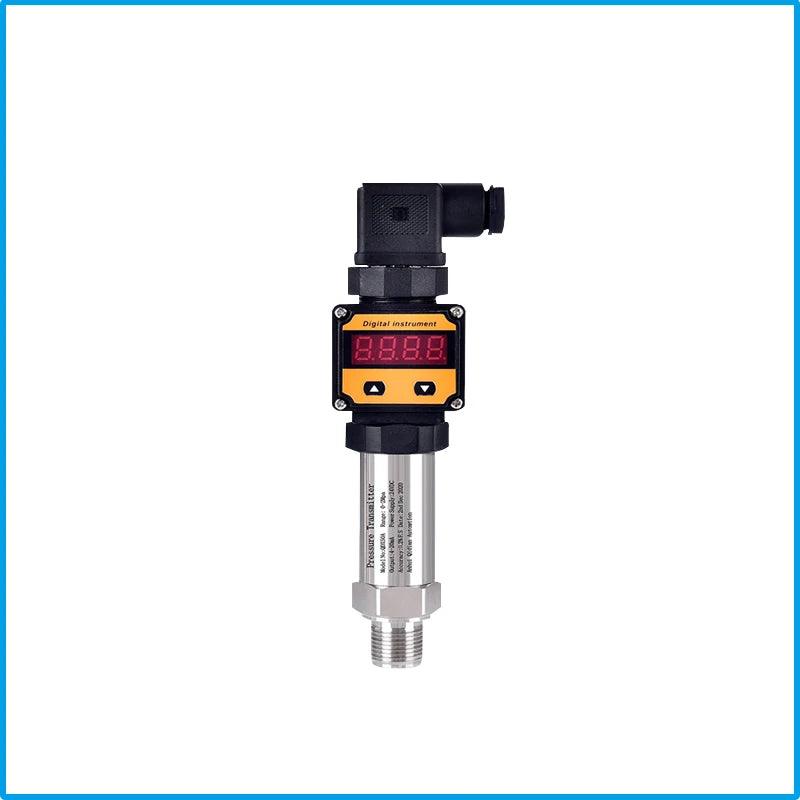

4-20mA RS485 output Pressure Transmitter 0-16Mpa 30bar LED Digital Display Fuel level Sensor Transducer

Regular price $107.00 NZD
Regular price $124.00 NZD Sale price $107.00 NZD
Sale Sold out
Shipping calculated at checkout.
Color
Measuring Range

SPECIFICATIONS

4-20mA RS485 output Pressure Transmitter 0-16Mpa 30bar  LED Digital Display Fuel level Sensor Transducer

Brand Name: KEJUN

Origin: Mainland China

Max Measuring Range: 400 Bar & Above

Model Number: KEJUN131X

Certification: FCC

Certification: CE

Certification: RoHS

Model Number: KEJUN131X

Max Measuring Range: 400 Bar & Above

Brand Name: QiROD

Origin: Mainland China

Certification: CE,FCC,RoHS

Pressure type: Gauge pressure, Absolute pressure

Output signal: 4-20mA

Response time: < 3ms

Accuracy: 0.5% FS

Pressure connection: M20 X 1.5


Pressure Transmitter Hydraulic Analog Fuel Oil Water Air Pressure Sensor With LED Display


This link is special for:
1. Measuring range: the one you choose
2. Power supply: DC24V
3. Connection thread: M20*1.5


Notes:

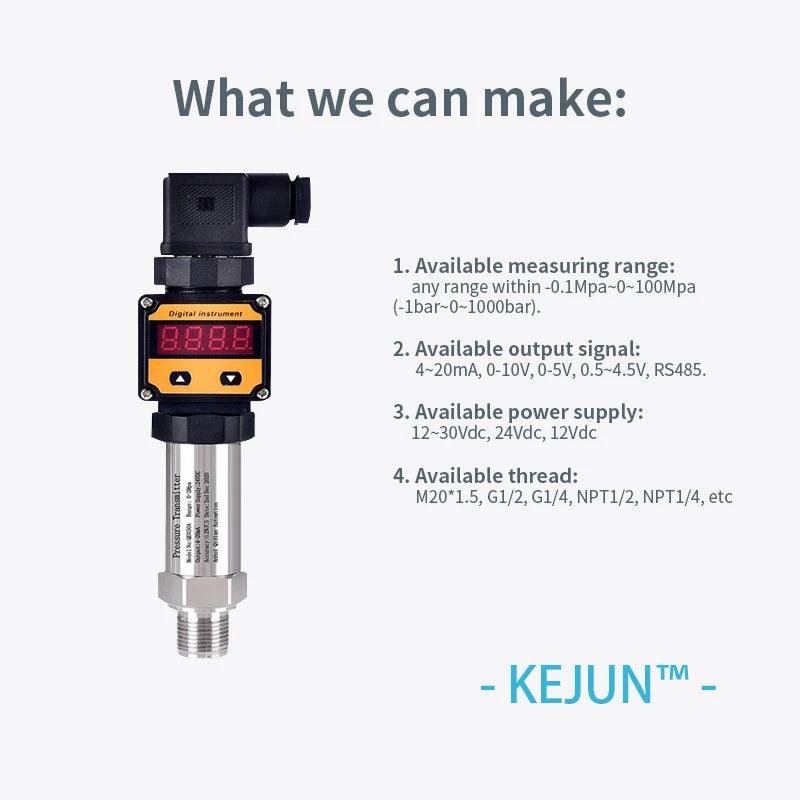

What we can make:

1. Available measuring range: any range within -0.1Mpa~0~100Mpa (-1bar~0~1000bar).

2. Available power supply: 9~30Vdc, 24Vdc, 12Vdc

3. Available thread: M20*1.5, G1/2, G1/4, NPT1/2, NPT1/4, etc

4.Available output signal: 4~20mA, 0~10V, 0~5V, 0.5~4.5V, RS485.

So: if you need other parameters, please contact me.

And tell me the measuring range, output signal, power supply, thread size.

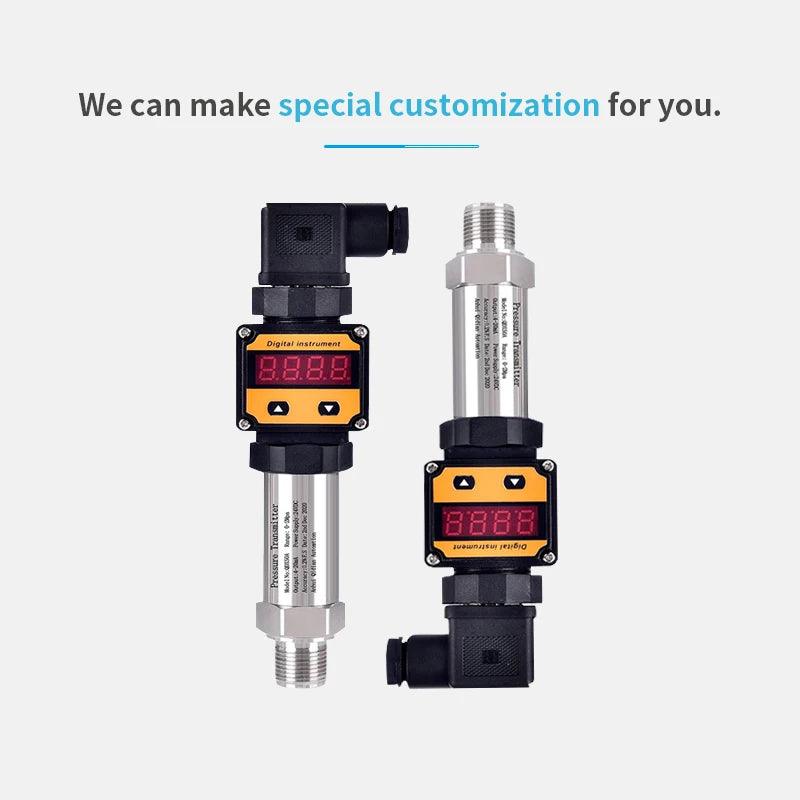

We can make special customization for you.

1>>. KEJUN-131X pressure transmitter used sensitive & high performance diffusion silicon piezoresistive chip.

2>>. The internal circuit board converts the pressure signal into standard analog signal,users can directly connect the transmitter with computer interface card,control instrument,intelligent instrument or PLC.

3>>. This pressure transmitter has many good features,small volume,light weight,easy to install,all stainless steel sealing structure,high anti-vibration and anti-impact performance.

4>>. This pressure transmitter is widely used in process control, aviation, aerospace, automobile, medical equipment and many other fields.
