3420 Lawn Mower High Speed 12V/24V 3500/7000rpm Universal Adjustable Reversing Motor Low Noise DC Micro Motor 30W DC Motor

SPECIFICATIONS

3420 Lawn Mower High Speed 12V/24V 3500/7000rpm Universal Adjustable Reversing Motor Low Noise DC Micro Motor 30W DC Motor

Brand Name: HYSMOTOR

Certification: CCC

Certification: ROHS

Origin: Mainland China

Commutation: Brush

Type: Micro Motor

Protect Feature: Drip-proof

Construction: Permanent Magnet

Usage: BoAt

Usage: car

Usage: Electric Bicycle

Usage: Fan

Usage: Home Appliance

Model Number: 3420 High Speed Motor

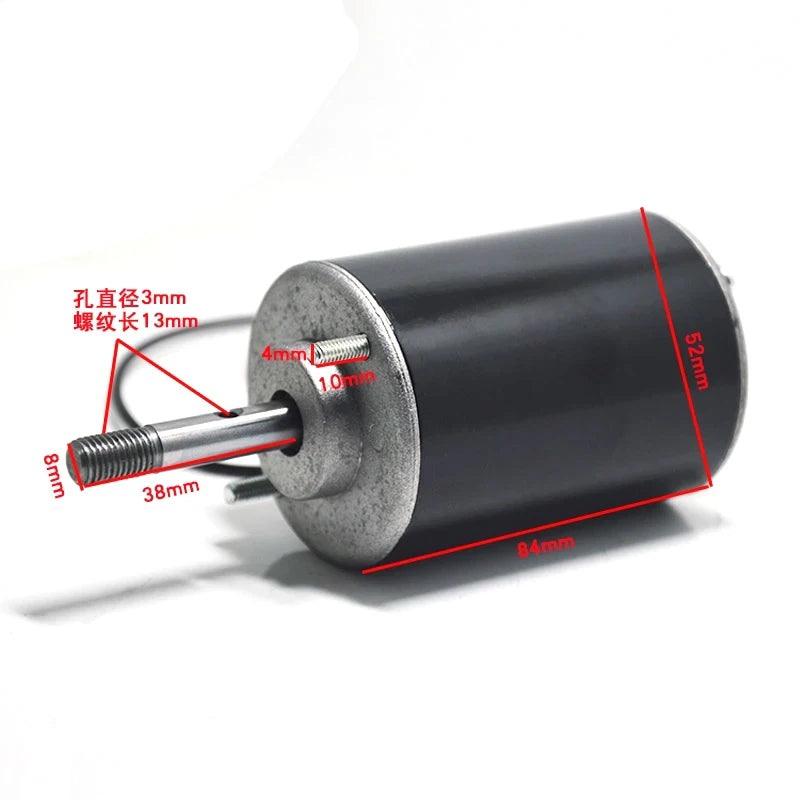

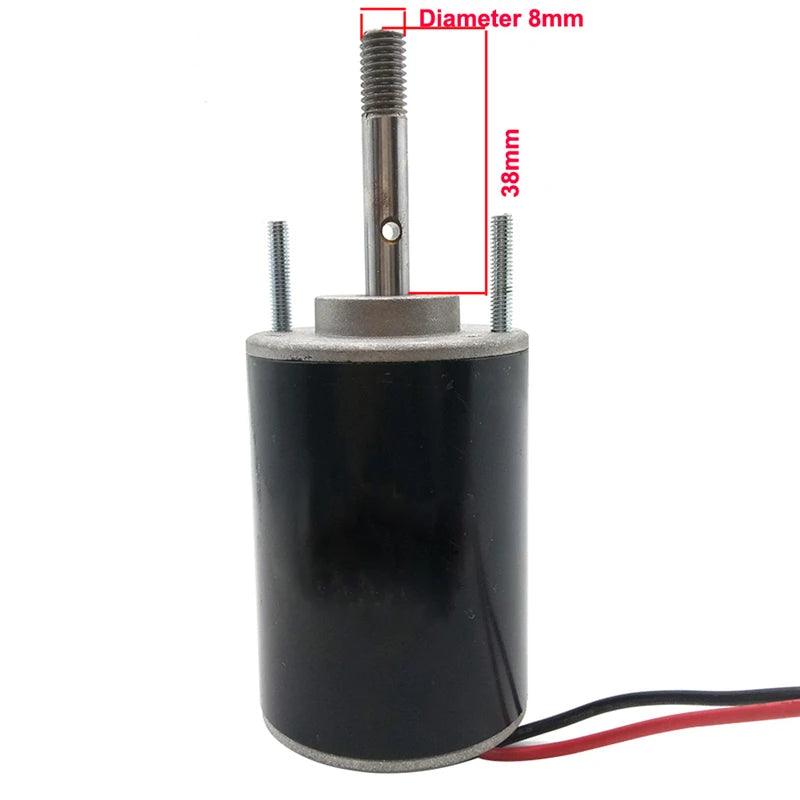

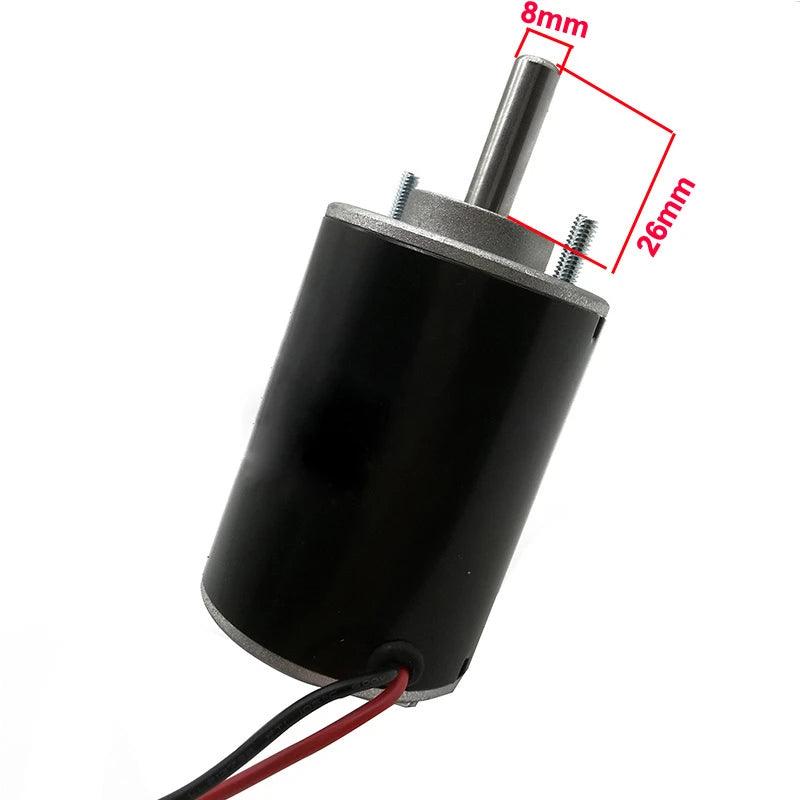

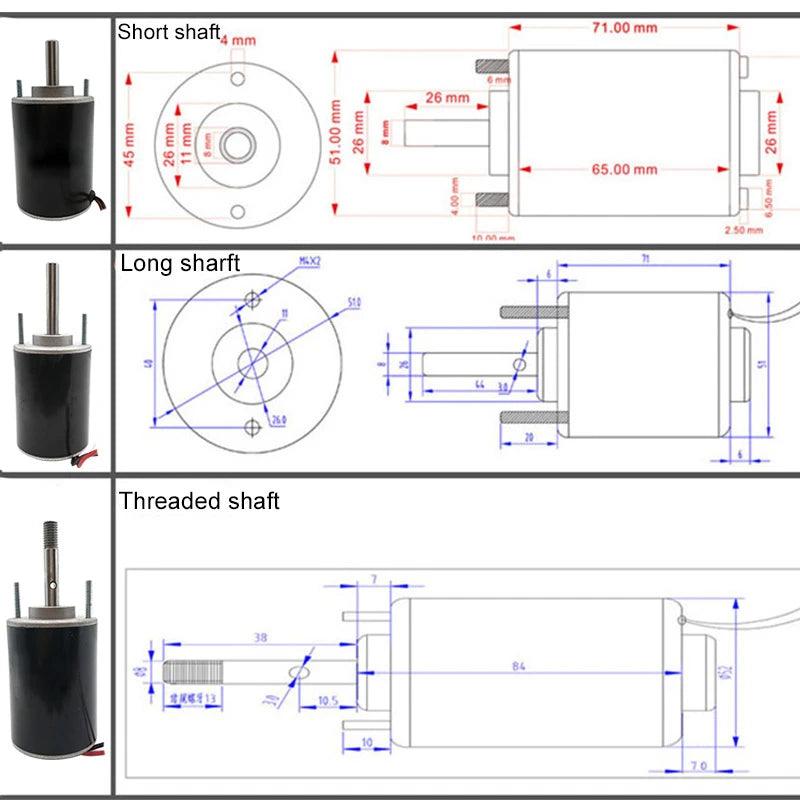

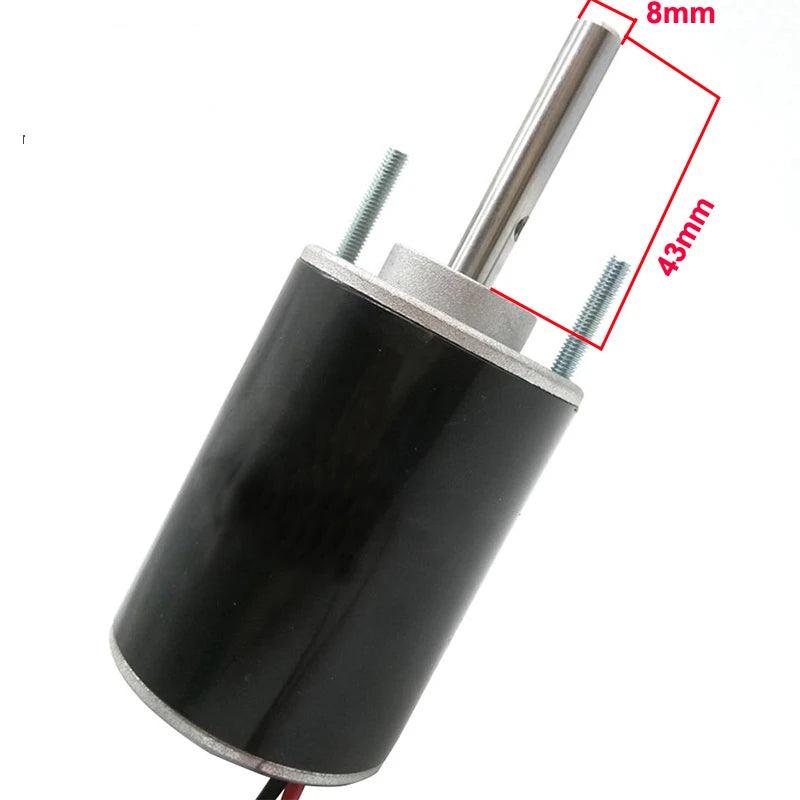

The size is for reference only,the measurement will be slightly different,please pay attention before buying

The following is a description of the quality materials and structures of this motor.

1. Use double ball bearings to make the motor shaft more bearing capacity and less friction.

2. The coil in the rotor is made of copper, which is more conductive and makes the torque of the motor larger.

3. Using 2200GS high-quality magnetic tile, the motor has high working efficiency and small dynamic loss.

Introduction of the motor

1. Product Name : 3420 Permanent Magnet DC Motor With 12V 24V

2. Voltage range : DC 12V To DC 24V

3. No load speed : When the motor is connected to DC 12V, the motor rotates at 3500 rpm per minute. When the motor is connected to DC 24V, the motor rotates at 7000 rpm per minute. For more motor parameters, please refer to the following motor parameter table.

4. Torque : 12V is 1KGF.CM ; 24V is 2KGF.CM

5. Power : 30W

6. Direction of rotation of the motor : CW Or CCW ; Support Reversed

8. Support speed adjustment

9. Low noise : 30 dB

10. Compared to other motors, the carbon brush of this motor can be replaced, while other motors do not support replacement.

11. Support continuous 24 hours of work ; Under normal use, the life of the motor is 5000 hours.

12. Applications: cotton candy machine; cutting machine; toy; blower; mixer; eggbeater, smart device etc.
