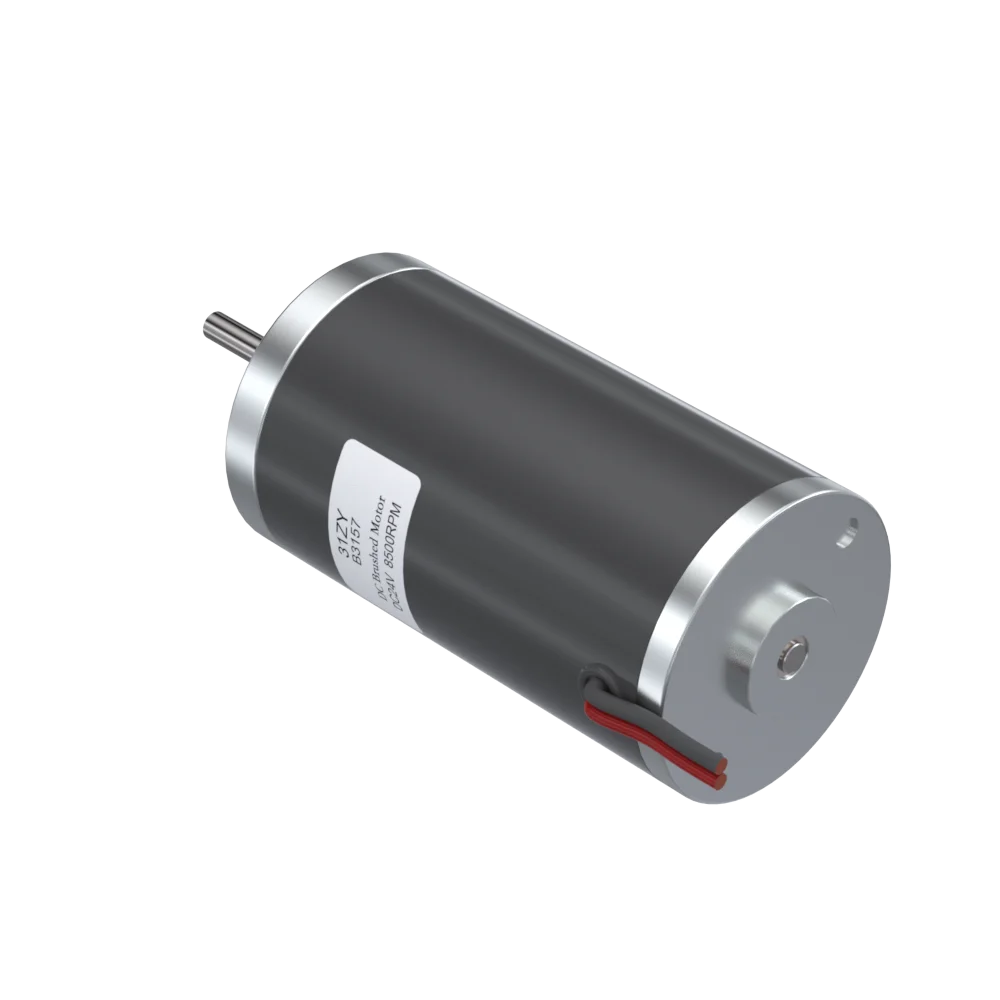

31ZY 15W 12V 24V 3500 5000 6000 8000RPM High Speed DC Brushed Micro Motor
Couldn't load pickup availability
SPECIFICATIONS
31ZY 15W 12V 24V 3500 5000 6000 8000RPM High Speed DC Brushed Micro Mini Motor CW/CCW Permanent Magnet DIY Robot Electric Tool
Brand Name: Anmiy
Certification: NONE
Origin: Mainland China
Output Power: 15W
Commutation: Brush
Type: Micro Motor
Protect Feature: Drip-proof
Construction: Permanent Magnet
Usage: Fan

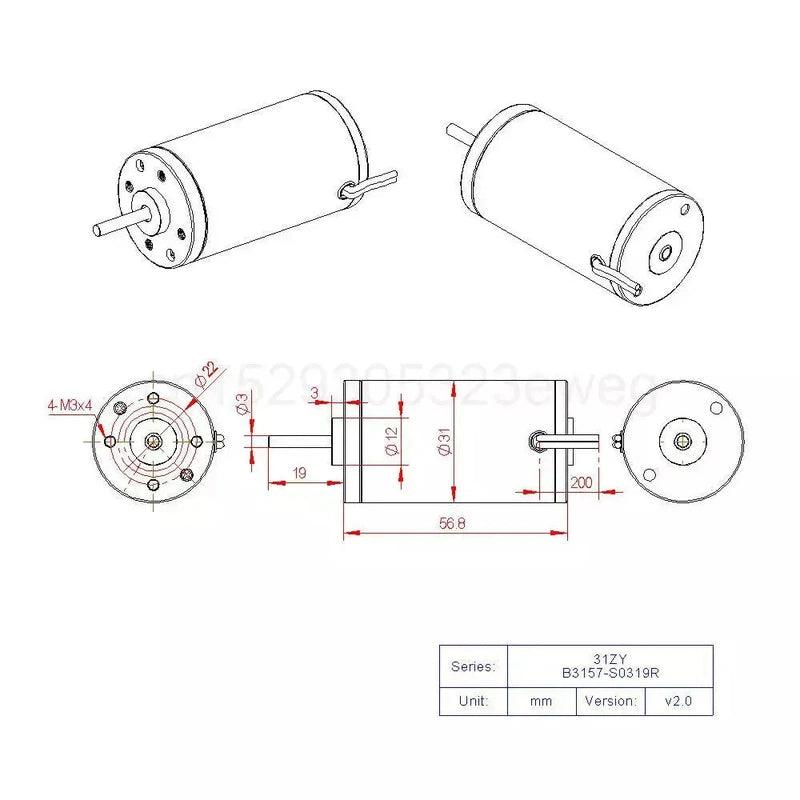

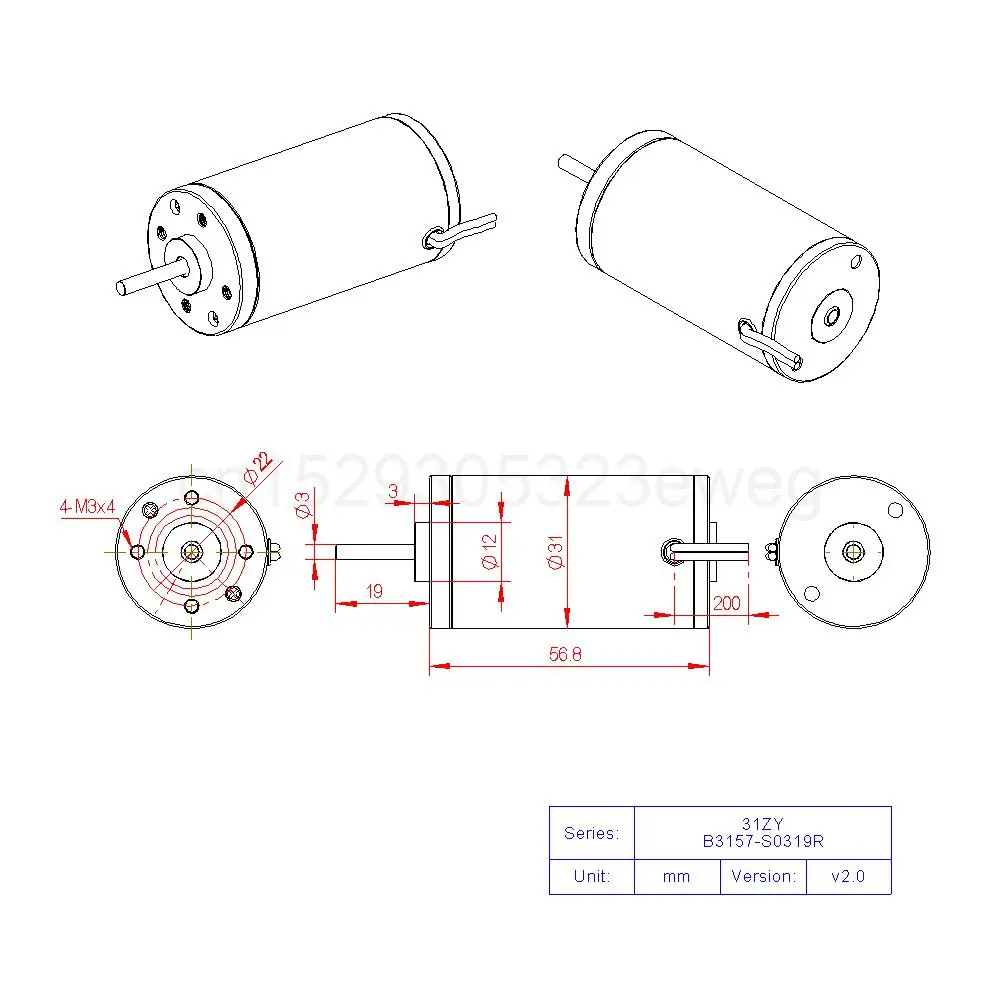

Model Number: 31ZY-S0319R
The 31ZY series motors have various models which different in voltage, initial speed, gearbox, shaft, etc., click image below for details:
More DC brush motor series (31ZY series's brother):

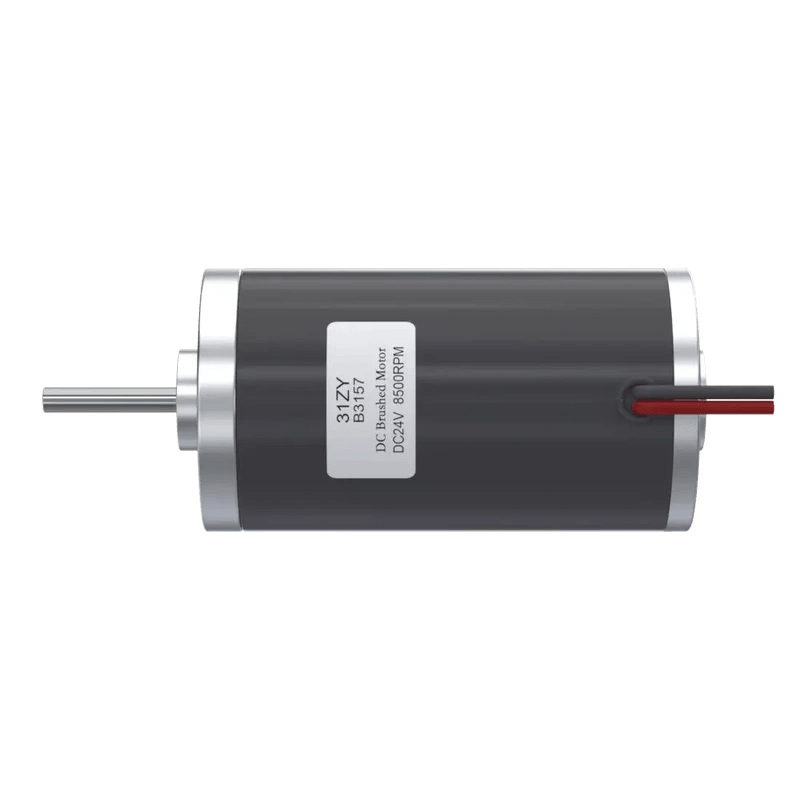

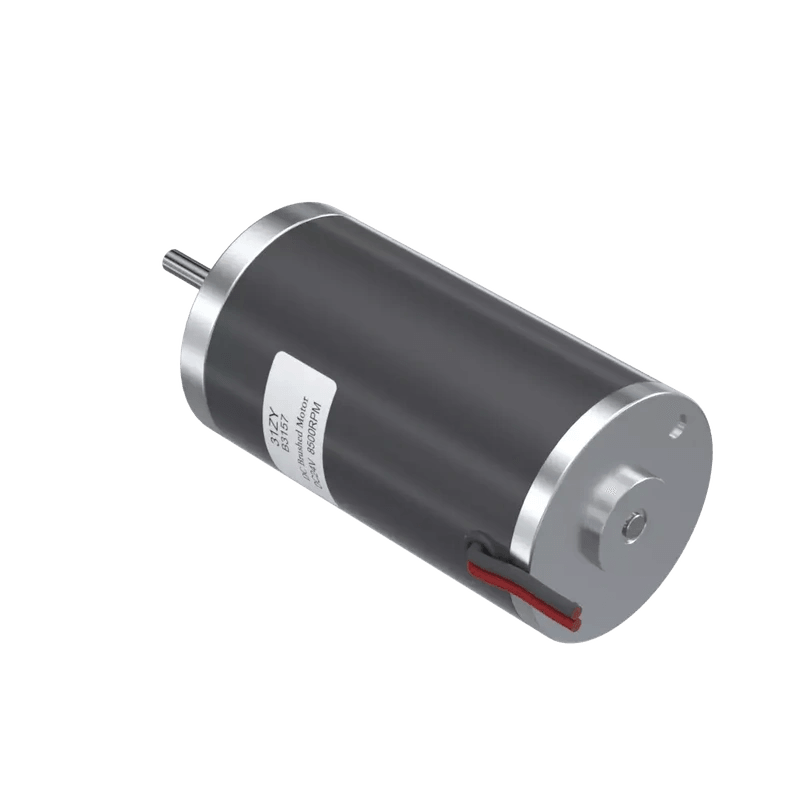

31ZY (B3157) DC brushed high speed motor with rated voltage of DC12V, 24V, can be respectively reduced to DC6V, 12V, etc.
The motor is made of high purity copper wire, supports speed regulation and forward and reverse rotation, and is widely used in household appliances, automatic control, DIY design, etc.

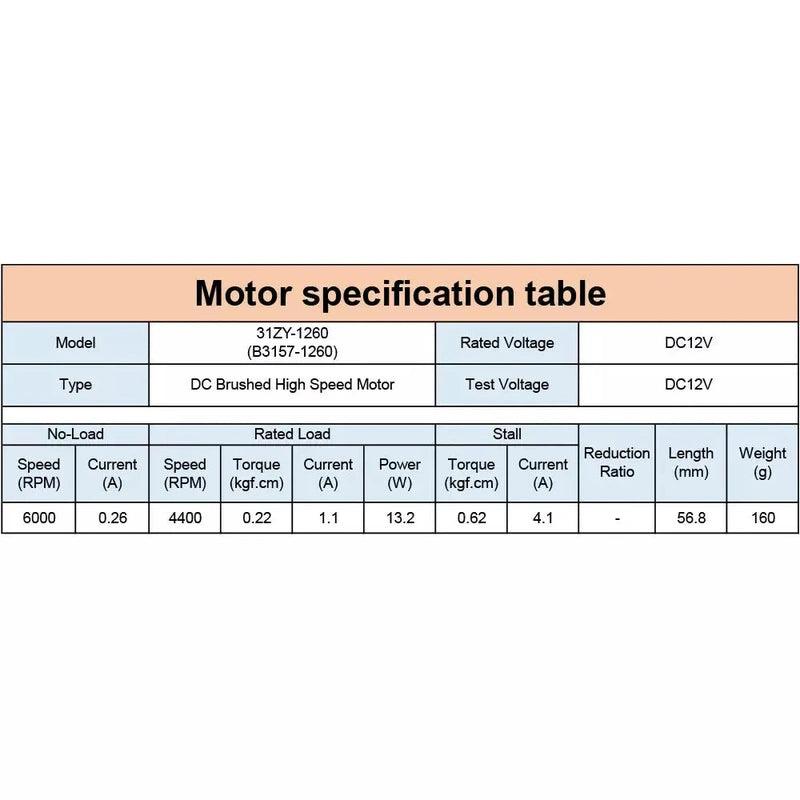

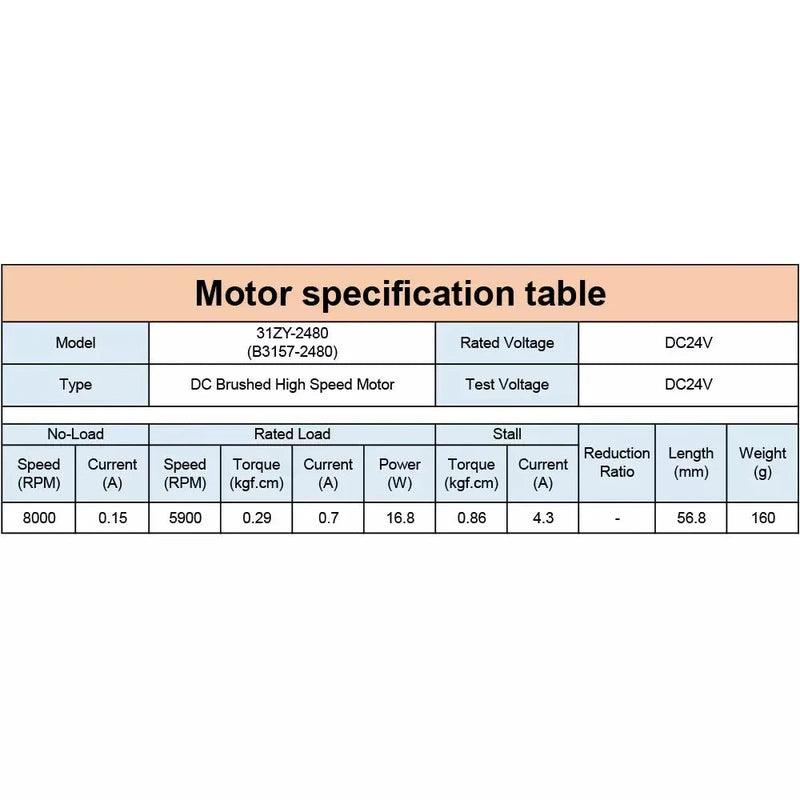

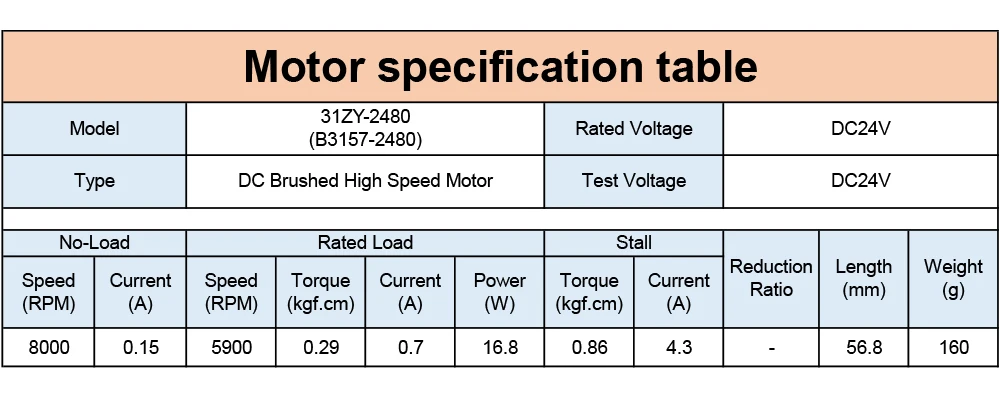

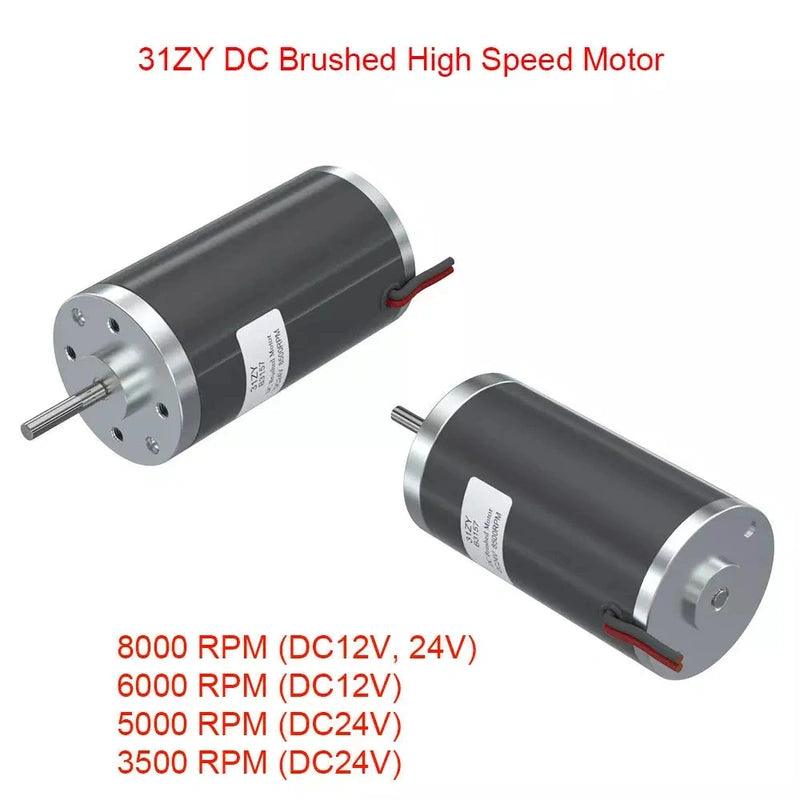

Generally, the no-load speed (unit: RPM, r/min, ± 10% deviation) are:
8000 RPM (DC12V, 24V)
6000 RPM (DC12V)
5000 RPM (DC24V)
3500 RPM (DC24V)
The speed when the voltage is reduced are:
4000 RPM (DC6V, 12V)
3000 RPM (DC6V)
2500 RPM (DC12V)
1750 RPM (DC12V)
More speed can also be customized according to your needs, please contact customer service for details.
Package:
- 1 x 31ZY motor
