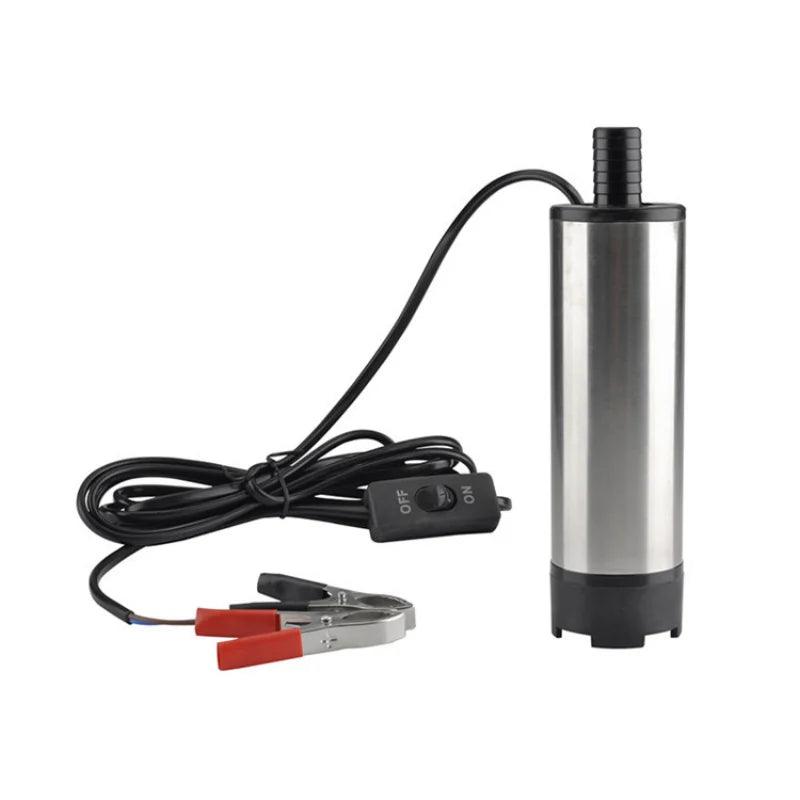

24V DC Portable Micro-pump 38mm Diameter/ Submersible Pump/ Diesel Pump Oil Self-priming Pump Tube Diameter 1.6cm

SPECIFICATIONS

24V DC Portable  Micro-pump 38mm Diameter/ Submersible Pump/ Diesel Pump Oil Self-priming Pump Tube Diameter 1.6cm

Brand Name: BLUSUNSOLAR

Structure: Submersible Pump

Power: Electric

Fuel: Other

Origin: CHINA

Pressure: High Pressure

Usage: Water

Model Number: Water Pump

Application: Submersible

Theory: Vortex Pump

Standard or Nonstandard: Standard

Type: Solar Water Pump

Valtage: 24VDC

Power: 24V 0.8A

Flow Rate: 12L/M

Lift Max: 2 meters

Speed: 8500r/min

Diameter: 38MM

Tubing diameter: 1.6cm

Height: 16mm



24V DC Portable  Micro-pump/ Submersible Pump/ Diesel Pump Oil Self-priming Pump Tube diameter 1.6cm

Technical parameters

Voltage: 24V (DC)

Diameter: 3.8cm

Power: 24V 0.8A

Wire Length: 3m

Flow rate: 12L/min

Lift Max: 2m

Tubing diameter: 1.6cm

Speed: 8500r/min

Shell:aluminium alloy

Connector:Alligator clip

Accessories:Removable filter



Features

1.Diesel pump operated by DC24v motor,full sealed device

2.The motor is insulated to the shell

3.The pump mainly smoke diesel,flow rate:12L/Min.

4.The outer diameter 38mm.

5.The maximum Oil-out diameter is 16mm

6.The oil outlet hose is self-provided



Please note:

1.When it works,first should put clean diesel pump in the middle of diesel bucket,does not allow empty load aperation

2.Pay attention to the load capacity of bucket when the pump is running,do not exceed load capacity line

3.The pump is strictly prohibited pumping gasoline,alcohol and other flammable liquids.

4. Do not make change the anode and cathode of battery clamp



Pictures:
