220V AC Motor 25W High Speed 1400rpm 2800rpm Single Phase Electric Motor Speed Controller Reversed For High-End Smart Devices
Couldn't load pickup availability
SPECIFICATIONS
220V AC Motor 25W High Speed 1400rpm 2800rpm Single Phase Electric Motor Speed Controller Reversed For High-End Smart Devices
Brand Name: HYSMOTOR
Certification: ROHS
Efficiency: IE 1
AC Voltage: 208-230 / 240 V
Origin: Mainland China
Phase: Single-phase
Protect Feature: Totally Enclosed
Certification: RoHS
Model Number: 4M25Gm-cc
Output Power: 25W
Type: Induction Motor
Introduction of the motor

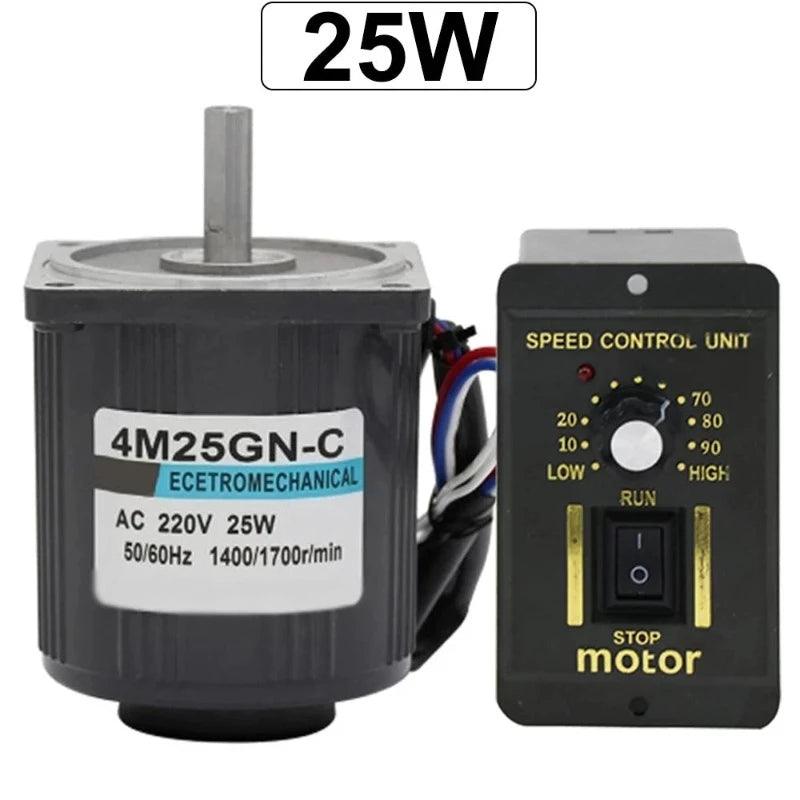

1. Name of the motor: 4M25GN-C 220v single phase AC motor with speed controller
2. Rated voltage : 220V
3. You can choose the no load speed have : 1400rpm or 2800rpm
Note : The speed plus and minus 10% fluctuation
4. Power : 25W

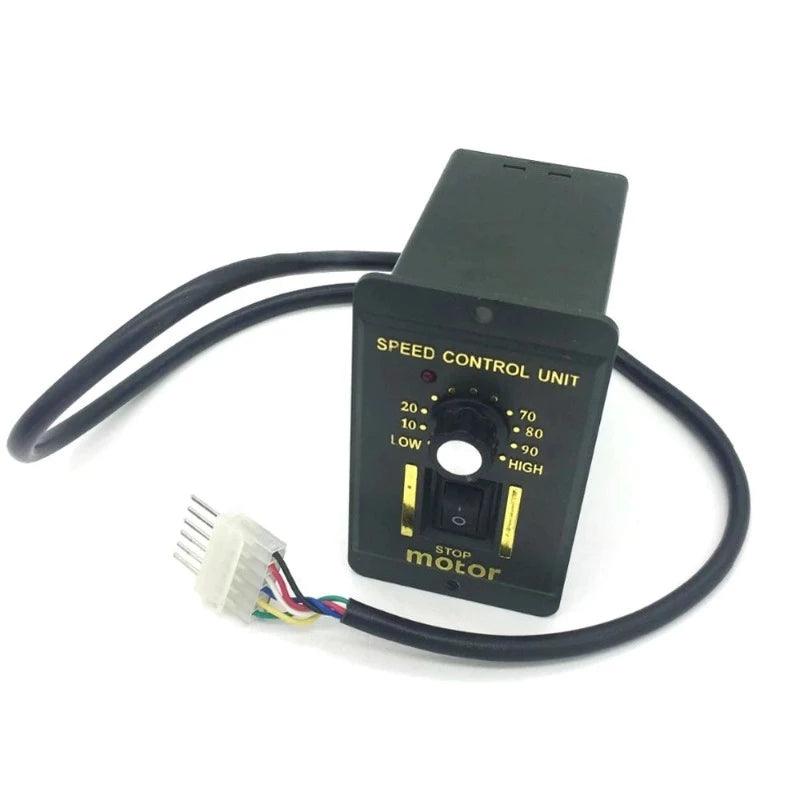

5. This motor has a speed controller
Its function can control the speed of the motor and rotate clockwise or counterclockwise
6. Direction of rotation of the motor: CW Or CCW, Support Reversed; The direction of rotation of the motor can be controlled by a speed controller
7. The shaft shape of the motor : D type, please refer to the size chart below for all dimensions of the motor.
8. The speed of the motor can be adjusted using the speed controller. This motor and speed controller are sold in combination.
9. Low noise
10. In normal use, the motor has a life of more than 5,000 hours and support continuous operation for 24 hours
11. This motor is suitable for a variety of micro-automation equipment. As long as you confirm that the motor voltage and torque of your choice are suitable for the voltage and load of your project before purchase, there is no limit to the scope of use of this motor.
For example, Production line ; Automatic washing machine ; Household appliances ; Smart device etc.
12. Friendly reminder
Recently, this motor is in the upgrade stage. There are some changes in the shape and color of the motor after the upgrade. However, the size and performance of the motor are unchanged.
Our warehouse will randomly send the motor, you may receive the motor before the upgrade, you may also receive the upgraded motor, please know before buying, thank you.
The following is the parameter table of the motor
Friendly reminder
Your project load should not exceed rated torque of the motor, otherwise the life of the motor will be reduced
The following is a description of the quality materials and structures of this motor.
1. The inner part of the motor is made of pure copper coil. It is more conductive, resistant to temperature and prolongs the life of the motor.
2. Imported high-quality double ball bearing increases the load force of the motor and reduces friction. The seal of this bearing is strong and the lubricating oil is prevented from flowing out.
3. High-quality rotor with bearing links at both ends for efficient overload resistance and stable operating temperature

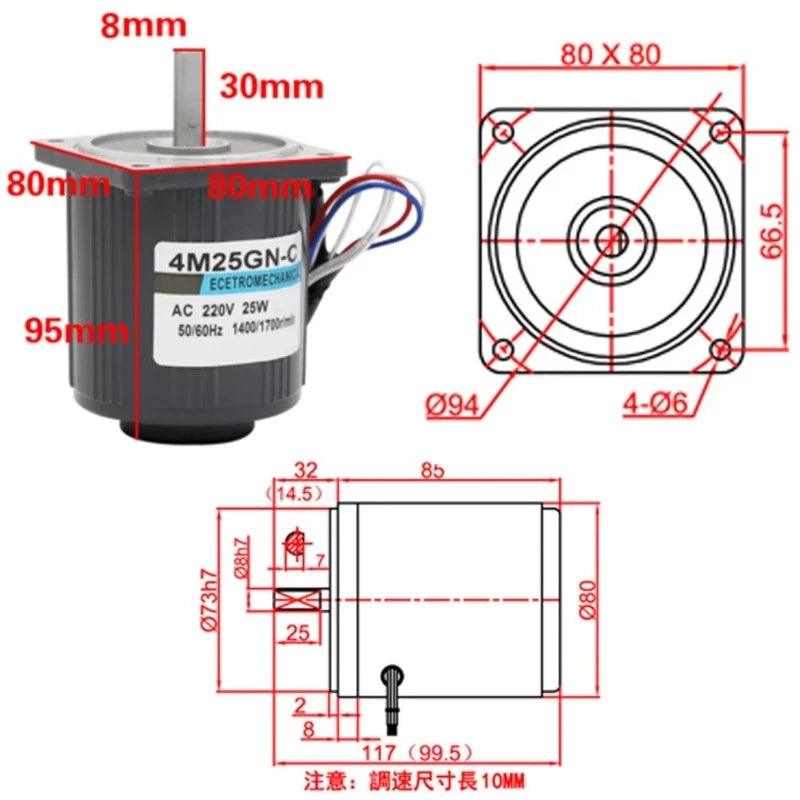

The size is for reference only the measurement will be slightly different,please pay attention before buying

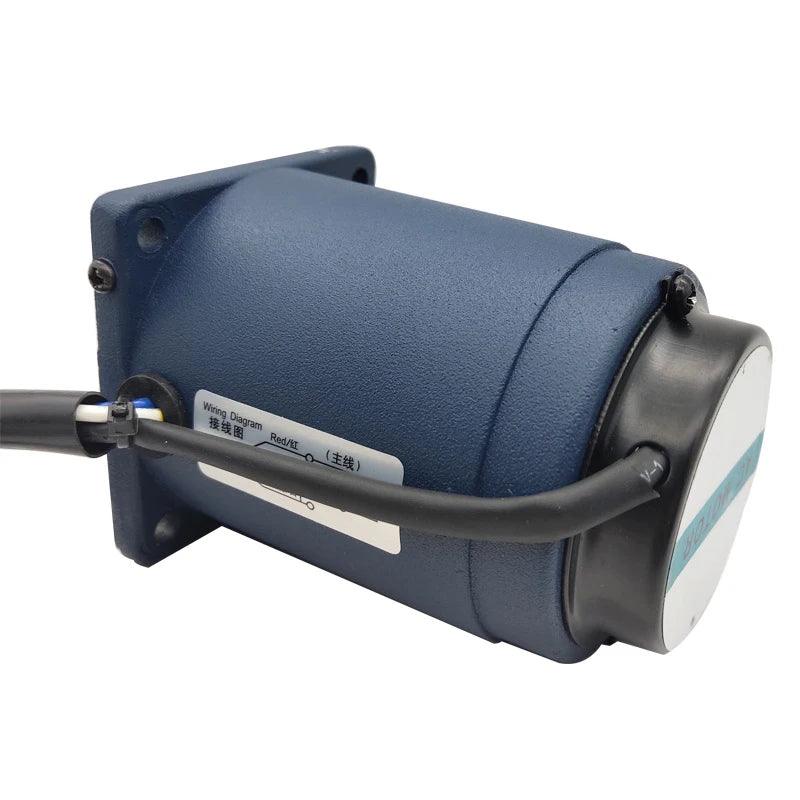

The following is the picture of the motor

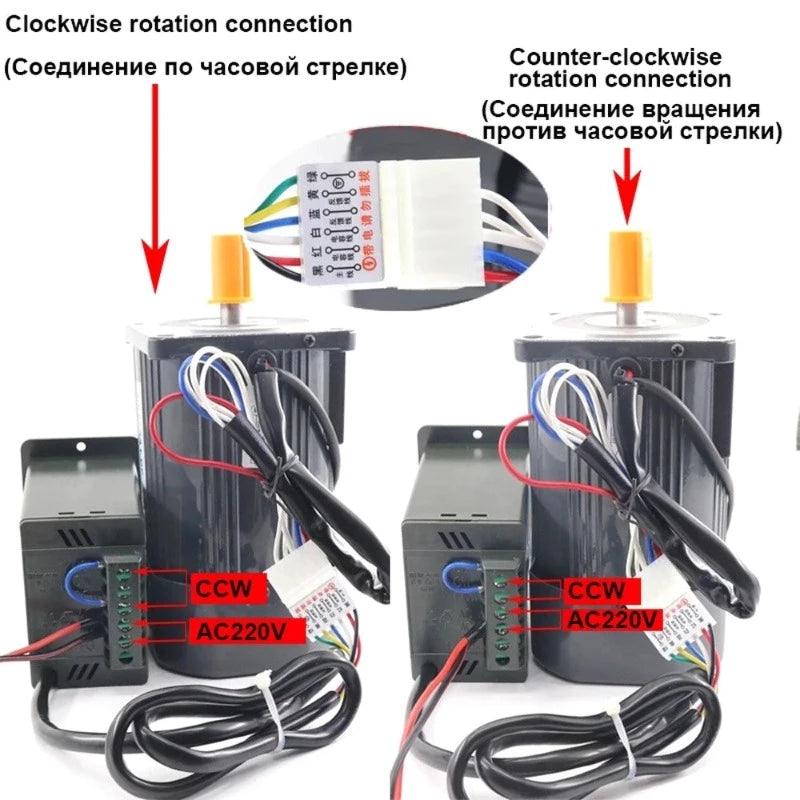

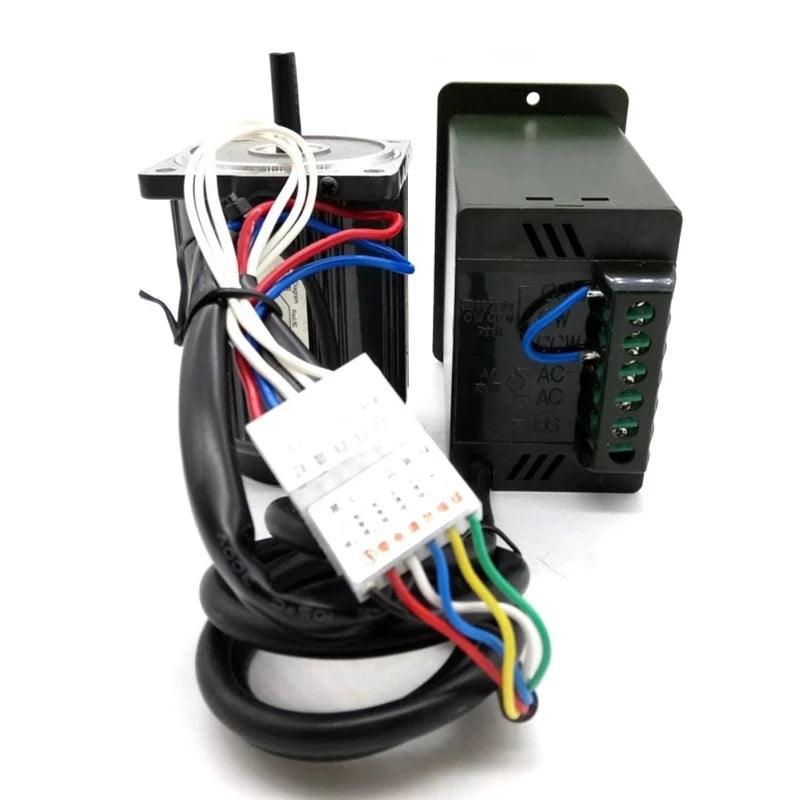

Motor and speed controller connection method
If you don't understand it, you can contact us.
Thanks
