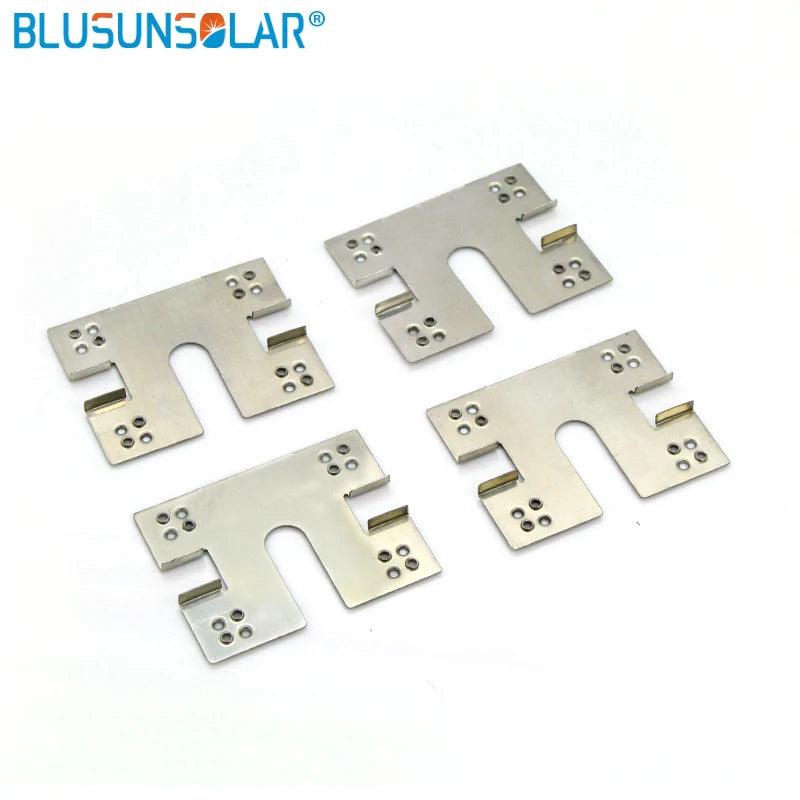

1000 PCS Solar Ground Grounding Clip for Solar Mounting System
Couldn't load pickup availability
SPECIFICATIONS
1000 PCS Solar Ground Grounding Clip for Solar Mounting System
Brand Name: BLUSUNSOLAR
Origin: Mainland China
Material: Other
DIY Supplies: Metalworking
Standard or Nonstandard: Standard
is_customized: Yes
Model Number: Grounding Clip
Structure: Other
Usage: Other
Dimension: 48(L)x38(D)x27(H)mm
Z-Style Material: Aluminum
screws Material: stainless steel
use for: solar panel mounting
Size: Standard
Pay attention please
1.A lot = 1000 pcs.
2.Gross weight:10 KG
3.Material: 304 stainless steel
The grounding clip is designed to bond solar PV modules to mounting structures and create an electrical path to ground.
It eliminates the need for older, more costly grounding methods and greatly reduce the amount of labor and materials used in installations.
The innovative design removes the need to run ground wire to each individual module and eliminates the need for surface preparation on anodized aluminum components.
To install, the grounding clips are placed between PV modules and mounting rails at clamping points or at bolted connections.
When anti-seize is applied and the hardware is tightened down to the appropriate torque spec, the grounding clips' specialized teeth embed into anodized aluminum, galvanized steel, or any electrically conductive metal to establish a gas tight electrical connection.
