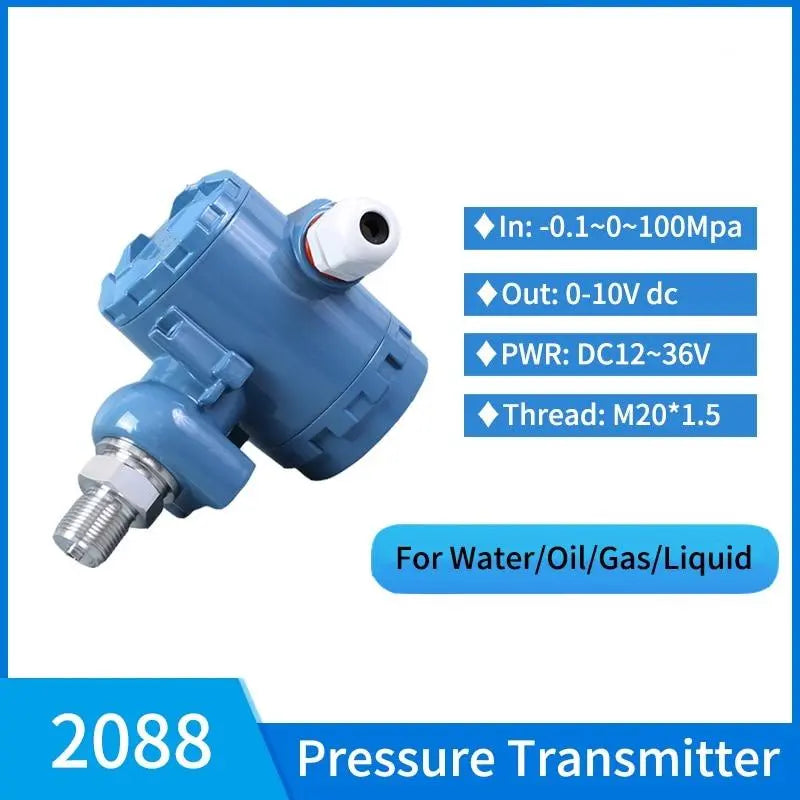

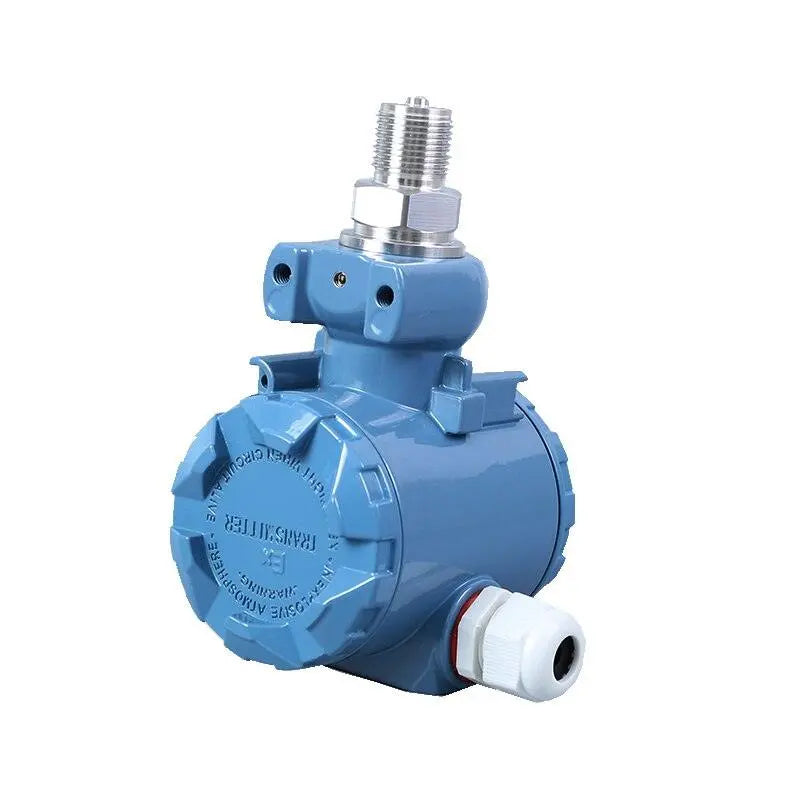

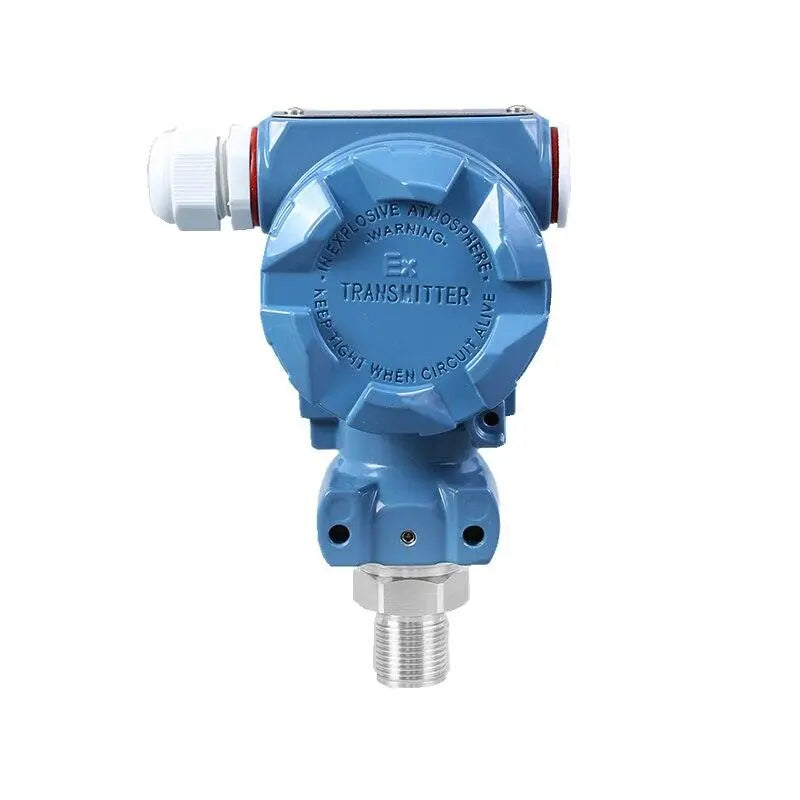

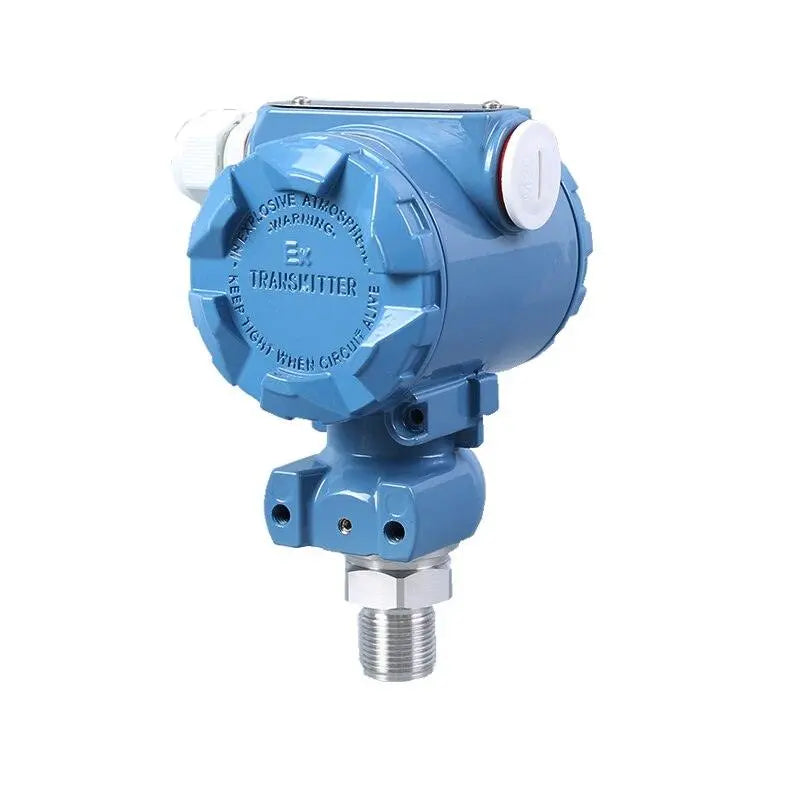

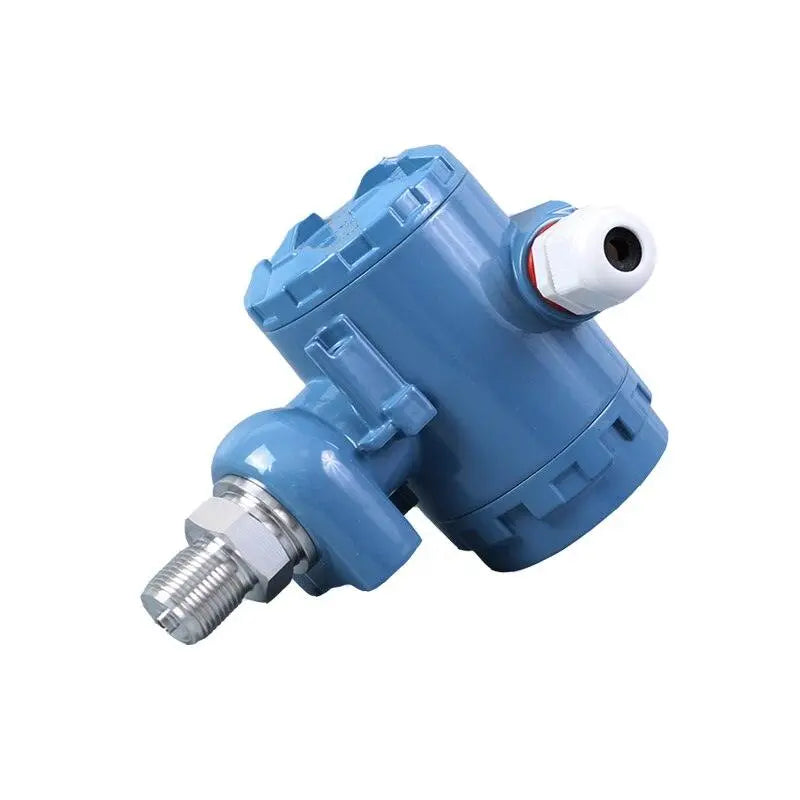

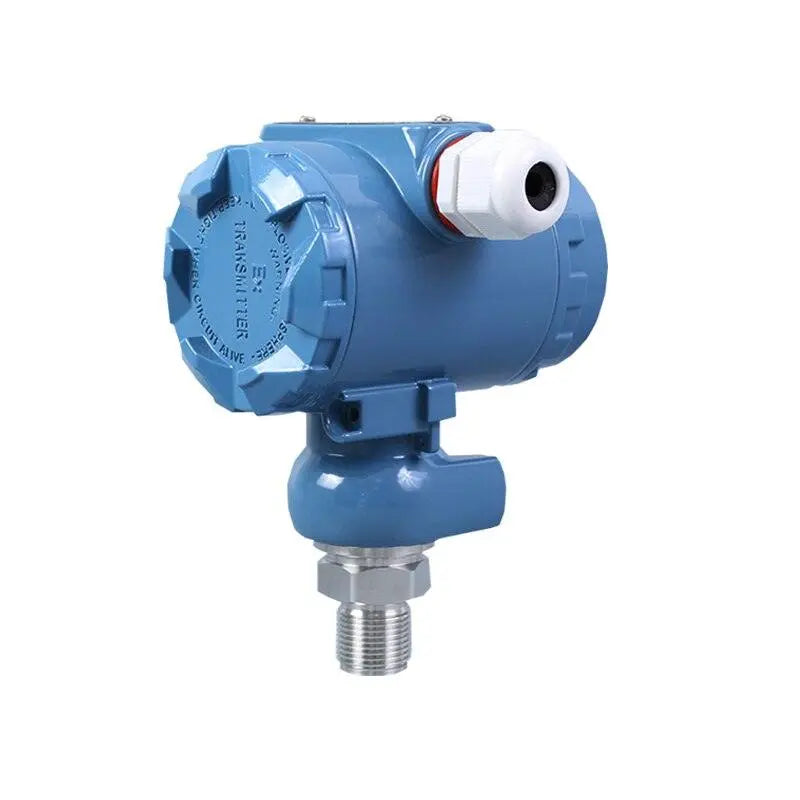

0-10 bar Absolute 0-10V Static Pressure Sensor Pneumatic Pressure Transducer Hydraulic Oil Pressure Transmitter 0-60Mpa
Couldn't load pickup availability
SPECIFICATIONS
0-10 bar Absolute 0-10V Static Pressure Sensor Pneumatic Pressure Transducer Hydraulic Oil Pressure Transmitter 0-60Mpa
Sensor: Diffusion silicon chip
Product name: Pressure transmitter
Power supply: DC24V
Output signal: 0-10V dc
Origin: Mainland China
Model Number: ELPT400
Measure range: -0.1~0~100MPa
Max Measuring Range: 400 Bar & Above
Material: Stainless Steel
Connection thread: M20*1.5
Certification: CE,FCC,RoHS
Brand Name: KEJUN
Accuracy: 0.2%FS
0-10 bar Absolute 0-10V Static Pressure Sensor Pneumatic Pressure Transducer Hydraulic Oil Pressure Transmitter 0-60Mpa
2088 PRODUCT DATA SHEET DOWNLOAD
Notes:
What we can make:
1. Available measuring range: any range within -0.1Mpa~0~100Mpa (-1bar~0~1000bar).
2. Available output signal: 4~20mA, 0-10V, 0-5V, 0.5~4.5V, RS485.
3. Available power supply: 12~30Vdc, 24Vdc, 12Vdc
4. Available thread: M20*1.5, G1/2, G1/4, NPT1/2, NPT1/4, etc
So: if you need other parameters, please contact me.
And tell me the measuring range, output signal, power supply, thread size.
We can make special customization for you.
