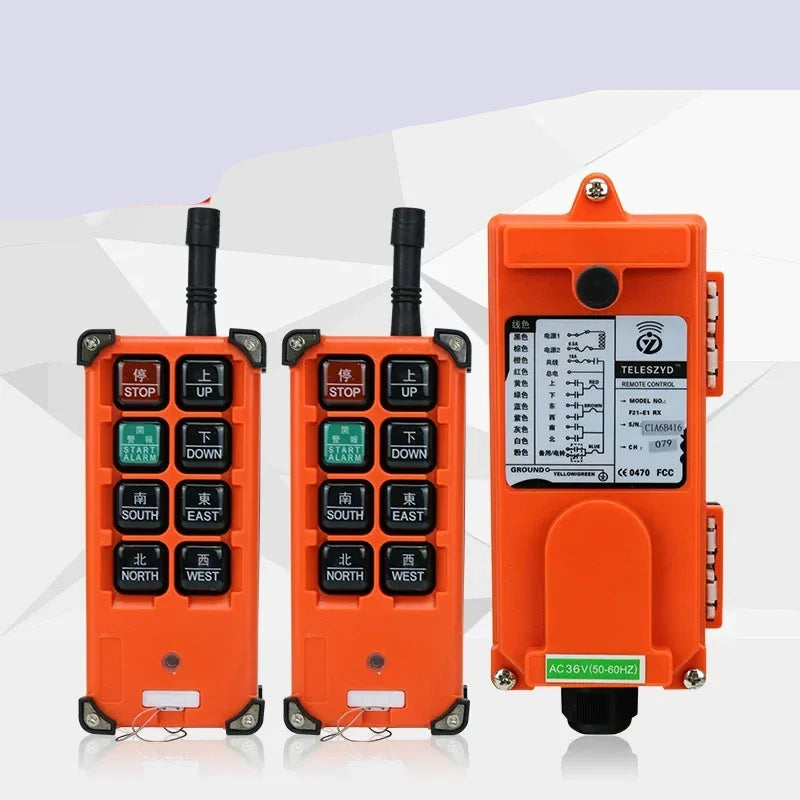

F21-E1B Industrial Wireless Radio Remote Control | Telecrane Overhead Crane, Hoist, Lift Controller Transmitter & Receiver Kit
Product Overview
F21-E1B industrial radio remote controller is a classic universal lifting remote for overhead cranes, electric hoists, gantry lifts and industrial material handling equipment. It provides reliable long-distance wireless control with two optional internal circuit designs: Crystal Oscillator Version and E-Card Plug-in Version, to meet different workshop anti-interference and maintenance demands.
Two Core Circuit Versions
1) Crystal Oscillator Version
Adopts a 3-board crystal oscillator circuit design. Multiple remotes can work simultaneously in one workshop without signal conflict or interference. Supports PC data reading, transmitter matching and copy functions for batch configuration.
2) E-Card Plug-in Version
Exclusive detachable E-card stores all encoding data. If the transmitter is damaged or lost, simply remove the E-card and insert it into a new transmitter for automatic pairing, greatly simplifying on-site maintenance and replacement.
Key Features
- 8 functional buttons: 6 single-speed directional keys + Start key + Emergency Stop key
- Built-in anti-interference antenna, fast signal transmission, 360° omni-directional control up to 120m in open space
- 32-bit unique security code (4.3 billion combinations) to avoid cross-operation between devices
- Built-in key lock switch to prevent unauthorized operation
- Low battery voltage alert; auto power-off to guarantee operation safety
- Reinforced glass fiber nylon shell, shockproof, rainproof and dustproof with IP65 protection rating
- Equipped with anti-collision corner pads to resist drop damage
- Wide operating temperature range: -40°C ~ +85°C
- Multiple receiver voltage options: 24V / 36V / 48V / 220V / 380V
Complete Technical Parameters
Transmitter (F21-E1B)
- Model: F21-E1B
- Housing: Glass fiber reinforced nylon
- Protection Class: IP65
- Frequency Band: VHF 310-331MHz / UHF 425-446MHz
- Transmit Power: ≤10dBm
- Power Supply: 2 x AA alkaline batteries
- Security Code: 32-bit (4.3 billion unique groups)
- Control Distance: Max 120m open area
- Operating Temp: -40°C ~ +85°C
Receiver (F21-E1B RX)
- Model: F21-E1B Receiver
- Housing: Glass fiber reinforced nylon
- Protection Class: IP65
- Frequency Band: VHF 310-331MHz / UHF 425-446MHz
- Sensitivity: ≤10dBm
- Input Voltage: 18-65V (24V/36V/220V/380V optional)
- Operating Temp: -40°C ~ +85°C
- Wiring: High-purity copper control cables
Available Configurations
- Single transmitter only
- 1 Transmitter + 1 Receiver (24V / 36V / 48V / 220V / 380V)
- 2 Transmitters + 1 Receiver (24V / 36V / 220V / 380V)
- 3 Transmitters + 1 Receiver (36V / 380V)
Wide Application Scenarios
Overhead cranes, gantry cranes, electric hoists, construction machinery, lifting platforms, hydraulic equipment, truck tail lifts, rescue cranes, conveyor belts, industrial rolling doors, automated robots and industrial control systems.
Specification
| Attribute Name | Value |
|---|---|
| Product Model | F21-E1B |
| Brand | Telecrane / Yuding |
| Product Type | Industrial Wireless Remote Controller |
| Control Version | Crystal Oscillator Version, E-Card Plug-in Version |
| Button Quantity | 8 Buttons (6 directional + Start + Emergency Stop) |
| Protection Grade | IP65 Waterproof, Dustproof, Shockproof |
| Max Control Distance | 120 Meters (Open Area) |
| Frequency Range | VHF 310-331MHz, UHF 425-446MHz |
| Receiver Voltage Options | 24V, 36V, 48V, 220V, 380V |
| Shell Material | Glass Fiber Reinforced Nylon |
| Operating Temperature | -40°C ~ +85°C |
| Matching Combinations | Single Transmitter, 1T+1R, 2T+1R, 3T+1R |
| Core Advantage | Anti-interference signal, easy maintenance, 32-bit safety encryption |
| Applicable Equipment | Overhead Crane, Electric Hoist, Lifting Machine, Industrial Automation Equipment |
