F24-12D / F24-12S Industrial Wireless Remote Control | Single & Dual Speed

Product Overview

• F24-12S: 12 single-speed buttons for simple single-speed lifting equipment
• F24-12D: 11 dual-speed buttons with light-press low speed / heavy-press high speed one-touch dual-speed control, perfect for variable frequency cranes

Core Difference Between 12S & 12D

1. F24-12S: 12 independent single-speed push buttons, each output single speed signal
2. F24-12D: Special dual-speed metal contact buttons; light press = low speed, hard press = high speed, realize dual-speed control with one single button
3. Long service life: Dustproof internal structure, 2.5N actuation force, up to 12 million zero-failure presses

Key Features

1. 11 functional control keys: Mushroom emergency stop + safety start key + auxiliary spare button

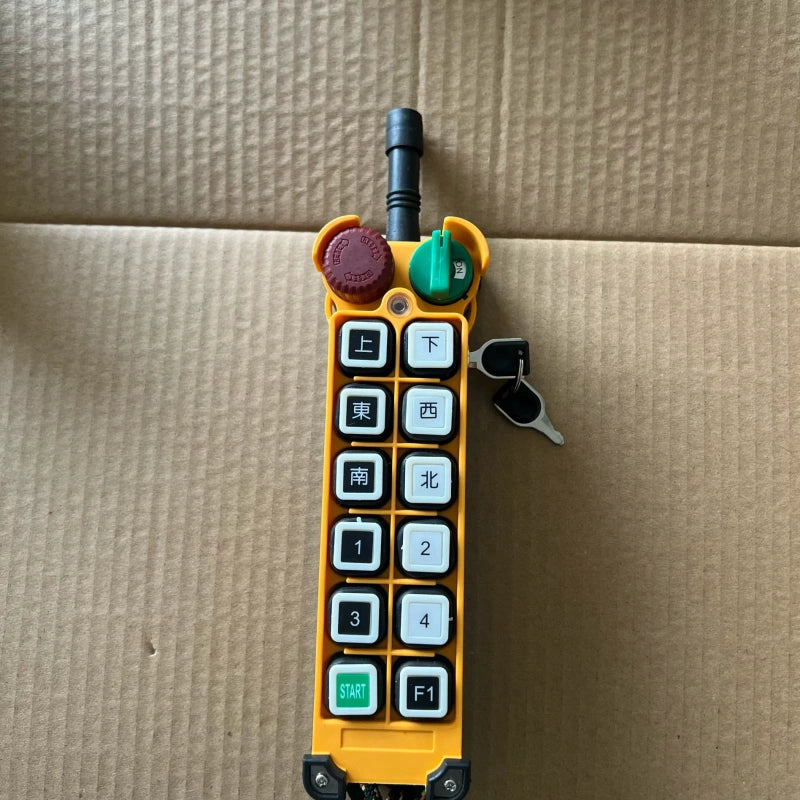

2. Standard large red mushroom emergency stop knob & green key lock switch; remote cannot operate after removing key to avoid unauthorized use
3. Built-in anti-interference antenna, fast signal transmission, stable 360° control up to 120m in open space
4. Multi-function indicator lights with flash alert for signal & low battery status
5. Customizable button logic and functions via PC software
6. Low battery voltage reminder; auto power cut-off to guarantee operation safety
7. Up to 20 independent control points to support multi-group motor synchronous control
8. Reinforced anti-collision corner pads to resist drop and impact damage
9. IP65 waterproof, dustproof & shockproof glass fiber reinforced nylon housing
10. Wide operating temperature range: -40°C ~ +85°C
11. Multiple receiver voltage options: 24V / 36V / 48V / 220V / 380V

Complete Technical Parameters

Transmitter (F24-12S / F24-12D)

• Model: F24-12S (Single Speed) / F24-12D (One-Touch Dual Speed)
• Housing Material: Glass fiber reinforced nylon
• Protection Class: IP65
• Frequency Band: VHF 310-331MHz / UHF 425-446MHz
• Transmit Power: ≤10dBm
• Power Supply: 2 x AA alkaline batteries
• Security Code: 32-bit (4.3 billion unique encryption groups)
• Max Control Distance: 120 meters in open area
• Operating Temperature: -40°C ~ +85°C

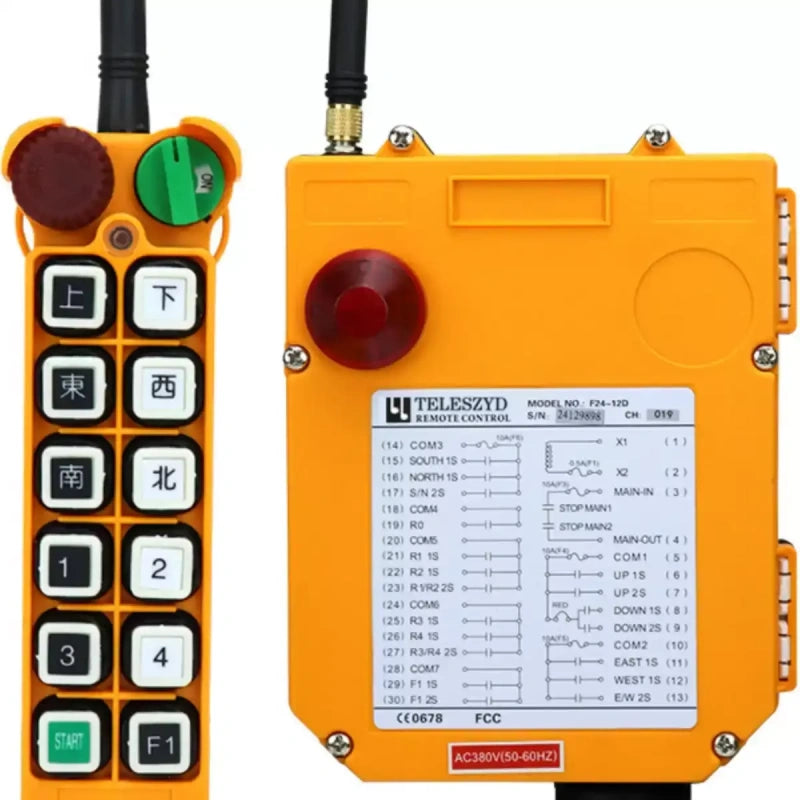

Receiver (F24-12S / F24-12D RX)

• Model: F24 series matching receiver
• Housing Material: Glass fiber reinforced nylon
• Protection Class: IP65
• Frequency Band: VHF 310-331MHz / UHF 425-446MHz
• Receiving Sensitivity: ≤10dBm
• Input Voltage: 18-65V, optional 24V/36V/48V/220V/380V
• Control Cable: High-purity copper wiring harness
• Operating Temperature: -40°C ~ +85°C

Available Configuration Kits

F24-12S Single Speed Series

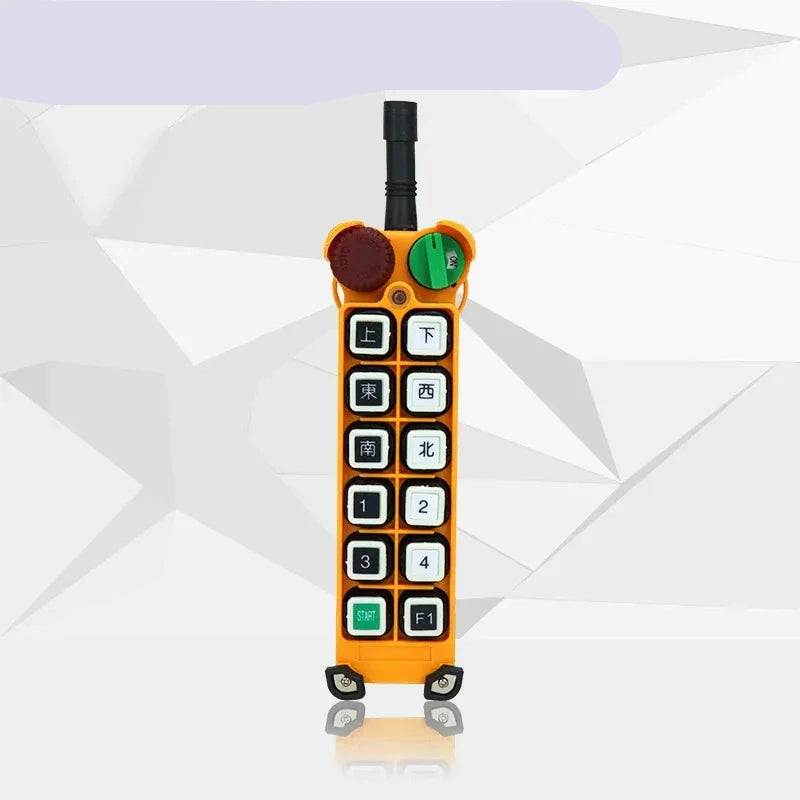

1. Single transmitter only

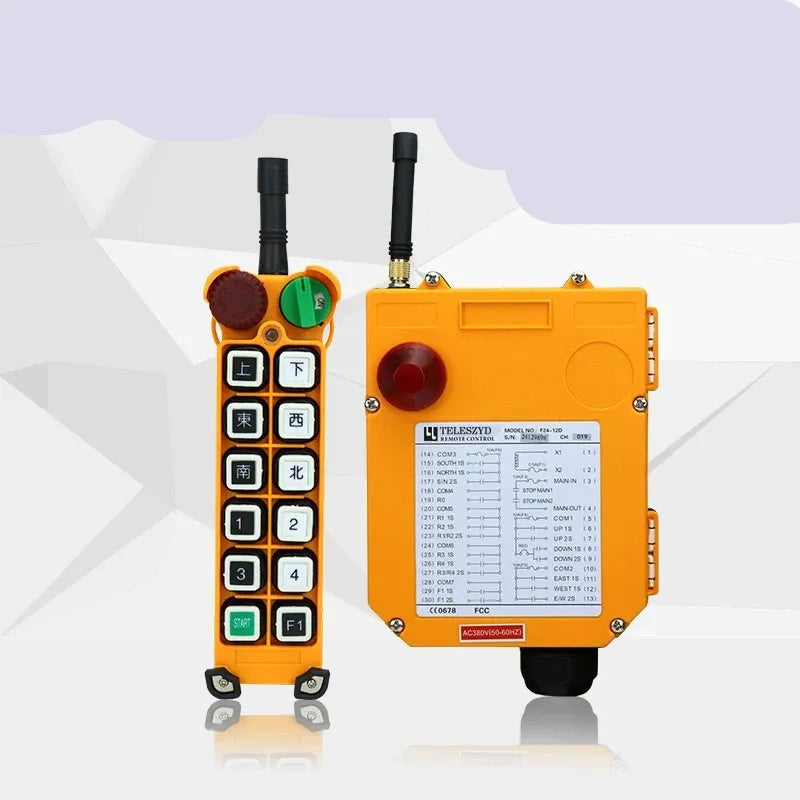

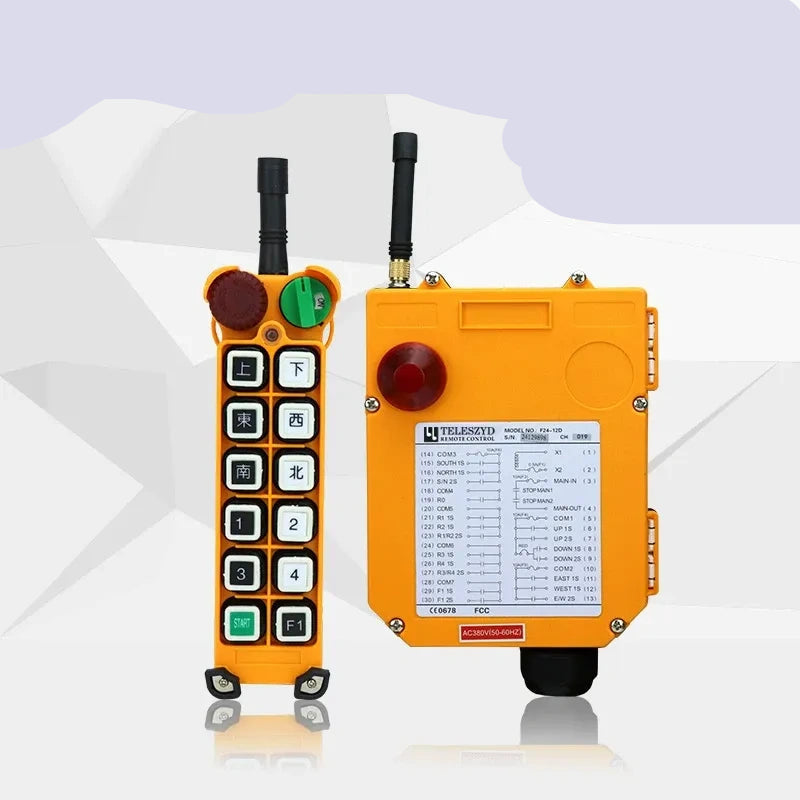

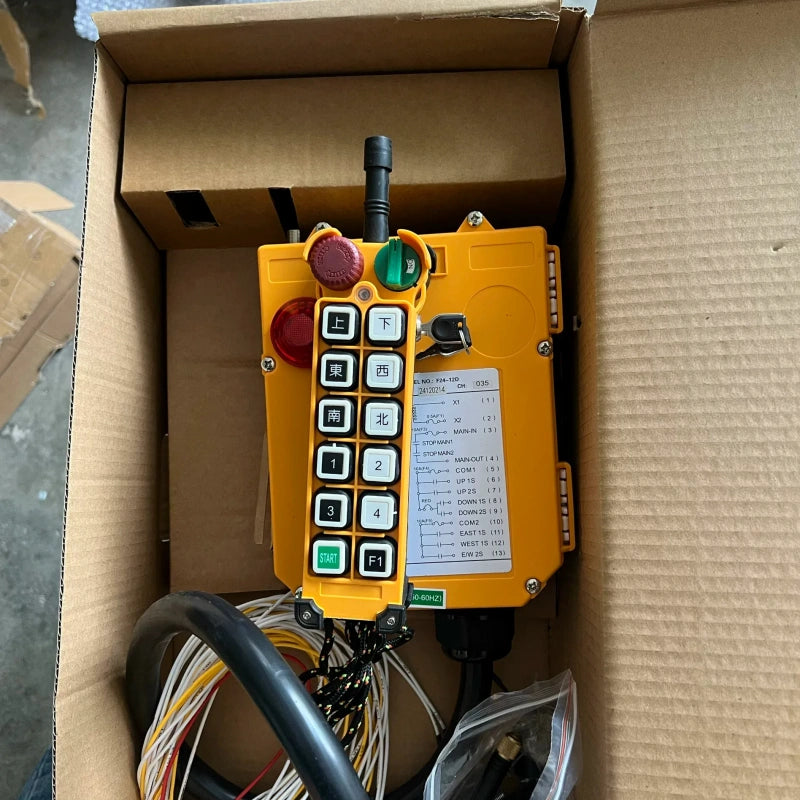

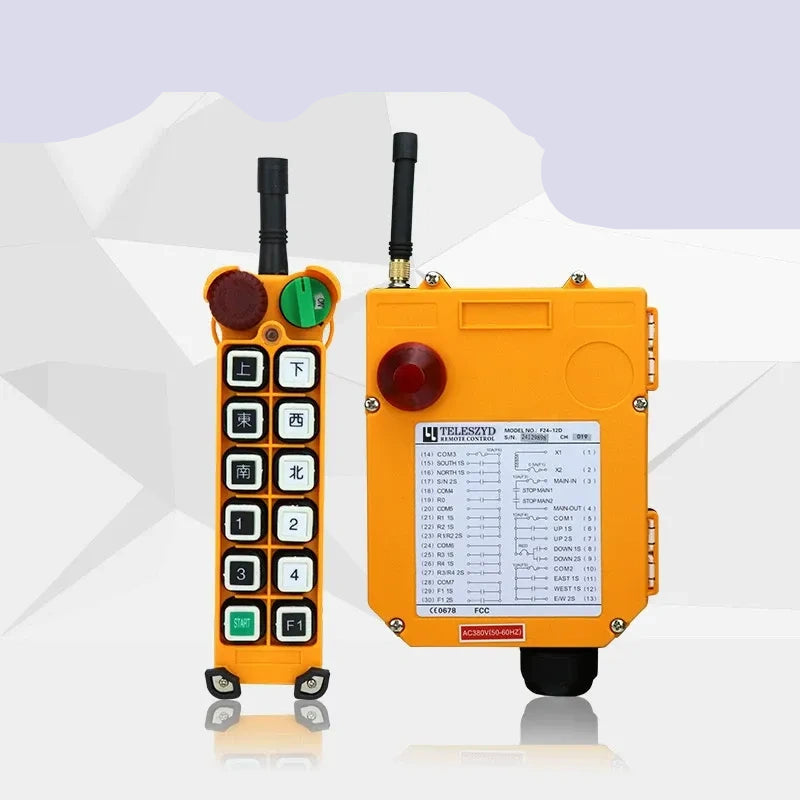

2. 1 Transmitter + 1 Receiver: 24V / 36V / 48V / 220V / 380V

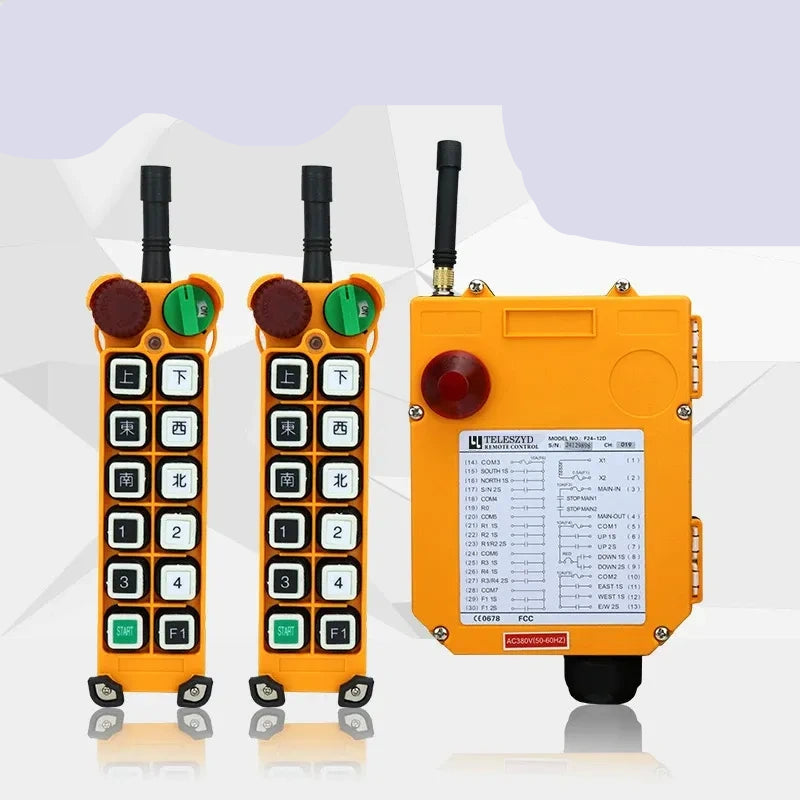

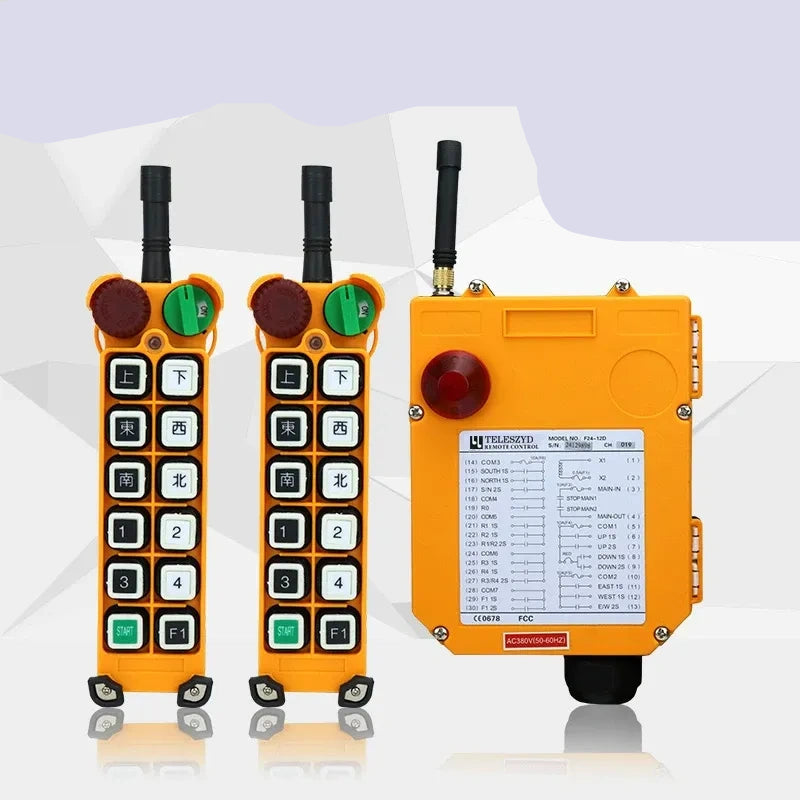

3. 2 Transmitters + 1 Receiver: 24V / 36V / 48V / 220V / 380V

F24-12D Dual Speed Series

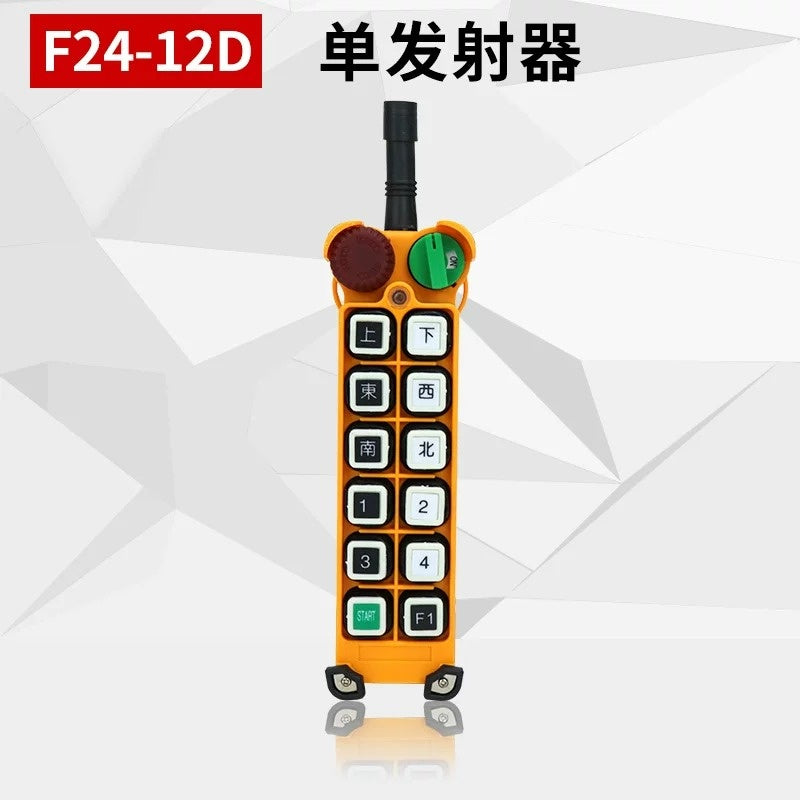

1. Single transmitter only

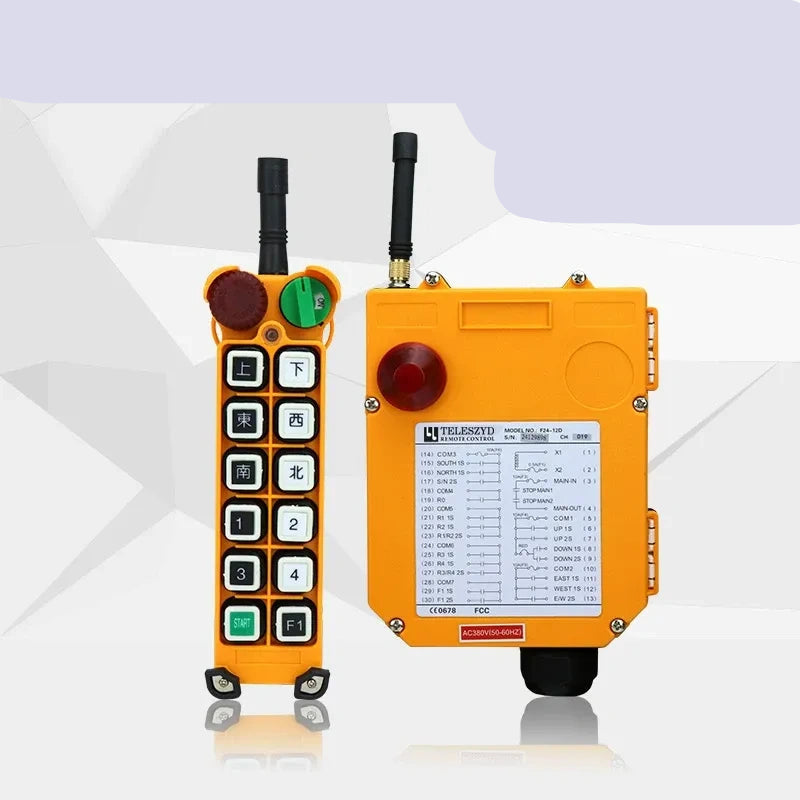

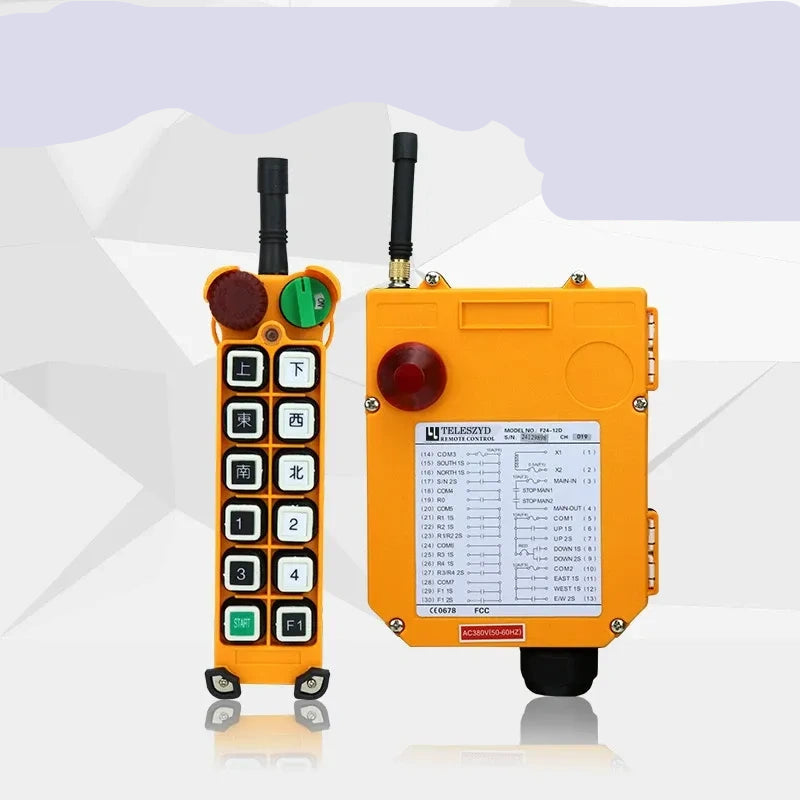

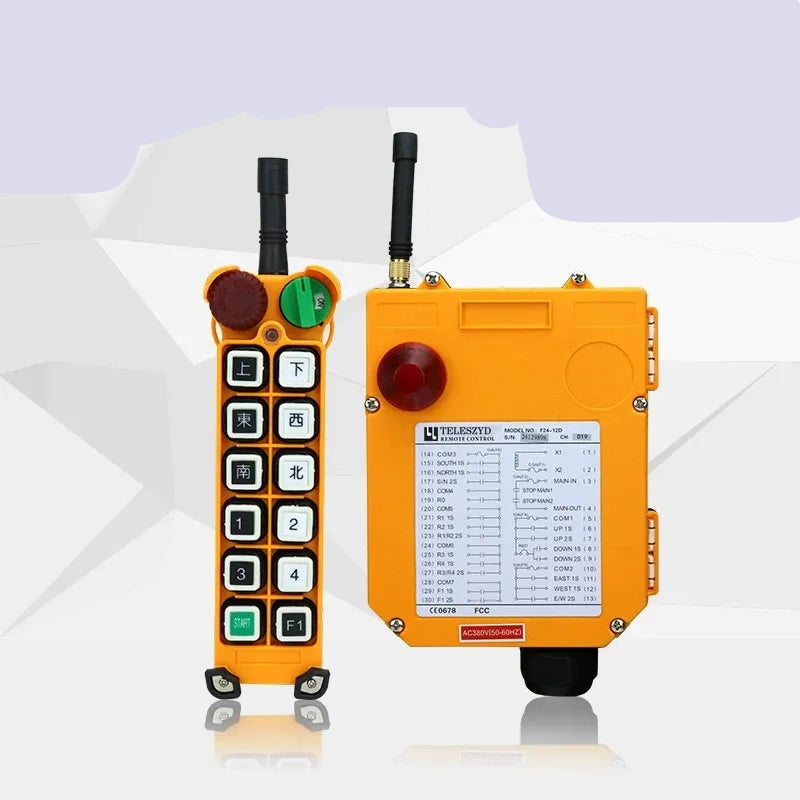

2. 1 Transmitter + 1 Receiver: 24V / 36V / 48V / 220V / 380V

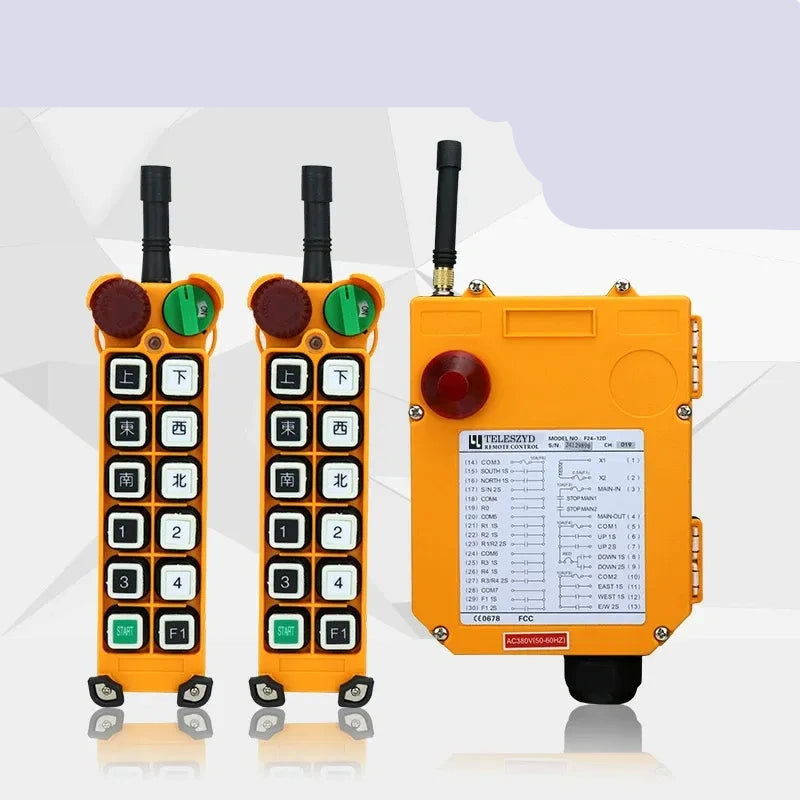

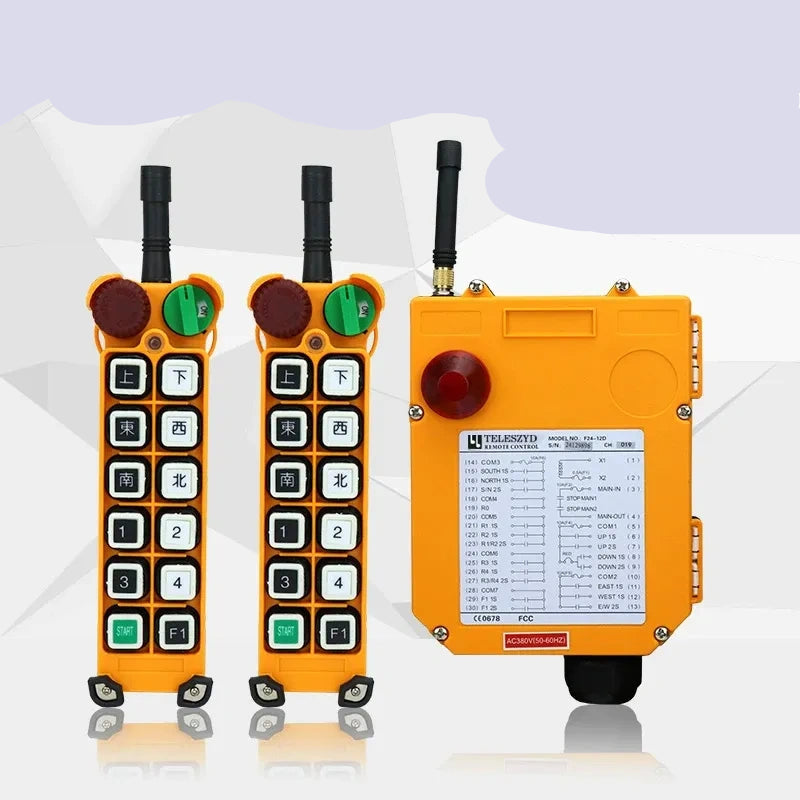

3. 2 Transmitters + 1 Receiver: 24V / 36V / 48V / 220V / 380V
