F23-A++ Industrial Wireless Radio Remote Control | Dual Speed Overhead Crane Hoist Transmitter Receiver Kit for Traveling Lifting Machinery
Product Overview
F23-A++ is the most popular dual-speed industrial wireless remote controller for overhead cranes, electric hoists and lifting equipment. It supports single-speed & dual-speed motor control, compatible with MD double-speed hoists and all traveling cranes with less than 11 control contacts. Two internal circuit options (Crystal Oscillator Version / E-Card Plug-in Version) are available to meet different factory anti-interference and maintenance demands.
Two Circuit Versions
Crystal Oscillator Version
Classic 3-board crystal circuit design. Multiple remotes can operate simultaneously in one workshop without signal conflict or cross-interference. Supports PC data reading, transmitter matching and copy functions for mass configuration.

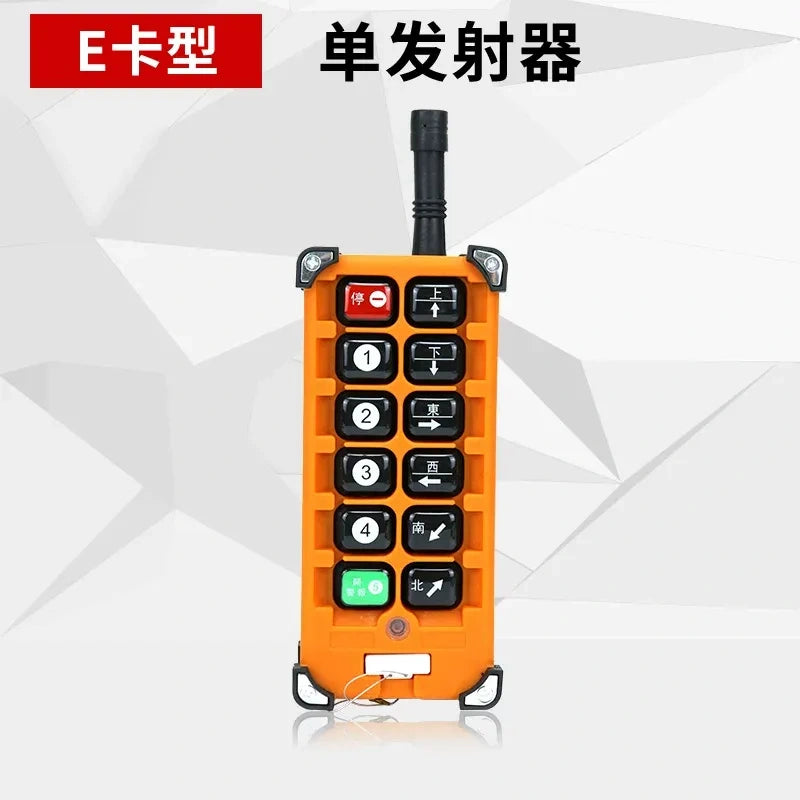

E-Card Plug-in Version
Detachable E-card stores all encoding data. If the transmitter is damaged or lost, just move the E-card into a new transmitter for automatic pairing, greatly simplifying on-site replacement & maintenance.
Core Features
- 8 functional buttons: 6 directional dual-speed keys + Start button + Emergency Stop button
- Built-in anti-interference antenna, fast signal transmission, stable 360° control up to 120m in open space
- Customizable button functions via PC software
- Built-in key lock switch; remote stops working after key removal to avoid unauthorized operation
- Low battery voltage alert, auto power-off to guarantee operation safety
- 8 independent control channels for multi-motor lifting equipment
- Reinforced anti-collision corners to resist drop & impact damage
- IP65 waterproof, dustproof & shockproof glass fiber nylon housing
- Wide operating temperature: -40°C ~ +85°C
- Multiple receiver voltage options: 24V / 36V / 220V / 380V
Technical Parameters
Transmitter F23-A++
- Model: F23-A++ Transmitter
- Shell Material: Glass fiber reinforced nylon
- Protection Grade: IP65
- Frequency Band: VHF 310-331MHz / UHF 425-446MHz
- Transmit Power: ≤10dBm
- Power Supply: 2 x AA alkaline batteries
- Security Code: 32-bit (4.3 billion unique groups)
- Max Control Distance: 120 meters open area
- Operating Temp: -40°C ~ +85°C
Receiver F23-A++ RX
- Model: F23-A++ Receiver
- Shell Material: Glass fiber reinforced nylon
- Protection Grade: IP65
- Frequency Band: VHF 310-331MHz / UHF 425-446MHz
- Receiving Sensitivity: ≤10dBm
- Input Voltage: 18-65V (24V/36V/220V/380V optional)
- Control Wire: High-purity copper cables
- Operating Temp: -40°C ~ +85°C
Available Assembly Configurations
Crystal Oscillator Series
- Single transmitter only

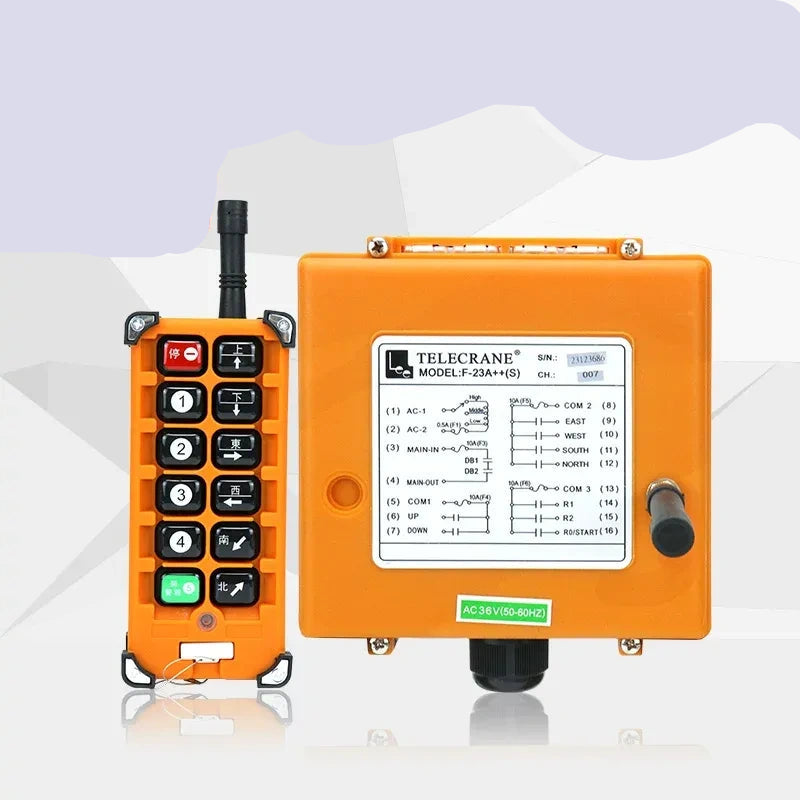

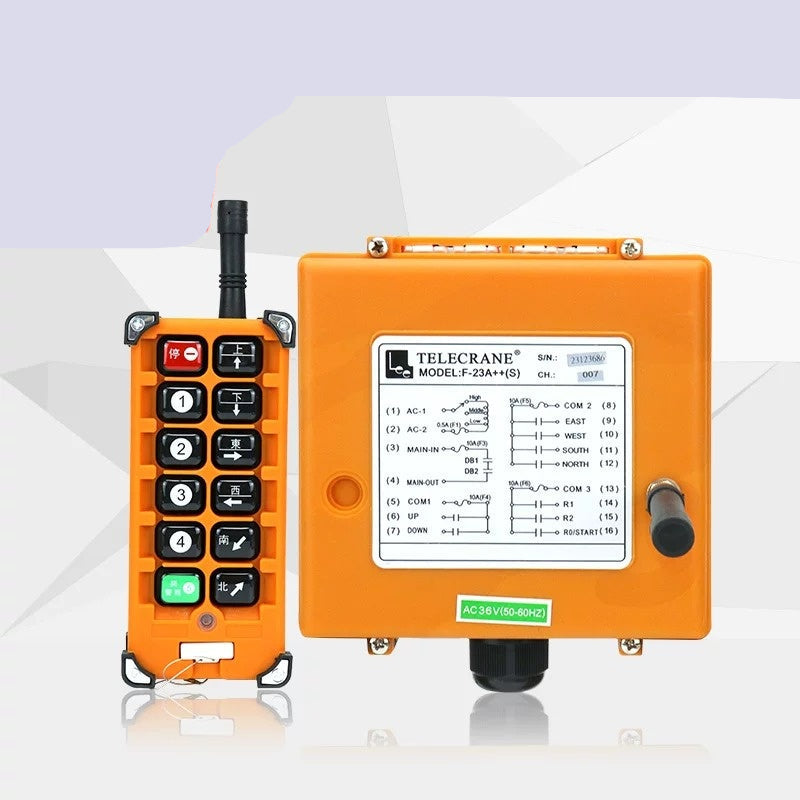

- 1 Transmitter + 1 Receiver: 36V / 220V / 380V

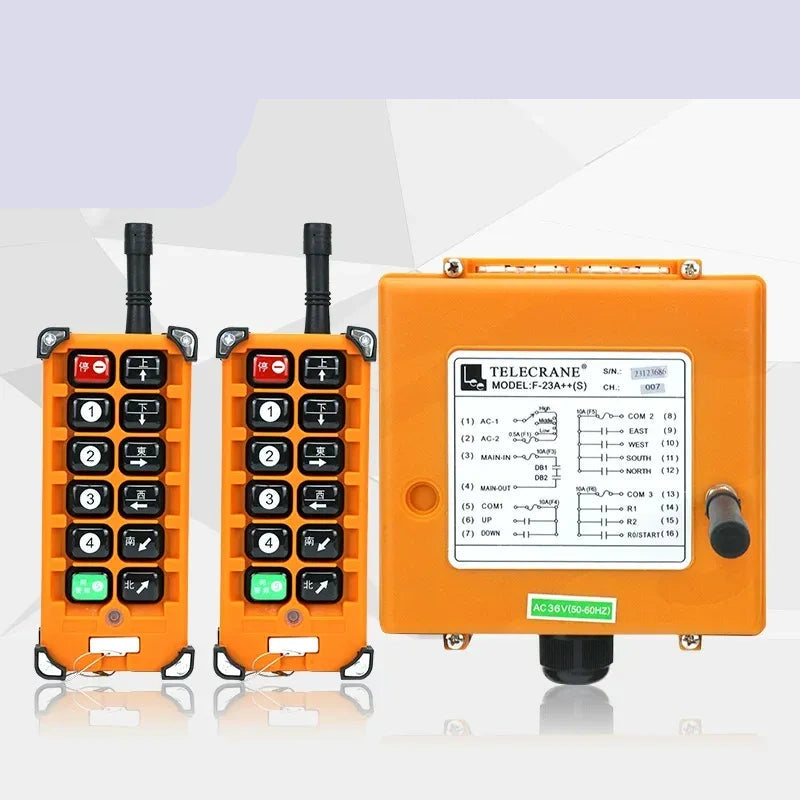

- 2 Transmitters + 1 Receiver: 36V / 220V / 380V
E-Card Plug-in Series
- Single transmitter only

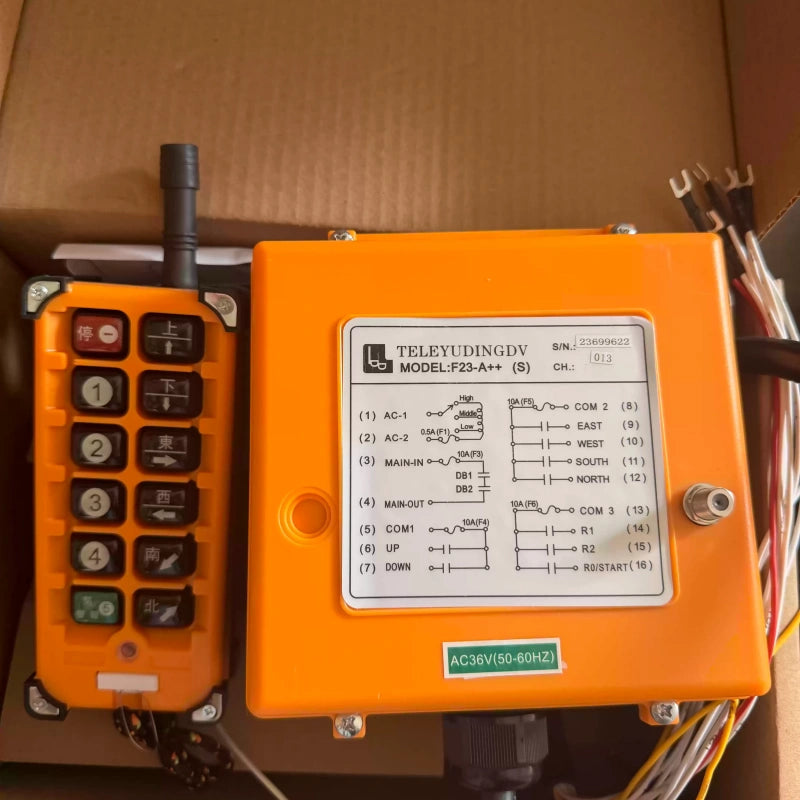

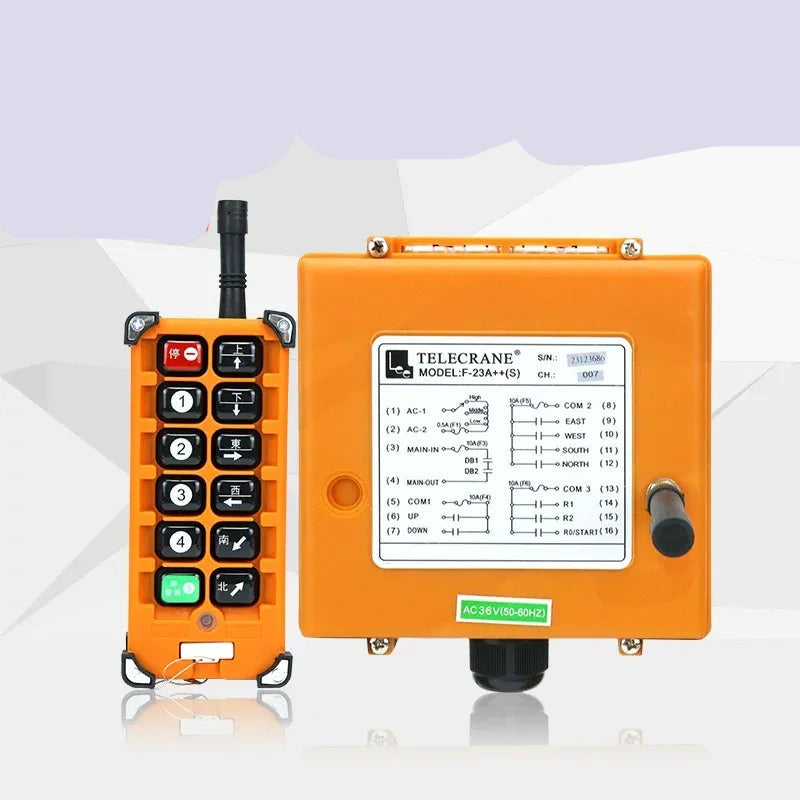

- 1 Transmitter + 1 Receiver: 36V / 220V / 380V
- 2 Transmitters + 1 Receiver: 36V / 220V / 380V
Application Scenarios
Specially designed for MD double-speed electric hoists, overhead travelling cranes, gantry cranes, construction lifting machinery and industrial control systems within 11 control contacts.
Specification
| Attribute Name | Value |
|---|---|
| Model Number | F23-A++ |
| Brand | Telecrane / Yuding |
| Product Type | Industrial Dual Speed Wireless Remote Controller |
| Circuit Type | Crystal Oscillator Version, E-Card Plug-in Version |
| Buttons | 8 Keys (6 dual-speed directional + Start + Emergency Stop) |
| Protection Rating | IP65 Waterproof, Dustproof, Shock Resistant |
| Max Control Range | 120 Meters (Open Environment) |
| Frequency | VHF 310-331MHz, UHF 425-446MHz |
| Optional Receiver Voltage | 24V, 36V, 220V, 380V |
| Shell Material | Glass Fiber Reinforced Nylon |
| Temperature Range | -40°C ~ +85°C |
| Matching Kits | Single Transmitter, 1T+1R, 2T+1R |
| Core Advantage | Dual speed control, anti-interference signal, key lock safety design |
| Compatible Equipment | MD Double Speed Electric Hoist, Overhead Crane, Travelling Lifting Machine |
